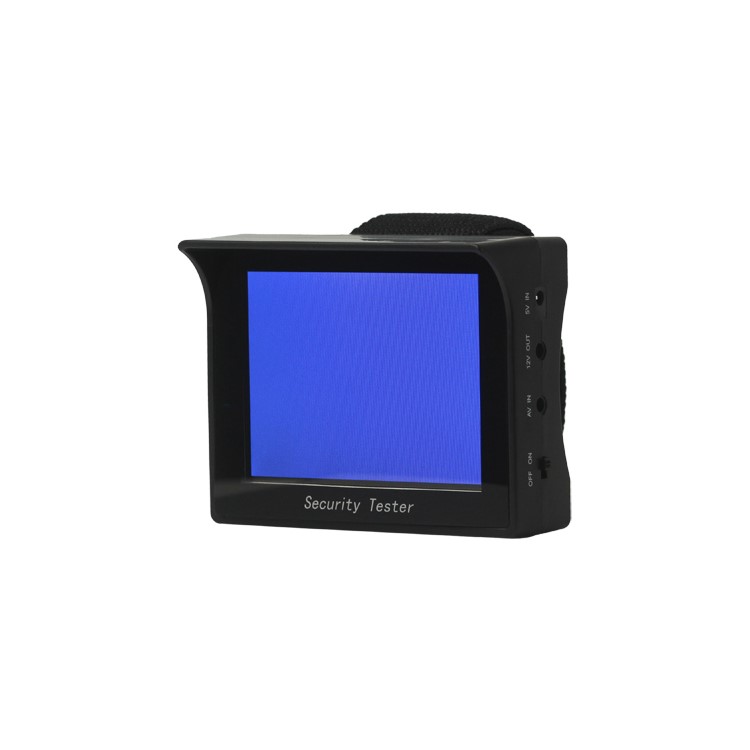

3.5-inch TFT LCD Monitor CCTV DVR Security Camera Video Tester Test Tool
The security tester enables user to inspect and correct camera or confirm installation. It is a type of product that summarizes views of first-line safety engineers and it is developed specially for technical personnel to debug the front camera conveniently.
- 3.5-inch high image resolution monitor enable to show clear image that fits any place to use
- PAL / NTSC standard Automatic Identification
- Audio and video input
- Hand-hold design for professionals
- Support DC Power for camera

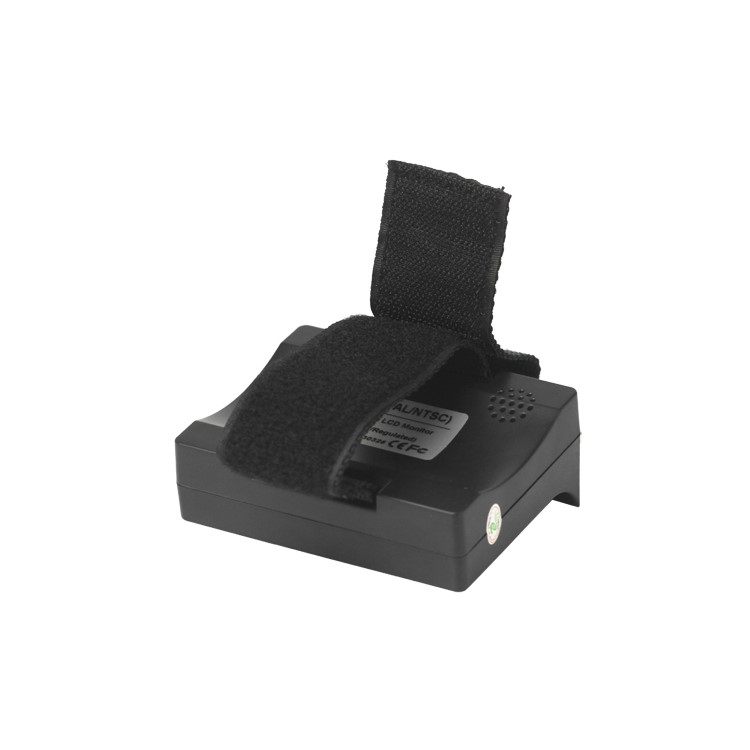

How to use: - At first, please tie the wrist strap to the wrist or fixed bracket.
- Power-on: turn the power switch to the ON position and the power indicator lights up. In case of non-video, it will be blue screen. After accessing to video, images can be displayed properly.
- Power-off: turn the power switch to the OFF position directly.

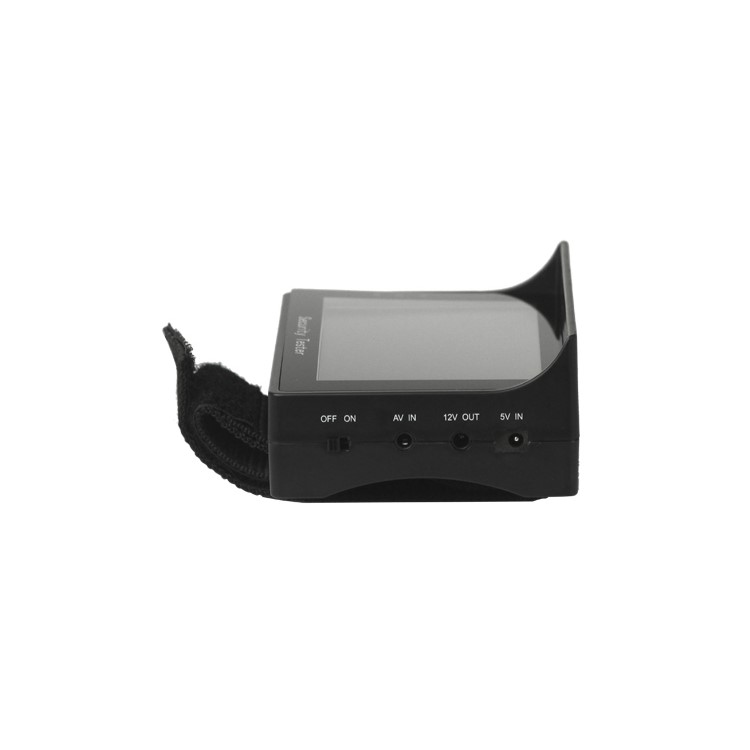

- Access to audio and video: insert 3.5MM plug of audio and video lines directly into audio interfaces, connecting the other end to the camera. In case of power-on, you can observe video image directly. The audio is built in amplifier, so it can be directly connected to the monitor or other audio suppliers, and then you can hear the sound from the speakers.
Specification:
| Display | 3.5'' TFT Color LCD |
| Image Resolution | 960 X 240 |
| Video in | Video in x 1 (A/V IN connector) |
| Power out | DC Power x 1 (Support CCD camera of power source/ Max electric currency 350mA) |
| System Format | PAL/NTSC |
| Status Indicator | 3 LED (Red Power Indicator; Red Charging indicator; 12V OUT) |
| Interface | OSD Power |
| Power Source | Built-in rechargeable Lithium battery: 3.7V 1600mA |
| Power Source | External power: DC 5V 1.0A Adapter |
| Dimension/Weigth | 93mm(L) x 75mm(W) x 40mm(H) / 150g |

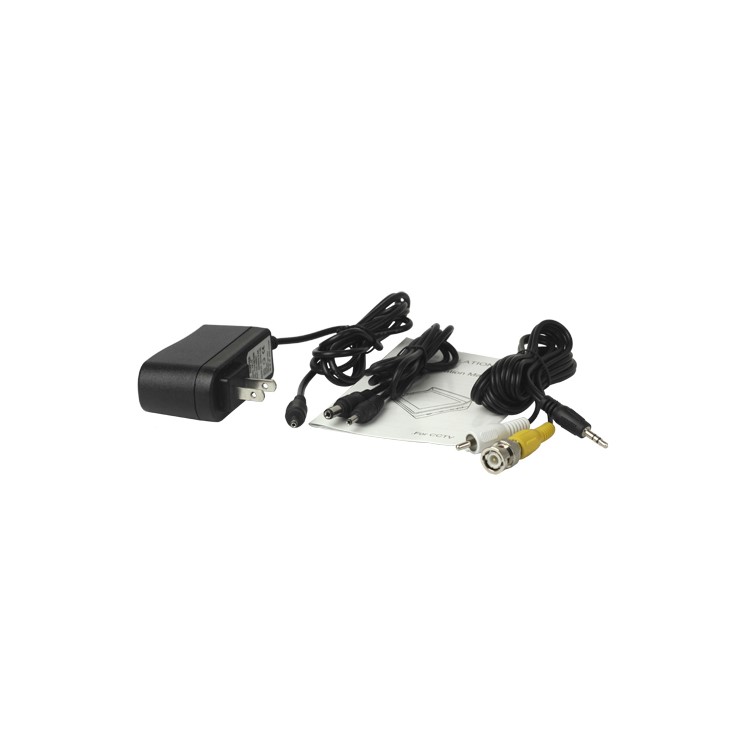

Package included: - 1 x Security Camera Video Tester
- 1 x CCD Power Cord
- 1 x A/V Cable
- 1 x DC Power Adapter
- 1 x English-Chinese User's Manual
