4 ports HDMI Splitter with amplifier

4 ports HDMI Splitter with amplifier

Application:

• Splitter from 4 digital-video(DVI) or digital-audio video (HDMI) Sources
• Digital players,satellite receivers,set-top boxes
• Digital projectors
• Audio video receivers
• Other HDMI-enabled devices

Features:

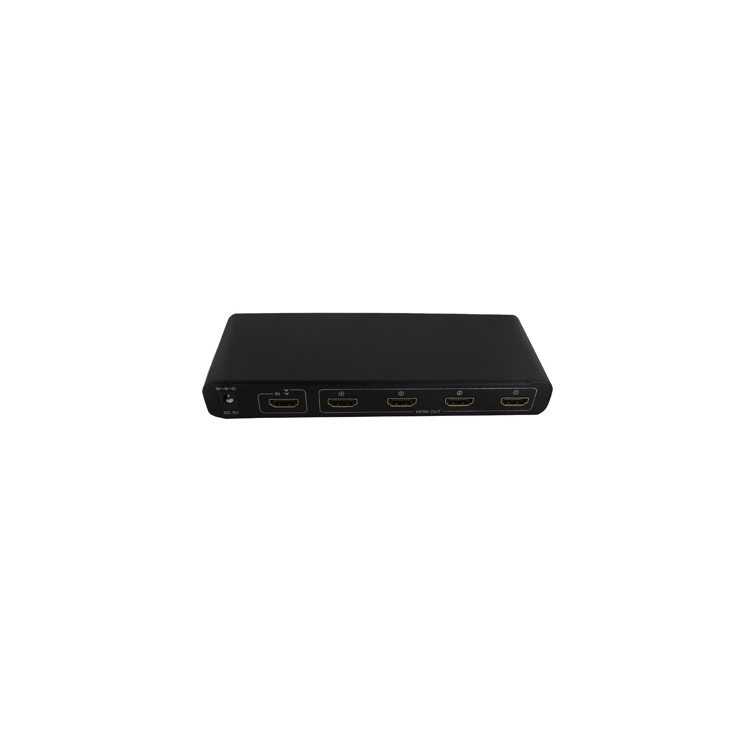

• 1 input and 4 outputs
• Approved by HDMI attached lab
• Fully support 1080p HDTV
• HDCP compliant
• Support DTS,Dobby,7.1 channel audio
• Gold plated connector
• Cable fixing bolt for long cable
• Plug & play
• Amplifier and Equalizer function for exten ding the HDMI cable
• Rack mounting kit and wall mounting kit version

Specification:

• HDMI source input port:1
• Display device output port:4
• source port connector:19 pin HDMI
• Display device port connector:19 pin HDMI
• HDCP compliant:yes
• Device port LED:5
• Single link range:1920*1200
• Video bandwidth:up to 4.95Ghz
• Vertical frequency range:60/85Hz
• Power consumption(max):5 watts
• Operation temperature:0 to 70
• Power adapter:5v 500mA
• HDMI Ver 1.3:1.3
• Dimenshion(mm):180*65*25

Colors Available :

Package Includes :Color Box

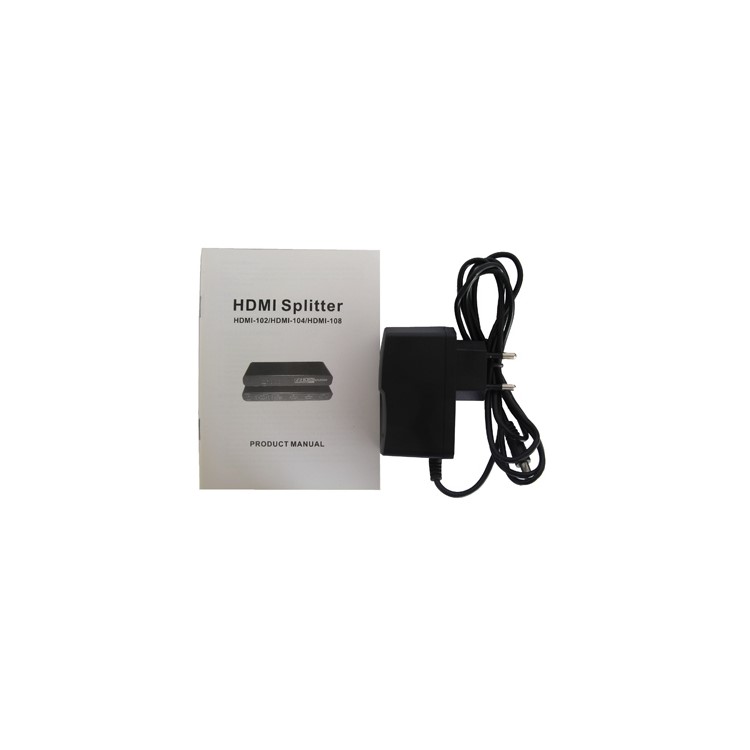

Package Includes:User Manual, Charger

Packing Information :

• Q'ty/Carton : 20 pcs
• Carton G.W : 15.000 kgs
• Carton Size : 48.000 * 38.000 * 38.000 cm
