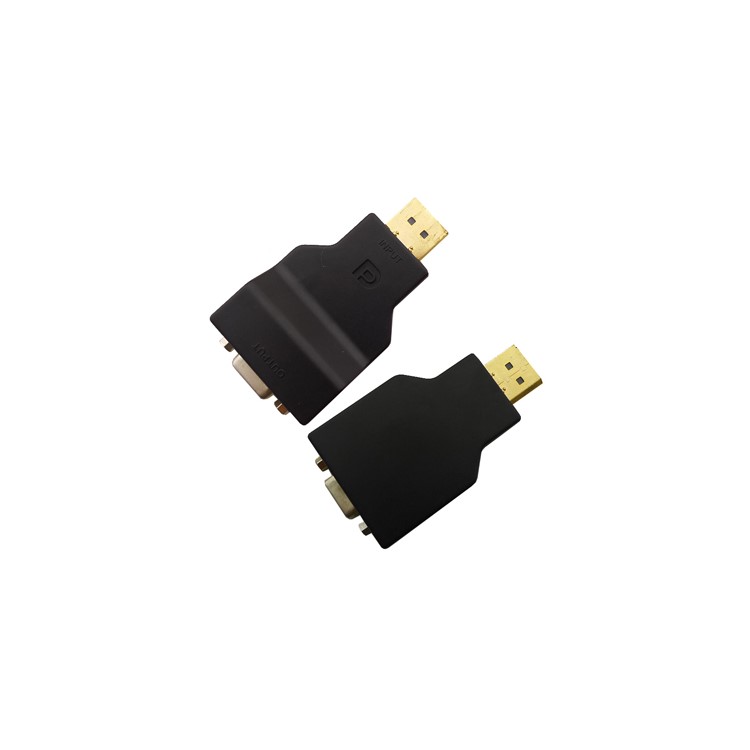

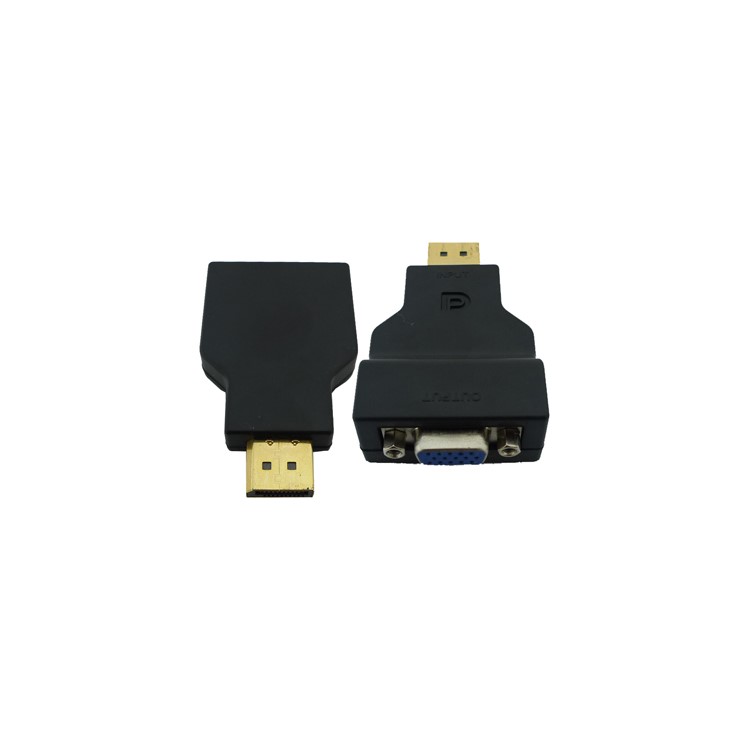

Special Adapter from Display to VGA Female

Display Port Male to VGA Female Adapter

• DisplayPort to VGA Adapter
• DP to VGA for Mac,apple
• Support the one lane,one direction,four-line connection
• CE,FCC,UL,RoHS
• DisplayPort to VGA Adapter
• The displayport to VGA converter converts your digital displayport signal to analog VGA signal
• This displayport to VGA converter has many features that enable it to perform in a superior manner

Display resolution upto:
1,920 x 1,200p (WUXGA-R), 60Hz, 8bpc: 154MHz
1,920 x 1,080p, 60Hz, 10bpc: 144MHz

• Displayport version 1.1: DP two lanes or DP one lane
• RGB analog video (VGA port) output: configured for 700mV voltage swing
• Automatic sink detection and standby mode
• Spread spectrum (de-spreading) for EMI reduction
• EDID pre-fetch (VGA EDID conversion)
• Sink detection based on DDC return

Colors Available :

Packing Information :

• Q'ty/Carton : 200 pcs
• Carton G.W : 8.000 kgs
• Carton Size : 30.000 * 25.000 * 25.000 cm
