12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420

Rate:
0
(0 reviews)
Item No.: 84990078A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 10.83 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Retail Packaging Colored Box
Gross Weight 0.207kg
Volume Weight 0.112kg
Length 14.500cm
Width 8.200cm
Height 4.200cm
Weight 0.185kg
With Retail Packaging Yes

Product Description

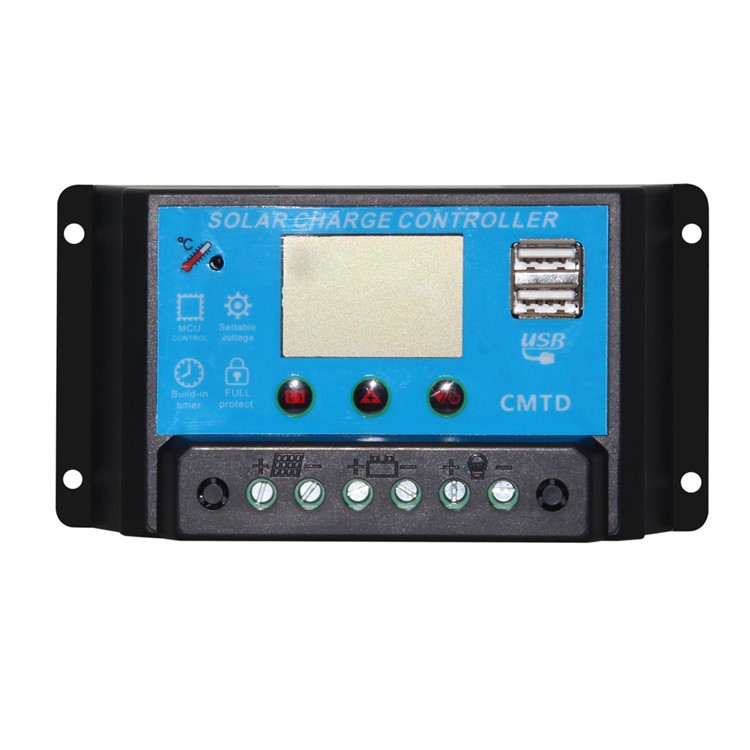

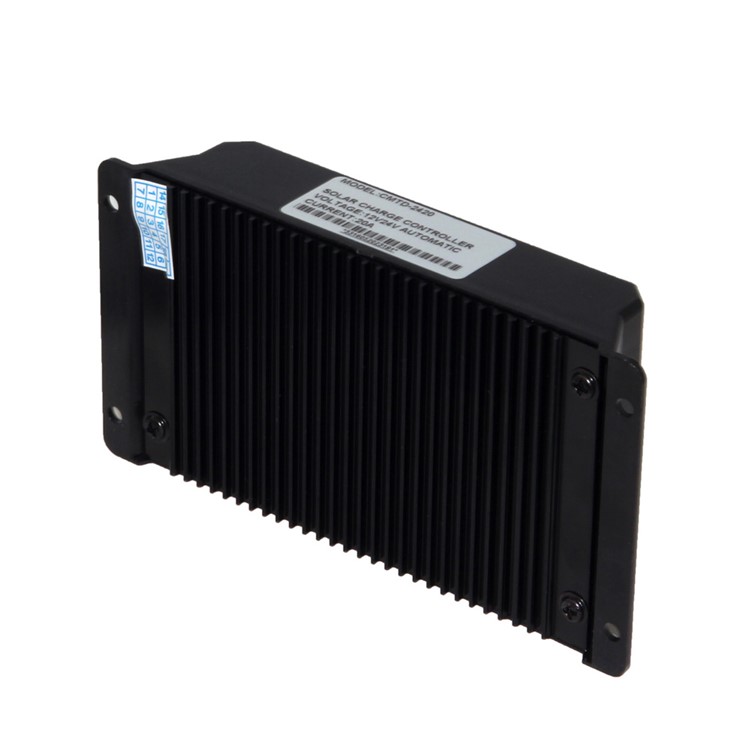

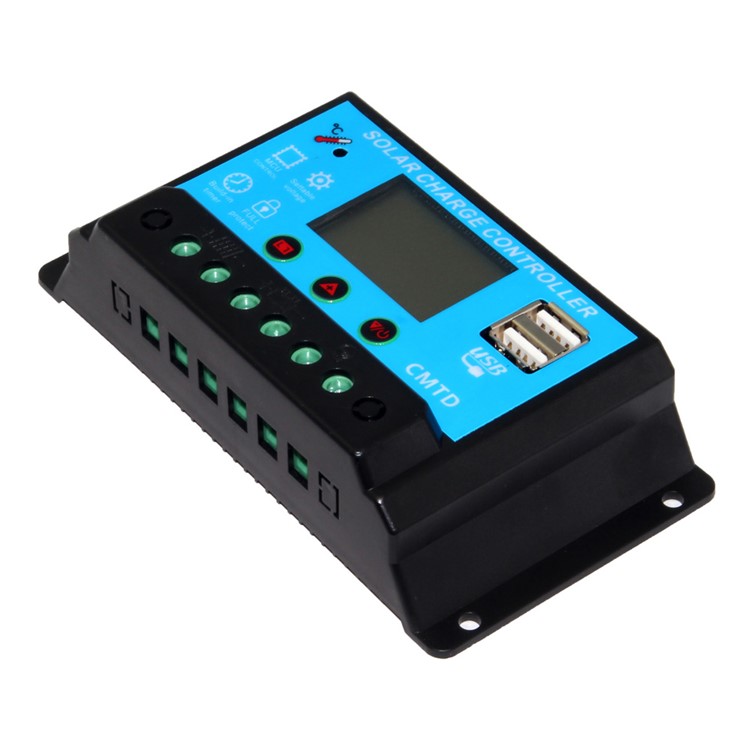

12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420

CMTD series solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. All the controlling parameters can be reset flexibly to satisfy your different needs.

  • Visual LCD graphic symbol

  • Automatic identification system voltage level

  • Adjustable charge-discharge control parameters

  • Multiple selection of battery

  • Battery low voltage protection

  • Overload & short circuit protection

  • Brief key operation

  • Intelligent PWM charge mode

  • Settable operating modes of loads

  • Battery over temperature protection

  • Battery reverses polarity protection

  • With Dual USB 5V output

Specification:

  • Model: CMTD-2420

  • Max charging current: 20A

  • Max discharging current: 20A

  • Rated voltage: 12V/24V Auto

  • Max solar panel input voltage: ≤50V

  • USB Output: 5V 2A

  • Power outage voltage: 12.6V (3 series lithium batteries); 14.7V; 29.4V

  • Under-voltage recovery voltage: 11.1V (3 series lithium batteries); 12.2V; 24.4V

  • Under-voltage protection voltage: 9V (3 series lithium batteries); 10.5V; 21V

  • Working Temperature: -20°C ~ +60°C

Package included:

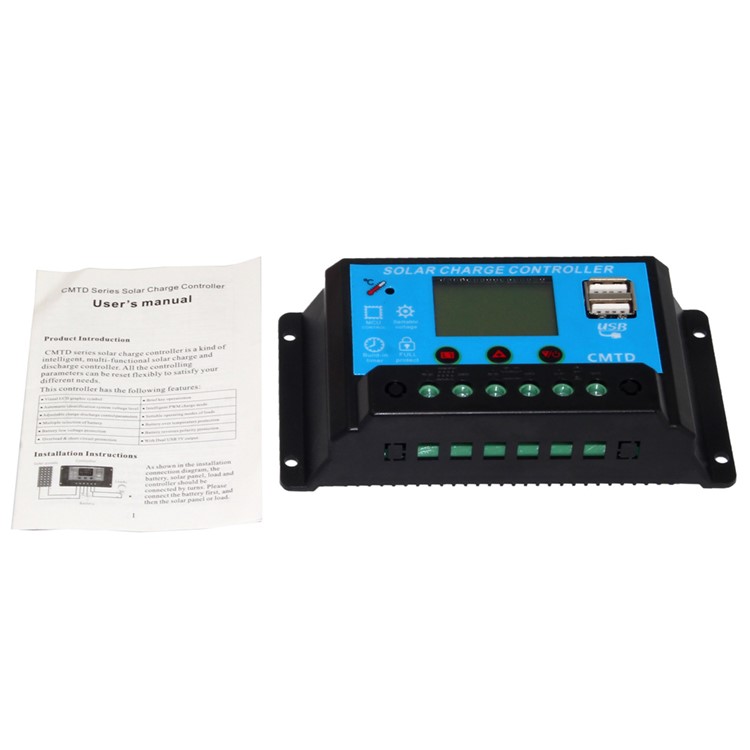

  • 1 x 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420
  • 1 x English User Manual
12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-1 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-2 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-3 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-4 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-5 12V/24V 20A Solar Panel Battery Regulator Charger Controller with Dual USB 5V Output CMTD-2420-6
