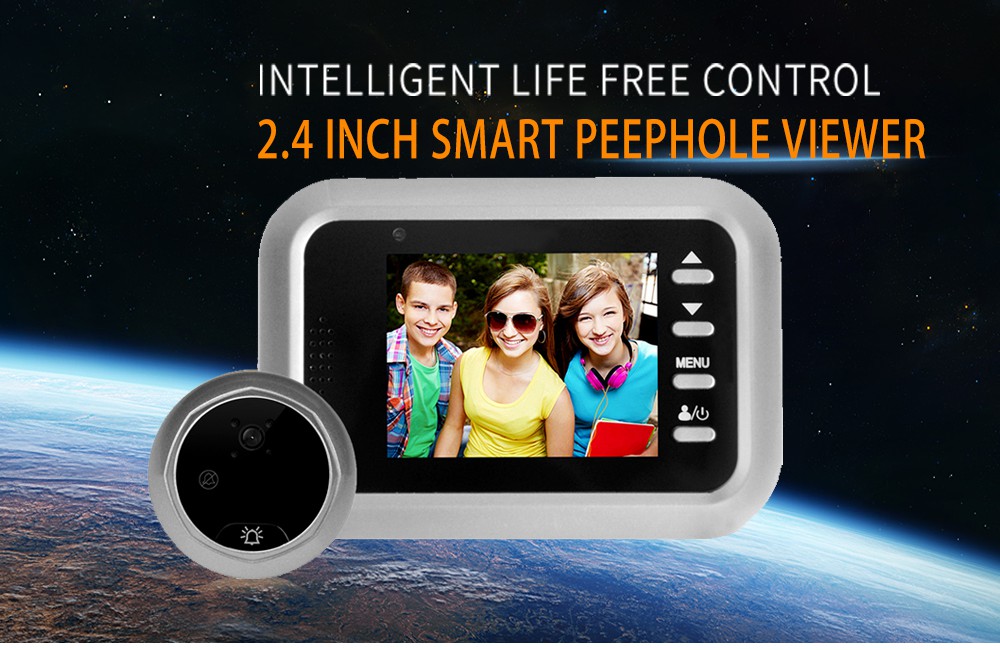

2.4-inch TFT Door Digital Peephole Doorbell Monitor Night Vision - Silver

Item No.: 643800012A | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $27.35
Color:
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Color Silver
Retail Packaging Paper Box
User Manual (Language) English and Chinese
Gross Weight 0.336kg
Volume Weight 0.226kg
Package Length 14.600cm
Package Width 9.200cm
Package Height 7.500cm
Package Weight 0.300kg

Product Description

2.4-inch TFT Door Digital Peephole Doorbell Monitor Night Vision - Silver
  • Smart digital door viewer, provides convenience for your life

  • 2.4 inch TFT LCD screen, clear identification

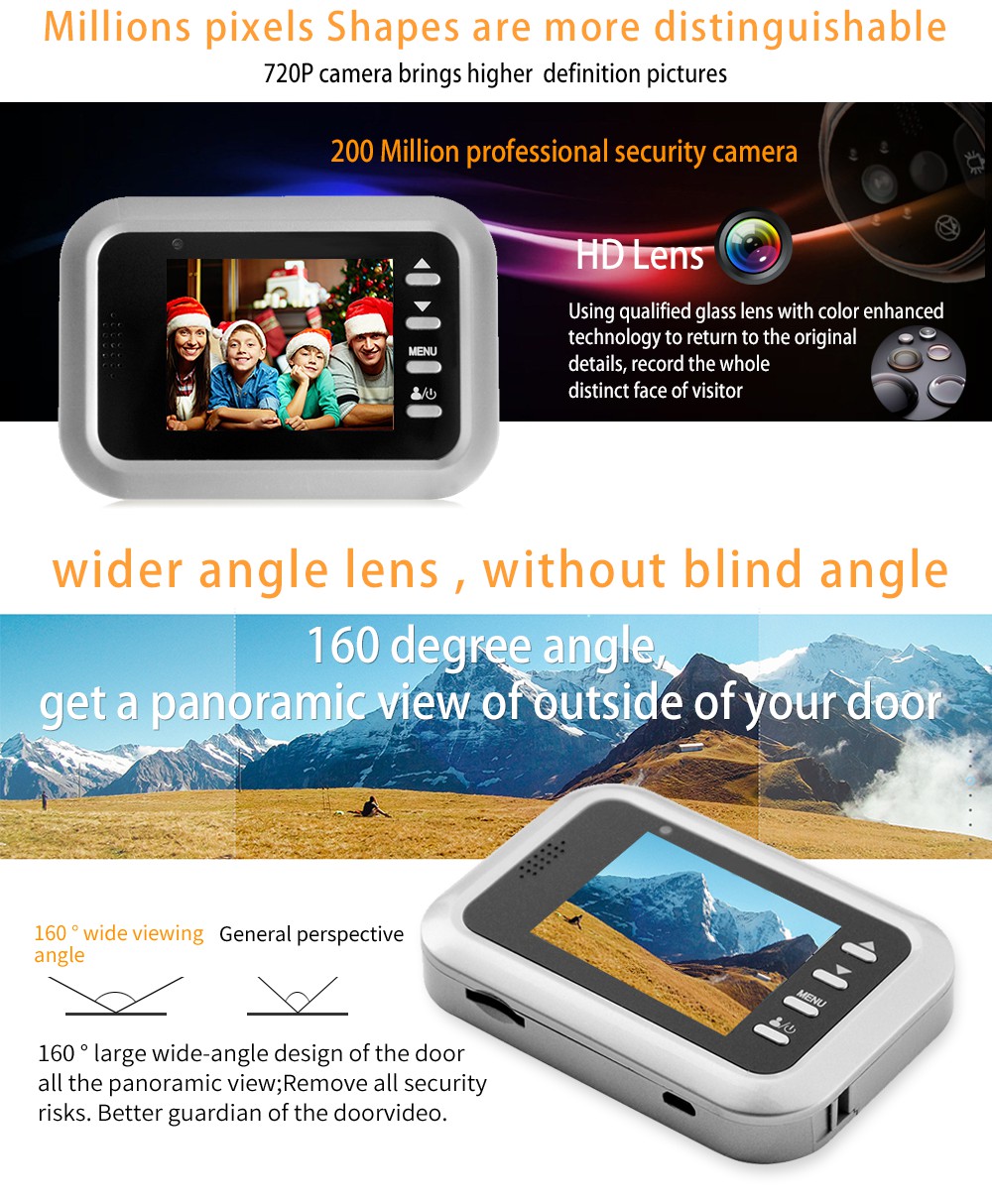

  • 145 degree wide angle lens, which gives you a large field of vision to ensure maximum security home

  • Support TF card, maximum support 32G (card not included)

  • Clear image during both day and night time, you can still see outside clearly in dark

  • Automatic taking photos, video recording and leaving video messages

Specifications:

Camera module

Image Sensor

1/6" CMOS(0308)

Effective Pixels

640(H) x 480(V)

Minimum Illumination

0.5Lux/F2.0 (color)

0.02Lux/F2.0 (black and white)

White Balance

Automatic tracking of white balance

Gain Control

Automatic

Signal to Noise Ratio

Greater than 50dB

BLC

Automatic

Wide Dynamic

Yes

Electronic Shutter

1/4-1/10,000s

Day and Night Mode

Filter color to black

Focal Length

2.4mm

Horizontal Viewing Angle

115 degree

Aperture

F2.0

Infrared Night Light

3, 3MM, Flat, Angle: 90, 850 IR

Features

Automatic Shut-down

Closed, 10 seconds, 20 seconds, 30 seconds

Language

Chinese, English, French, German, Spanish, Portuguese, Italian, Russian, Hebrew, etc. (The built-in language of each version may be different, other languages can be    customized)

Video Time

10 seconds, 20 seconds, 30 seconds

Number of Photos Taken

One, two, three sheets

Format

Support formatting TF card

Light Source Frequency

50HZ/60HZ

Power off Memory

Stand by

Default Setting

Stand by

Ringtone Settings

Built-in three ringtones

Volume Setting

Three levels of volume optional

parameter

Main Chip

Jerry

Indoor Unit Size

100mm*70mm*15mm

Outdoor Machine Size

62mm*62mm*15mm(45mm)

Indoor Machine Material

ABS plastic

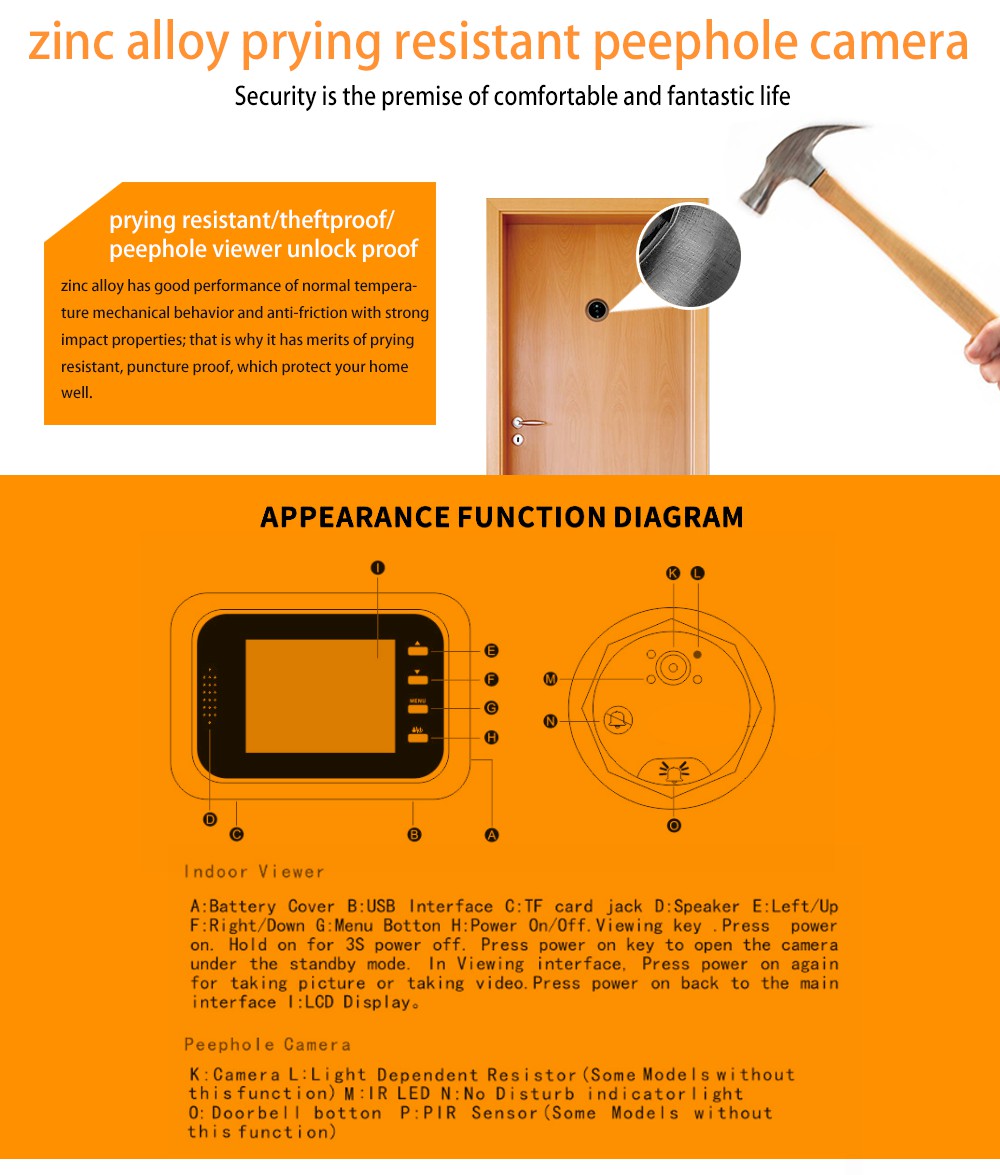

Outdoor Machine Material

Zinc alloy

LCD Screen Type

2.4

LCD Screen Resolution

240(RGB)*320

TF Card

Maximum support 32G (card not included)

Maximum Image Size

640 x 480

Frame Rate

50Hz: 25 frames (640x480P)

Video Compression

M-JPEG

Audio Compression

G.711 / 16kbps

Standby Current

80μA

Operating Temperature and Humidity

-30 Celsius degree ~ 65 Celsius degree(outdoor) / -10 Celsius degree ~ 50 Celsius degree (indoor), humidity is less than 90%

Protection Level

IP55

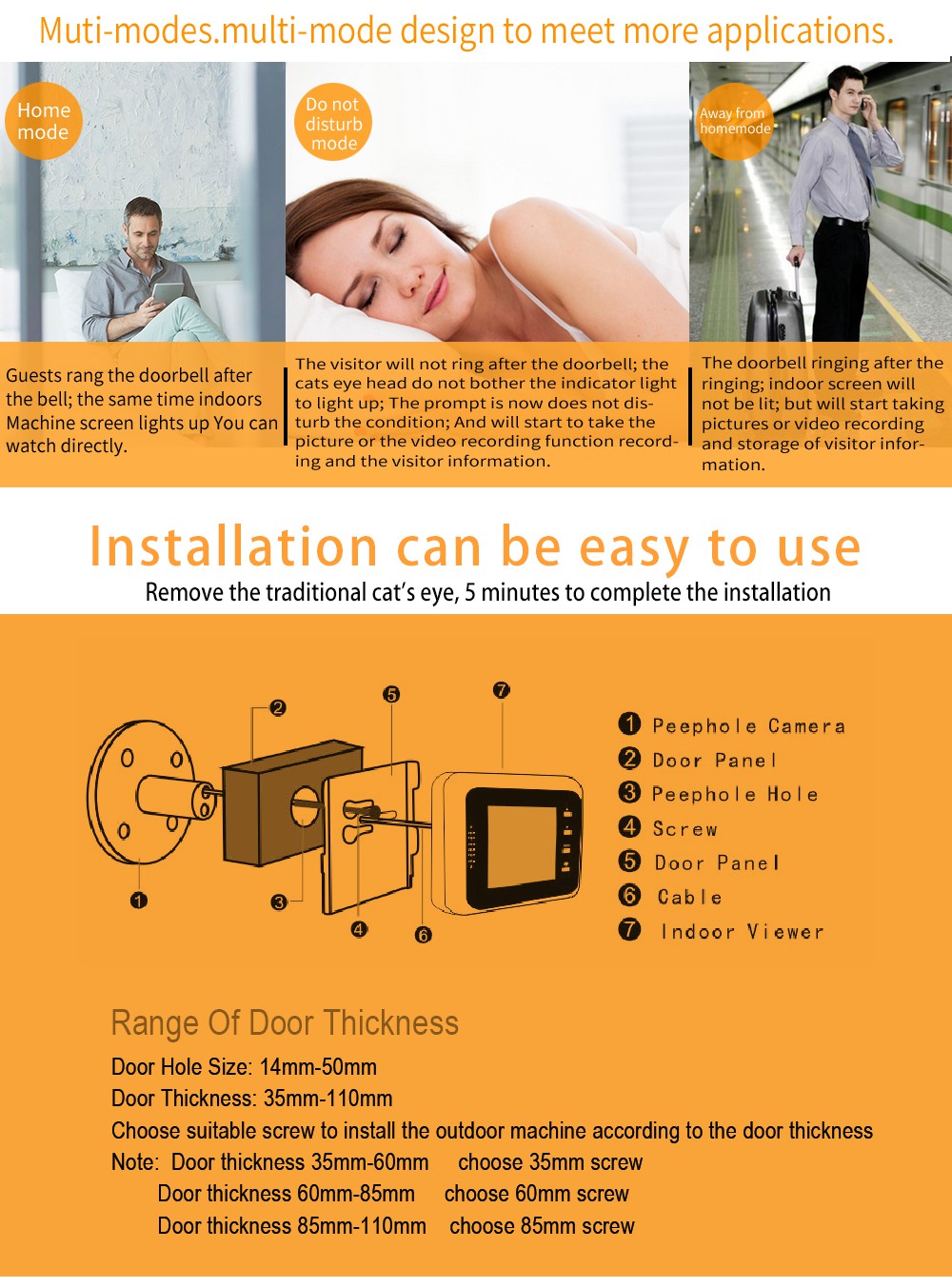

Installation Method

Screw Plate

Applicable Door

40~110mm

For Cat Eyes

15~50mm

Host Color

Golden

Accessories

Screws

M3*35 2pcs; M3*60 2pcs; M3*85 2pcs

Mounting Base Plate

72mm*52mm*6.5mm

USB Charging Cable

Charging and data    transmission

Battery

3.7V 1200mA lithium    battery

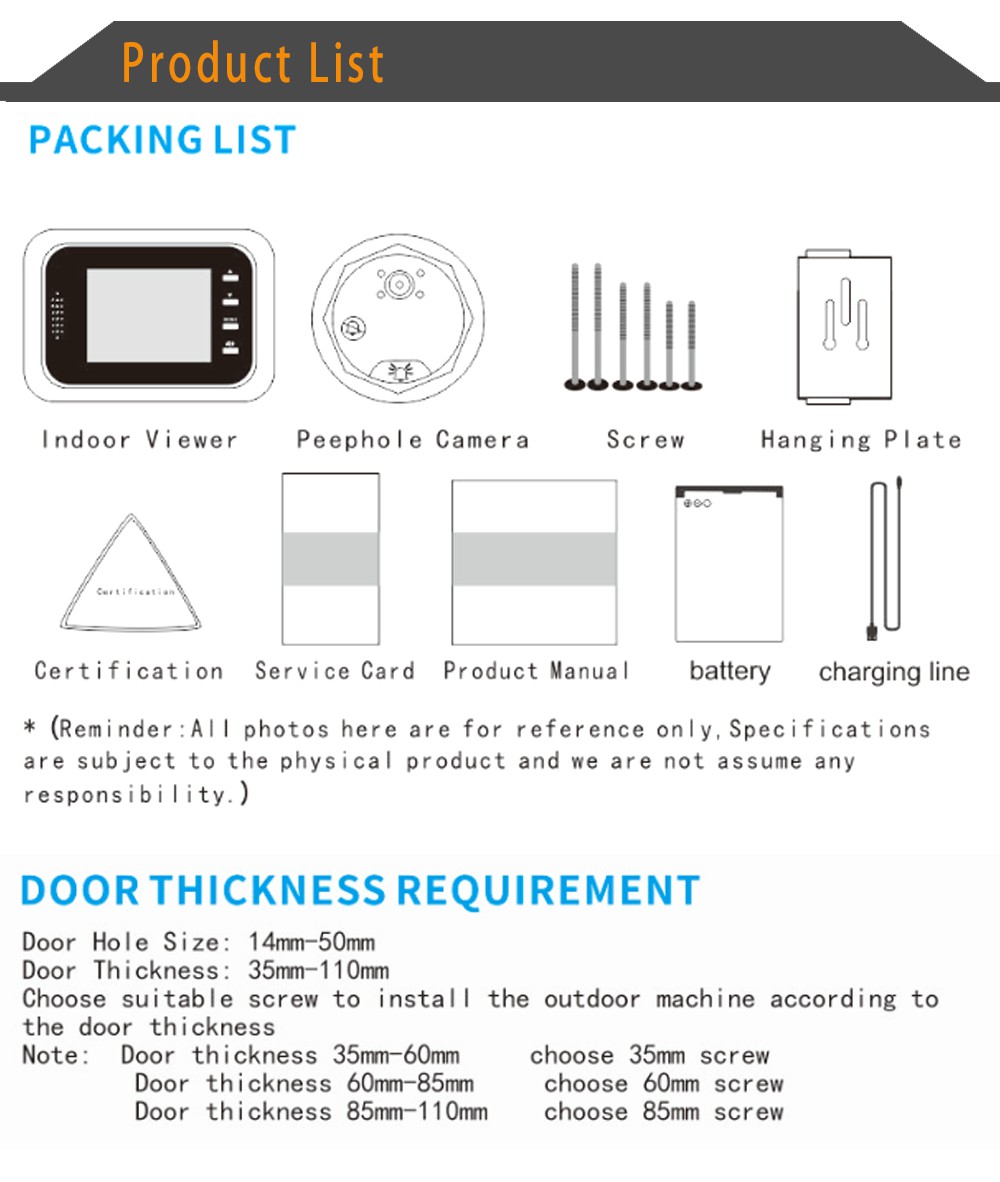

Package included:

  • 1 x Outside the Host
  • 1 x Outside the Door
  • 1 x Charging Cable
  • 6 x Screws
  • 1 x Hanging Plate
  • 1 x English and Chinese Manual
643800012A-1 643800012A-2 643800012A-3 643800012A-4 643800012A-5 643800012A-6 643800012A-7 643800012A-8 643800012A-9
