2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug

Rate:
0
(0 reviews)
Item No.: 88020019D Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 142.08 (0 % OFF)
Qty:
Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Home Safety Type CCTV Accessories
Plug AU Plug
Retail Packaging Colored Box
Gross Weight 1.232kg
Volume Weight 0.445kg
Length 21.800cm
Width 13.400cm
Height 6.800cm
Weight 1.100kg
With Retail Packaging Yes

Product Description

2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug
  • 2.8 inch digital TFT-LCD display, 480 (RGB) x 320 resolution

  • Support RS232 and RS485 communication

  • CVI/TVI/AHD coaxial camera image display, coaxial PTZ control and call up the camera OSD menu

  • Enhanced color bar generator, PAL/NTSC multi-system color bar video generator

  • PING testing: Test IP camera or Ethernet port of the other network equipment whether works normally, and check the IP address

  • PoE tester displays the power supply voltage and cable connection state

  • Built-in 3.7V 3000mAh lithium polymer battery

  • Low power consumption, working time lasts 11 hours

  • Handheld HD coaxial tester, easy to carry and operate

Specification:

Model

HD coaxial tester HD-2800 series

Video Test

Signal mode

NTSC/PAL (Auto adapt)

Display

2.8 inch digital TFT-LCD, 480 (RGB) x 320 resolution

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel Output

Video Output Mode

1.0 Vp-p

Video Level test

Level test

Video signals measured in IRE or mV (not for TVI, CVI, AHD)

PTZ controller

Communication

Support RS232 and RS485

PTZ Protocol

Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Baud Rate

600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps

Video signal generation

Color bar generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green ,blue, white and black color)

UTP cable tester

UTP cable test

Test UTP cable connection status and display in the screen. Read the number of the test box

DC12V 1A power output

DC12V power output

Output DC12V 1A power for camera

Audio input test

Audio input test

test the pickup and other audio equipment on the front-end

RS485 data analysis

Data Monitor

Captures and analyzes the command data from controlling device

CVI test

CVI video signal test

1 channel CVI in (BNC interface) support 720p 25/30/50/60fps, 1080p 25/30fps, camera OSD menu control over coaxial cable

TVI test

TVI video signal test

(BNC interface) support 720p 25/30/50/60fps, 1080p 25/30fps, camera OSD menu control over coaxial cable

AHD test

AHD video signal test

1 channel AHD in (BNC interface) support AHD 2.0 version, 720p 25/30fps,1080p 25/30fps, camera OSD menu control over coaxial cable

Port flicker

Port flicker

Find the connected POE port quickly

IP scan, Link monitor, PING test

IP scan

Find out the connected IP camera or the other network equipment IP address quickly

Link monitor

Check the IP address whether is occupied

PING testing

Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address

PoE tester

PoE tester

Display the power supply voltage and cable connection states

POWER

Power Adapter

DC 5V (1.5A)

Battery

Built-in 3.7V Lithium polymer battery, 3000mAh

Rechargeable

After charging 3-4 hour, working time lasts 11 hours

Low Consumption

Energy saving technology, the battery icon real-time display

Parameter

Operation setting

English/Chinese and other languages OSD menu

Auto off

5-60 (mins)

Keytone

On/Off

General

Working Temperature

-10°C~+50°C

Working Humidity

30%~ 90%

Dimension/Weight

194mm x 112mm x 48mm / 540g

Package included:

  • 1 x 2.8" TFT LCD Monitor HD Coaxial Tester

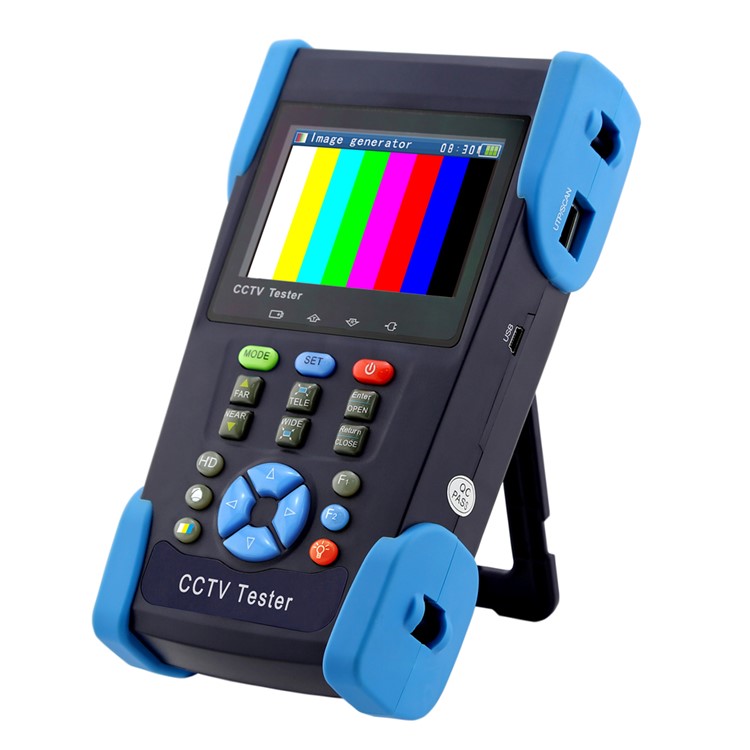

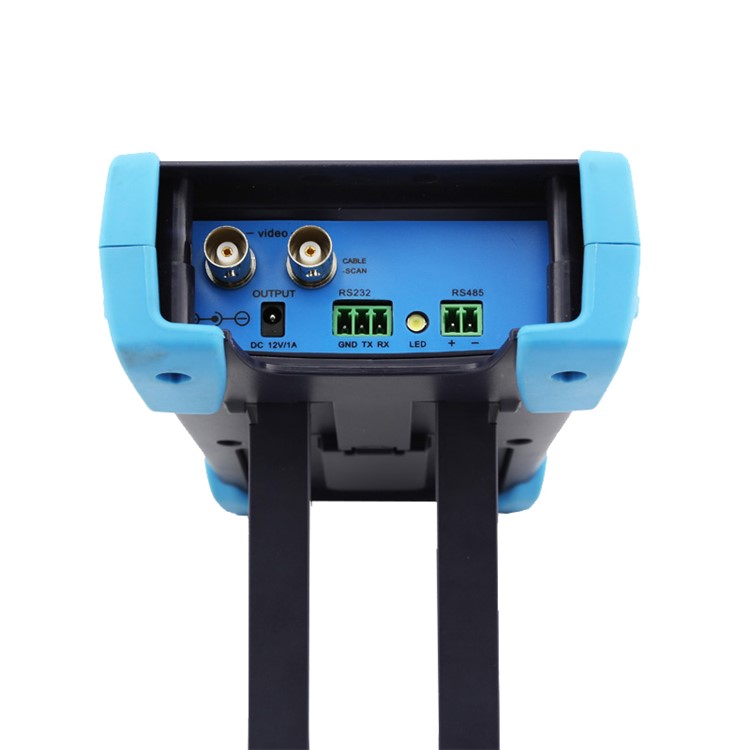

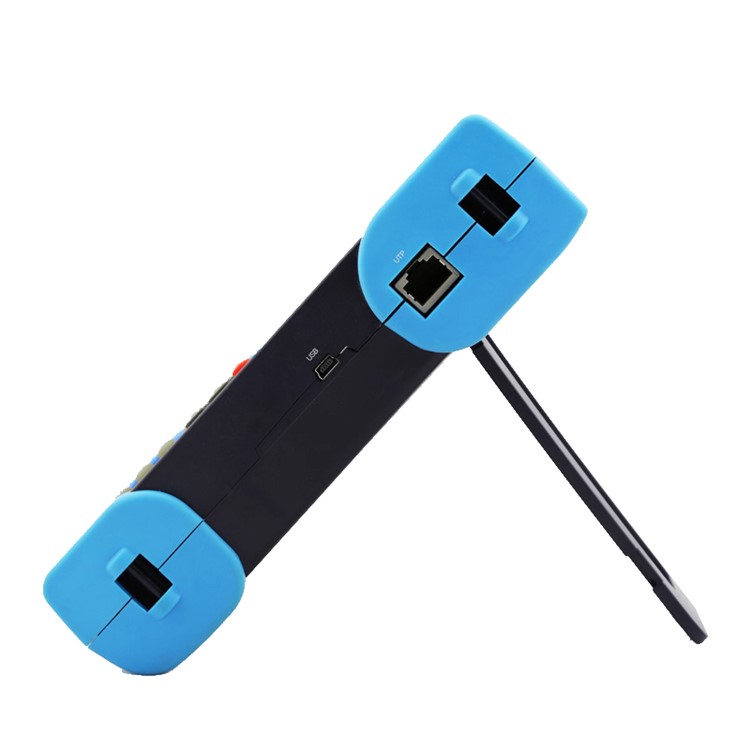

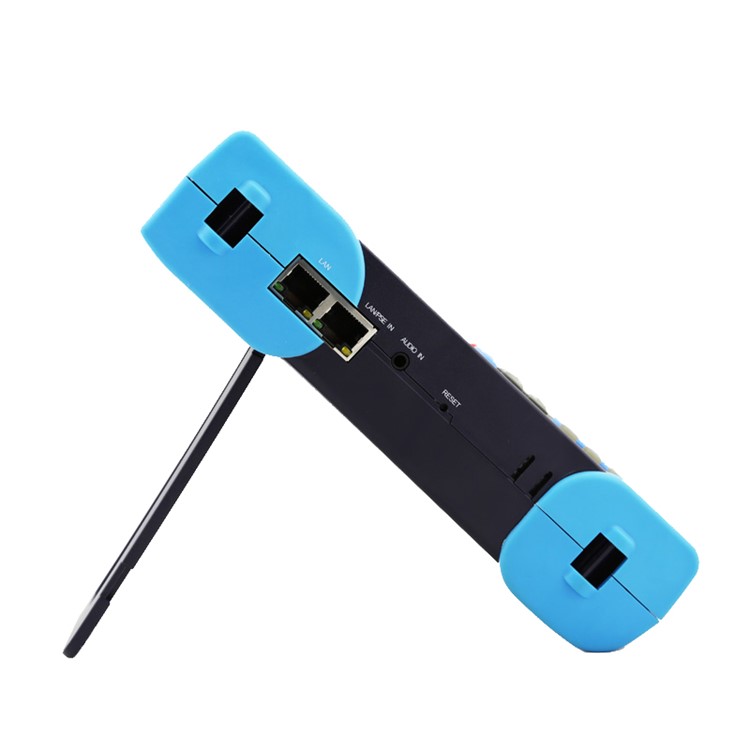

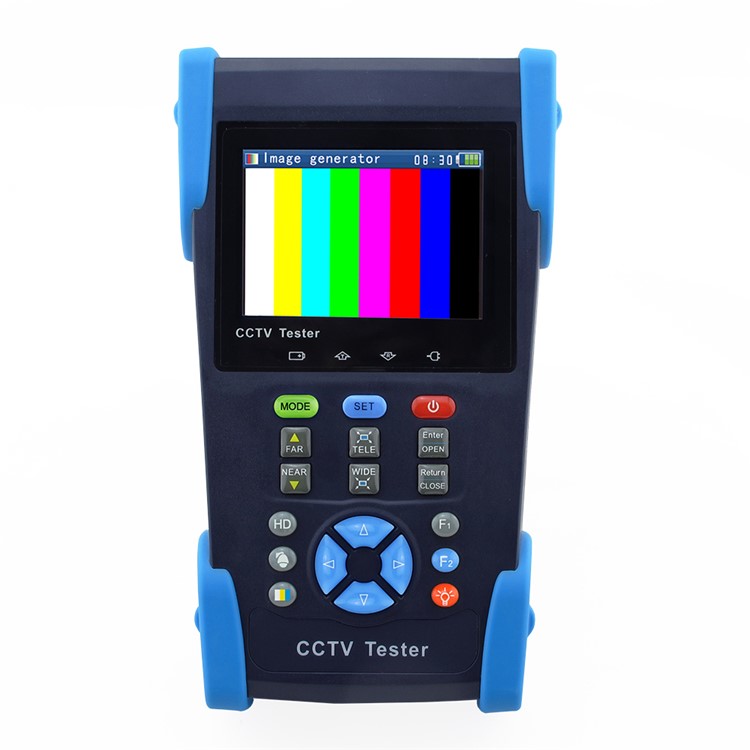

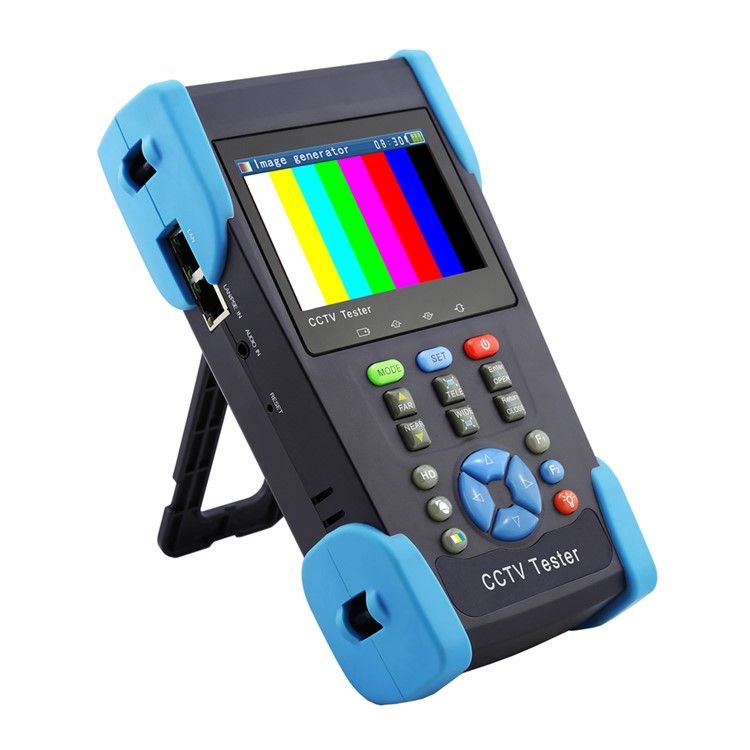

2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-1 2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-2 2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-3 2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-4 2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-5 2.8" TFT LCD Monitor HD Coaxial Tester AHD+CVI+TVI 3-in-1 PTZ Control (HD-2800ADH) - AU Plug-6
