3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug

Rate:
0
(0 reviews)
Item No.: 88140004A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 100.15 (0 % OFF)
Qty:
Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Home Safety Type CCTV Accessories
Plug EU Plug
Gross Weight 1.232kg
Volume Weight 0.445kg
Length 21.800cm
Width 13.400cm
Height 6.800cm
Weight 1.100kg
With Retail Packaging Yes

Product Description

3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug
  • 3.5-inch TFT LCD screen, with resolution of 480 (RGB) x 320

  • LCD screen brightness / contrast / color saturation adjustable

  • Image display and data control integration

  • TVI coaxial camera image display, coaxial PTZ control and call up the camera OSD menu

  • Functions include video signal test, HD coaxial signal test, PTZ control, enhanced color bar generator, audio test, cable test, port finder, IP address scan, link monitor, Ping test, POE voltage test, etc.

  • Handheld HD coaxial tester, convenient to carry

  • Built-in DC 3.7V / 3000mAh lithium polymer battery

  • Low power consumption, working time lasts 11 hours

  • LED flashlight for easy operation at night

  • An essential tool for all installers or technicians

Applications:

  • CCTV system installation and maintenance

  • Network cabling project installation and maintenance

  • Video transmission channel testing

  • PTZ control

Specification:

ModelHD-2800H
Video Test
Signal ModeNTSC/PAL (Auto adapt)
Display3.5-inch digital TFT-LCD, 480 (RGB) x 320
LCD AdjustmentBrightness / contrast / saturation adjustable
Video IN/OUT1-channel BNC input and 1-channel output
Video Output Mode1.0 Vp-p
Video Level Test
Level TestVideo signals measured in IRE or mV (not for TVI)
PTZ Controller
CommunicationSupport RS232 and RS485
PTZ ProtocolCompatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate600, 1200, 2400, 4800, 9600, 19200, 57600, 115200bps
Video Signal Generation
Color Bar GeneratorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green, blue, white and black color)
UTP Cable Tester
UTP Cable TestTest UTP cable connection status and display in the screen; read the number of the test box
DC12V 1A Power Output
DC12V Power OutputOutput DC 12V / 1A power for camera
Audio Input Test
Audio Input TestTest the pickup and other audio equipments on the front-end
RS485 Data Analysis
Data MonitorCapture and analyze the command data from controlling device
TVI Test
TVI Video Signal Test1-channel TVI input (BNC interface), support 720p 25/30/50/60fps, 1080p 25/30fps, camera OSD menu control over coaxial cable
Port Flicker
Port FlickerFind the connected POE port quickly
IP Scan, Link monitor, PING Test
IP ScanFind out the IP address of connected IP camera or the other network equipment
Link MonitorCheck whether the IP address is occupied
PING TestingTest whether IP camera or Ethernet port of the other network equipment work normally, and   check the IP address
PoE Tester
PoE TesterDisplay the voltage of power supply and cable connection state
Power
Power AdapterDC 5V / 1.5A
BatteryBuilt-in 3.7V / 3000mAh lithium polymer battery
RechargeableAfter charging 3-4 hours, working time will last 11 hours
Low ConsumptionEnergy saving technology, the battery icon real-time display
Parameter
Operation SettingEnglish/Chinese and other languages OSD menu
Auto Off5-60 (mins)
KeytoneOn/Off
General
Working Temperature-10ºC ~ 50ºC
Working Humidity30% ~ 90%
Dimension194mm x 112mm x 48mm
Weight540g

Package included:

  • 1 x 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H)
  • 1 x Power Adapter

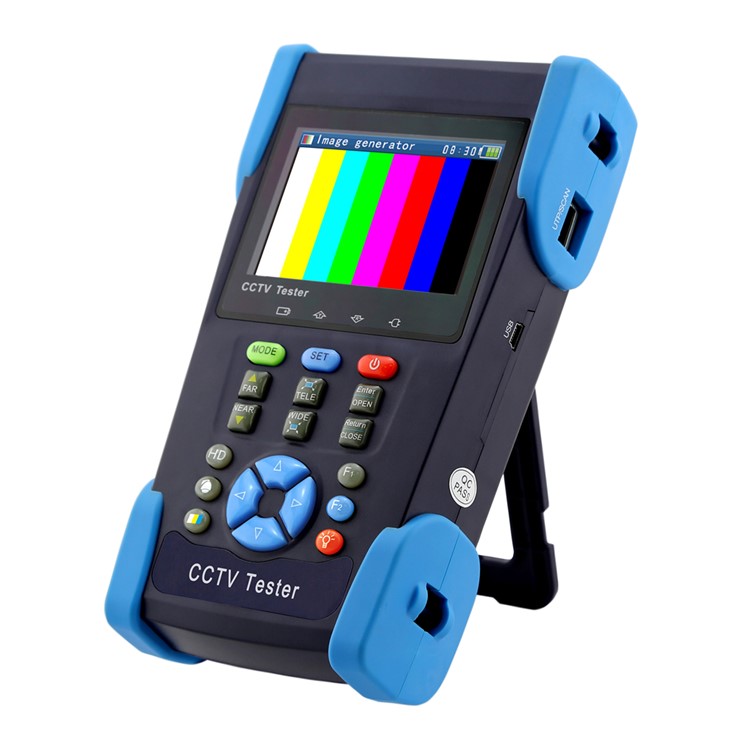

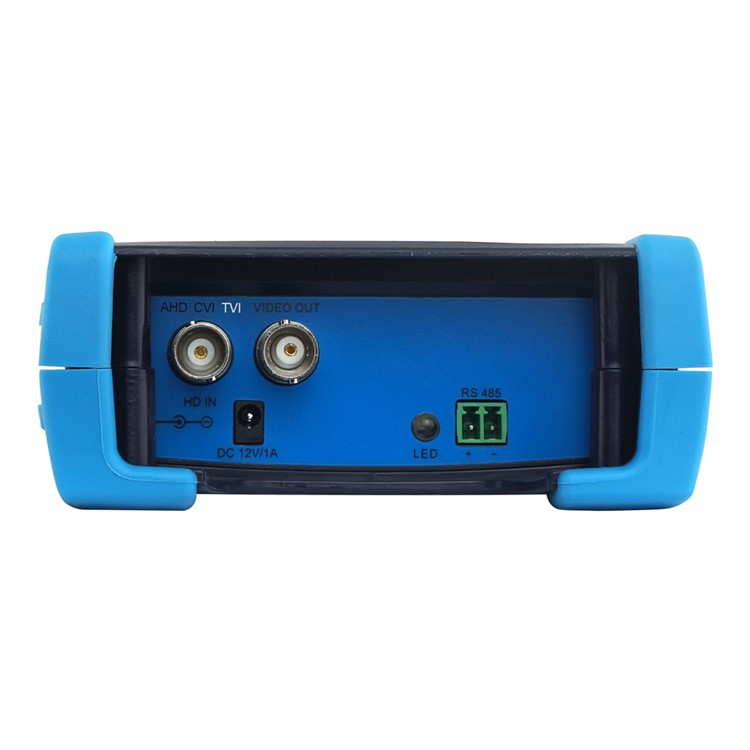

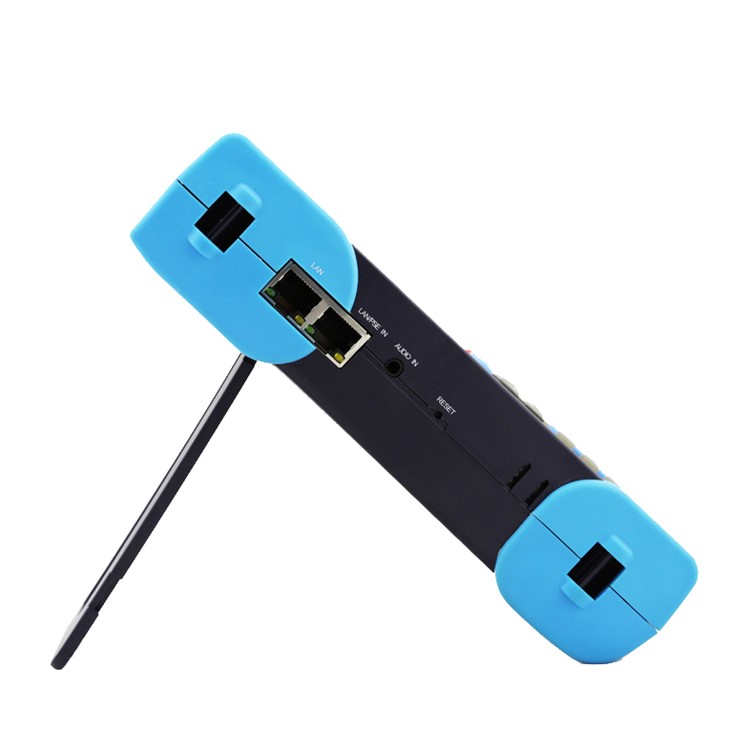

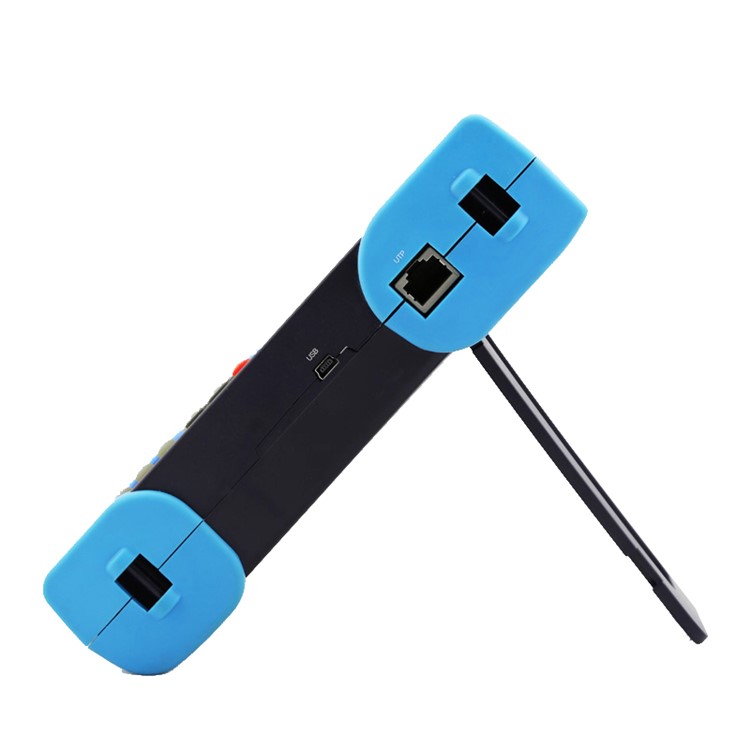

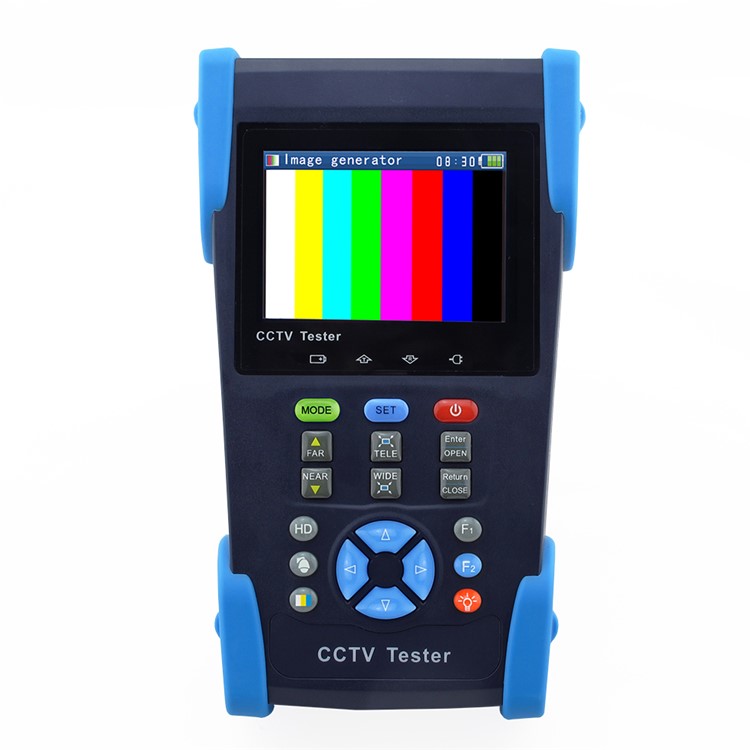

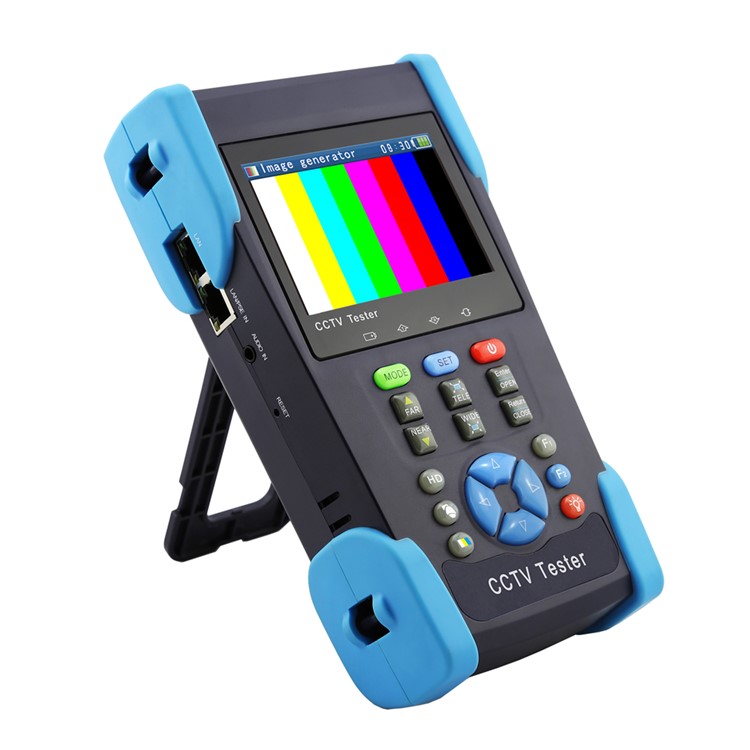

3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-1 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-2 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-3 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-4 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-5 3.5-inch TFT LCD CCTV TVI + Analog Camera Tester Support 12V 1A Output PTZ Control (HD-2800H) - EU Plug-6
