433Mhz DC 12V Smart Wireless Remote Switch - 1 Remote Control

Item No.: TP10310302090D | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $4.28
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

ColorStyle D
Gross Weight 0.058kg
Volume Weight 0.036kg
Package Length 9.000cm
Package Width 6.000cm
Package Height 3.000cm
Package Weight 0.052kg
With Retail Packaging No

Product Description

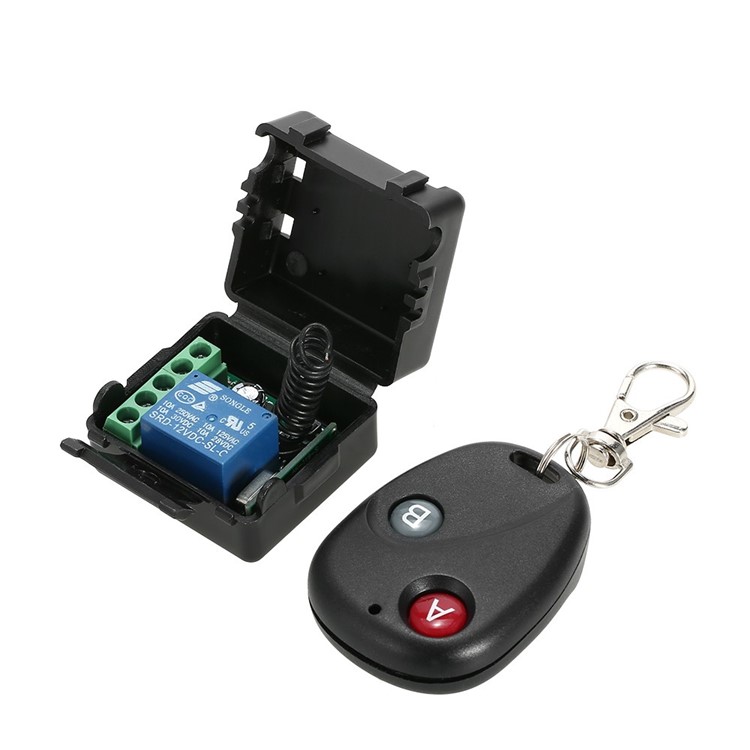

433Mhz DC 12V Smart Wireless Remote Switch - 1 Remote Control

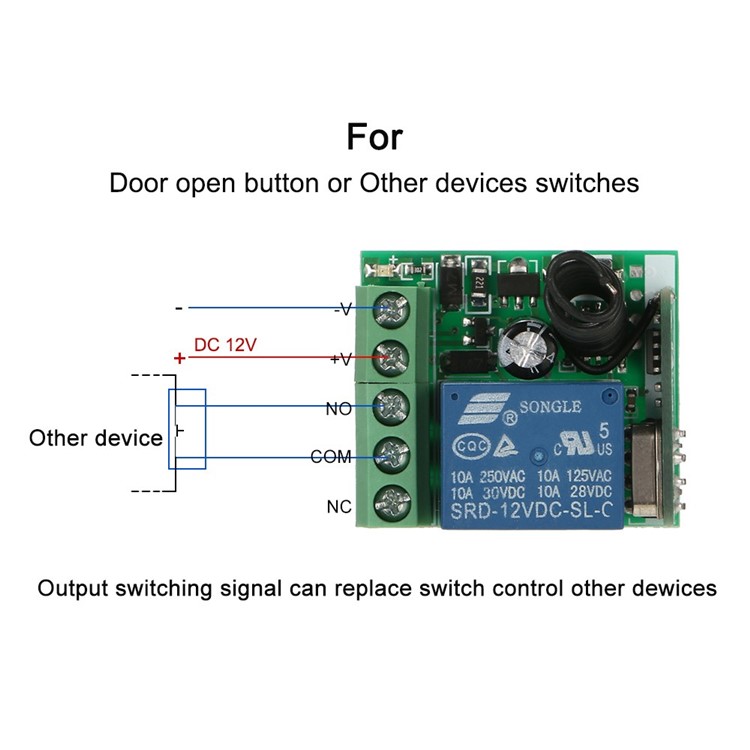

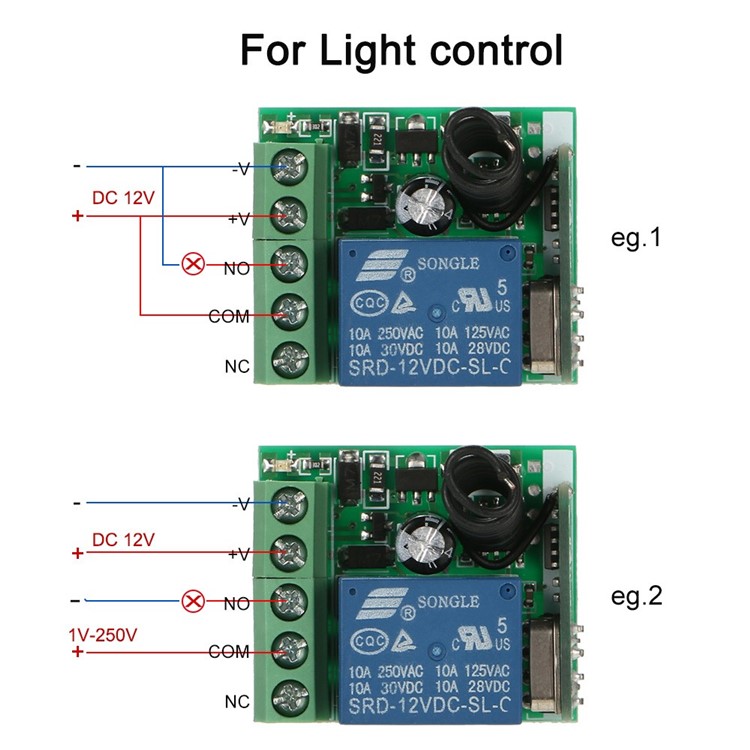

  • Very convenient to use, simple wiring diagram connection way

  • Support remote control up to 19 pieces. It can connect to the electronic control lock, light, electric curtain, etc. So that it can remote unlock the door, close the light, open or close the curtain, etc

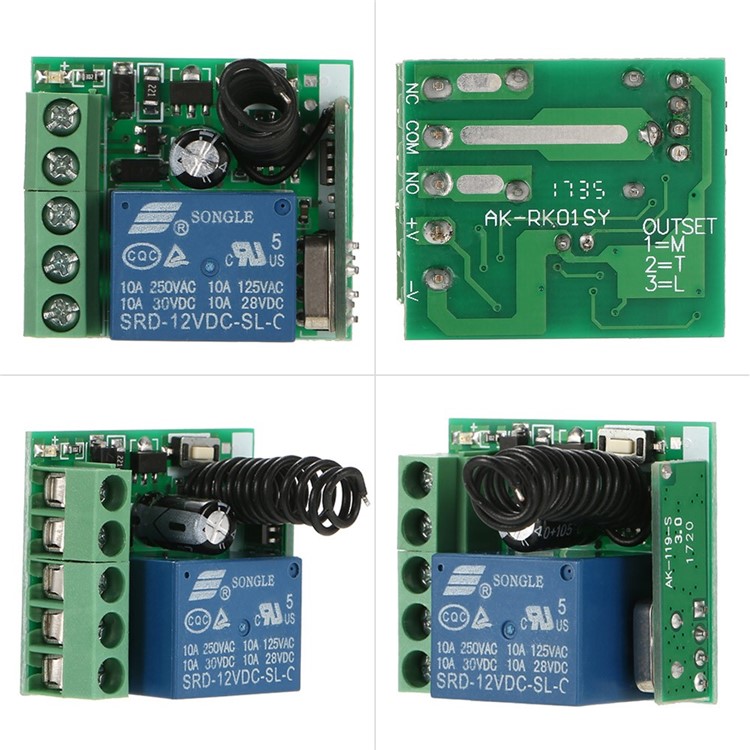

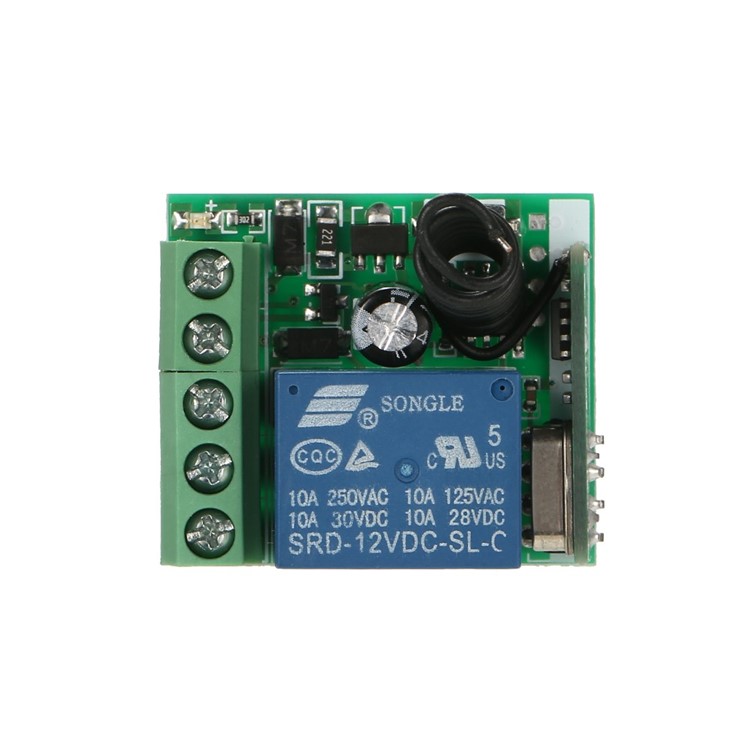

  • Super small body, and it occupies less space. The receiver board size is only about 3.5 x 3 x 3cm

  • The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need

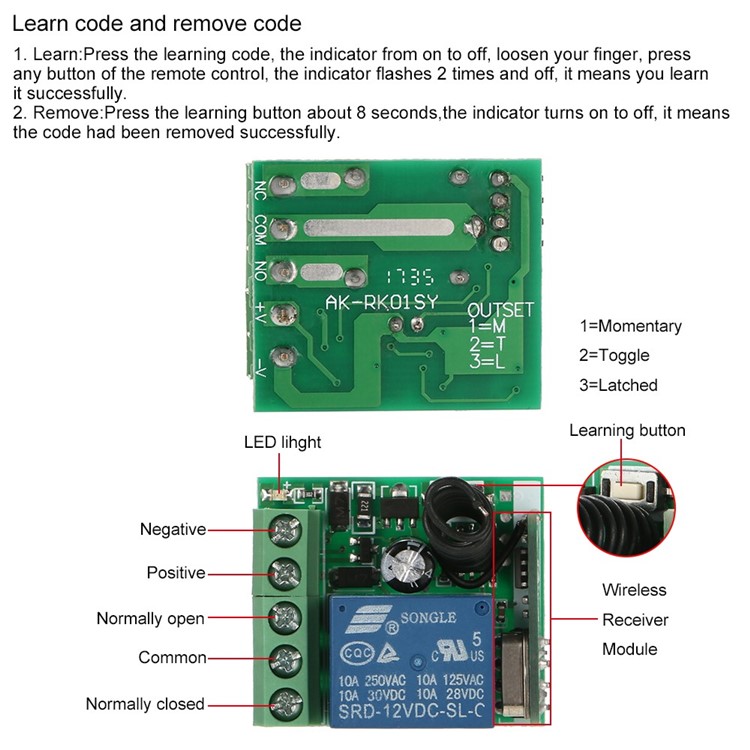

  • Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more (If the remote control is lost, buy one and pair with the PCB board is OK)

Specifications:

  • Input Power: DC10V-14V

  • Standby Current: <5MA

  • RF Frequency: 433MHz

  • RF working mode: superheterodyne reception

  • Receive sensitivity: -108dbm

  • Transmitting distance: 100m (open area)

  • Decoding mode: MCU software decoding

  • Remote control storage: up to 19 PCS

  • Working mode: Momentary, Toggle, Latching

  • Wiring type: fixed terminal

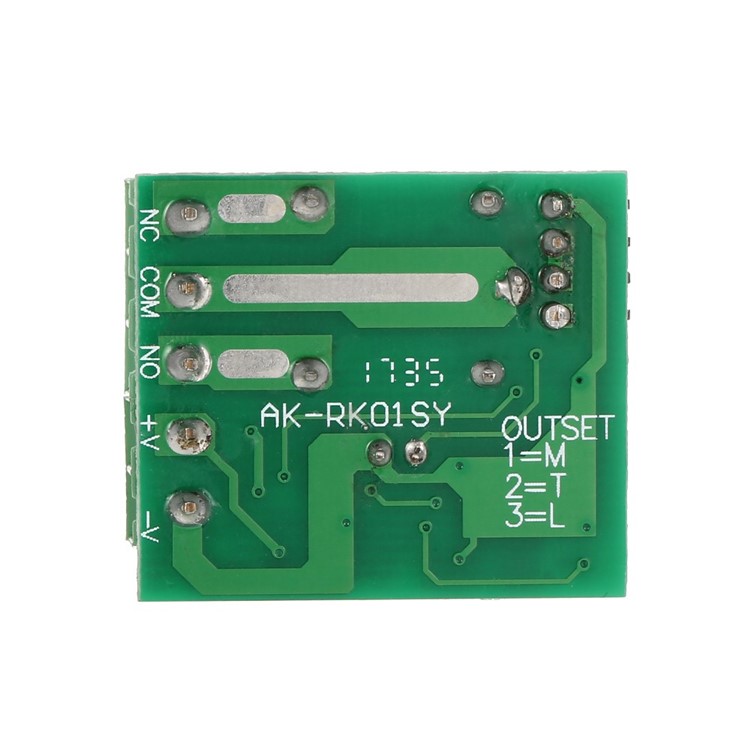

  • Output Terminal: NO, NC, COM

  • Remote Control battery: 1 x 12V 23A (included)

  • Supporting Remote Control Type: learning code (1527 chip); fixed code

  • Receiver Board Size: Approx. 3.5 x 3 x 3cm/1.37 x 1.18 x 1.18in

  • Fuse Box Size: 4 x 3.7 x 2.7cm/1.57 x 1.45 x 1.06in

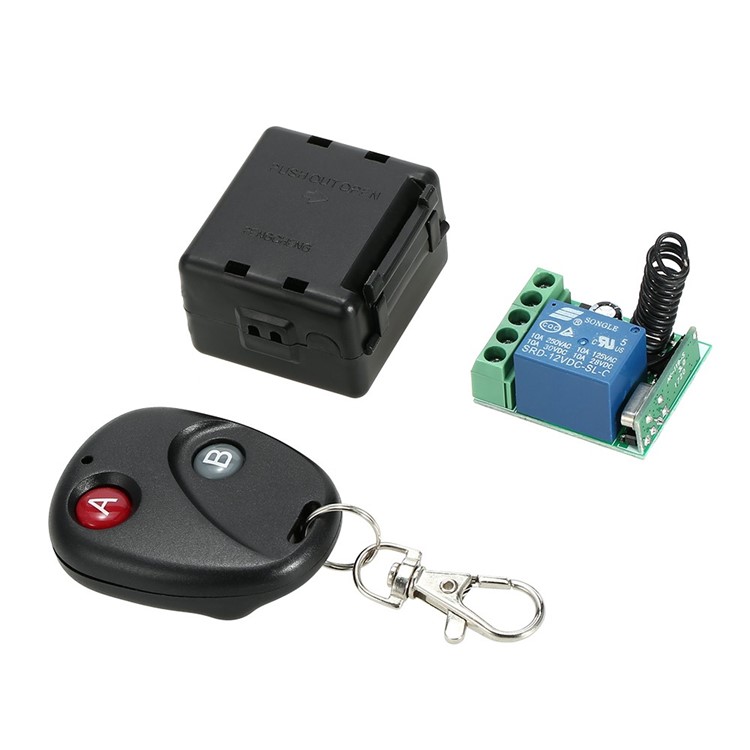

Package included:

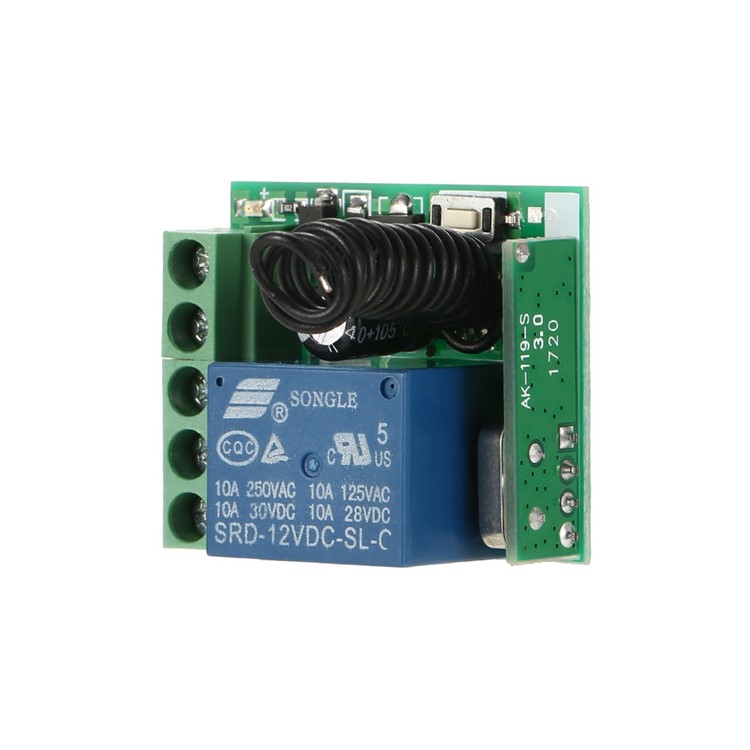

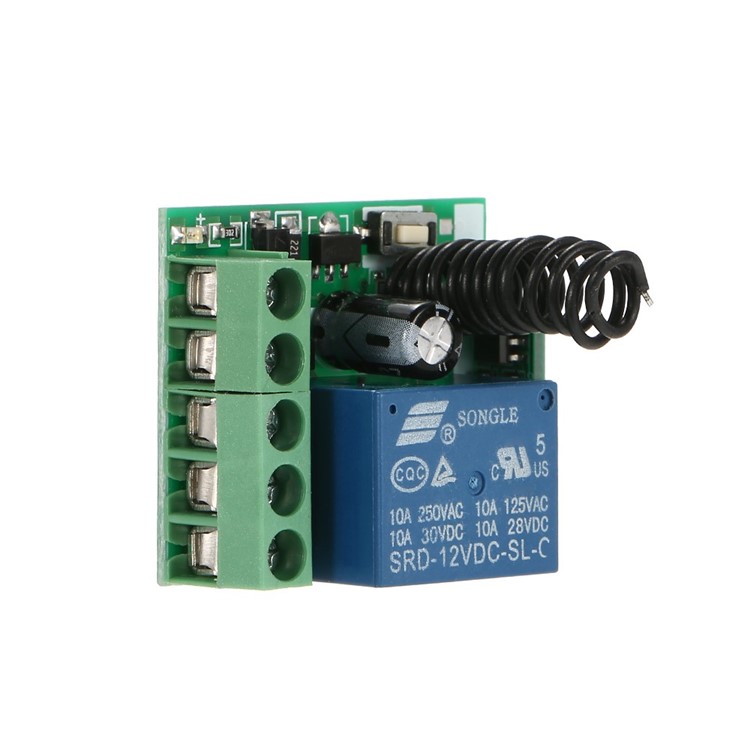

  • 1 x Receiver Board

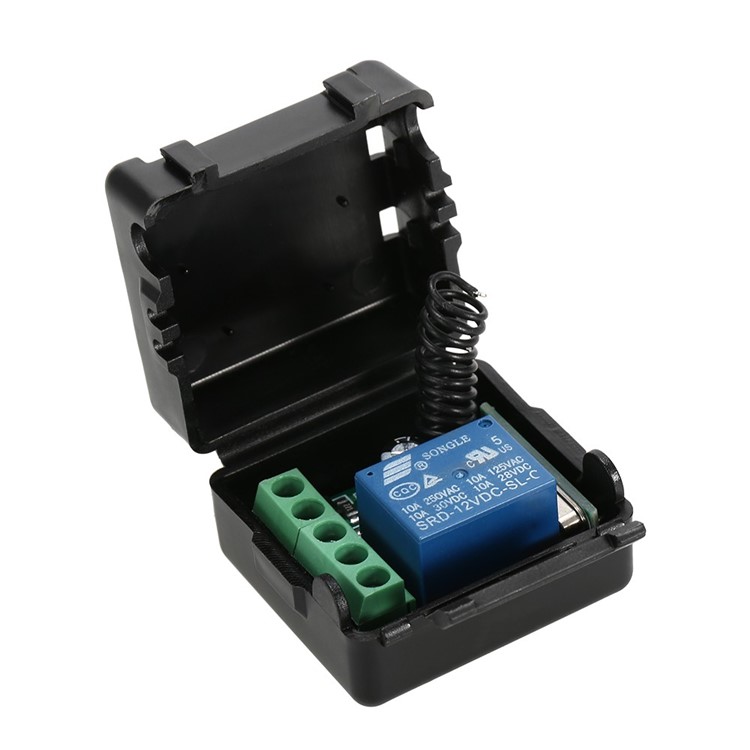

  • 1 x Fuse Box

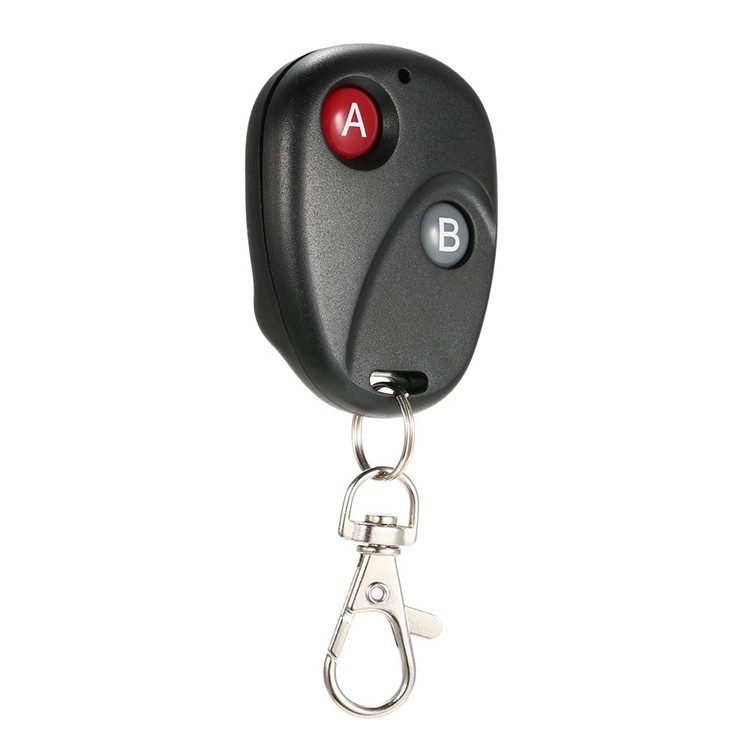

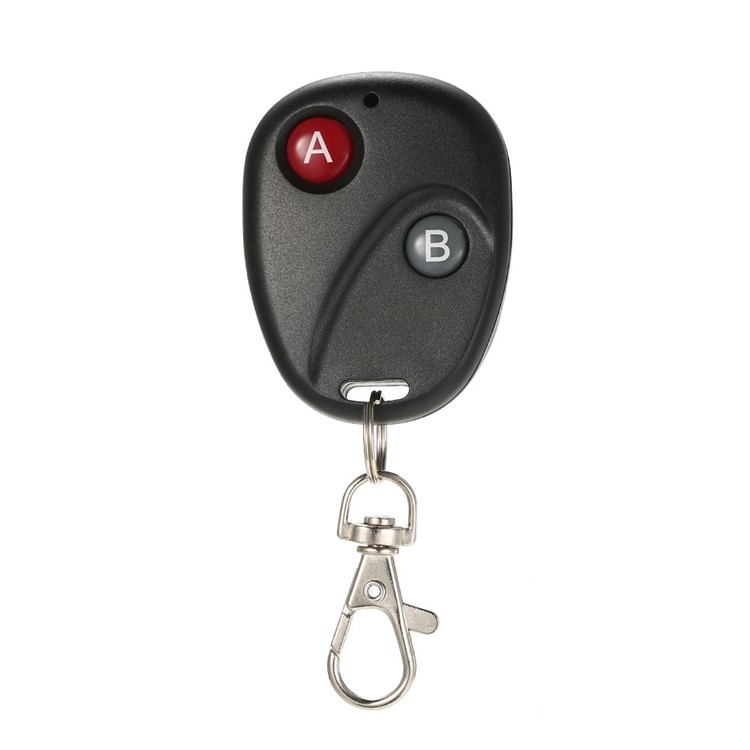

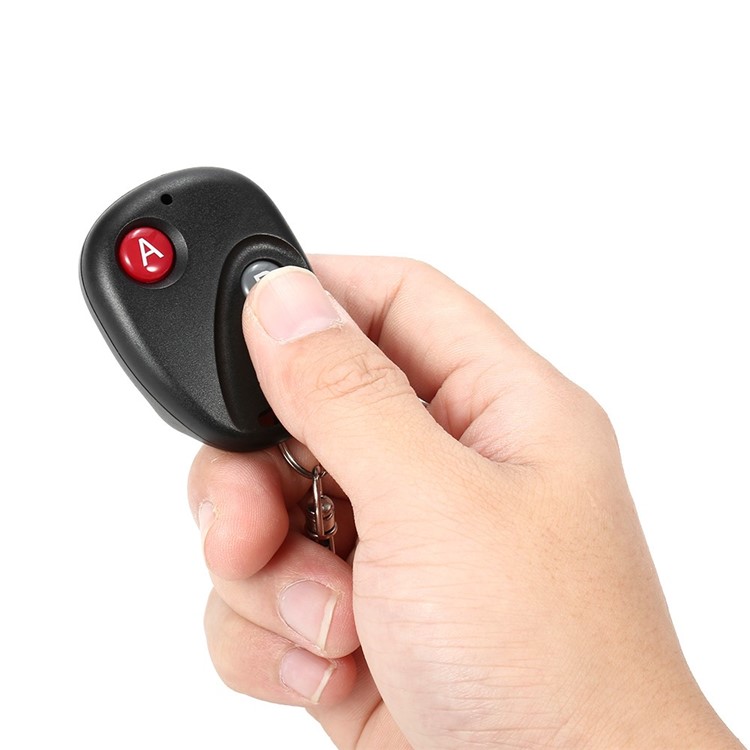

  • 1 x Remote Control
