7.0-inch TFT LCD CCTV IPC + SDI + AHD + CVI + TVI + 2A Power Bank + Analog Camera Tester Support PTZ Control POE WiFi ONVIF (IPC-9800ADHS) - AU Plug

Rate:
0
(0 reviews)
Item No.: 88020131D Out of stock MOQ: 1
Email Only Price
Price:
$ 272.07 (0 % OFF)
Qty:
Out of stock
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE
Home Safety Type CCTV Accessories
Plug AU Plug
Retail Packaging Colored Box
Gross Weight 2.307kg
Volume Weight 2.079kg
Length 32.000cm
Width 29.000cm
Height 10.000cm
Weight 2.060kg
With Retail Packaging Yes

Product Description

7.0-inch TFT LCD CCTV IPC + SDI + AHD + CVI + TVI + 2A Power Bank + Analog Camera Tester Support PTZ Control POE WiFi ONVIF (IPC-9800ADHS) - AU Plug
  • 7.0-inch TFT LCD screen, with resolution of 1280 x 800

  • Capacitive touch screen, OSD menu

  • Touch screen and key operation

  • Built-in WIFI, wireless network camera test

  • AHD/CVI/TVI camera test, snapshot, video record and playback, zoom

  • IP discovery, do not need to know the first two digits of camera’s IP address, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address

  • Rapid ONVIF, search camera quickly, auto log in and display image from the camera, activate Hikvision camera

  • Hik test tool app is design for activating and debugging Hikvision camera, can auto-identify unactivated hikvision camera, also can display image from the Hikvision camera

  • DH test tool app is design for Dahua camera image test, support modify IP, user name and password, etc. parameters

  • ONVIF camera test, support 2592*1520

  • SDI camera test, SDI digital video surveillance testing, SDI input, support resolution as follows: 1280x720P 25Hz/1280x720P 30Hz/1280x720P 50Hz/1280x720P 60Hz/1920x1080P 25Hz/1920x1080P 60Hz/1920x1080I 50Hz/1920x1080I 60Hz

  • Support 1080P camera

  • Digital camera image test and video image zoom, record, screen snapshot, photo viewer and playback

  • Currently, support ONVIF, combine with more than 80 brand camera, such as DAHUA, Haikang, KEDA, Samsung, HIKVISION and TIANDY camera

  • If IP camera manufacturers can offer Video Management Software that compatible with mobile phone or tablet PC, install the Video Management Software in the tester enable the tester to display IP camera image by IP camera viewer

  • OSD menu rotates in 180 angle

  • Display real resolution of the IP camera images

  • Video screenshot, video recording, files named and save, easy to find

  • Support network PTZ controller (ONVIF)

  • Support 1080P HD video files and MKV/MP4 media files play

  • PTZ controller, photograph, video record, record playback

  • Color bar generator, analog video color bar and testing image output

  • POE voltage measurement, PING test, IP address scan, port flashing etc.

  • PoE DC48V power output, max. power 24W

  • 12V/2A power output

  • 5V/2A power output, can be used as a power bank

  • HDMI output, 1920*1080P resolution

  • Audio in / out

  • LED lamp, calculators, music players and other application tools

  • Support self-update software by customers

  • Lithium-ion Polymer battery, working time lasts 16 hours

  • An essential tool for all installers or technicians

Applications:

  • CCTV system installation and maintenance

  • Network cabling project installation and maintenance

  • Dome camera IP camera testing

  • Video transmission channel testing

  • PTZ control

Specification:

Model

IPC-9800ADHS

Display

7.0 inch IPS HD capacitive touch screen, resolution 1280 x 800

Network port

10/100M auto adapt, RJ45

IP DiscoveryAuto-scan the whole network segment camera IP

Rapid ONVIF

Search camera quickly, auto log in and display image from the camera, activate Hikvision camera

Hik Test ToolActivate Hikvision camera, camera image test, support modify IP, user name and password, etc. parameters
DH Test ToolDahua camera image test, support modify IP, user name and password, etc. parameters
SDI Camera Test1 channel SDI IN BNC Input, support resolution 720p 60fps/1080p 60fps/1080i 60fps
TVI Camera TestSupport resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable
CVI Camera TestSupport resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable
AHD Camera Test
Support AHD2.0, support resolution 1080P 25fps, 30fps/720p 25fps, 30fps, camera OSD menu control over coaxial cable

WIFI

Built in WIFI, speeds150M, display wireless camera image

IP Camera Type

ONVIF, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipu-waton IP5000-BC-13MP/IRS06-13MP, fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera, etc. Customized welcome

Video Input/Output

1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Video Level TestVideo signals measured in IRE or mV

Video Level Meter

PEAK video signal level, SYNC signal level, Color bar chroma level measurement

Zoom Image

Support Analog camera and IP camera image zoom/move

Snapshot, Video Record and Playback

Image screen snapshot, record, save, view and record and play back

HDMI Output
1 channel HDMI output, support 1920*1080P

12V/2A Power Output

Output DC12V/2A power for camera

5V Power Output5V 2A power output, as a mobile phone power bank
PoE Power Output48V PoE power output, Max. power 24W

Audio Test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

PTZ Control

Support RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Color Bar GeneratorOutput one channel PAL/NTSC color bar video signal for testing monitor or video cable (red, green, blue, white and black color)

UTP Cable Tester

Test UTP cable connection status and display on the screen, read the number on the screen

Data Monitor

Captures and analyzes the command data from controlling device, also can send hexadecimal

Network Test

IP address scan, link test, Ping test, quickly search the connection IP camera and other device’s IP address

PoE Test

Measurement POE switch or PSE power supply voltage and cable connection status

POWER

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium polymer battery, 5400mAh

Rechargeable

After charging 7~8 hours, normal working time 10 hours

Parameter

Operation setting

Capacitive touch screen, OSD menu, Chinese/English

Auto off

1-30 (mins)

General

Working temperature

-10°C ~ +50°C

Working humidity

30%-90%

Dimension/Weight

231mm x 172mm x 52mm / 1.26Kg

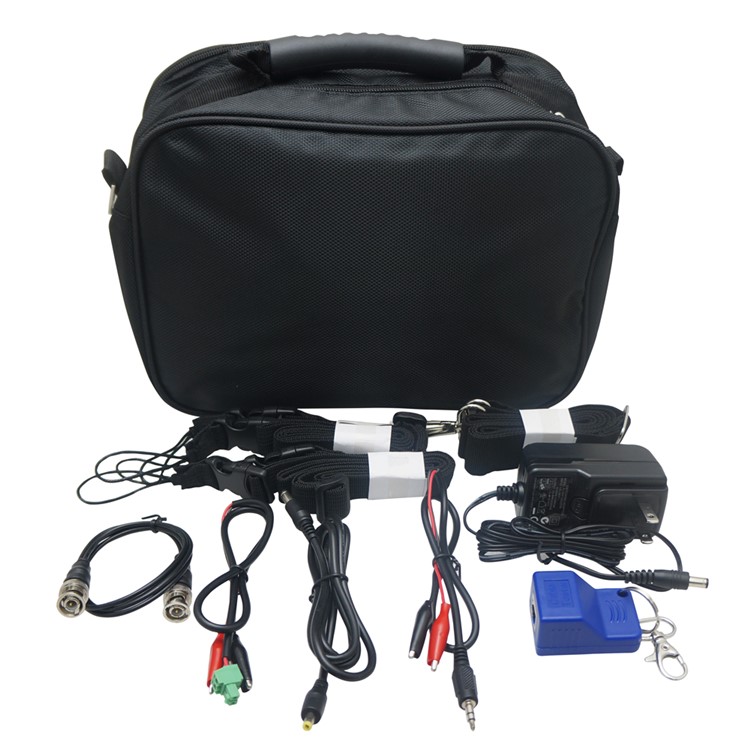

Package included:

  • 1 x 7.0-inch TFT LCD CCTV IPC + AHD + CVI + TVI + SDI + Analog Camera Tester Support 12V 2A Output PTZ Control WiFi
  • 1 x Charger Adapter
  • 1 x BNC Video Cable
  • 1 x 12V Output Cable
  • 1 x RS485 Control Cable
  • 1 x Audio Cable
  • 1 x Line Finder
  • 1 x Neck Strap
  • 1 x User Manual

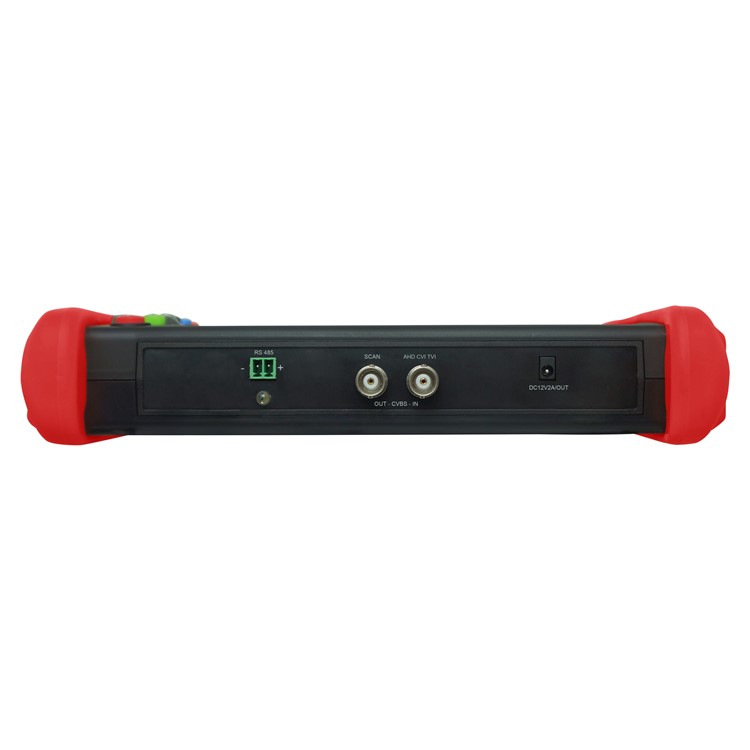

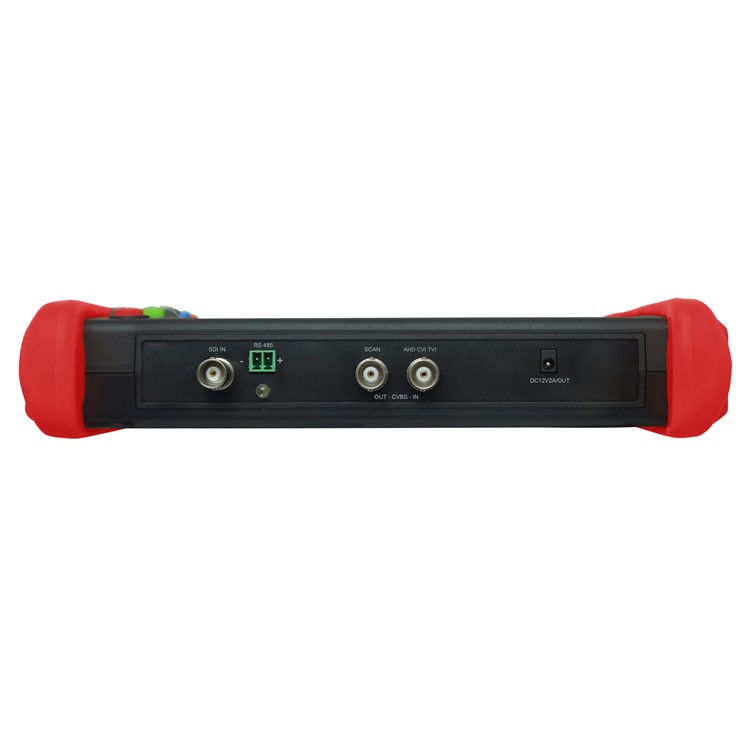

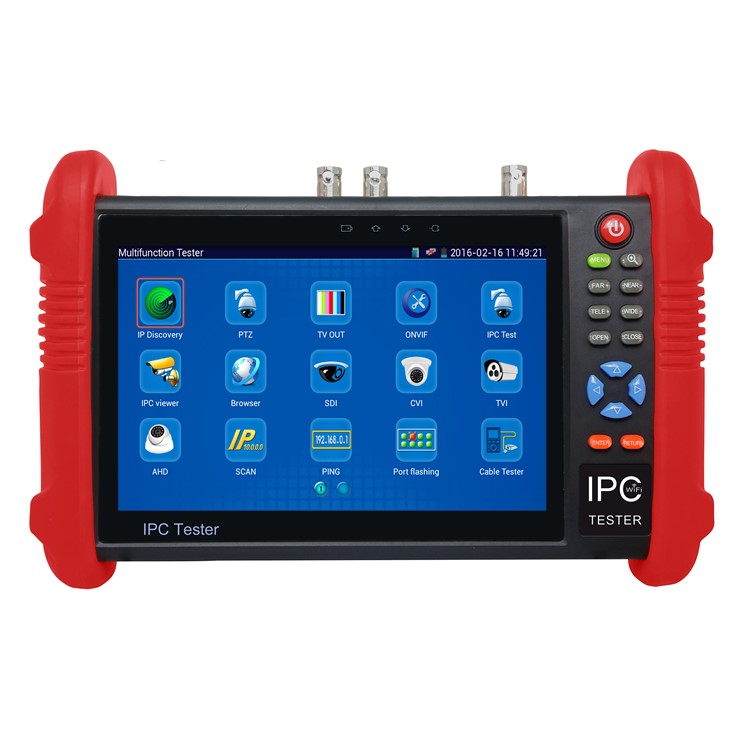

88020131D-1 88020131D-2 88020131D-3 88020131D-4
