7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug

Rate:
0
(0 reviews)
Item No.: 880200162A Ships in 1 - 3 days MOQ: 1
Email Only Price
Plug:
Price:
$ 303.84 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

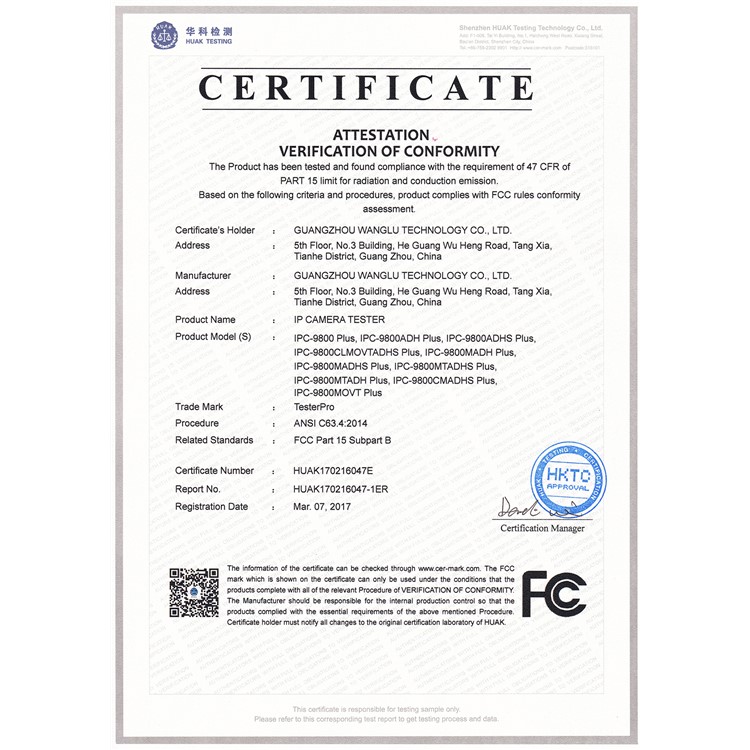

Certificate CE
Home Safety Type CCTV Accessories
Plug US Plug
POE Yes
Retail Packaging Colored Box
User Manual (Language) English
WiFi Yes
Gross Weight 2.306kg
Volume Weight 2.220kg
Length 32.000cm
Width 29.500cm
Height 10.500cm
Weight 2.059kg
With Retail Packaging No

Product Description

7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug

The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 cable TDR test, UTP cable test and POE voltage test etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

  • 7 inch IPS touch screen, 1280x800 resolution

  • 5MP TVI, 4MP CVI, 4MP AHD & SDI/EX-SDI test

  • H.265/H.264, 4K video display via mainstream

  • Dual window test, IP &Analog camera test

  • Built in WIFI, create WIFI hotspot

  • HDMI input and output, support1080p

  • IP discovery , shortcut button, drop-down menu

  • DC 12V 2A, DC 48V PoE power output

  • Rapid ONVIF, auto view video and create testing report

  • Quick office(excel ,word ,PPT format ) doc.

  • RJ45 cable TDR test, cable quality test

  • UTP cable tester

  • TesterPlay: Tester, android version mobile phone, PC display at the same time

Specifications:

LCDItem SeriesIPC-9800ADHS Plus
DisplayNew 7 inch IPS touch screen, 1280x800 resolution
Video ModeCVBS1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc.
CVBS loop testthe tester send and receive color bar generator signal, check BNC cable
IP Camera TestIPC test/IPC viewer/Rapid Video/RTSP/ONVIF
Rapid VideoAuto view the video, create testing report
Hik Test Toolpressing just one key to activate hikvision camera, Image test, can modify the user name, password and IP parameters

Dahua Test

Tool

Dahua camera test, modify the user name, password and IP parameters
IP&CVBS TestIP& CVBS test at the same time, converter test from analog to digital with dual test window

Coaxial HD

Test

5MP TVI camera test, 2560x1944P 12.5FPS, UTC control/ call OSD menu
4MP CVI camera test, 2560x1440P 25F/30F, UTC control d call OSD menu
4MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSD menu
HD SDI/EX-SDI camera test, support 1080P 50/60 FPS
HDMI Input1 channel HDMI input, support 1080P
Zoom Image4 x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
Analog Video Out

Color Bar

Generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
HDMI Output1 channel HDMI output, support 1920x1080P
Power OutputDC 12V/2AOutput DC12V/2A power out, supply temporarily power for the camera

PoE Power

Output

48V PoE power output, max power 24W

5V/2A Power

Output

USB 5V 2A power output, as a power bank
Cable Test

UTP Cable

Test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 Cable

TDR Test

test cable pair status, length, attenuation, reflectivity, impedance, skew etc.
TesterPlayScreen projection: tester, mobile phone and PC display at the same time (For android version mobile phone)
Network TestTrace route, Link monitor, DHCP server, Port flashing, Ping test
Wi-FiBuilt in WIFI, speeds150M, display wireless camera image
Audio Test1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data MonitorCaptures and analyzes the command data from controlling device, also can send hexadecimal
PoE TestMeasurement POE switch or PSE power supply voltage and cable connection status
Drop-down MenuYou can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc. in any interface

External Power

Supply

DC 12V 2A
BatteryBuilt-in 7.4V Lithium polymer battery, 5400mAh
RechargeableAfter charging 5~6 hours, normal working time 10 hours
Operation SettingOSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc.
Auto Off5-30 (mins)
Working Temperature-10°C to +50°C
Working Humidity30%-90%
Dimension/Weight240mm x 154mm x 46mm / 620g
AAHD camera test, 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu
HTVI camera test: 5MP TVI camera test,2560x1944P 12.5FPS, UTC control/ call OSD menu
DCVI camera test : 4MP CVI camera test,2560x1440P 25F/30F, UTC control d call OSD menu
SHD SDI/EX-SDI camera test ,support 1080P 50/60 FPS

Package included:

  • 1 x IP Camera Tester
  • 1 x Tool Bag
  • 1 x Rs485 Control Cable
  • 1 x Video Cable
  • 1 x Power Output Converter
  • 1 x Audio Test Cable
  • 1 x Hand Cable
  • 1 x Charger
  • 1 x Lithium Battery
  • 1 x RJ45 Jack
  • 1 x English User Manual

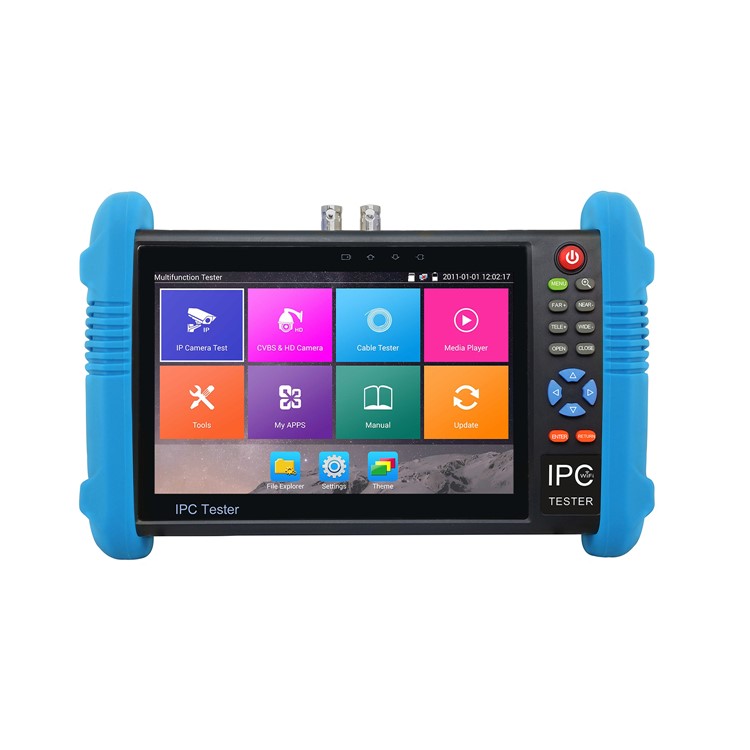

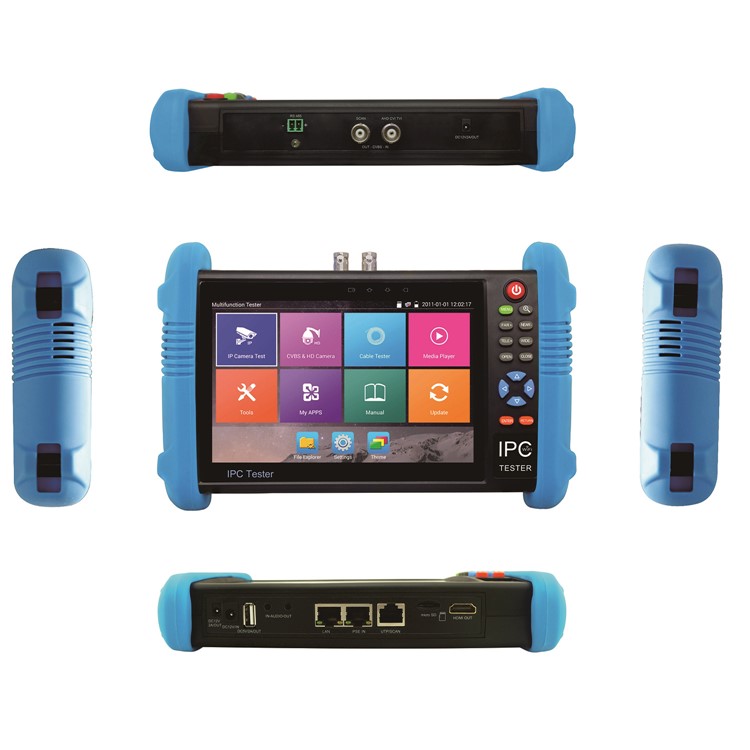

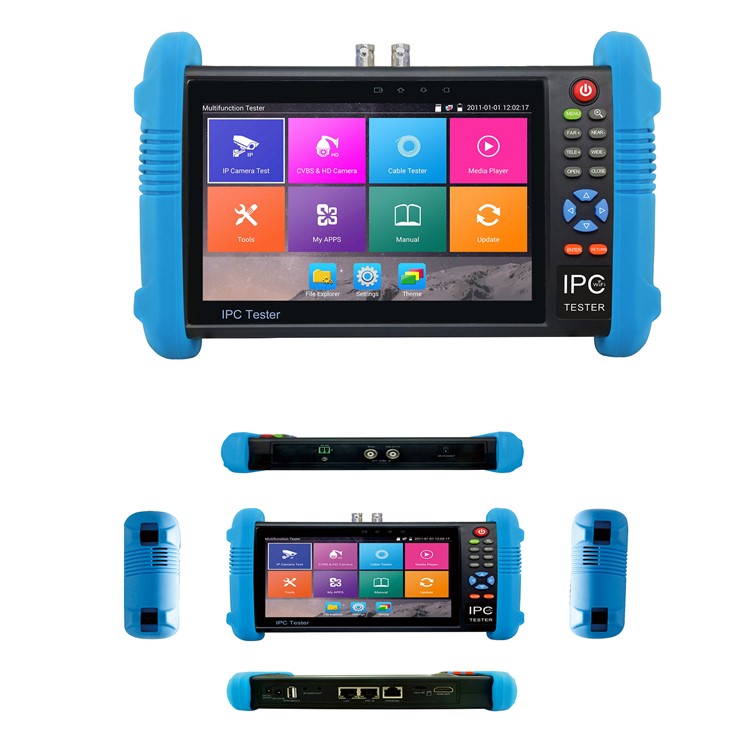

7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-1 7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-2 7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-3 7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-4 7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-5 7 Inch Touch Screen TVI CVI AHD SDI IP CVBS CCTV Tester IP Camera Tester 1920x1200IPS - US Plug-6
