ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box

Rate:
0
(0 reviews)
Item No.: 841000271A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 16.84 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Bluetooth No
CPU Other
Ethernet No
GPU Mali-450MP2
IPTV No
OS iOS
Retail Packaging Paper Box
Video Output HDMI 2.0
Wireless No
Gross Weight 0.441kg
Volume Weight 0.331kg
Length 18.200cm
Width 14.000cm
Height 5.800cm
Weight 0.394kg
With Retail Packaging Yes

Product Description

ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box
  • USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver

  • Converts digital broadcast to your analog TV

  • By remote control to choose the RF 3/4 ch output

  • Sleep Timer

  • Powerful and highly effective 7-day EPG function

  • AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

  • USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback

  • Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P

Specifications:

Hardware
CPUMSTAR-MSD7802(128 pin) MIPS 34Kf@600MHz
Memory32X16Mbit  DDR2 Frequency1066
Flash32M bytes
Demodulator TypeMSB1237 chip set
TUNERRafael R836
USB 2.0Embedded one host
Front Panel4-digit LED display on front panel
Red LED standby, green LED lock

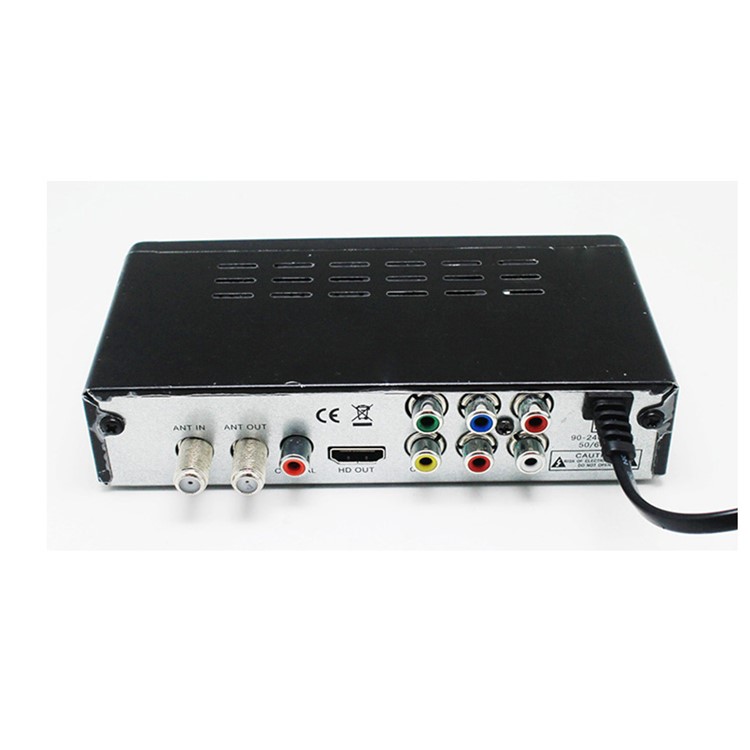

Rear PanelTuner RF input connectorStandard ISO/IEC 13818-1; ARIB STB-B10
Tuner RF Loop through connectorLoop through function
HDMI V1.3
AV RCA x1
Ypbpr RCAx1
Coaxial x1
Power: AC100~240V, 50Hz/60Hz
DemodulationStandard ISO/IEC 13818-1; ARIB STB-B10
Input Max. Bit Stream Rate: 36Mbps (serial) / 9Mbps (parallel)
ATSC NTIA and 8VSB Standard
QPSK, 64QAM, 256QAM
FEC: 1/2, 2/3, 3/4, 4/5,5/6
Guard Interval: 1/4, 1/8, 1/16, 1/32, 1/128
FFT Mode: 2K, 8K, 32K
RF Input Frequency: 54-803MHz
Bandwith: 6MHz
Input level: -83 ~ -5dBm
Decoder
Video Decoder
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding

HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features
Media Codecavi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts, etc.
Audio CodecWMA, MP3, AAC (.wma, .mp3, m4a)
Photo CodecJPEG, BMP, PNG
Multimedia License
Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx  License

Package included:

  • 1 x ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box
  • 1 x Manual
ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box-1 ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box-2 ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box-3 ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box-4 ATSC F01S ATSC Digital TV Converter Box Full HD 1080P Video Broadcasting Satellite Receiver Box-5
