AV230 2.4GHz Wireless Video Transmitter and Receiver with IR Remote Control - EU Plug

(0 reviews)
Item No.: 849900412B Ships in 1 - 3 days MOQ: 1
Email Only Price
$ 43.08 (0 % OFF)
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units


Plug EU Plug
Retail Packaging Paper Box
User Manual (Language) English
Gross Weight 0.795kg
Volume Weight 0.419kg
Length 13.800cm
Width 11.500cm
Height 11.800cm
Weight 0.710kg
With Retail Packaging Yes

Product Description

AV230 2.4GHz Wireless Video Transmitter and Receiver with IR Remote Control - EU Plug

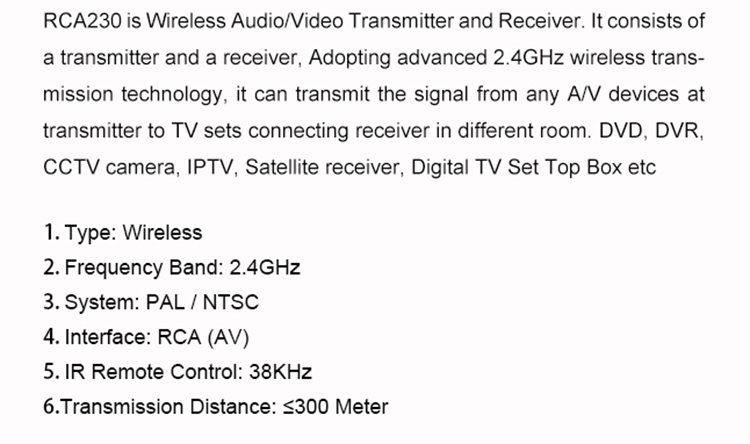

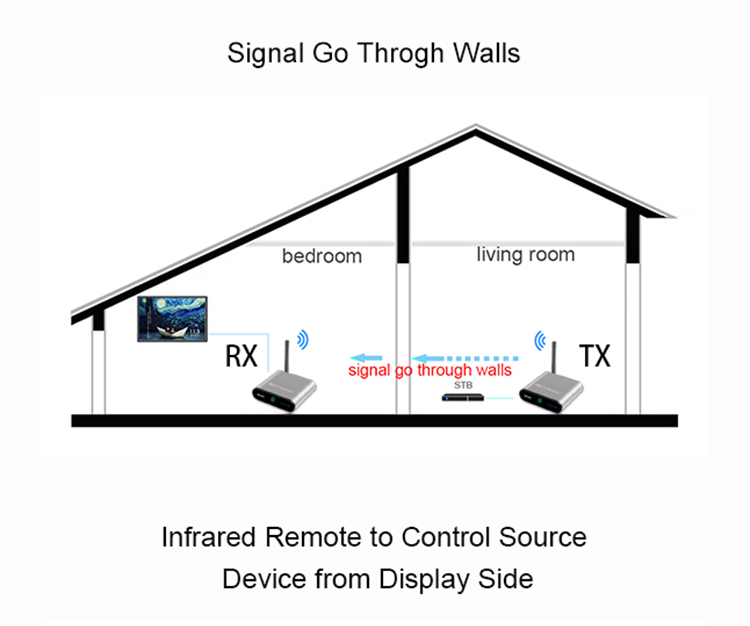

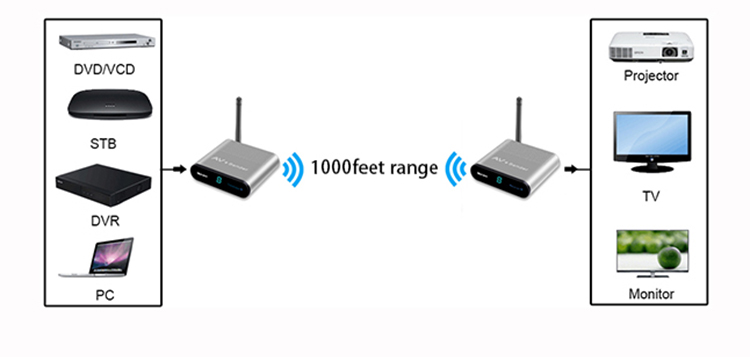

AV230 consists of a transmitter and a receiver. Adopting advanced 2.4GHz wireless transmission technology, it can transmit the signal from any A/V devices at transmitter to TV sets connecting receiver in different room. Moreover, it can support the IR remote control at the receiver end to realize the function of wireless control of devices from another place.

  • 2.4GHz ISM frequency band

  • 1000 feet transmission range without any holdback

  • 8 groups of selectable channels

  • Patented wireless technology, avoiding the interference from other wireless device

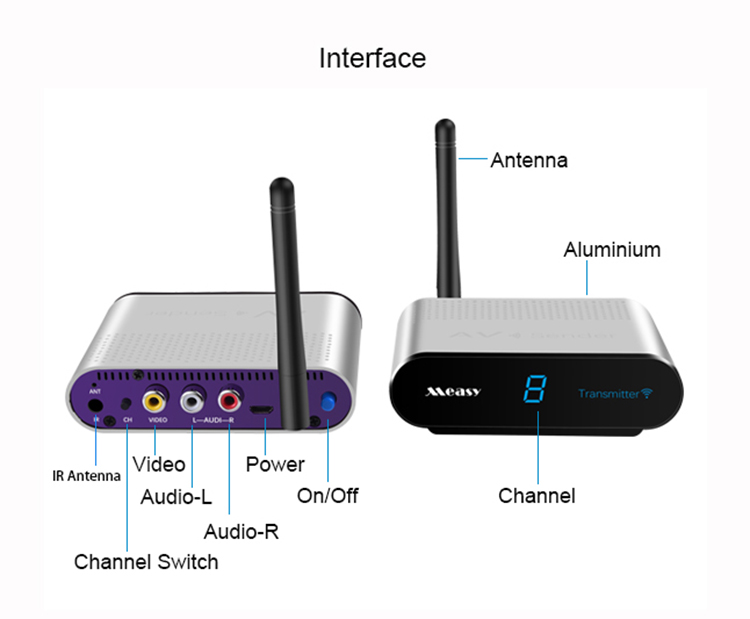

  • A display screen indicate the selected channel

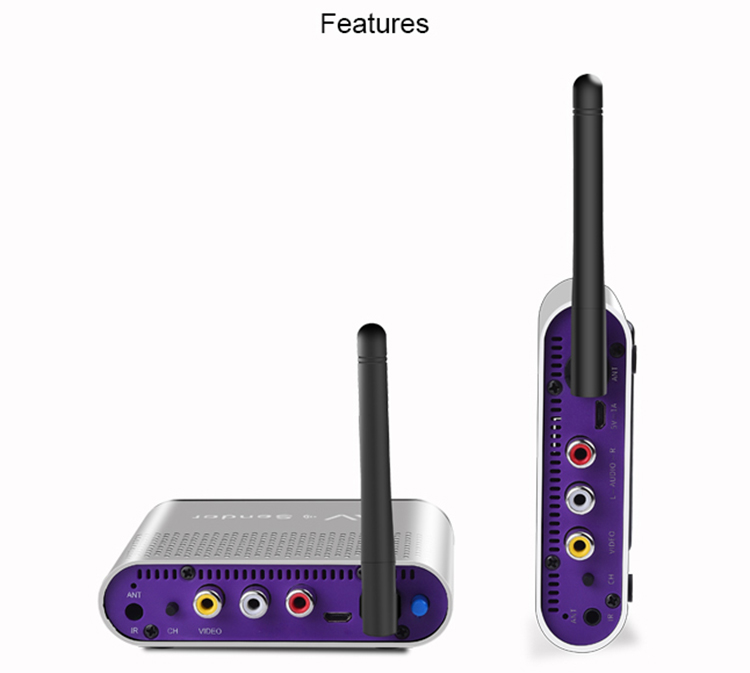

  • Support 1 group of AV signal input/ output

  • Support 1 transmitter and more than one receivers at the same time, when keeping transmitter and receiver setting at the same channel

  • Support any AV output devices, VCD, DVD, IPTV, DVR, Satellite receiver, CCTV Camera Digital STB etc.

  • Support superheterodyne 433MHz infrared remote signal transmission, while compatible for 38KHz infrared carrier control signal

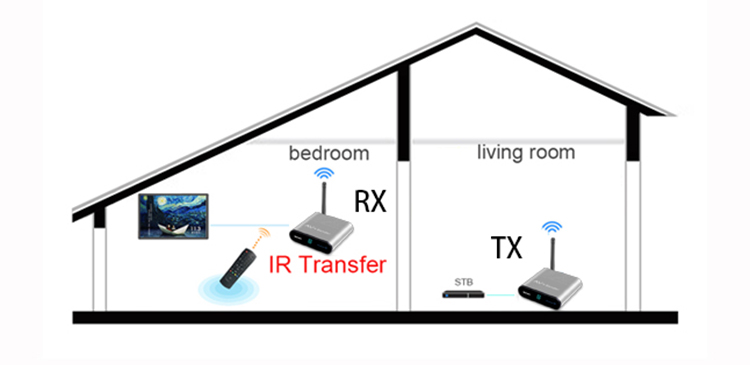

  • Transmitter has built-in infrared signal emission or infrared transmission extension cable, so that you can do remote control the signal from DVD, DVR, STB, IPTV, and other device

  • Support PAL/ NTSC system and stereo audio transmission

  • Without installing any software, without any setting, plug and play

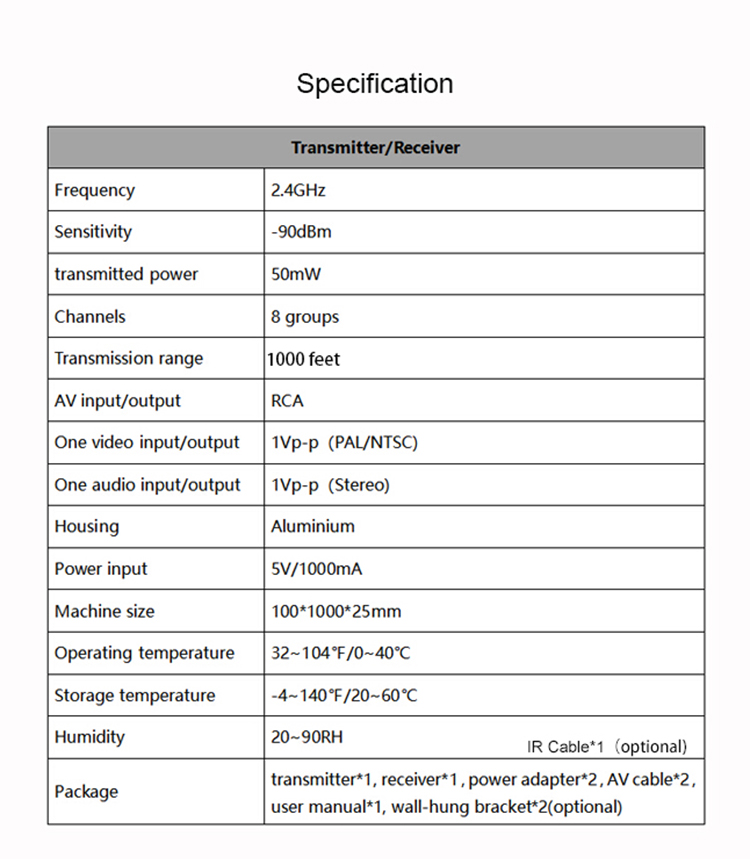

  • Type: Wireless

  • Frequency band: 2.4GHz

  • System: PAL / NTSC

  • Interface: RCA (AV)

  • Sensitivity: -90dBm

  • Transmit power: 50mW

  • Channels: 8 groups

  • Transmission range: 1000 feet

  • AV input/output: RCA

  • One video input/output: 1Vp-p (PAL/NTSC)

  • One audio input/output: 1Vp-p (stereo)

  • Superheterodyne reception: transmitter: -110dBm; receiver: 433.92MHz

  • Infrared carrier: 38KHz

  • Infrared emission distance: transmitting end: ≥5m; receiving end: ≥10m

  • Power input: 5V/1000mA

  • Operating temperature: 32~104℉/0~40℃

  • Storage temperature: -4~140℉/20~60℃

  • Humidity: 20~90RH

  • Shell material: aluminum alloy

  • Dimensions: 100x100x25mm

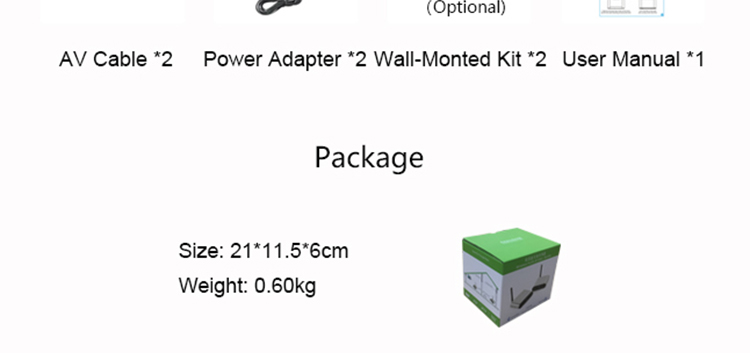

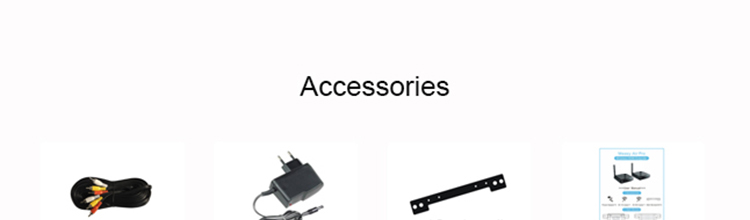

Package included:

  • 1 x Transmitter
  • 1 x Receiver
  • 2 x Power Adapters
  • 2 x AV Cables
  • 1 x English User Manual
