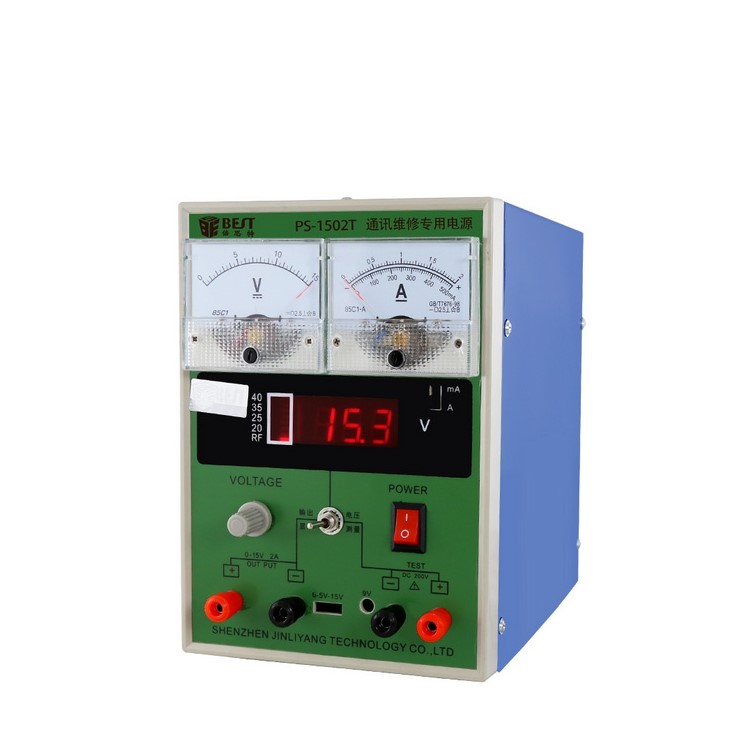

BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug

Item No.: 231401350A | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Ends in:
48Days 09h : 07m : 05s
Email Only Price
Price: $18.79 $19.78 (5 % OFF)
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Brand BEST
Plug EU Plug
Retail Packaging Colored Box
User Manual (Language) English and Chinese
Voltage AC 220V
Gross Weight 2.240kg
Volume Weight 1.905kg
Package Length 27.000cm
Package Width 14.000cm
Package Height 22.500cm
Package Weight 2.000kg

Product Description

BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug

DC power supply is widely used in various environment such as institutions laboratories, automated test equipment, electronic test equipment, production lines for resistors, relays, motors and other sophisticated electronic components, routine tests, sophisticated electrolytic capacitors, tantalum capacitors empowerment, communications facilities and all the occasions where DC is needed.

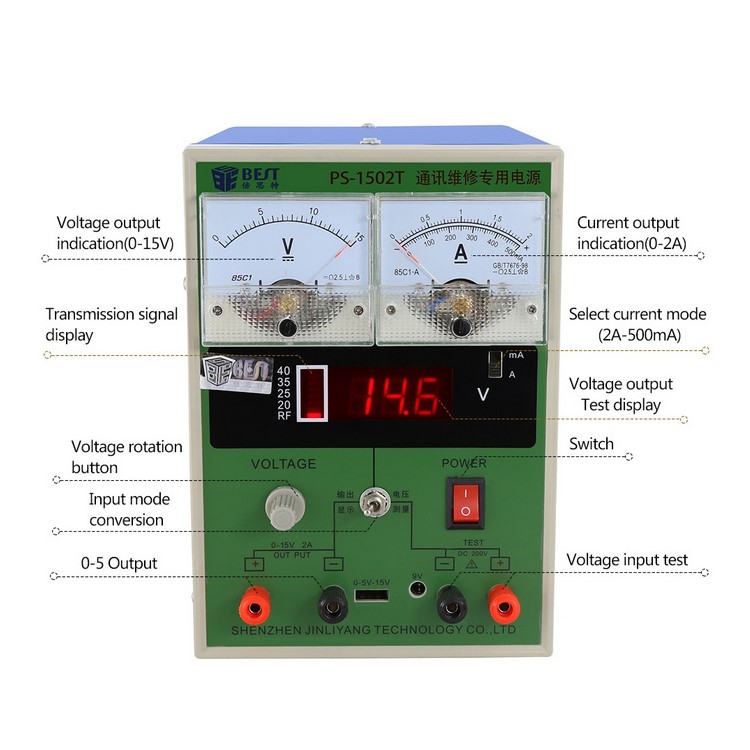

  • Voltage and current continuously are adjustable from zero to rated value

  • This machine  has perfect protection circuit ,auto recovery function

  • Can test voltage, check GSM mobile phone signal

  • Two different current models to choose

  • Voltage and current are displayed on digital LED at the same time

  • Upholds high precision and great stability

Specification:

Technical Specifications
Rated operating conditions
Input supply voltage220V±10%  50Hz
Working temperature-10°C~40°C Relative humidity:<90%
Storage temperature-20°C~80°C Relative humidity:<80%
Storage conditionsRelative humidity:<80%
Rated output voltage0~15V
Rated output currentMax 2A
Rated output power35W
Meter Display resolution2.50%
Ripple Noise≤1mVRMS
No-load loss≤0.25W
9V power output capability<15MV
USB output capability500Mw
Diode testing capabilitiesPathways buzzer
Regulators work status
Output voltage0 ~ 15V continuously adjustable between
Power stability≤0.01%±2mV
Load stability≤0.01%±2mV (1mav<1A) I0max>1A
Recovery time≤100us(maximum current≤3A)
Steady flow of work status
Output current0~2A continuously adjustable
Power stability≤0.2%+5mA
Load stability≤0.2%+10mA

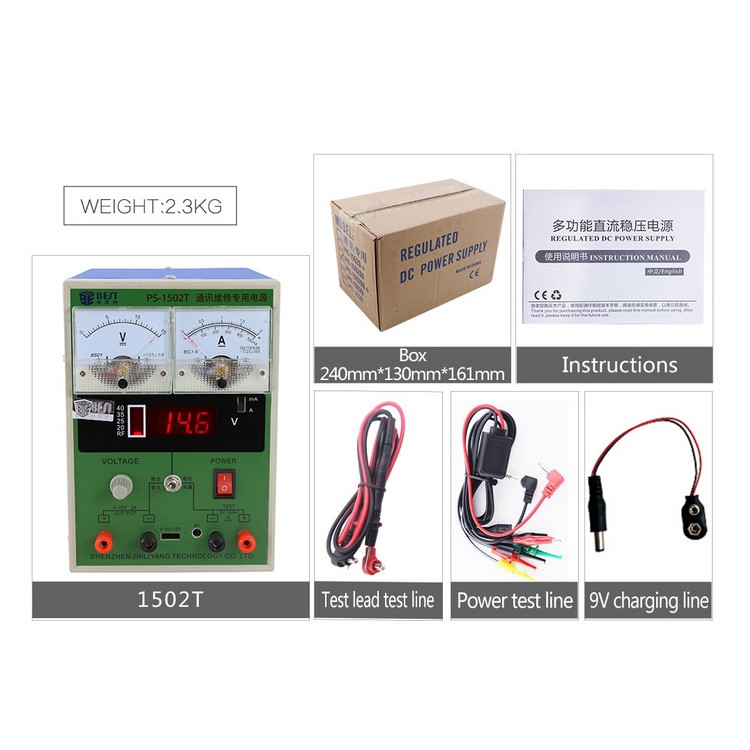

Package included:

  • 1 x BEST BST-1502T DC Regulated Maintenance Power
  • 1 x Test Lead Test Line
  • 1 x Power Test Line
  • 1 x 9V Charging Cable
  • 1 x Instruction Manual
BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-1 BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-2 BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-3 BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-4 BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-5 BEST BST-1502T DC Regulated Maintenance Power 15V 2A for Repairing Labs Power Supply - 220V / EU Plug-6
