CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug

Rate:
0
(0 reviews)
Item No.: 88010254C Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 135.01 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE, FCC, RoHS
Home Safety Type CCTV Accessories
Plug UK Plug
Retail Packaging Colored Box
Gross Weight 1.458kg
Volume Weight 1.202kg
Length 27.200cm
Width 17.000cm
Height 11.600cm
Weight 1.302kg
With Retail Packaging Yes

Product Description

CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug
  • High performance tester for both IP camera and Analog camera

  • Humanized design, one-handed performance

  • High definition 4.0 inch IPS display screen

  • Dual 100M network port, capable of detecting packet lost, monitoring network flow

  • Soft protection design to protect from dropping and bumping

  • Dual LED lights, 12V 1A power supply

  • Support RJ45 network interface ONLY (DOSE NOT SUPPORT POE)

Specifications:

Model

DT-T60

Interface

Network Interface

Dual 10/100M RJ45, support switch mode

Function Interface

Dual BNC connector (Video input/output), RS485comm, audio input, USB, reset button

IPC Test

Protocol

ONVIF 2.4.1, RTSP, RTP

Ethernet Test

10/100M Link test; Link speed test; Ethernet loop detect; Ethernet flow monitor; Link quality indicator

IP Setting

Manual IP/DHCP client/DHCP Server/Multiple DHCP detect/auto DHCP status switching

IPC Test

Discover, inter-subnet discover, camera list, camera snapshot for fast camera indication, real time video, camera network setting, PTZ test, audio test, full screen display of video, digital zoom of video(8 step), save snapshot, record video (original stream), UDP/TCP switching, packet lost indicator, camera profile setting

Hikvision Camera Activate

Automatic detect

Analog SD Test

SD Standard

NTSC, PAL

Video Resolution

D1

Signal Level

1Vpp

Camera Test

Real time video, PTZ control, audio test, full screen preview, digital zoom of video (8 step), save snapshot, record video (h.264), video resolution and frame rate indicator

PTZ Controller

Communication Protocol

Hikvision, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, etc. more than 30 protocols

Baud Rate

150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Other Test

Network Analysis

Sniff, list sub-net, ping

Video Generator

Send PAL/NTSC of various test pattern to output

Record Playback

Local playback, snapshot and video digital zoom, video frame by frame play support

Device

Display

4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, back light level adjustable

Internal Storage

8GB flash

LED Torch

Two 35lm LED, can turn on individually when device is off

Operation

Power button, main control    keypad of 12 keys, swing QWERTY keyboard of 45 keys.

Language

Chinese, English, French, Spanish, Germany, Turkish, Russian

Keypad Tone

On/Off

Software Upgrade

Online upgrade

Power

Battery

Dedicate li-polymer battery, user replaceable, capacity 3000mAh

Power Output

12V/1A output

Battery Work Time

Charge 3~4 hours, working time 10 hours

Other

Working Temperature

-10 degree centigrade ~ +55 degree centigrade

Working Humidity

30%~90%

Device Dimension

190 x 113 x 37mm

Package included:

  • 1 x CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60)

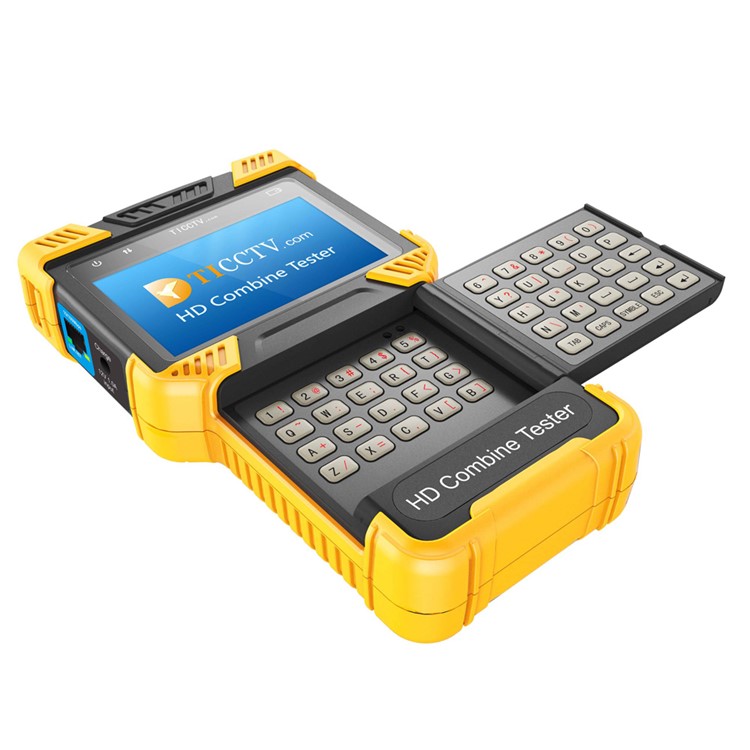

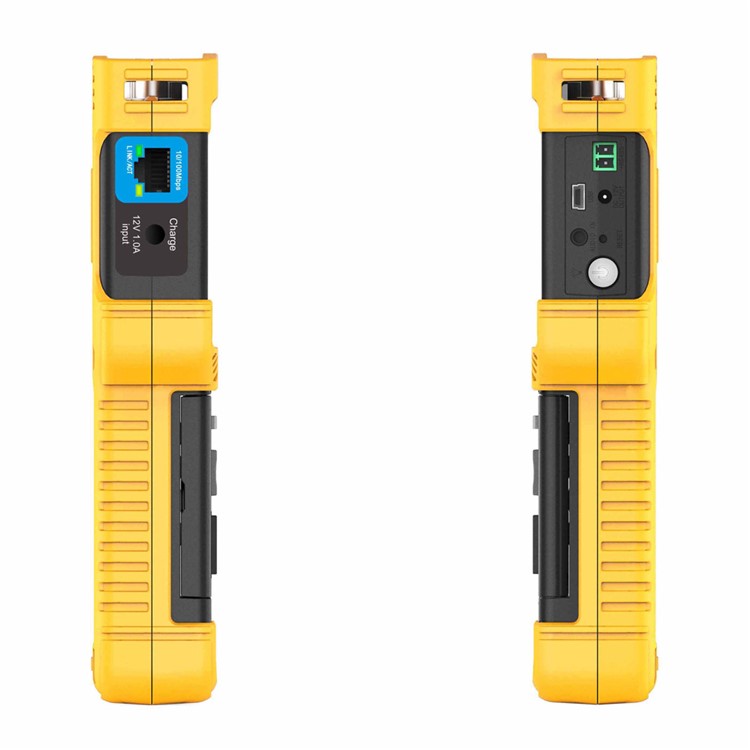

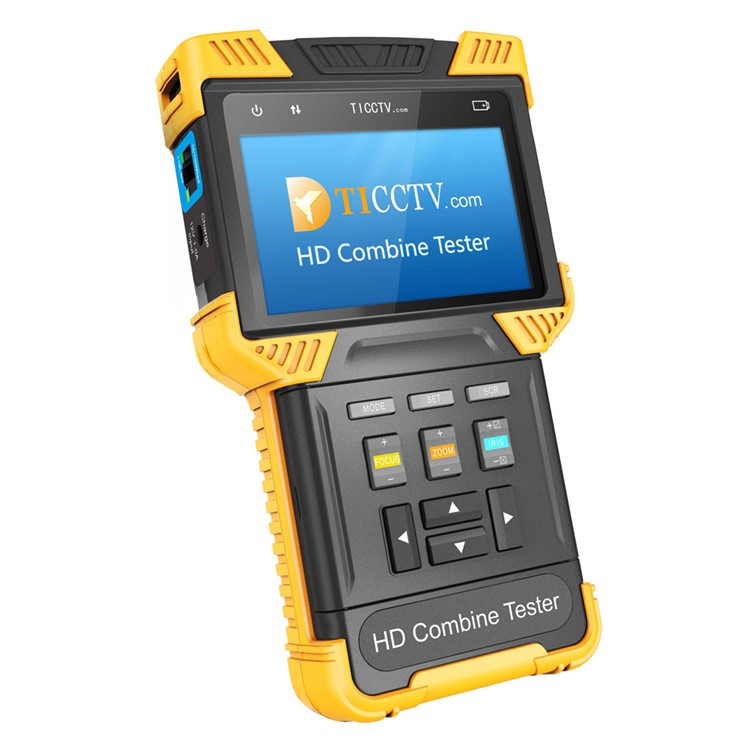

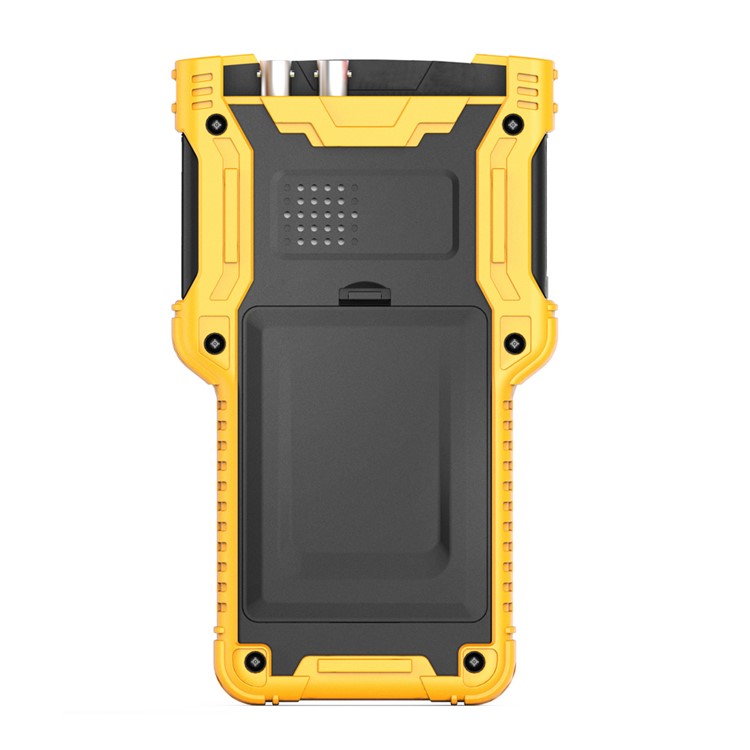

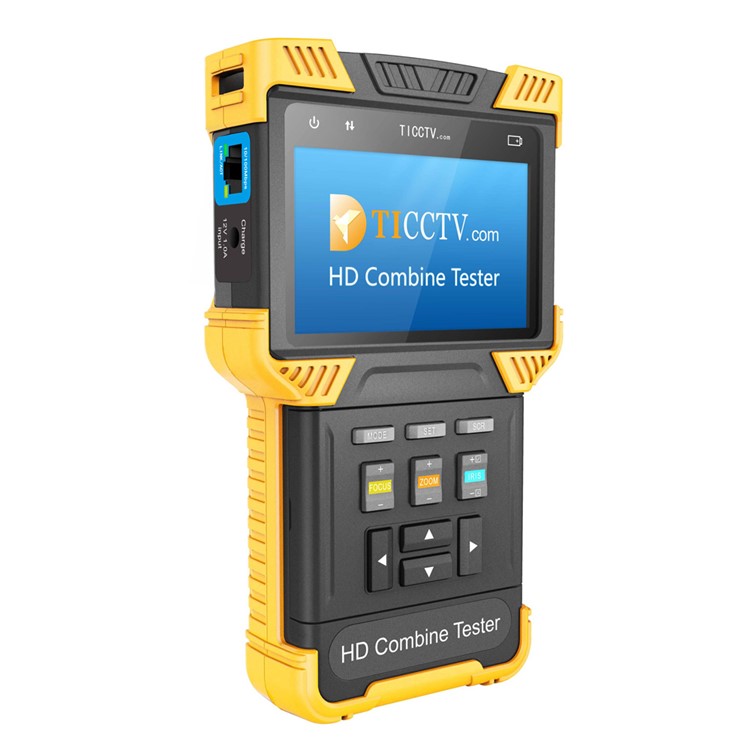

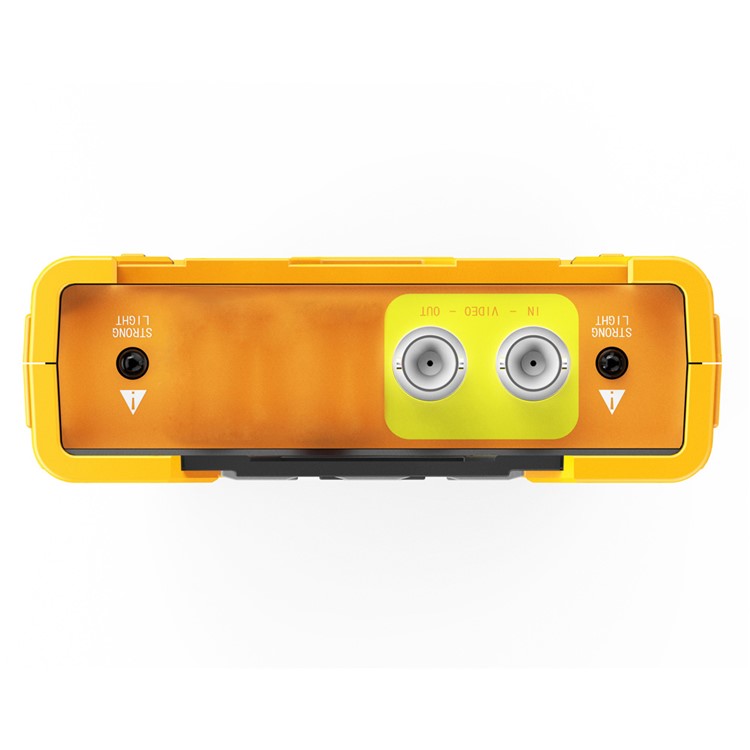

CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-1 CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-2 CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-3 CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-4 CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-5 CCTV 1080P IP + Analog Camera 4.0-inch Handheld HD Combine Tester Support ONVIF (DT-T60) - UK Plug-6
