CCTV TVI + AHD + IPC + POE + TDR + Analog Camera 4.0-inch Handheld HD Combine Tester Support 1080P POE (T62-TVI+AHD) - EU Plug

Rate:
0
(0 reviews)
Item No.: 88140017A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 367.95 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Camera Resolution 2 MP
Home Safety Type CCTV Accessories
Plug EU Plug
Gross Weight 1.904kg
Volume Weight 1.485kg
Length 28.000cm
Width 12.800cm
Height 18.500cm
Weight 1.700kg
With Retail Packaging Yes

Product Description

CCTV TVI + AHD + IPC + POE + TDR + Analog Camera 4.0-inch Handheld HD Combine Tester Support 1080P POE (T62-TVI+AHD) - EU Plug
  • High performance tester for both IP camera and Analog camera

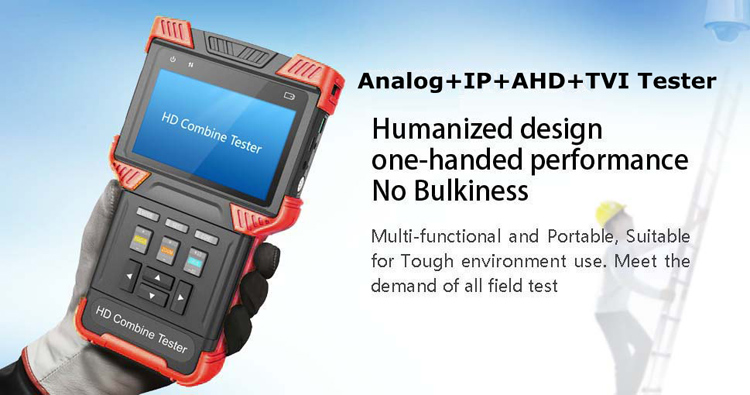

  • Humanized design, one-handed performance

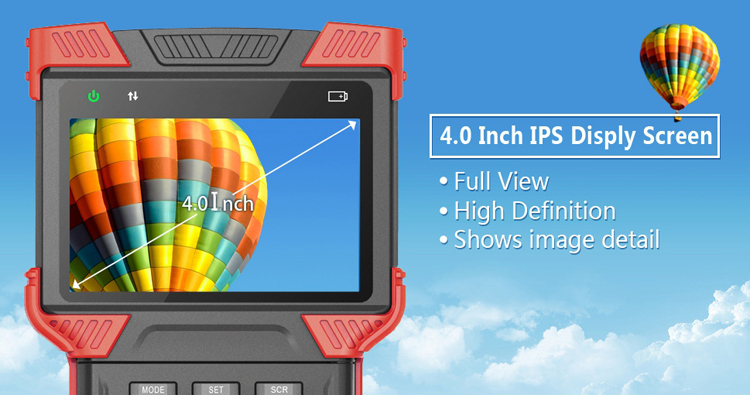

  • High definition 4.0 inch IPS display screen

  • Support analog high definition (HD-TVI) protocol

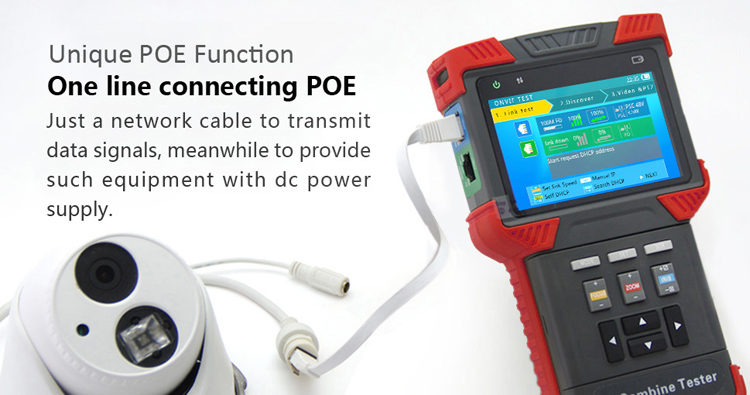

  • Unique POE function, one line connecting POE

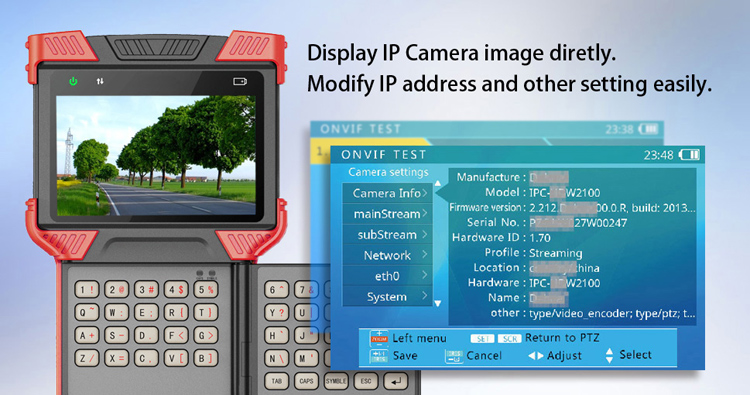

  • Display IP camera image directly

  • Modify IP Address and other setting easily

  • Dual 1000M Ethernet port, advanced testing capability

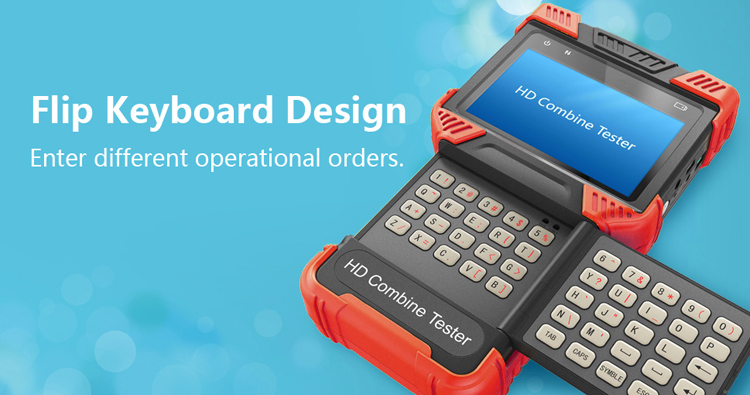

  • Flip keyboard design, gives you different operational orders

  • Soft protection design to protect from dropping and bumping

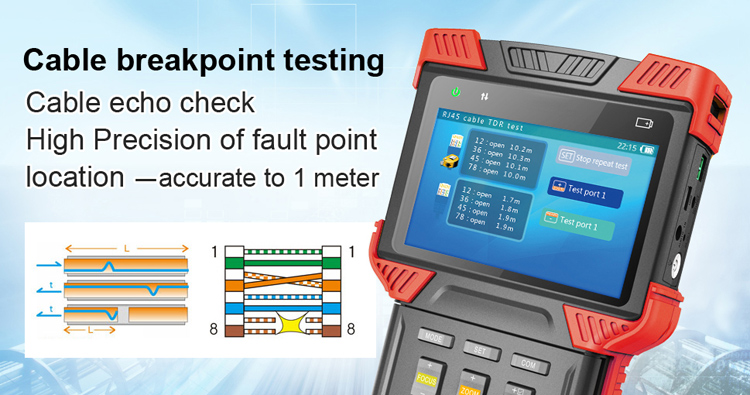

  • High precision of fault point location, accurate to 1 meter

  • POE connector: 48V output, to provide POE power for IP camera directly

  • PD electrical interface: measure POE supply voltage, meanwhile recharge for CCTV tester

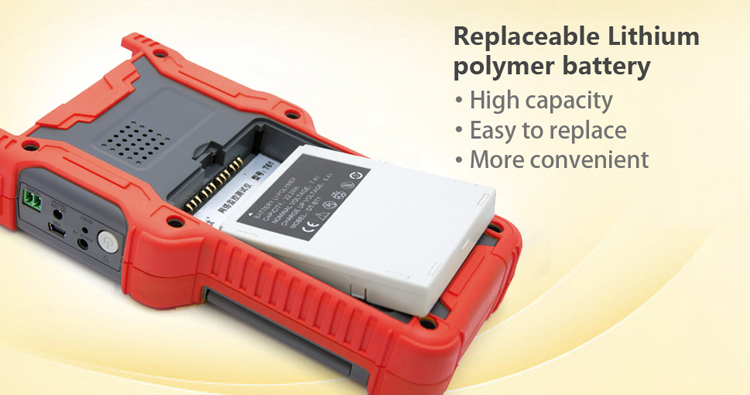

  • Replaceable lithium polymer battery

  • Dual LED lights, 12V 2A power supply

Specification:

Model

T62-AHD+TVI

Physical Port

Network Port

2 x 10/100/1000M RJ45 ports, support switch mode

Function Port

2 x BNC ports (Video IN and Video OUT), 1 x RS485, 1 x Audio In, 1 x USB, 1 x Reset

IPC Test

Protocol

ONVIF 2.4.1, RTSP, RTP

Ethernet Test

10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test

IP Configuration

static IP/ DHCP client/ DHCP server

IPC Test

Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video (recording original data stream)

HD AHD & TVI Analog Test

SD Signal Format

NTSC, PAL

HD Video Signal

HD AHD & TVI

Resolution

D1, 720P, 1080P

Signal Level

1Vpp

Camera Test

Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video (H.264)

HD AHD & TVI OSD

Camera configuration

PTZ Control

Protocol

More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.

Baud Rate

150, 300, 600, 1200, 2400, 4800, 9600, 19200bps

Detection

TDR Detection

0~150m net cable detection, resolution 1m

POE Test

PD test

PSE test

Network Analyze

Sniff, list subnet, ping

Analog Video Generator

Generate PAL/ NTSC video signal of various test pattern

Record Playback

Support local playback

System Specification

Screen

4.0 inch IPS 800*RGB*480(WVGA) resolution, 16.7M color, backlight brightness adjustable

Operation Method

Power key, 12 control keys, QWERTY flip keyboard with 45 keys

Auto Power Off

Disable/ 5~60 minutes

Keyboard Tone

Enable/ Disable

Upgrade

Support online upgrade

Power

Power Input

POE port by POE midspan

POE Midspan

Input AC100~230V 50~60Hz, output 48V/15w

Battery

Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh

Power Output

POE (802.3af, 802.3at)

DC12V 2A

Time

Charging time 3~4 hours, working time 10 hours

Other

Internal Storage

8GB flash

LED Light

2 x 35lm LED lights

Working Temperature

-10°C~55°C

Working Humidity

30%~90%

Dimensions

190 x 113 x 37mm

Weight

1.6kg

Package included:

  • 1 x 4.0-inch Handheld HD Combine Tester
