DANMINI MJPT015 Electric Door Lock RFID Access Control ID Card Password System

Rate:
0
(0 reviews)
Item No.: 88090213A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 34.88 (0 % OFF)
Qty:
Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE, FCC, RoHS
Home Safety Type Smart Card Access Control
Retail Packaging Paper Box
Gross Weight 1.740kg
Volume Weight 0.616kg
Length 24.100cm
Width 16.300cm
Height 7.000cm
Weight 1.554kg
With Retail Packaging Yes

Product Description

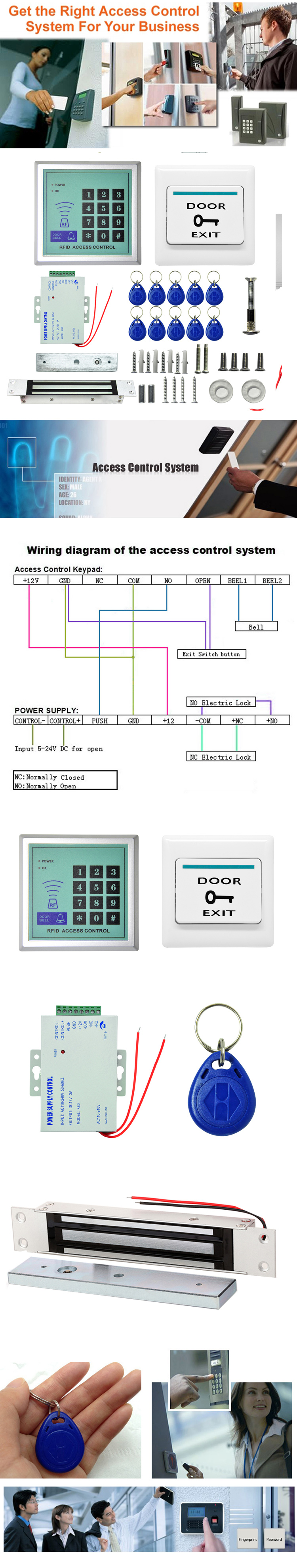

DANMINI MJPT015 Electric Door Lock RFID Access Control ID Card Password System
  • Card capacity: 400, may be extended to 3000

  • Variety of authentication for opening the door: password, card and card+password

  • Wide using range: any need to access control channel

  • The access controller can provide users with more convenience by connecting to terminals, such as button, magnetic lock

  • A good equipment for businesses, offices, factories, and communities

Specification:

  • Host technical parameters:

  • Working voltage: DC+8V—+15V(standard 12V)

  • Electric current: Don't drive lock ≤70mA

  • Unlock the electric current: ≤1000mA

  • Working temperature: -10℃~70℃

  • Working humidity: 0~100%

  • Frequency: 125KHz(EM CARD)13.56MHz(M1 CARD)

  • Initial programming password: 123456

  • Magnetic locks technical parameters:

  • Working voltage: DC12V input

  • Working current: 320mA

  • Sustain tension: 180KG (straight line pull)

  • Lock body material: high strength aluminum alloy and anode hardening treatment

  • Installation method: with the electric lock (small)

  • Suitable for: 90 degrees of any box door open

  • Switch technical parameters:

  • Size: 86x86x20mm

  • Standard structure: Fireproof material mixed resin

  • Electrical properties: The maximum durability 3A@36VDC

  • Contact output: NO/COM contact

  • Durability test: One hundred thousand times aging test qualified

  • Suitable type: Apply the hollow frame and embedded type electric appliance box use

  • Working temperature: -10~+55℃ (14-131F)

  • Working humidity: 0~95% (Relative humidity)

  • Panel processing: Fire prevention materials off surface treatment

  • Weight: 0.07KG

Package included:

  • 1 x Access Controller
  • 1 x Access button
  • 1 x Power Supply
  • 10 x ID Cards
  • 1 x Magnetic Lock
  • 1 x Screws Set
88090213A-1
