DVB-T2 HD Digital Video Broadcasting Terrestrial Receiver Set Top Box H.264 MPEG4 for HDTV

Rate:
0
(0 reviews)
Item No.: 84100070A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 14.02 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Retail Packaging Colored Box
Gross Weight 0.747kg
Volume Weight 0.586kg
Length 24.000cm
Width 21.800cm
Height 5.000cm
Weight 0.667kg
With Retail Packaging Yes

Product Description

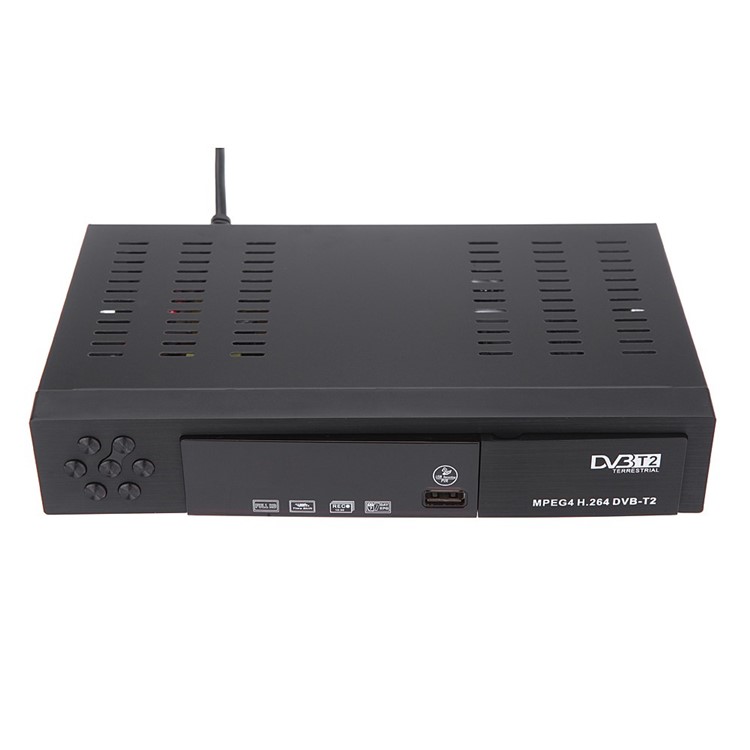

DVB-T2 HD Digital Video Broadcasting Terrestrial Receiver Set Top Box H.264 MPEG4 for HDTV
  • Fully comply with DVB-T2 and H.264, MPEG-4, MPEG-2 standards

  • DVB Subtiling-ETSI 300473 compliant, and support VBI/OSD teletext

  • The maximum speed of the traffic flow at least 50 Mbit/sec

  • Support PVR function and multimedia playback (MP3/MP4/JPEG/AVI etc) via USB2.0

  • Video decoder up to 1080p@30fps (full HD, support up to 1080p)

  • Full HD and HDMI 1.3/HDCP 1.1 copy protection

  • Fully support 7 days Electronic Program Guide (EPG)

  • Storage capacity up to 1000 channels of TV and radio programs

  • Support Logic Channel Number (LCN)

  • Various channel editing functions (favorite, move, lock, skip, delete, rename, find, sort)

  • Software upgrade via USB

  • 4-Digit LED display on front panel

  • Auto/manual channel search function

  • OSD language: English, Russia ,Czech, Danish, French, German, Italian, Portuguese, Spanish, Swedish, etc.

  • Support teletext/subtitle/audio language selection

  • Outputs: HDMI1.3, SCART, CVBS, YPbPr, COAXIAL

  • PAL/NTSC auto conversion

  • Full comply to EUP power consumption requirements

  • Signal strength bar for digital transponder

  • 8 Timers for recording and/or sleep-timer with 3 modes (daily, weekly, once)

Specification:

  • Tuner:

  • IF input frequency: VHF: 174MHz - 230MHz; UHF: 474MHz - 860MHz

  • Bandwidth: 6/7/8MHz

  • Input level: -83dBm ~ -5dBm

  • Signal input: IEC-type female

  • Chipset: MSTAR 7816

  • MPEG transport stream and A/V decoding

  • Video standard: MPEG-2/MPEG-4 AVC/H.264 HP@L4, AVC

  • SCART video model CVBS/RGB

  • Aspect ratio: 4:3 LB, 4:3 PS, 16:9, AUTO

  • Video output resolution: 480i/576i/480p/576p/720p/1080i/1080p 50Hz

  • Audio standard: ISO/IEC 14.496-3, AC3, AAC, AAC+

  • Audio mode: mono, dual-channel, stereo

  • Audio: WMA, MP3, AC3, AAC (wma, mp3, m4a)

  • Video: MPEG1, MPEG2, MPEG4, H264, Motion JPEG (avi, mpg, dat, vob, div, mov, mkv)

  • Front panel:

  • Display: LED display

  • USB slot for software upgrading/PVR/multimedia playback

  • Channel decoding:

  • Standard: DVB-T2

  • Demodulation: QPSK, 16QAM, 64QAM

  • FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic

  • Guard: 1/4,1/8,1/16,1/32

  • Mode: 2K, 8K

  • Demultiplexer:

  • Standard: ISO/IEC 13818-1; ARIB STB-B10

  • Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)

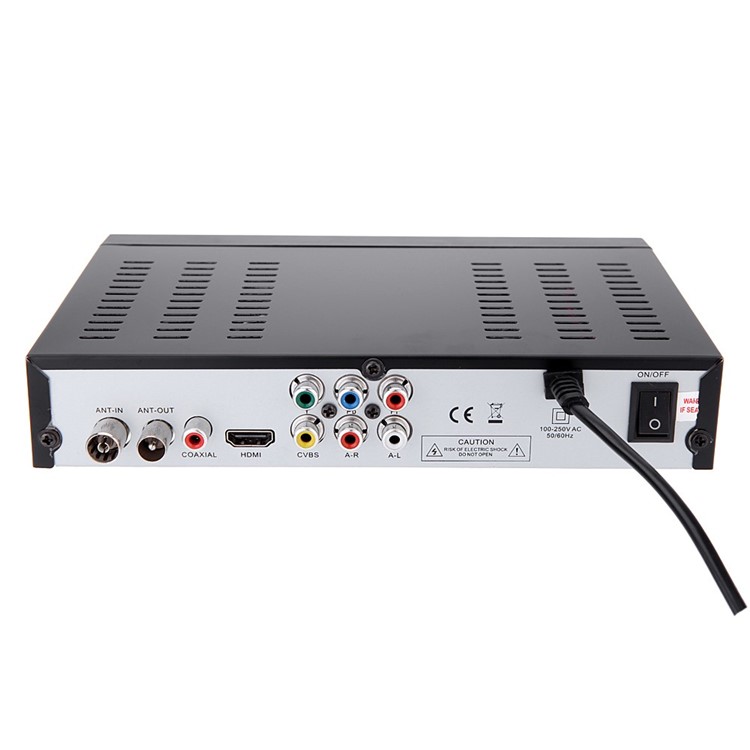

  • Rear panel output:

  • HDMI output: 576P/720P/1080P/AUTO

  • Loop through output: IEC-type, connector, single tuner

  • TV Scart, USB 2.0

  • CVBS L/R audio

  • L/R audio RCAX2

  • Digital coaxial audio

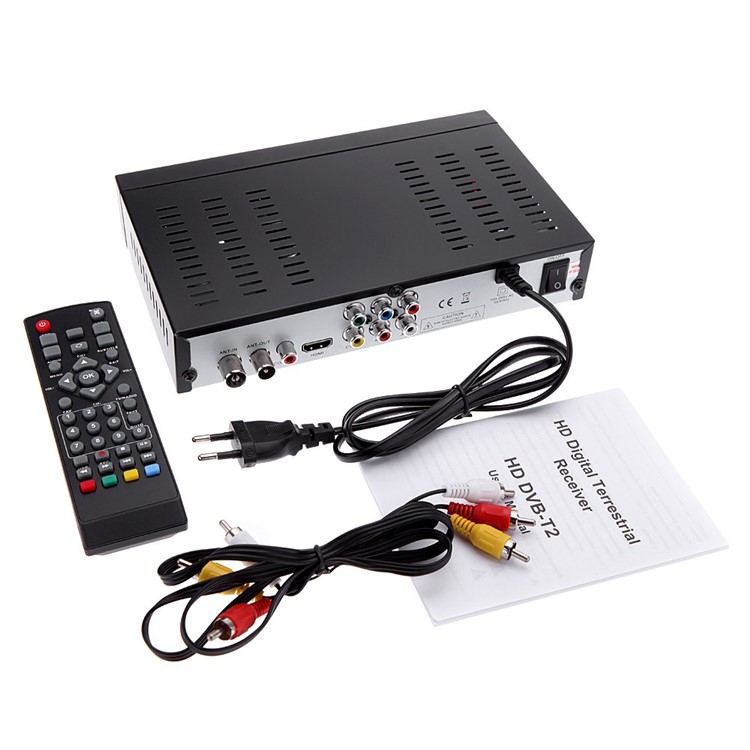

Package included:

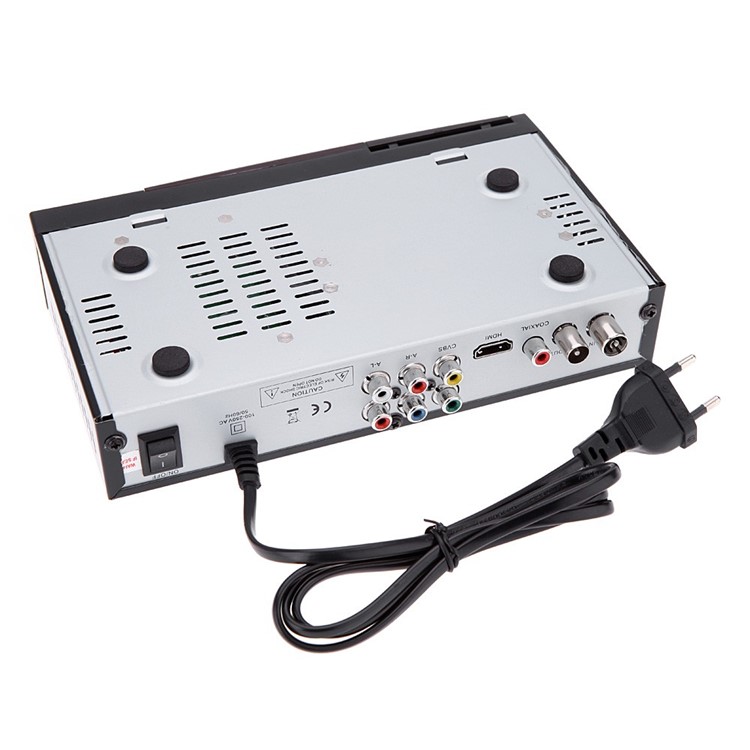

  • 1 x DVB-T2 HD Digital Video Broadcasting Terrestrial Receiver Set Top Box with Power Cable

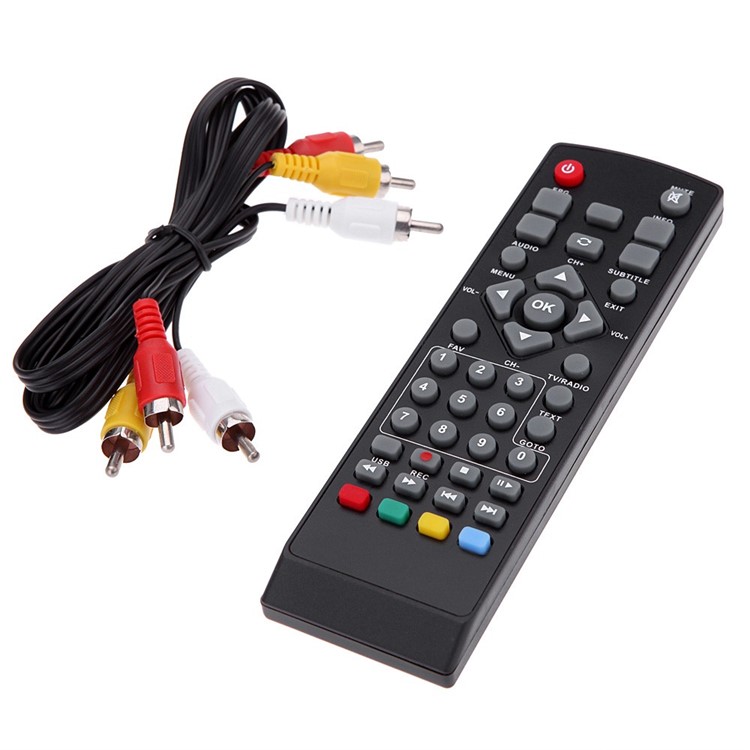

  • 1 x AV Cable
  • 1 x IR Remote Controller
  • 1 x User Manual
