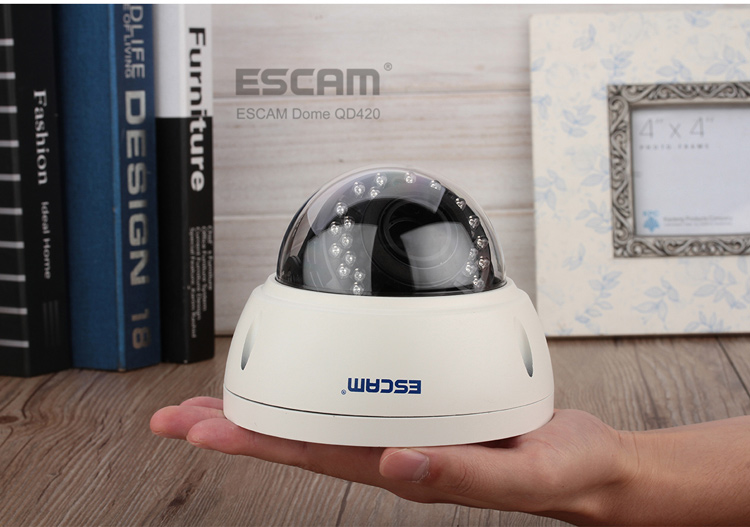

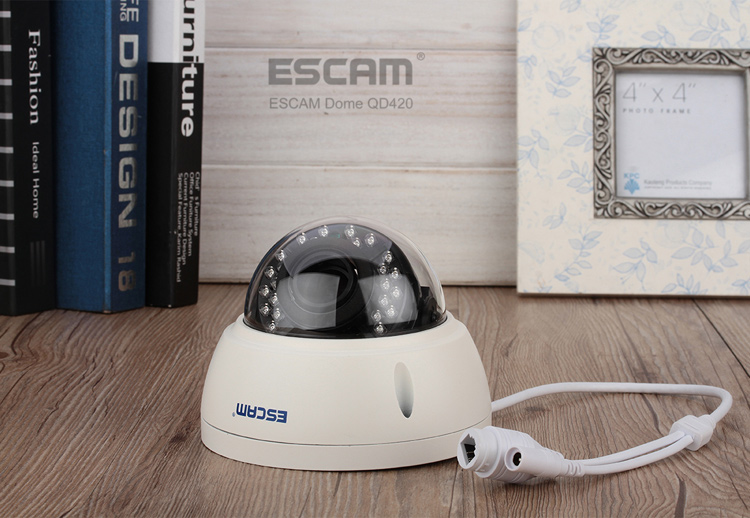

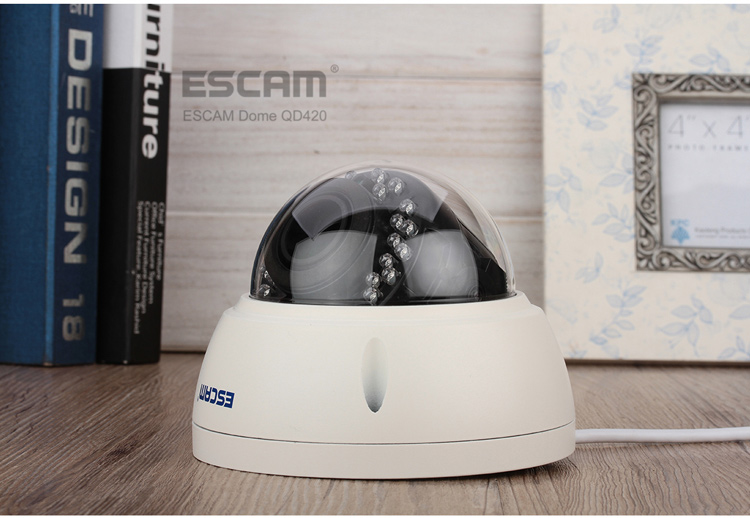

ESCAM 1520P WiFi IP IR Dome Camera 3.6mm Lens Support APP P2P Onvif (QD420) - EU Plug

Rate:
0
(0 reviews)
Item No.: 88010316A Ships in 1 - 3 days MOQ: 1
Email Only Price
Plug:
Price:
$ 98.98 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Camera Resolution 4 MP
Camera Shape IR Dome Camera
Certificate CE
Focus 3.6mm Lens
Home Safety Type IP Cameras
IR Distance 15m
Plug EU Plug
Retail Packaging Paper Box
With Stand Yes
Gross Weight 0.930kg
Volume Weight 1.262kg
Length 19.500cm
Width 17.000cm
Height 17.000cm
Weight 0.830kg
With Retail Packaging Yes

Product Description

ESCAM 1520P WiFi IP IR Dome Camera 3.6mm Lens Support APP P2P Onvif (QD420) - EU Plug

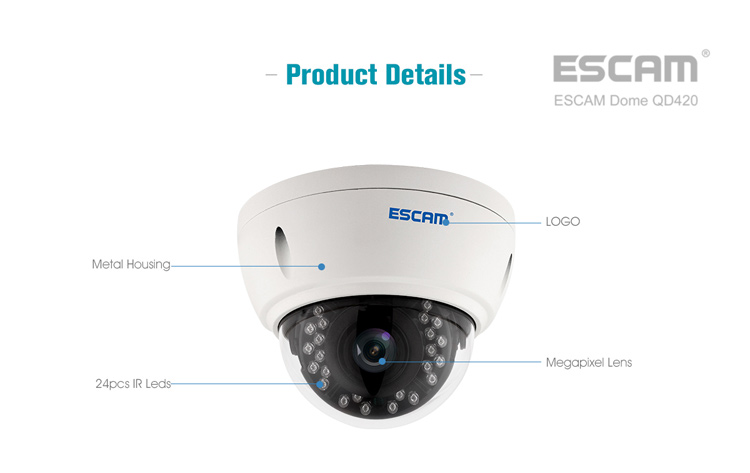

  • 1/3'' 4.0MP CMOS, 3.6mm lens, 24PCS IR LED lights

  • Supports wireless WiFi connection

  • Applicable to schools, airports, factories, hotels, museums, traffic monitoring, etc.

Specification:

ModelQD420
Camera
Image Sensor1/3'' CMOS
Effective PixelsMain stream: 4MP 2592*1520@18fps; 3MP 2048*1536@22fps
Sub-stream: 704*576@25fps
Electronic Shutter SpeedAuto/Manual, 1/3~1/10000s
Min. Illuminationcolor 0.01Lux@F1.2, black/white 0.001Lux@F1.2
S/N Ratio>50dB
Camera Features
Max. IR LEDs LengthΦ5 24pcs IR LED, IR Range 15m
Day/NightAuto(ICR)/Color/B/W
Wide DynamicSupport digital
White BalanceAuto
Gain ControlAuto
Noise ReductionSupport 2D/3D
Privacy MaskingYes
Lens
Focal Length3.6mm
Max ApertureF1.6
Angle of View75.7°
Video

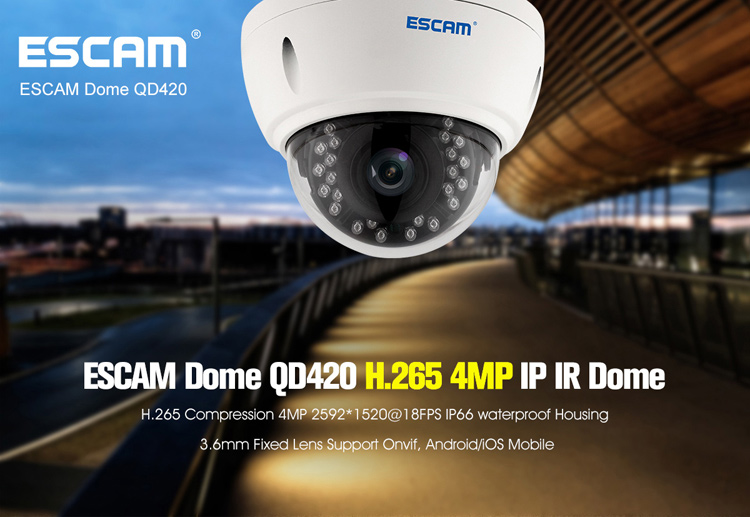

CompressionH.265/H.264
Frame RateMain Stream4MP 2592*1520@18fps; 3MP 2048*1536@22fps; 2MP(1920*1080)25fps
Sub Stream704*576@25fps
Bit RateSupport CBR/VBR
Network
EthernetRJ-45 (10/100Base-T)
ProtocolTCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIFONVIF2.0
Max. User Access10 users

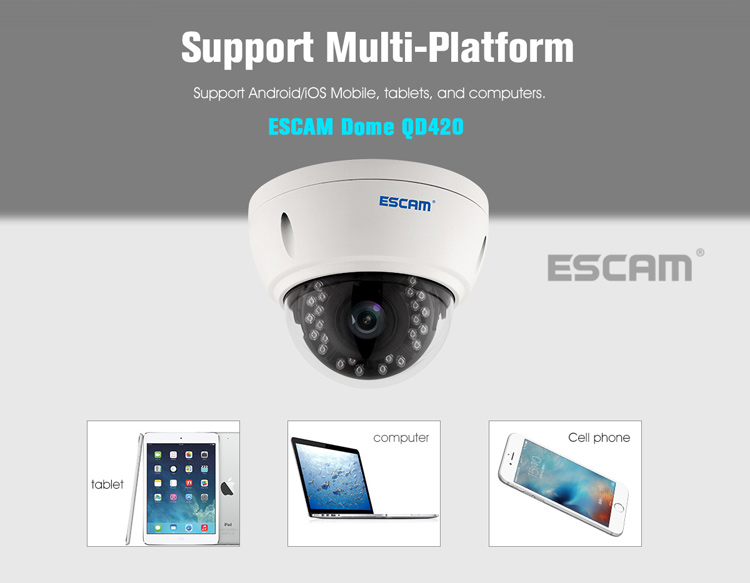

Smart PhoneiPhone, iPad, Android
General
Power SupplyDC12V
Power Consumption<6W
Working Environment-10°C~+60°C, 10%~90%

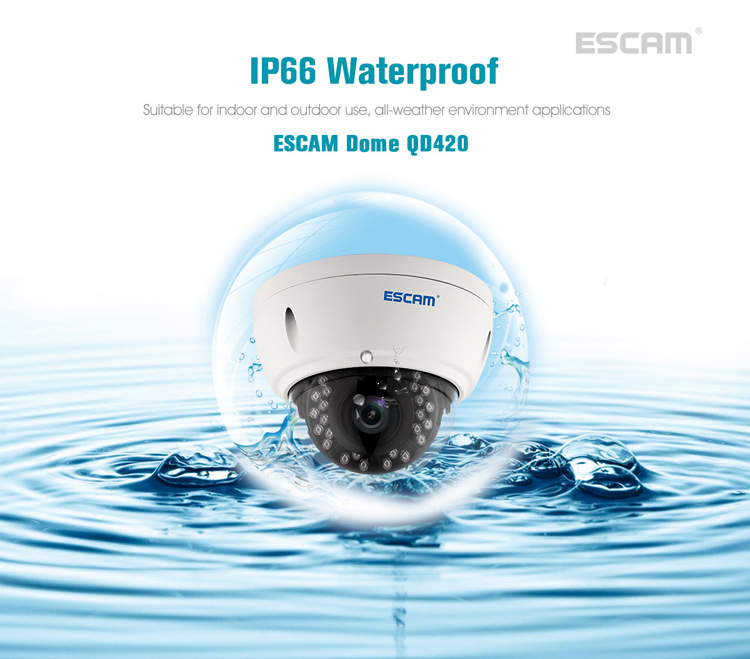

Ingress ProtectionIP66

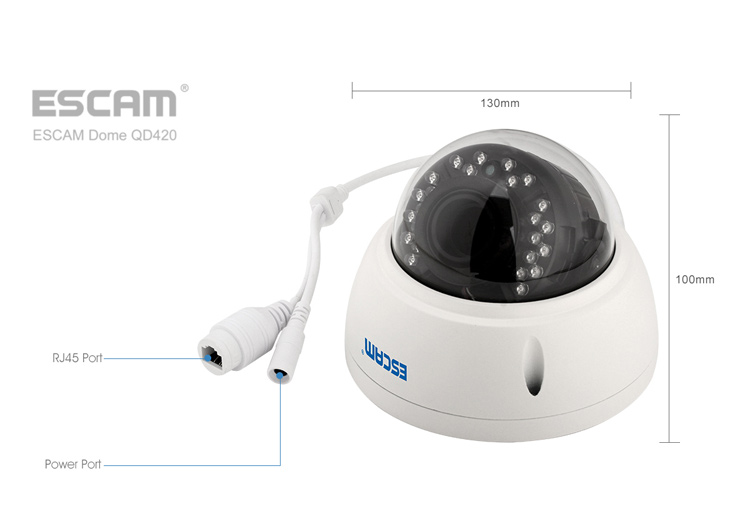

Dimension130 x 130 x 100mm
Weight0.57kg
ApprovalsCE FCC RoHS

Package included:

  • 1 x ESCAM 1520P WiFi IP IR Dome Camera 3.6mm Lens Support P2P Onvif
  • 1 x User Manual
