ESCAM 720P 4CH WiFi NVR Kit with 4 x 1.0MP Outdoor IP Cameras Support P2P APP (WNK403) - EU Plug

(0 reviews)
Item No.: 88010319A Ships in 1 - 3 days MOQ: 1
Email Only Price
$ 157.07 (0 % OFF)
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units
Friendly Reminder: Hard Drive is Not Included


Brand Escam
Camera Resolution 1 MP
Certificate CE
Home Safety Type NVRs
Plug EU Plug
Retail Packaging Paper Box
Sensor Size 1/4"
Sensor Type CMOS
WiFi Yes
Gross Weight 3.248kg
Volume Weight 4.050kg
Length 35.600cm
Width 27.600cm
Height 18.400cm
Weight 2.900kg
With Retail Packaging Yes

Product Description

ESCAM 720P 4CH WiFi NVR Kit with 4 x 1.0MP Outdoor IP Cameras Support P2P APP (WNK403) - EU Plug

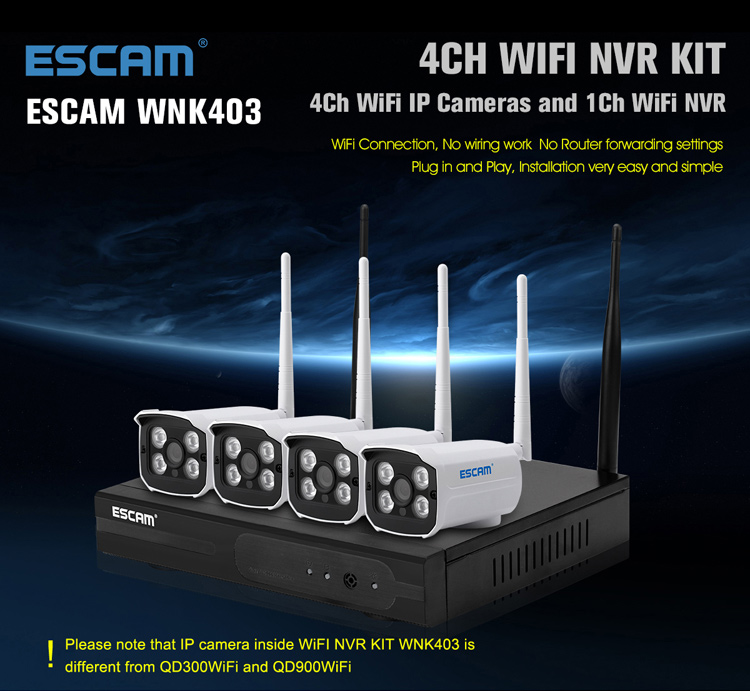

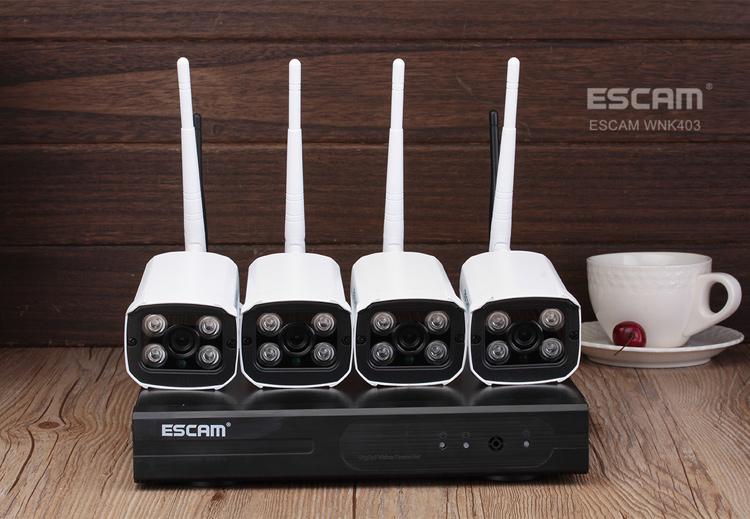

This NVR kit includes 1 x 4-channel NVR and 4 x 1.0MP outdoor IP cameras.

  • High performance H.264 compression technology

  • Motion detection, linkage video

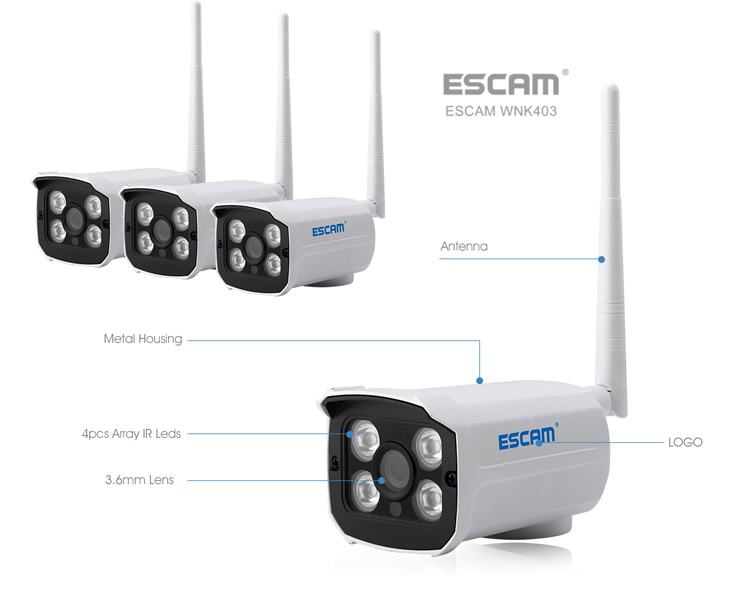

  • 1/4" CMOS 1.0MP 720P camera

  • P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR at any time and any place

  • Support Onvif protocol, support High profile S, High profile G, compatible with different IP cameras based on Onvif, RTSP standard

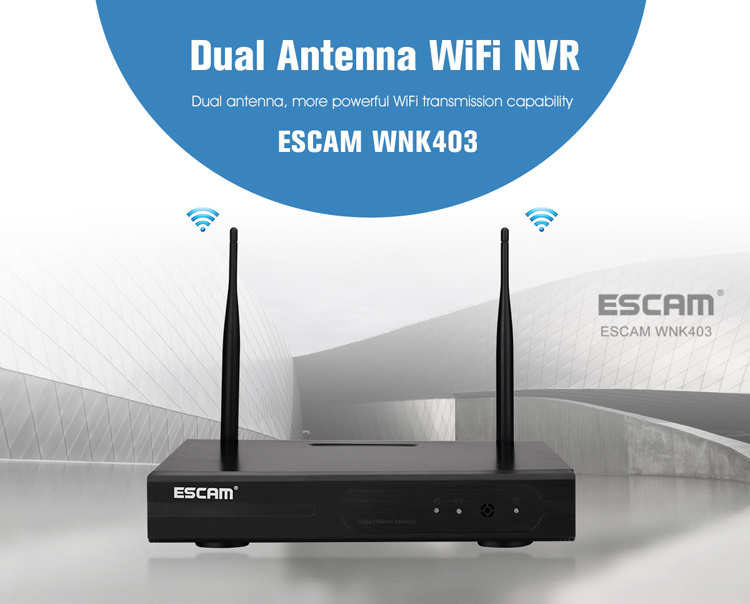

Wireless NVR Specification
Video InputNetwork Video4CH
Network Video Input Broadbank20Mbps
Video OutputHDMI Input1ch, resolution: 1024x768, 1366x768,
1440x900, 1920x1080p
VGA Output1ch, resolution: 1024x768, 1366x768,
1440x 900, 1920x1080p
AV CODEC SpecificationVideo Resolution720P
Video ControlVideo/Capture ModeMaual, Time, Motion, Alarm
Playback ModeReal time, Routine, Event
BackupUSB backup
Hard DiskType1*SATA interface
Max. Capacity4TB at most for each

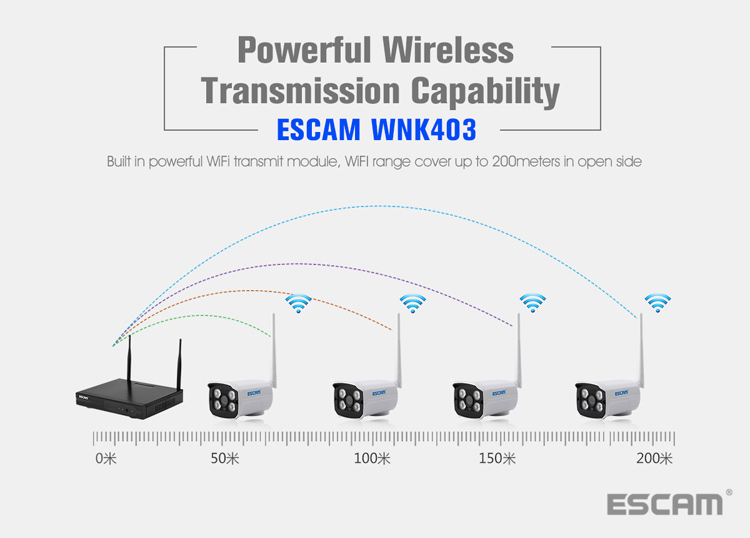

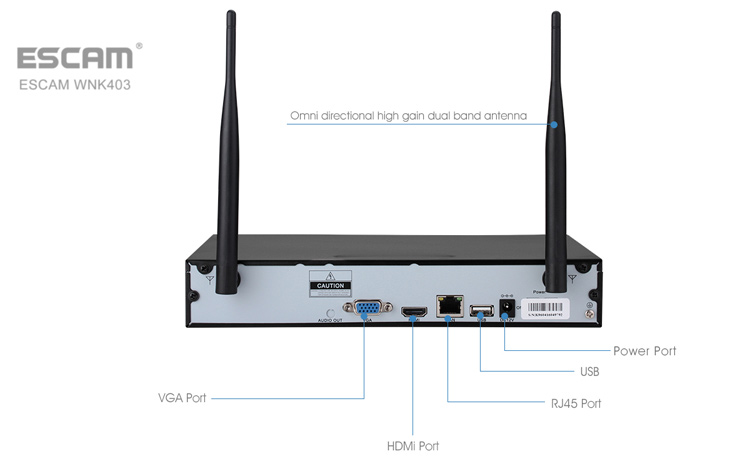

External InterfaceNetwork Interfaceone adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface
USB InterfaceUSB 2.0
Network ControlProtocolUPnP(play&plug)/SMTP(email survice)/PPPoE(dial-up)
DHCP(Automatically obtain an IP address)
OthersPower SupplyDC12V2A
Power Consumption≤5W(Without HDD)
Operate Temperature -10℃ ~ +55℃
Working Humidity10% ~ 90%
Weight(excluding HDD)0.73Kg
IPC  Specification
 Sensor1/4'' Progressive CMOS Sensor
Signal SystemPAL/NTSC
Resolution1280 x 720
Minimum IlluminationColor: 0.1 Lux; B/W: 0.01 Lux
Shutter1/25s to 1/25,000s
OSDDate Time & Title
White BalanceAuto
Day & NightAuto/Color/BW
Frame SpecificationThree streaming at the same time
H.264 1280x720@15fps or below
H.264 640x480@30fps or below
InterfaceRJ45/WIFI 802.11b/g/n
General SpecificationAnti-thunder LevelStandard IEC61000-4-5
Working Temperature/Humidity -10℃ ~ +50℃ / 30% to 80% RH
Working Temperature/Humidity -20℃ ~ +60℃ / 20% to 90% RH
Power InputDC12V1A
Power consumption≤6W

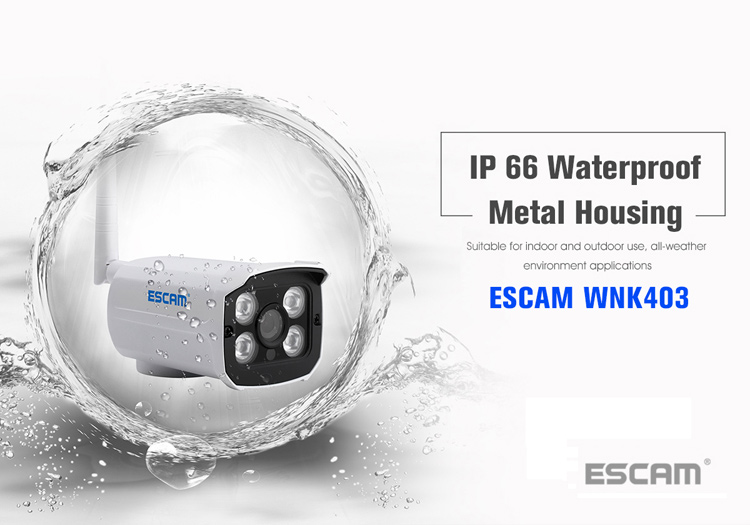

Level of ProtectionIP66
Dimensions107 * 68 * 60mm

Package included:

  • 1 x 4CH 720P WiFi NVR
  • 4 x 720P IP Cameras
  • 1 x Network Cable
  • 5 x Power Supply
  • 5 x Screw Bags
  • 4 x Waterproof Hat
  • 1 x Mouse
  • 1 x Manual
88010319A-1 88010319A-2 88010319A-3 88010319A-4 88010319A-5 88010319A-6 88010319A-7 88010319A-8 88010319A-9 88010319A-10 88010319A-11 88010319A-12 88010319A-13 88010319A-14 88010319A-15 88010319A-16 88010319A-17 88010319A-18 AuthorizationImage
