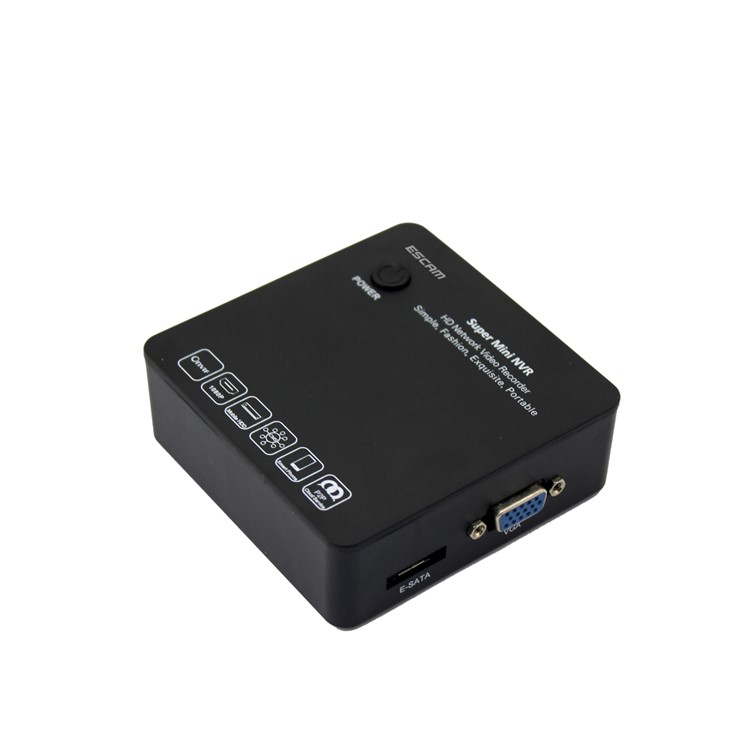

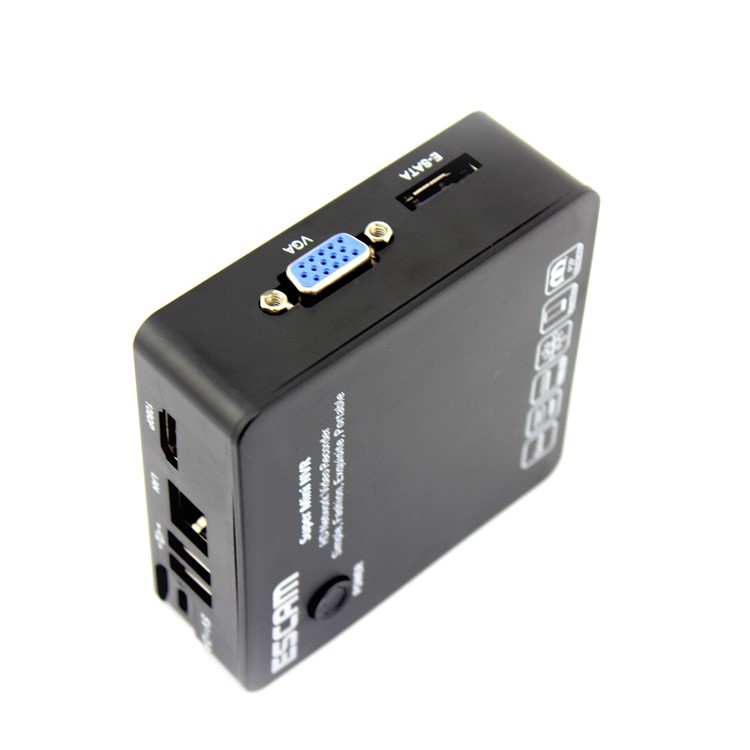

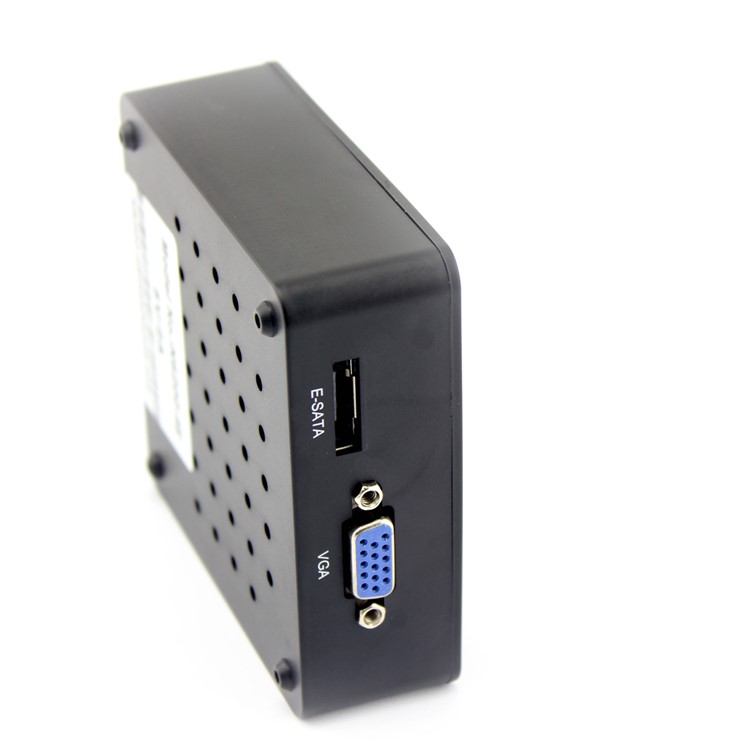

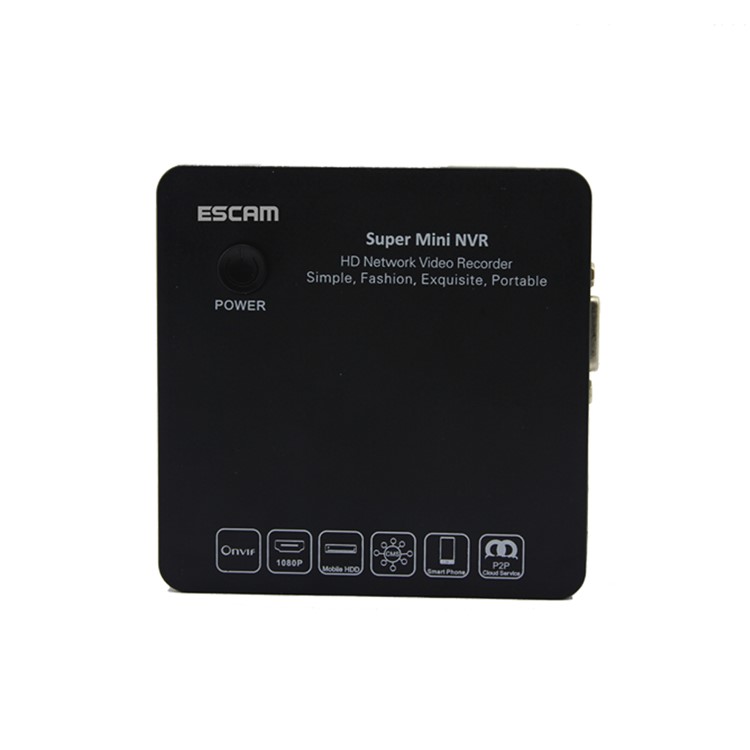

ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug

Rate:
0
(0 reviews)
Item No.: 880200157B Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 38.98 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Certificate CE, RoHS
Home Safety Type NVRs
Plug US Plug
Retail Packaging Colored PP Bag
Gross Weight 0.256kg
Volume Weight 0.224kg
Length 22.300cm
Width 11.800cm
Height 3.800cm
Weight 0.229kg
With Retail Packaging Yes

Product Description

ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug
  • Support synchronous video, playback, remote monitoring, backup

  • Support Android/IOS mobile phone and Tablet PC

  • Operation System: Embedded Linux

Specifications:

Model NumberK108
Operating SystemEmbedded LINUX operating system
Image Code ControImage code quality adjustable, variable bitstream and constant bitstream optional
Dual StreamEach channel can set main stream and sub stream
Video Standard1080P(1920x1080)30fps/960P/(1280x960)/720P(1280x720)30fps
Monitoring Image 1080P(1920x1080)/960P/(1280x960)/720P(1280x720)
Image Motion DetectionEach screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
Recording Playback Quality4ch playback in 4ch 720/960P mode; 1ch 1080P playback in 1/4ch 1080P mode
Region CoverEvery channel can set 4 cover regions (IPC Support)
Recording ModeSupport manual, auto, dynamic detection, alarm trigger record mode(Partly needs IPC Support)
Backup WaySupport U disk, USB mobile HDD, USB DVD-RW, storage and backup
Operation WayMouse
Local LoginUser name and password
Recording StorageLocal HDD, network

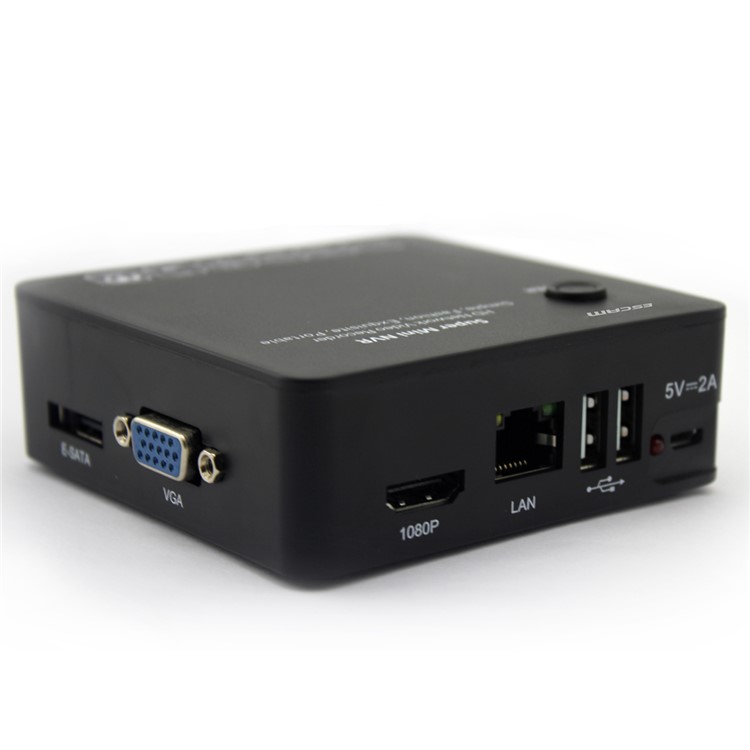

External PortsVideo Inputs1. 8x(1280*720)+sub[640*360]+1Ref.+4Play, support 8ch 1MP IP camera
2. 8x(1280*960)+sub[640*480]+4Ref.+1Play, support 8ch 1.3MP IP camera
3. 8x(1920*1080)+sub[640*480]+2Ref.+1Play, support 8ch 2MP IP camera
4. 8x(720*576)+sub[352*288]+2Ref.+8Play, support 8ch 0.4MP IP camera
Audio Input8ch network audio input
Video Output1ch VGA+1ch HDMI
Network Port1 RJ45, 10M/100M self-adaptive LAN port
USB Port2 USB 2.0 ports
 HDDMobile HDD/E-SATA/USB Disk
Mobile SurveillanceSupport(iPhone, Android) smart phone
Power Supply5V 2A
Power Consumption≤10W(without HDD)
Working Temperature-10 degree Celsius ~ +55 degree Celsius
Working Humidity10% - 90%
DimensionEquipment: 88mm x 88mm x 32mm
Packing: 185.5mm x 115.5mm x 36mm
Weight(without HDD) N.W.: 105g
Installation Way Desktop Installation

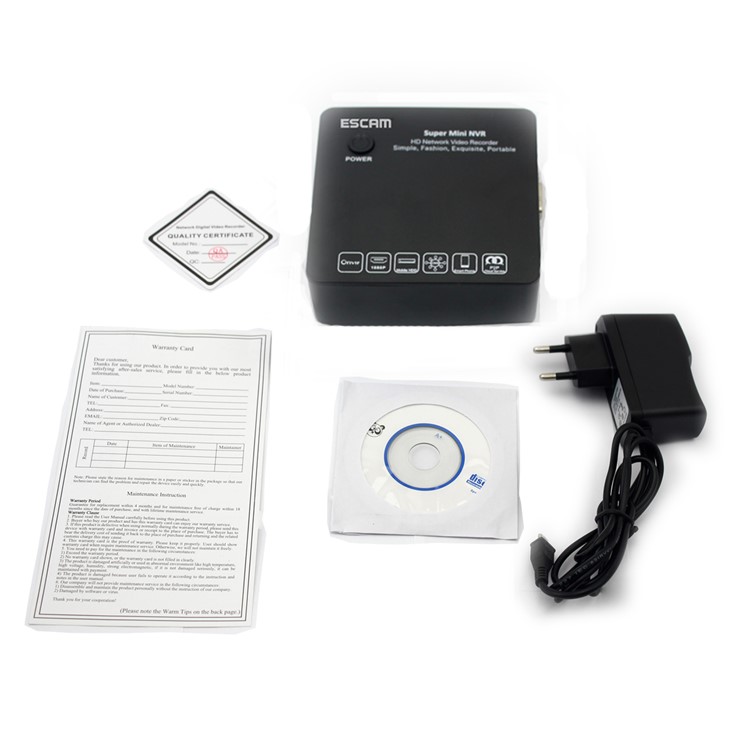

Package included:

  • 1 x ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Portable Network Video Recorder NVR
  • 1 x Power Supply
  • 1 x Manual
ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-1 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-2 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-3 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-4 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-5 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-6 ESCAM K108 ONVIF 8 Channel 1080P/720P Mini Network Video Recorder NVR - US Plug-7 AuthorizationImage
