ESCAM K716 HD 5MP 16CH Smart NVR Net Work Video Recorder

Item No.: 680100009A | MOQ: 1 | Ships in 1 - 3 days |
(0 reviews)
Email Only Price
Price: $36.93
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units


Retail Packaging Paper Box
User Manual (Language) English and Chinese
Gross Weight 1.232kg
Volume Weight 1.799kg
Package Length 35.500cm
Package Width 26.000cm
Package Height 8.700cm
Package Weight 1.100kg

Product Description

ESCAM K716 HD 5MP 16CH Smart NVR Net Work Video Recorder
  • HD 5MP resolution, support 16/9ch 5MP IPC, support 4ch 1080P or 1ch 5MP main stream preview and playback

  • HDMI/VGA video output: full HD display/TV live preview, smooth playback screen and support H.265

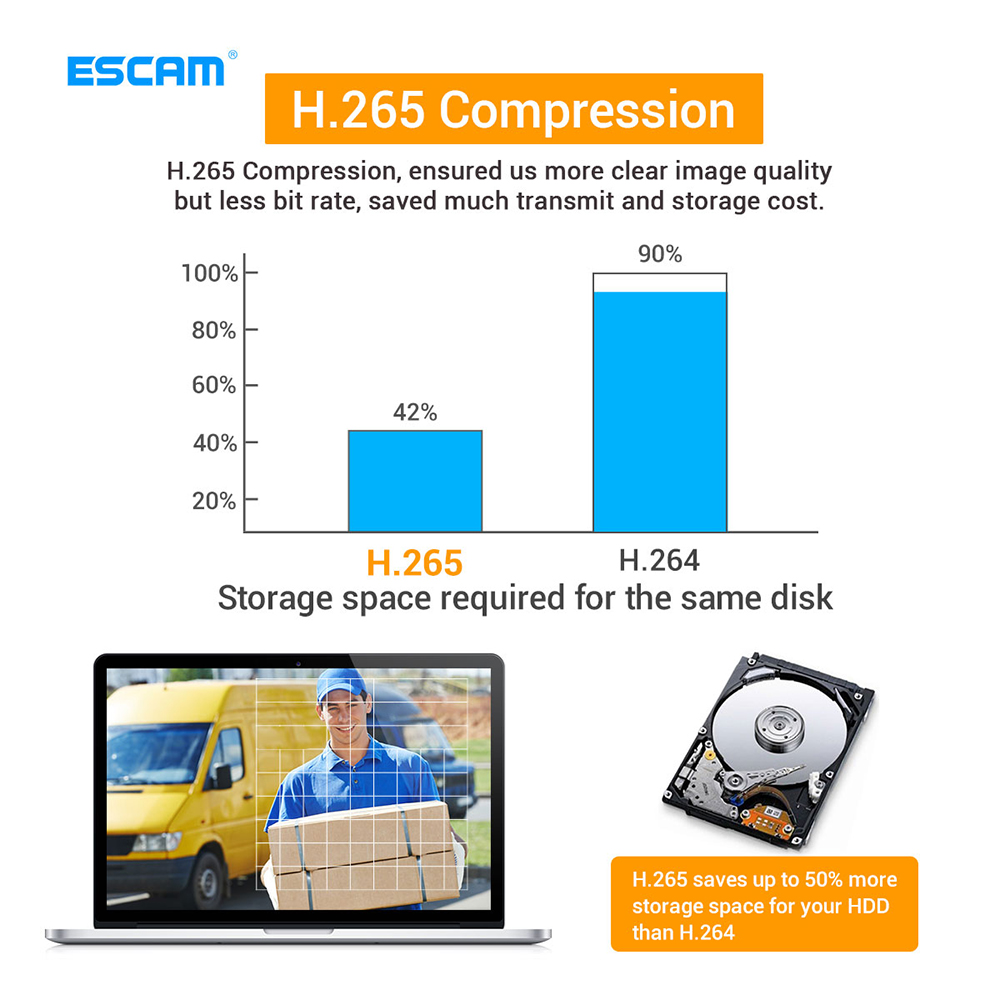

  • H.265 compression, ensured us more clear image quality but less bit rate, saves much transmit and storage cost

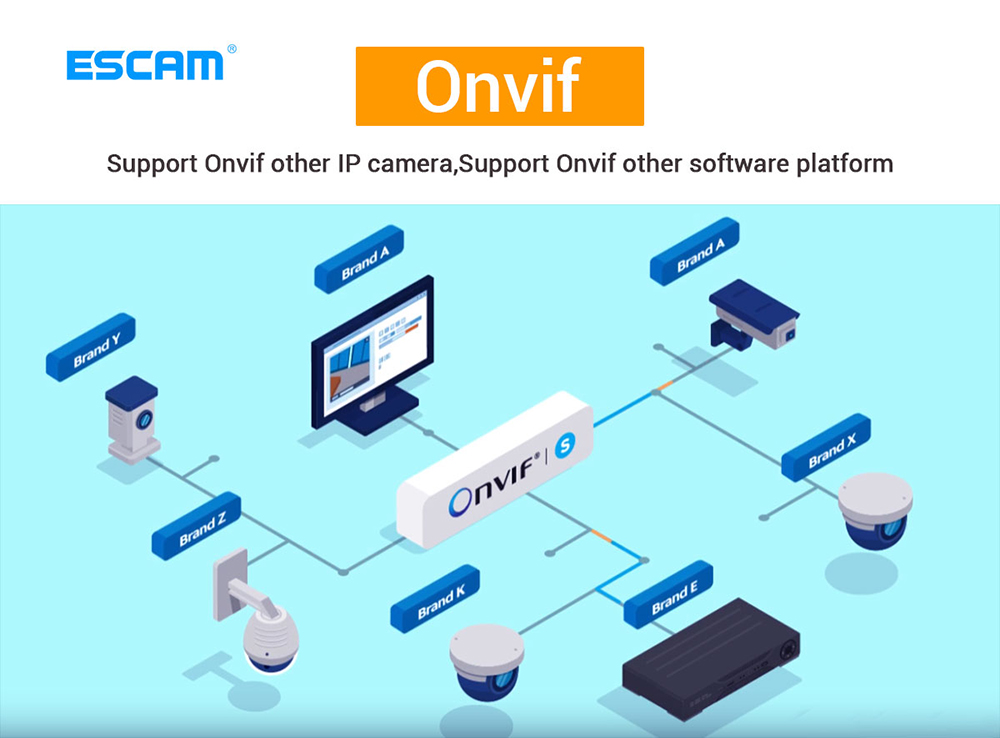

  • Support Onvif other IP camera and other software platform

  • Support max up to 8TB


Model NumberK716
Operating SystemEmbedded LINUX operating system
Video Standard H.265+/ H.265/H.264
Smart AnalysisWith    Smart IPC,suppoatTarget Count, Object Left /Lost, Area Detection, Line Crossing
Video & Audio InputVideo    Input16CH 5MP IP Network Cameras
Audio InputIPC composite stream network audio    input
Video & Audio OutputHDMI    Output1CH, HDMI can output audio at the same time
VGA Output1CH
Preview Split1/4/9 screen
Video; Audio CodecVideo    Resolution5MP and below resolution
Synchronized PlaybackSupport adaptive stream preview and playback:9 screens D1, 4 screens 1280*720, single    screen 2560*1920
External Ports
Internet 1 x RJ45 10M/100M/1000M adaptive Ethernet port
USB2 x USB2.0 rear
HDD HDD    Port 1  x SATA HDD Port
MAX Capacity  up to 8TB
POE interface/
Support Standard/
Network ManagementNetwork    ProtocolUPnP (Plug; Play), SNMP (Simple Network Management), NTP (Network Timekeeping), SADP (Device Network Search), SMTP (Mail Service), NFS (Access NAS), iSCSI (IP SAN Application), PPPoE (Dial-up Internet access), DHCP (automatically obtain IP address)
P2P Remote MonitoringAEeyeSupports iPhone, iPad, Android Smart phone
Supports Windows 7 and above computer client, supports Apple MAC computer client
Power Supply12V 2A
Working Temperature  -10℃--+55℃
Working Humidity  10%-90%
Power ConsumptionNVR motherboard function≤25W(Without HDD)
Dimensions Device:255mm×220mm×43mm
Weight (Without HDD)N.W.:0.63Kg;Packing:1.1Kg
Outside Carton  10 pcs/carton.Dimension:462mm×365mm×530mm;Weight:12Kg
Installation MethodDesktop installation

Package included:

  • 1 x ESCAM K716 HD 5MP 16CH Smart NVR Net Work Video Recorder
  • 1 x English and Chinese User Manual
  • Other items not included
