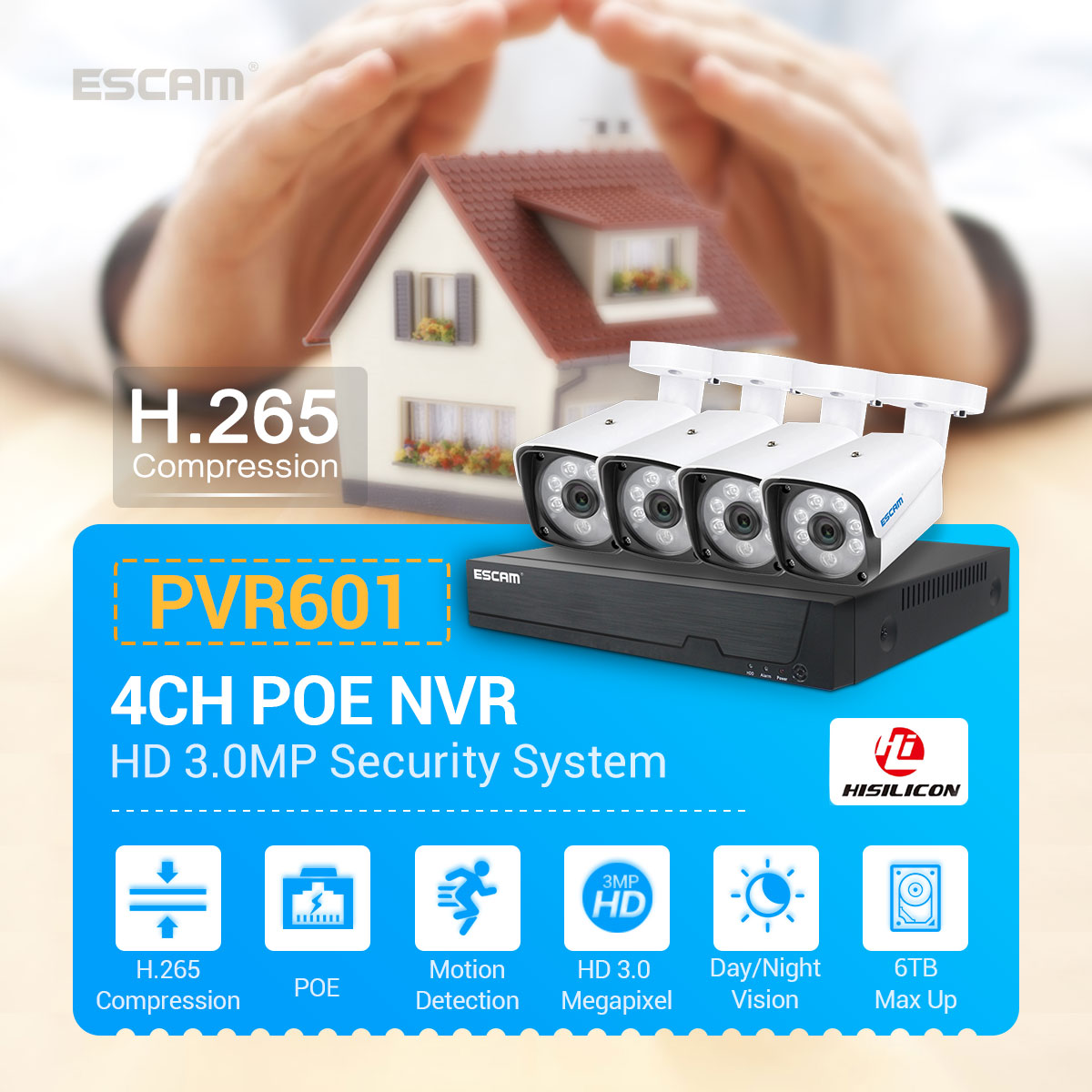

ESCAM PVR601 3MP 1080P 4CH POE NVR Kit H.265 Day/Night Mode Security System - EU Plug

Item No.: 680300009A | MOQ: 1 | Ships in 1 - 3 days |
(0 reviews)
Email Only Price
Price: $96.57
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units


Brand Escam
Plug EU Plug
Retail Packaging Paper Box
User Manual (Language) English and Chinese
Gross Weight 4.368kg
Volume Weight 3.995kg
Package Length 34.500cm
Package Width 27.500cm
Package Height 18.800cm
Package Weight 3.900kg

Product Description

ESCAM PVR601 3MP 1080P 4CH POE NVR Kit H.265 Day/Night Mode Security System - EU Plug
  • Day/night HD 3MP resolution

  • Support motion detection

  • H.265 compression, more clear image quality

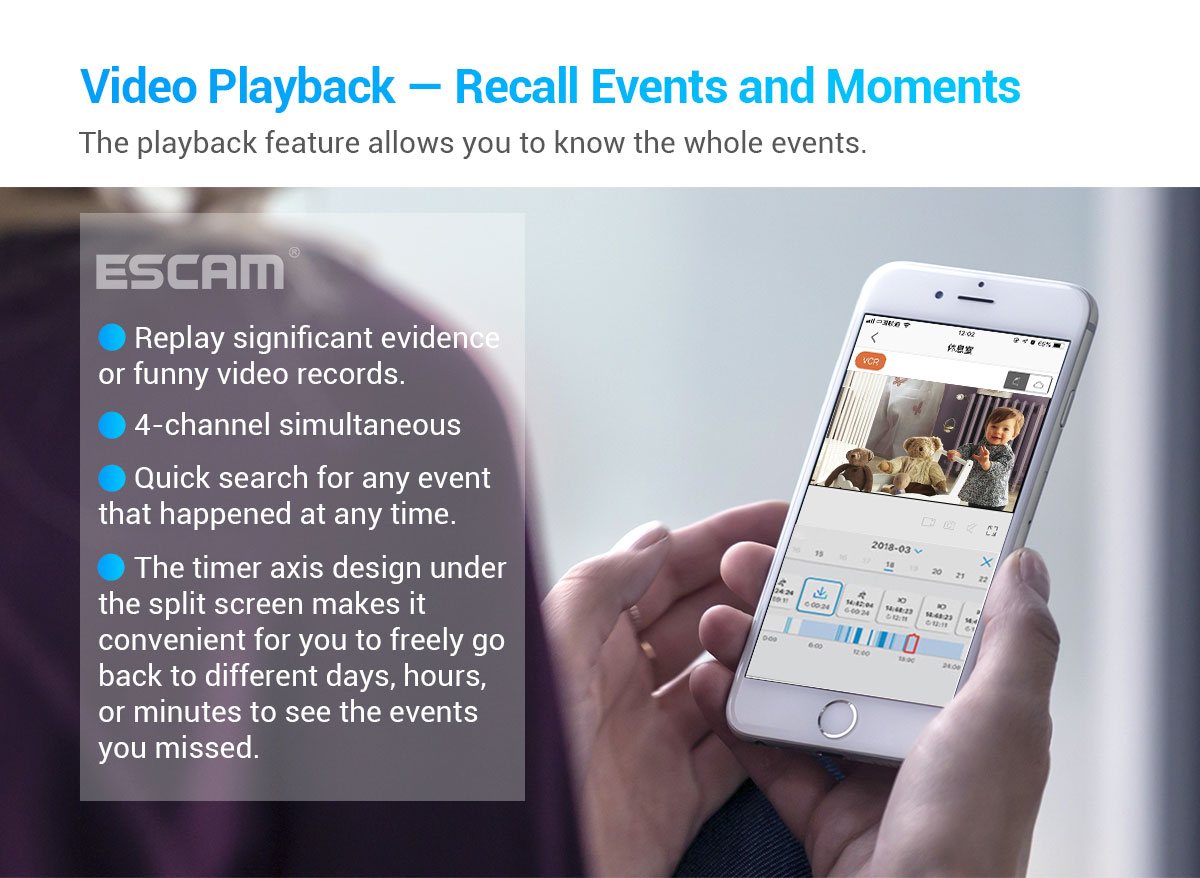

  • The video playback feature allows you to know the whole events

  • Built-in a SATA port, supports max to 6TB 3.5 inch hard disk


Camera Parameter
CameraImage Sensor1/2.5" CMOS
Effective Pixels3MP
Angle of ViewHorizontal: 80°, Vertical: 58°
Day/Night ModeAuto Switchover
Min. Illumination0.1Lux/F1.2(Color); 0.01Lux/F1.2(B/W)
IR Distance15m(50 ft)
Backlight CompensationSupport
ResolutionMain Stream: 1920*1080 (1080P), 1280*720 (720P)
Sub Stream: 800*448(448P), 704*576(D1), 640*360(360P), 352*288(CIF)
Bit rate64Kbps~ 12Mbps
Frame Rate25fps
AudioInterfaceNot support
NetworkInterfaceOne 10M/100Mbps RJ45
Network ProtocolHTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Browser SupportedIE browser
OS SupportedPC: Windows; Smart Phone: iOS, Android
Onvif Support

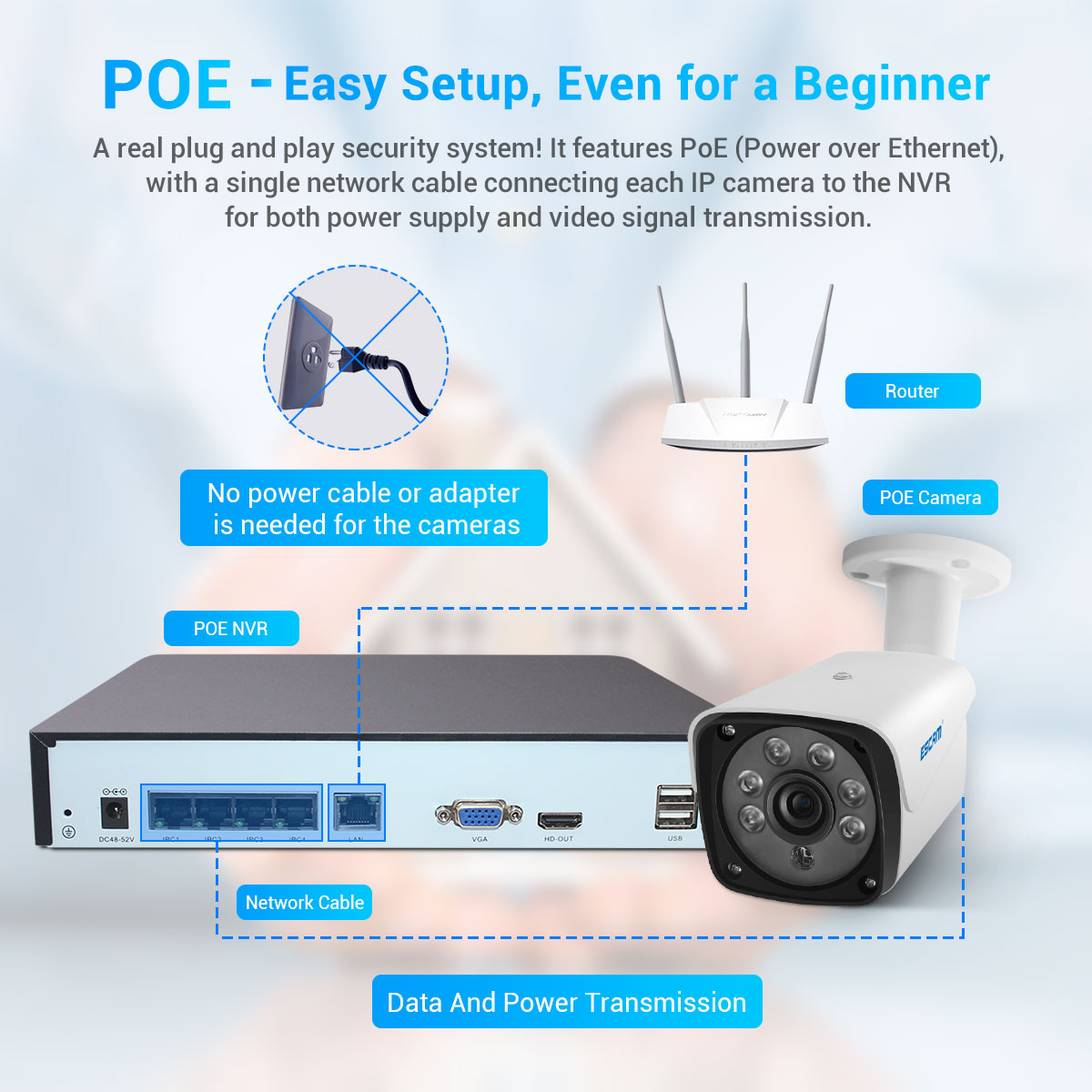

GeneralPower SupplyDC12V & PoE (IEEE 802.3at)
Power Consumption<6W
Working Environment -30℃~+55℃(14°F~131°F), 10%~90%
Ingress ProtectionIP66
NVR Parameter
SystemGUI16-Bit menu interface
Operating SystemEmbedded Linux OS
A/V InputVideo Input4 x PoE IP Camera
Audio InputNot support
A/V OutputVGA Output1024*768, 1366*768, 1280*1024, 1920*1080 (1080P)
HDMI Output1024*768, 1366*768, 1280*1024, 1920*1080 (1080P)
Audio OutputNot support
Playback Resolution1080P/720P
Synchronous Playback1 Channel
HDDInterface Type1 SATA Interface
Maximum Capacity6TB
External InterfaceUSB Connector2 x USB 2.0
Network InterfaceOne 10M/100M Ethernet RJ45 port, Four Network POE Ports for IP Cameras
NetworkNetwork ProtocolHTTP, TCP/IP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Mobile DeviceiPhone, Android Smartphones
Remote SoftwareApp, PC Client (Windows)
Onvif Support
GeneralPower SupplyInput 110~260V, 52V 1.8A
Consumption<20W without PoE Cameras
Working Environment-10°C~+45°C (14°F~113°F), 10%~90%
Dimension 255*218*43mm
Weight 0.75kg

Package included:

  • 1 x 4CH POE NVR
  • 4 x POE IP Camera
  • 1 x NVR Power Adapter
  • 1 x User Manual
  • 4 x 15m Network Cable
  • 1 x USB Mouse
  • 4 x Screws Package
  • 4 x Waterproof Hat
  • Other items not included
680300009A-1 680300009A-2 680300009A-3 680300009A-4 680300009A-5 680300009A-6 680300009A-7 680300009A-8 680300009A-9 680300009A-10
