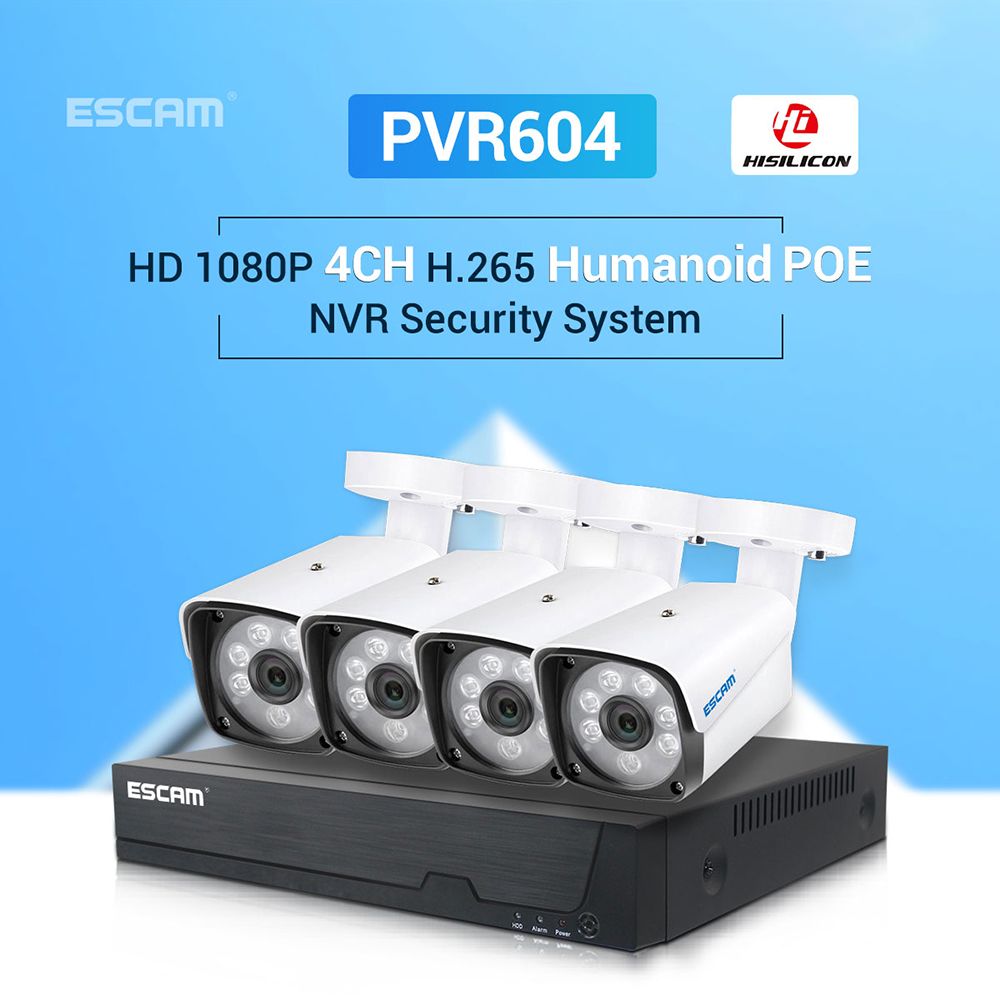

ESCAM PVR604 Security System 4CH POE NVR Kit with 4 x 2.0MP Outdoor IP Cameras - EU Plug

Item No.: 680300011A | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $100.6
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Plug EU Plug
Retail Packaging Paper Box
User Manual (Language) English and Chinese
Gross Weight 4.368kg
Volume Weight 3.995kg
Package Length 34.500cm
Package Width 27.500cm
Package Height 18.800cm
Package Weight 3.900kg

Product Description

ESCAM PVR604 Security System 4CH POE NVR Kit with 4 x 2.0MP Outdoor IP Cameras - EU Plug
  • High performance H.265 compression technology

  • Dual stream network transmission, for a variety of network environments

  • 1/2.5" CMOS 2.0MP 1080P camera

  • Applicable to schools, airports, factories, hotels, museums, traffic monitoring, etc.

Specifications:

ModelESCAM PVR604
Camera Parameter
CameraImage Sensor1/2.5" CMOS
Effective Pixels1920*1080(2MP)
Lens4mm
Angle of ViewHorizontal: 80°, Vertical: 58°
Day/Night ModeAuto Switchover
Min. Illumination0.1Lux/F1.2(Color); 0.01Lux/F1.2(B/W)
IR Distance15m(50ft)
Backlight CompensationSupport
DWDRSupport
VideoCompressionH.265/H.264
ResolutionMain Stream: 1920*1080(1080P), 1280*720(720P)
Sub Stream: 800*448(448P), 704*576(D1), 640*360(360P), 352*288(CIF)
Bit Rate64 Kbps~12Mbps
Frame Rate25fps
AudioInterfaceNot support
NetworkInterfaceOne 10M/100Mbps RJ45
Network ProtocolsHTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Browser SupportedIE browser
OS SupportedPC: Windows; Smart Phone: iOS, Android
Onvif Support
GeneralPower SupplyDC12V & PoE (IEEE 802.3at)
Power Consumption<6W
Working Environment-30 Celsius degree ~ +55 Celsius degree, 10%~90%
Ingress ProtectionIP66

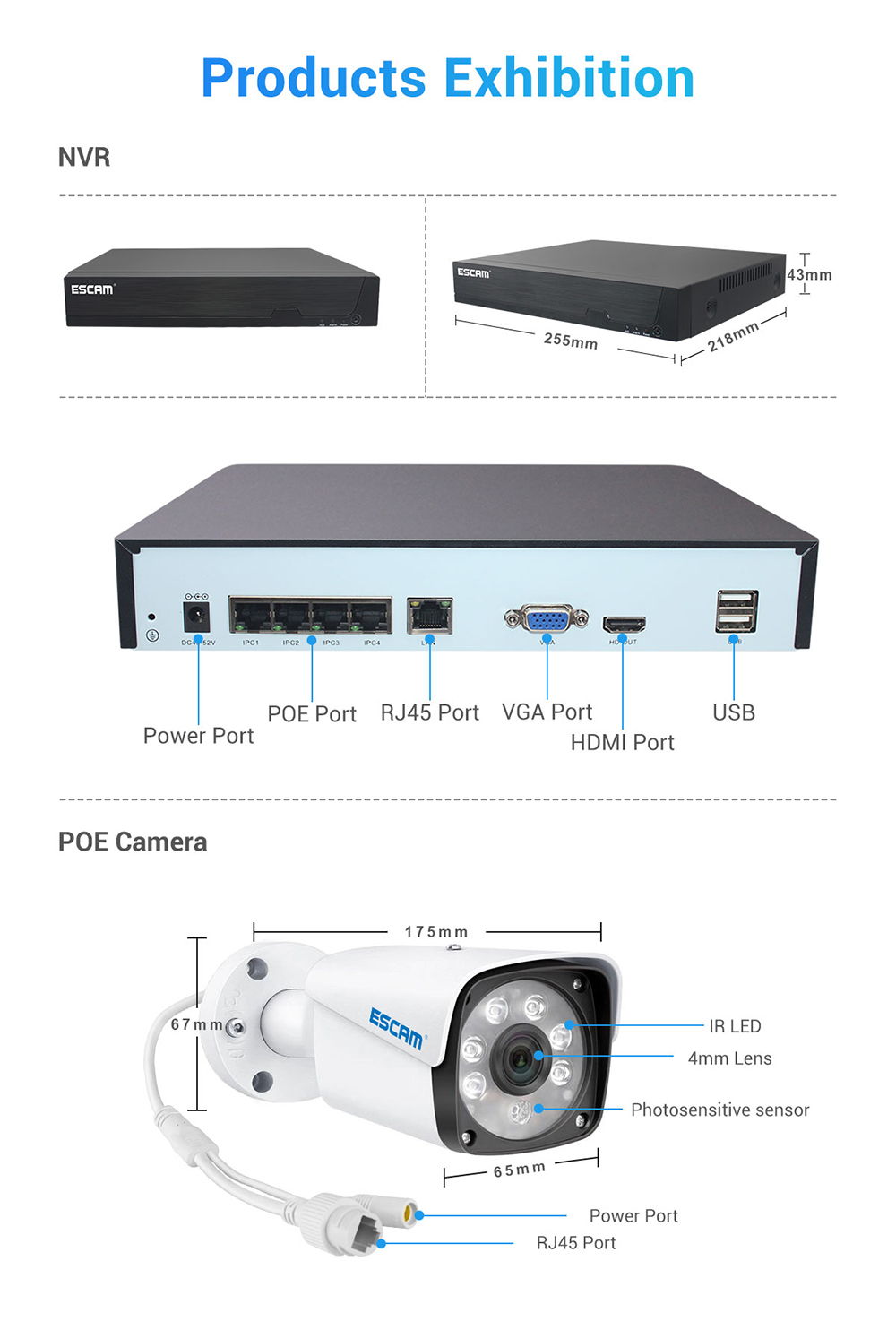

Dimensions175*67*65mm
Weight0.25KG
NVR Parameter
SyetemGUI16-Bit menu interface
Operating SystemEmbedded Linux OS
A/V InputVideo Input4 x PoE IP Camera
Audio InputNot support
A/V OutputVGA Output1024*768, 1366*768, 1280*1024, 1920*1080(1080P)
HDMI Output1024*768, 1366*768, 1280*1024, 1920*1080(1080P)
Audio OutputNot support
Playback Resolution1080P/720P
Synchronous Playback1 Channel
HDDInterface Type1 SATA Interface
Maximum Capacity6TB
External InterfaceUSB Connector2 x USB 2.0
Network Interface10M/100M Ethernet RJ45 port, 4pcs Network POE Ports for IP Cameras
NetworkNetwork ProtocolHTTP, TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Mobile DeviceiPhone, Android Smartphones
Remote SoftwareApp, PC Client (Windows)
Onvif Support
GeneralPower SupplyInput 110~260V, 52V 1.8A
Consumption<20W without PoE Cameras
Working Environment-10°C~+45°C    (14°F~113°F),10%~90%
Dimension 255*218*43mm
Weight 0.75kg

Package included:

  • 1 x 4CH POE NVR
  • 4 x POE IP Cameras
  • 1 x NVR Power Adapter
  • 4 x 15m Network Cables
  • 1 x USB Mouse
  • 4 x Screws Package
  • 4 x Waterproof Hats
  • 1 x English and Chinese Manual
