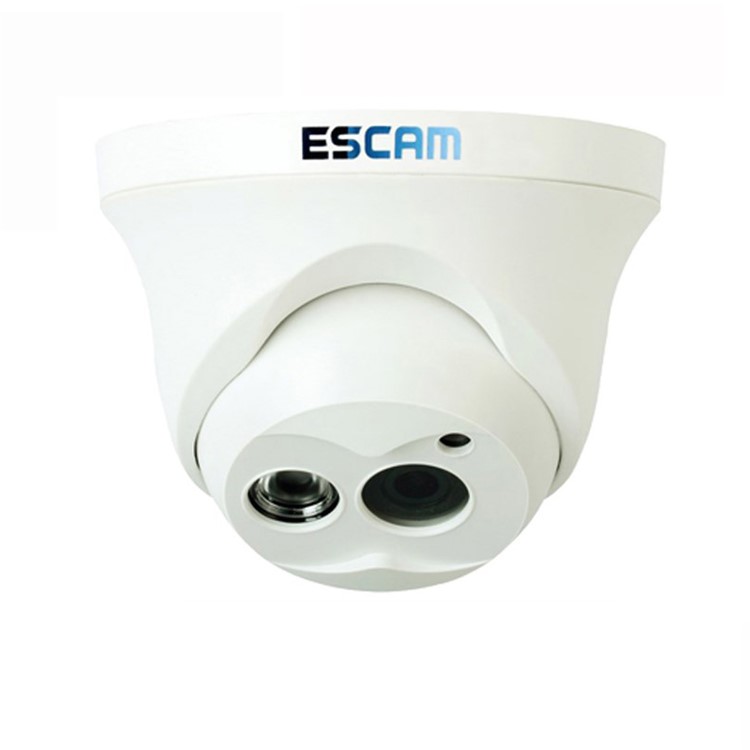

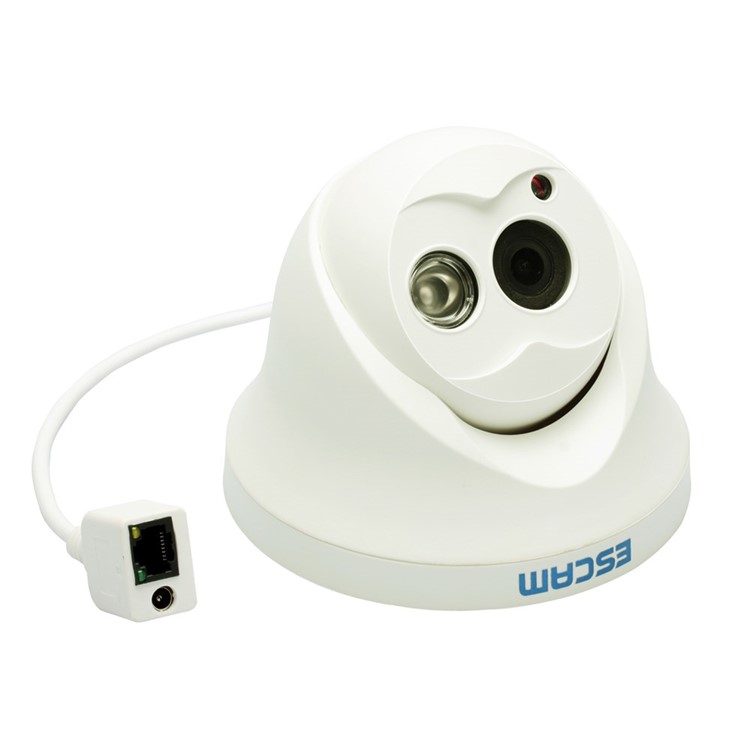

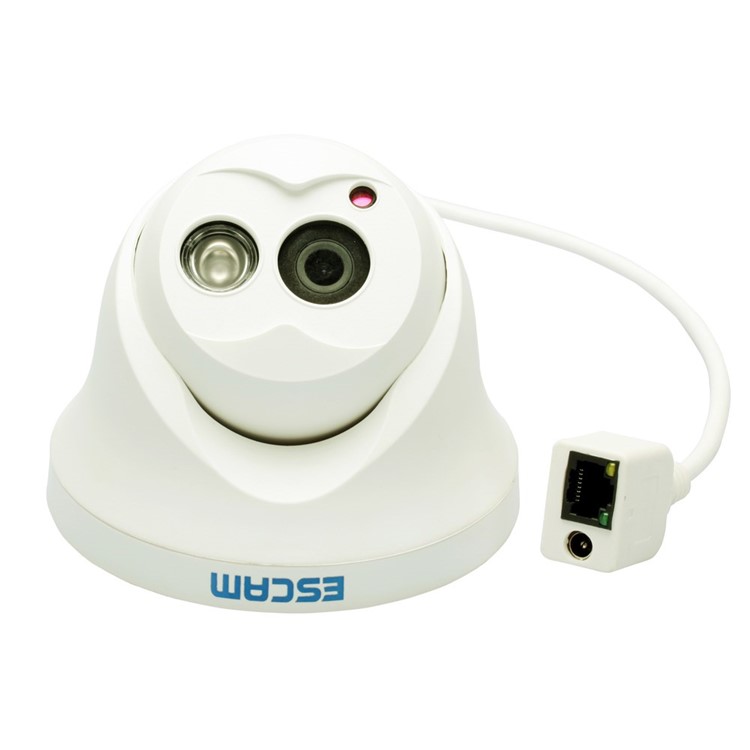

ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug

Item No.: 84000082D | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $17.42
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Camera Resolution 1 MP
Camera Shape IR Dome Camera
Focus 3.6mm Lens
Home Safety Type IP Cameras
IR Distance 10m
Plug AU Plug
Sensor Size 1/4"
Sensor Type CMOS
Gross Weight 0.504kg
Volume Weight 0.306kg
Package Length 12.000cm
Package Width 12.000cm
Package Height 9.500cm
Package Weight 0.450kg

Product Description

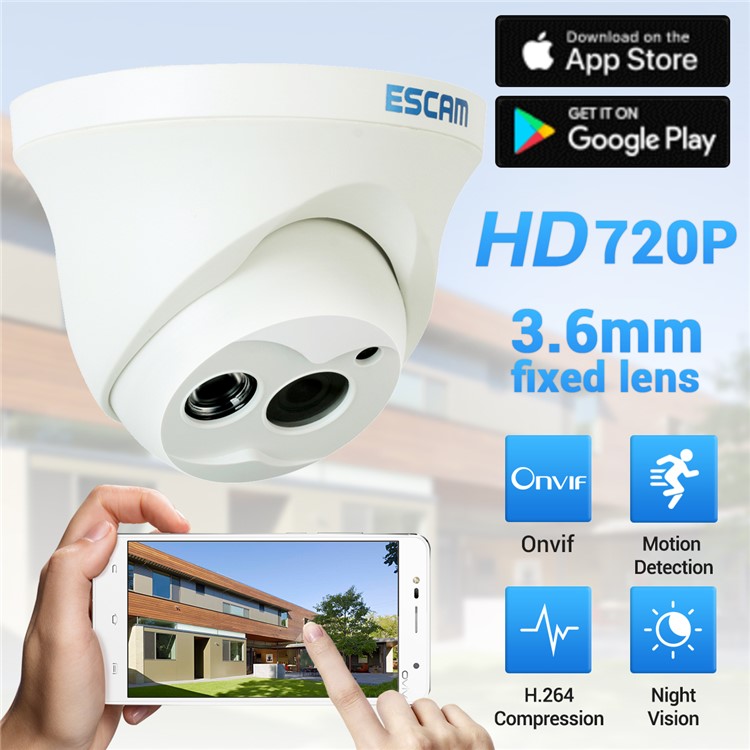

ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug
  • 1/4”1.0 Megapixel progressive scan CMOS

  • 3.6mm fixed lens

  • With IR cut, support Day/night monitor. Max. IR Length is up to 10m

  • H.264 dual-stream encoding

  • Picture Resolution 720P color CMOS, 1.0 Mega Pixel, 1280 x 720

  • DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC

  • Multiple network monitoring: Web viewer, CMS

  • DC 12V 1A

  • Support email alarm and privacy mask function

  • Support P2P plug and play function

Specification:

ModelQD100
Camera
Image Sensor1/4"; 1Megapixel progressive scan CMOS
Effective Pixels1280(H)x720(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3(4)~1/10000
Min. IlluminationColor: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
S/N RatioMore than 50dB
Video OutputN/A
Camera Features
Max. IR LEDs Length10m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC/ HLC/ DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm
Max ApertureF1.8
Focus ControlManual
Angle of ViewH: 70°
Lens TypeFixed lens
Mount TypeBoard-in Type
Video
CompressionH.264
Resolution720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame RateMain Stream720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 16K ~ 8192Kbps
Audio
CompressionN/A
InterfaceN/A
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP,SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIFONVIF Profile S
Max. User Access10 users
Smart PhoneiPhone, iPad, Android
P2PiPhone, Android Mobile App
Auxiliary Interface
Memory SlotN/A
RS485N/A
AlarmN/A
PIR Sensor RangeN/A
General
Power SupplyDC12V 1A
POEN/A
Power Consumption<4W
Working Environment-30°C~+60°C, Less than 95%RH
Ingress ProtectionN/A
Vandal ResistanceN/A
DimensionsΦ115mm x90mm
Weight0.20Kg
Package Dimensions120mm x120mm x95mm
Package Weight0.35Kg

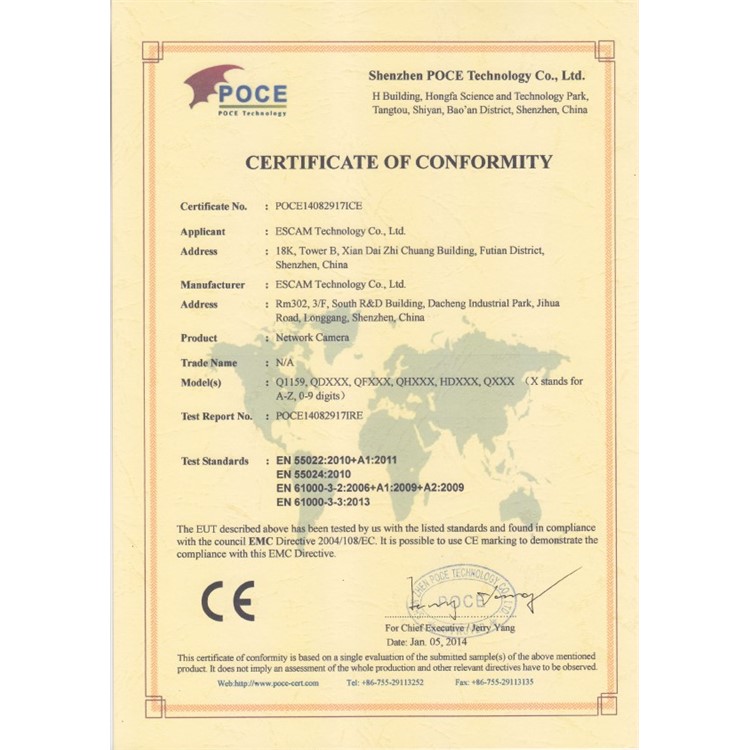

ApprovalsCE;FCC;RoHS

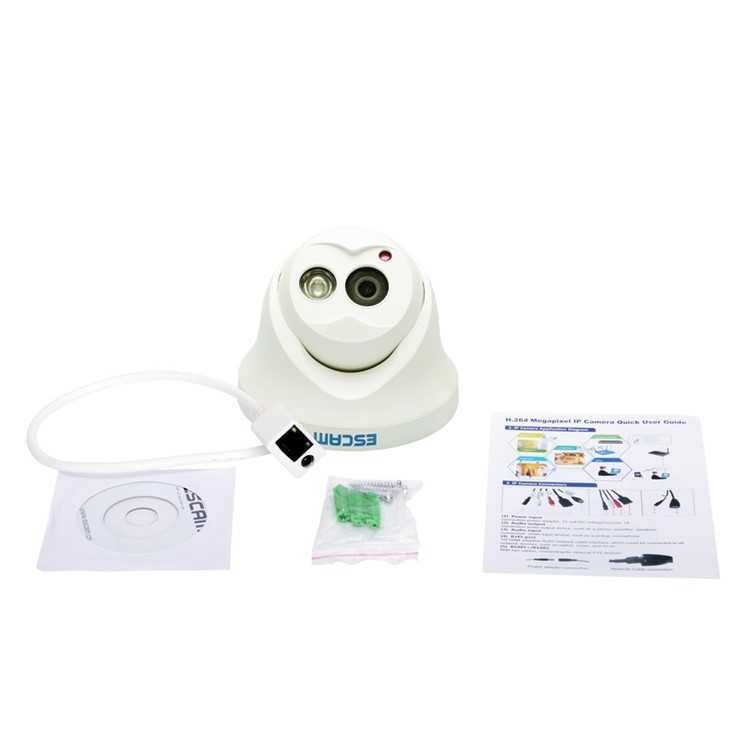

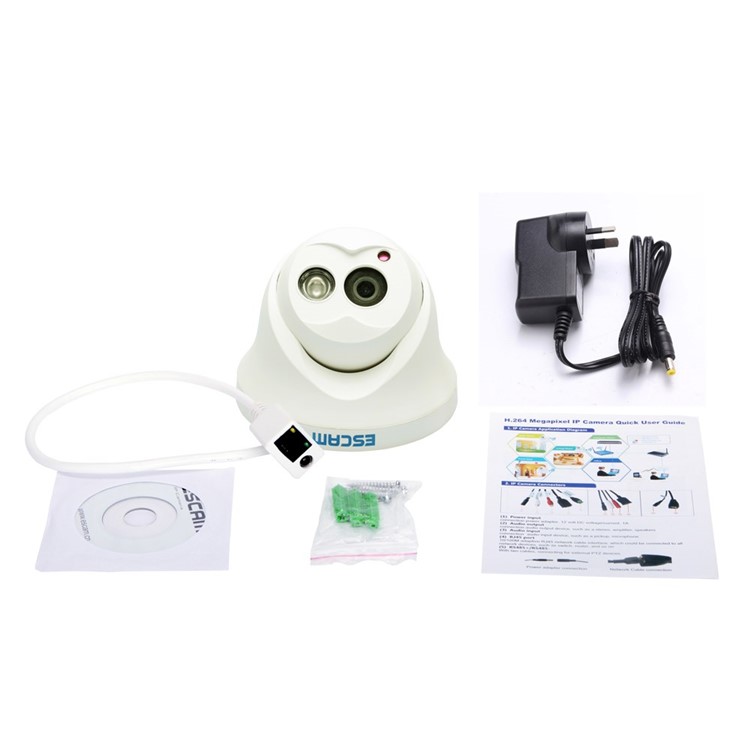

Package included:

1 x ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P

1 x Power Adapter (AU Plug)

1 x Screw accessories

1 x CD Disk

1 x User Manual

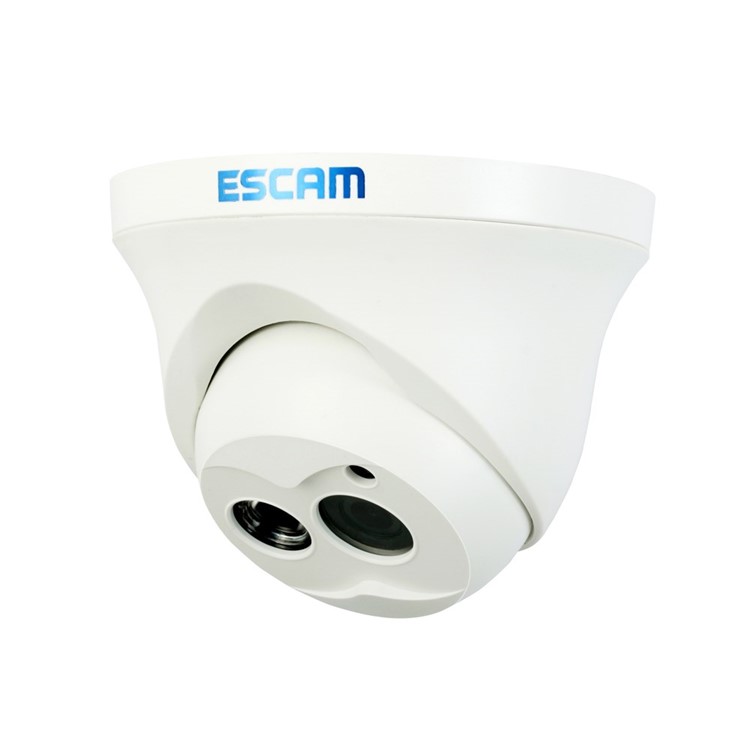

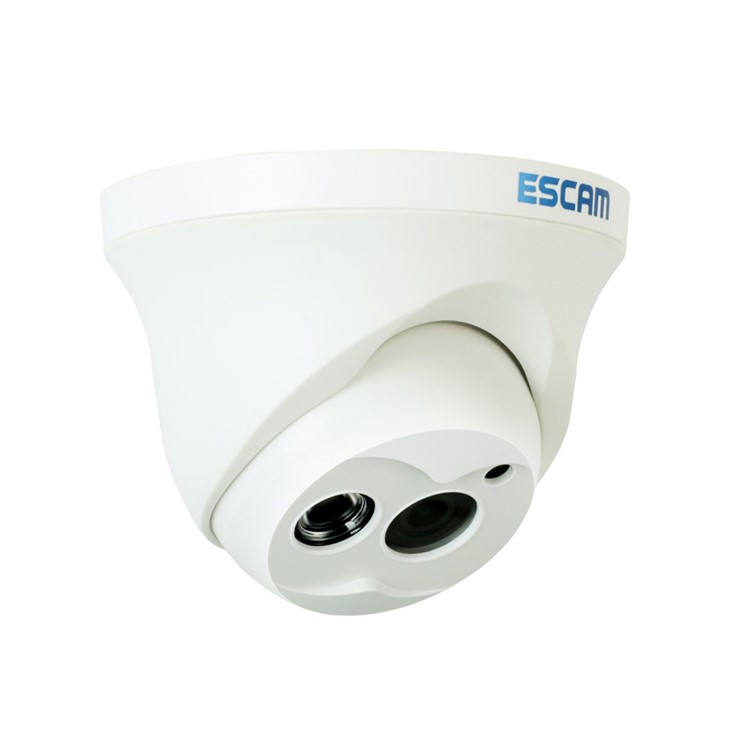

ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-1 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-2 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-3 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-4 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-5 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-6 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-7 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-8 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-9 ESCAM QD100 720P 1MP 10m Mini Dome IP Camera with Onvif and P2P - AU Plug-10 84000082D-11 84000082D-12 84000082D-13
