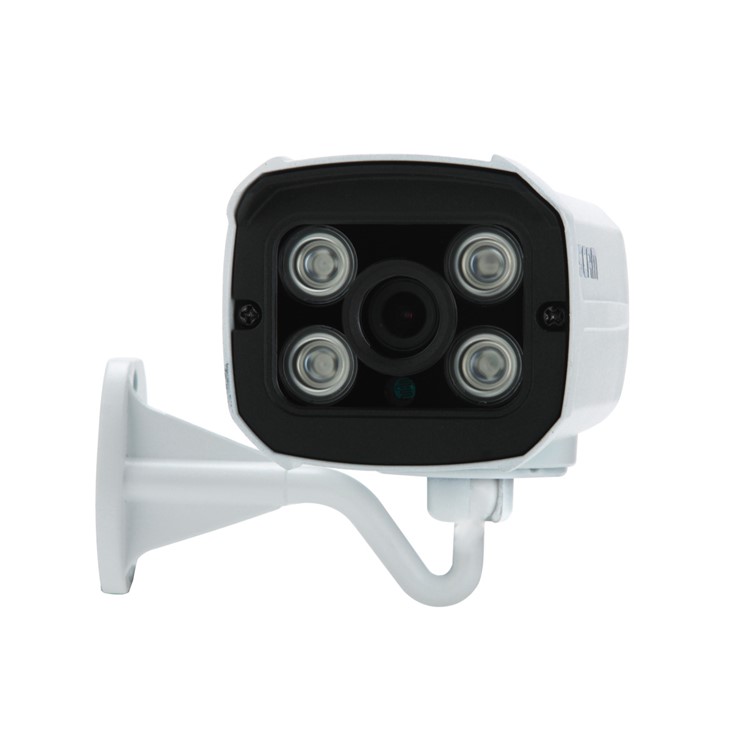

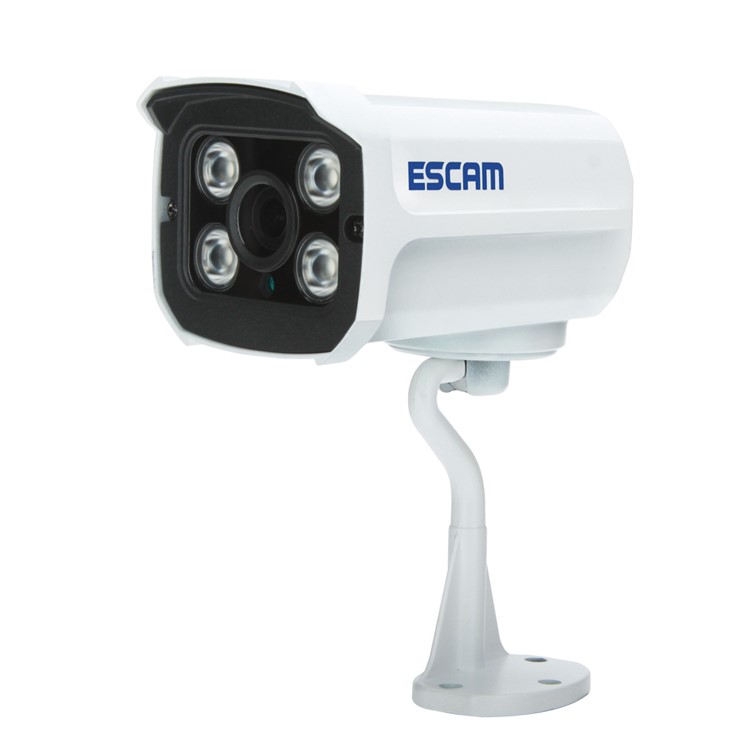

ESCAM QD300 H.264 Dual-Stream Wide Angle P2P Waterproof Camera - AU Plug

Item No.: 84000048D | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $22.39
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Camera Resolution 1 MP
Camera Shape Outdoor IR Camera
Focus 3.6mm Lens
Home Safety Type IP Cameras

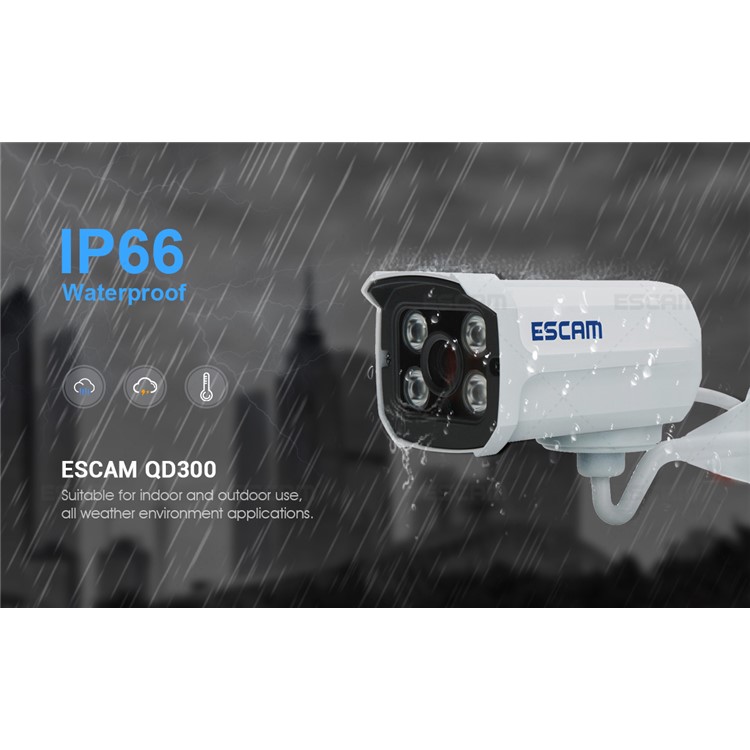

IP Rating IP66
IR Distance 15m
Plug AU Plug
Sensor Size 1/4"
Sensor Type CMOS
With Stand Yes
Gross Weight 0.448kg
Volume Weight 0.287kg
Package Length 15.000cm
Package Width 9.000cm
Package Height 9.500cm
Package Weight 0.400kg

Product Description

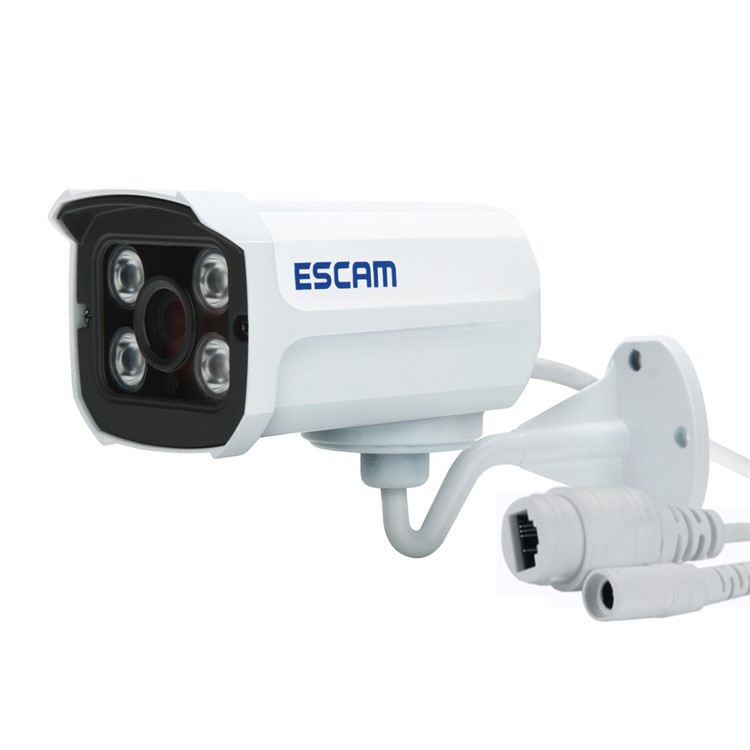

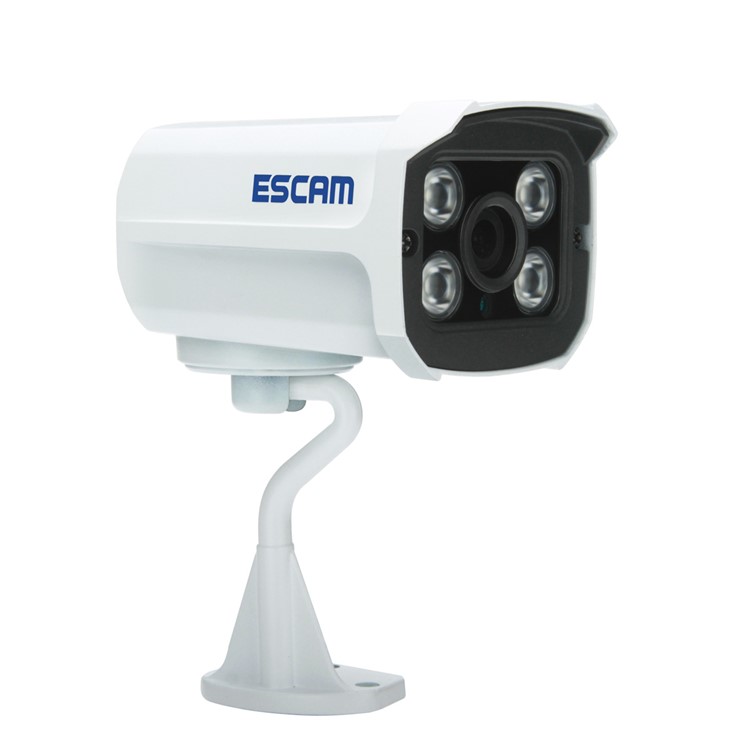

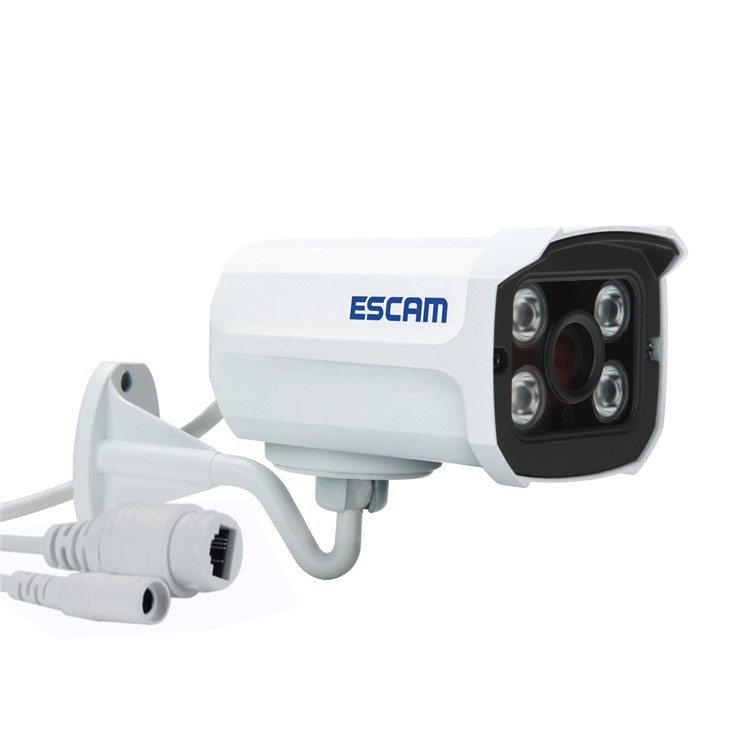

ESCAM QD300 H.264 Dual-Stream Wide Angle P2P Waterproof Camera - AU Plug

Features:

  • 1/4" 1Megapixel progressive scan CMOS

  • H.264 dual-stream encoding

  • Max 25/30fps@720P(1280×720)

  • 3.6mm fixed lens

  • Max. IR LEDs Length 15m

Specification:

ModelQD300
Camera
Image Sensor1/4" 1Megapixel progressive scan CMOS
Effective Pixels1280(H)x720(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3(4)~1/10000
Min. IlluminationColor: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
S/N RatioMore than 50dB
Video OutputN/A
Camera Features

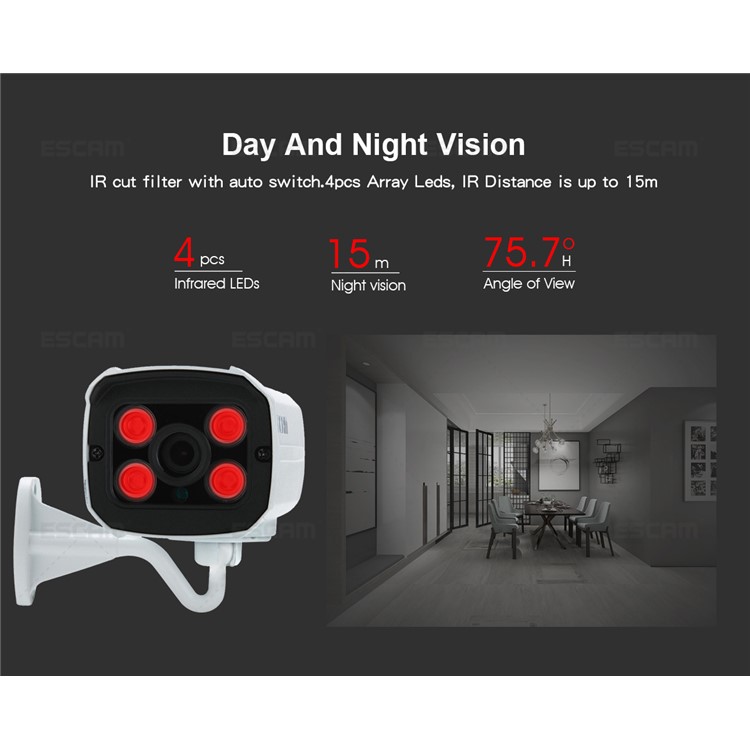

Max. IR LEDs Length15m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC/ HLC/ DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm
Max ApertureF1.8
Focus ControlManual
Angle of ViewH: 70°
Lens TypeFixed lens
Mount TypeBoard-in Type
Video
CompressionH.264
Resolution720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame RateMain Stream720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 16K ~ 8192Kbps
Audio
CompressionN/A
InterfaceN/A
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
ONVIFONVIF Profile S
Max. User Access10 users
Smart PhoneiPhone, iPad, Android

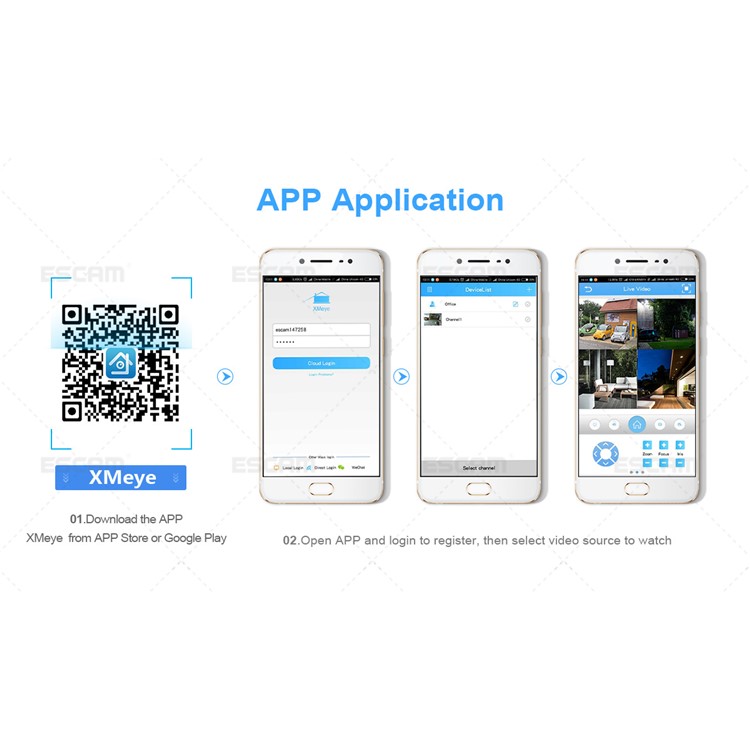

P2PiPhone, Android Mobile App
Auxiliary Interface
Memory SlotN/A
RS485N/A
AlarmN/A
PIR Sensor RangeN/A
General
Power SupplyDC12V 1A

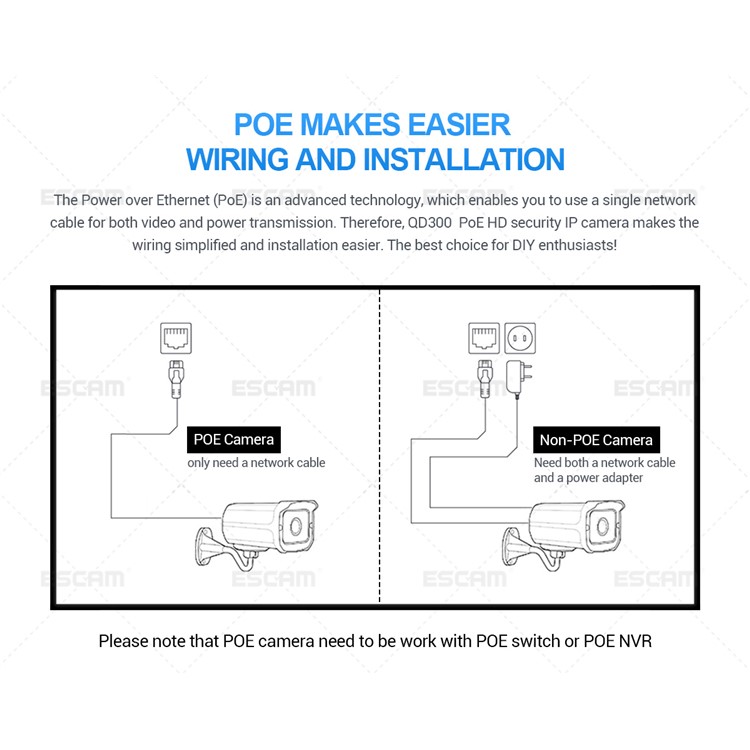

POEN/A
Power Consumption<4W
Working Environment-30°C~+60°C, Less than 95%RH
Ingress ProtectionN/A
Vandal ResistanceN/A

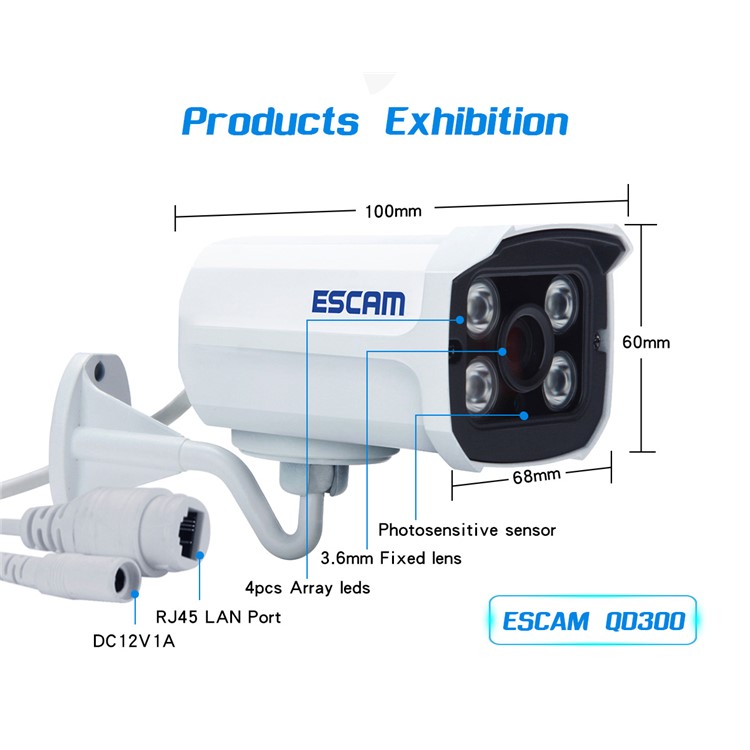

Dimensions107mm x68mm x60mm
Weight0.25Kg
Package Dimensions150mm x90mm x85mm
Package Weight0.35Kg
ApprovalsCE FCC RoHS

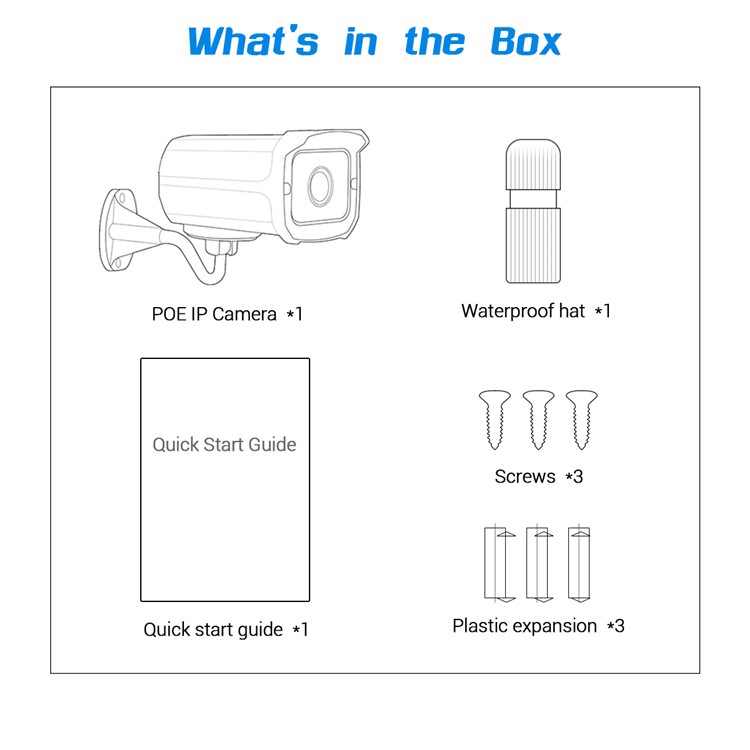

Package included:

  • 1 x Camera

  • 1 x Power Adapter (AU Plug)

  • 1 x Screw Accessories

  • 1 x CD-ROM

  • 1 x User Manual

84000048D-1 84000048D-2 84000048D-3 84000048D-4 84000048D-5 84000048D-6 84000048D-7 84000048D-8 84000048D-9 84000048D-10 84000048D-11 84000048D-12 84000048D-13 84000048D-14 84000048D-15 84000048D-16 84000048D-17 84000048D-18 84000048D-19
