ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug

Rate:
0
(0 reviews)
Item No.: 84000084B In stock, Ships in 0 - 1 Day MOQ: 1
Email Only Price
Plug:
Price:
$ 31.37 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Camera Resolution 1 MP
Camera Shape IR Dome Camera
Focus 3.6mm Lens
Home Safety Type IP Cameras
IP Rating IP65
IR Distance 10m
Plug EU Plug
Sensor Size 1/4"
Sensor Type CMOS
Gross Weight 0.504kg
Volume Weight 0.306kg
Length 12.000cm
Width 12.000cm
Height 9.500cm
Weight 0.450kg
With Retail Packaging Yes

Product Description

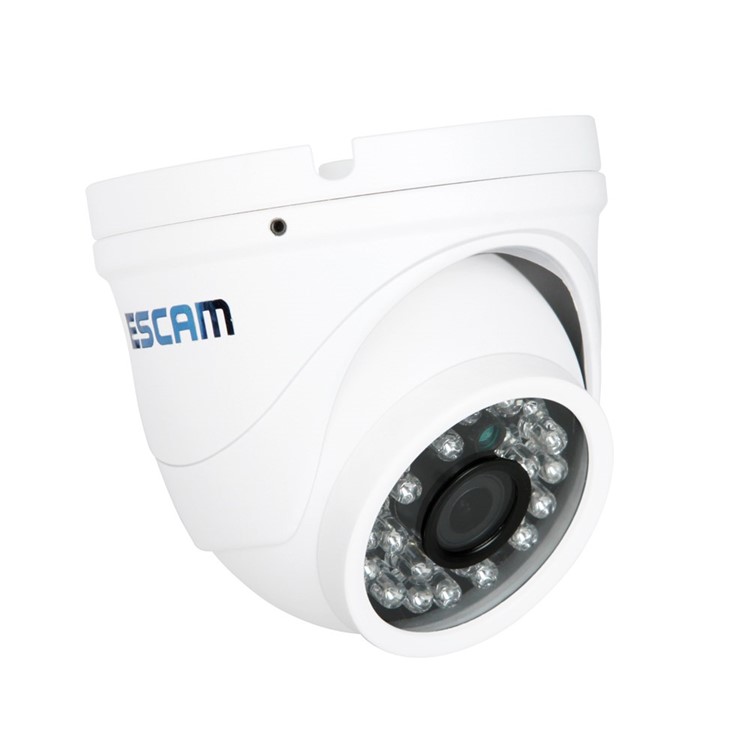

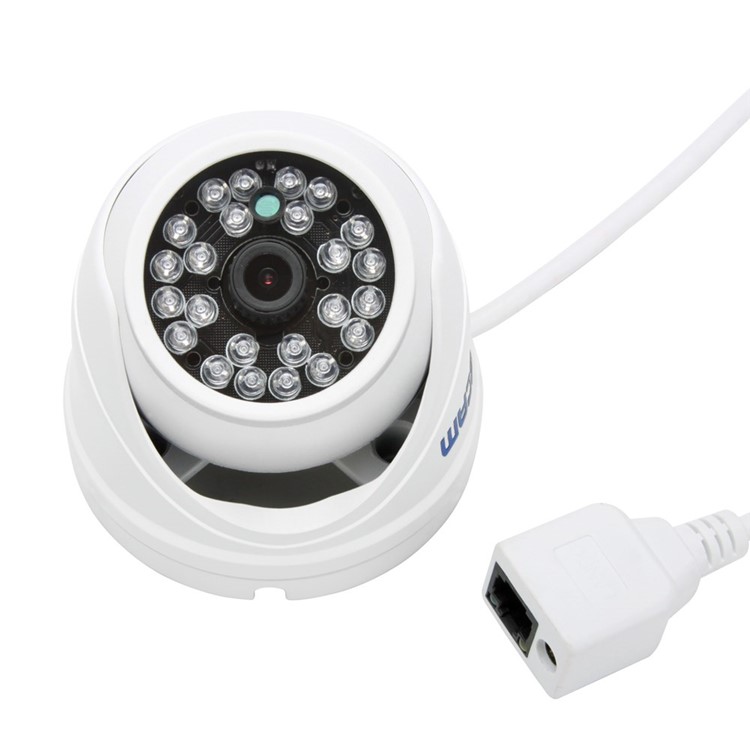

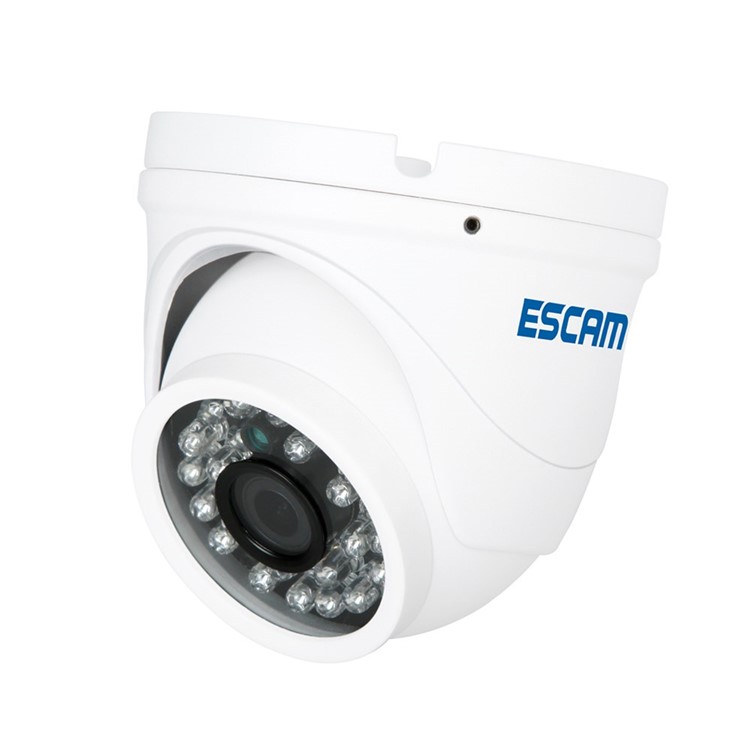

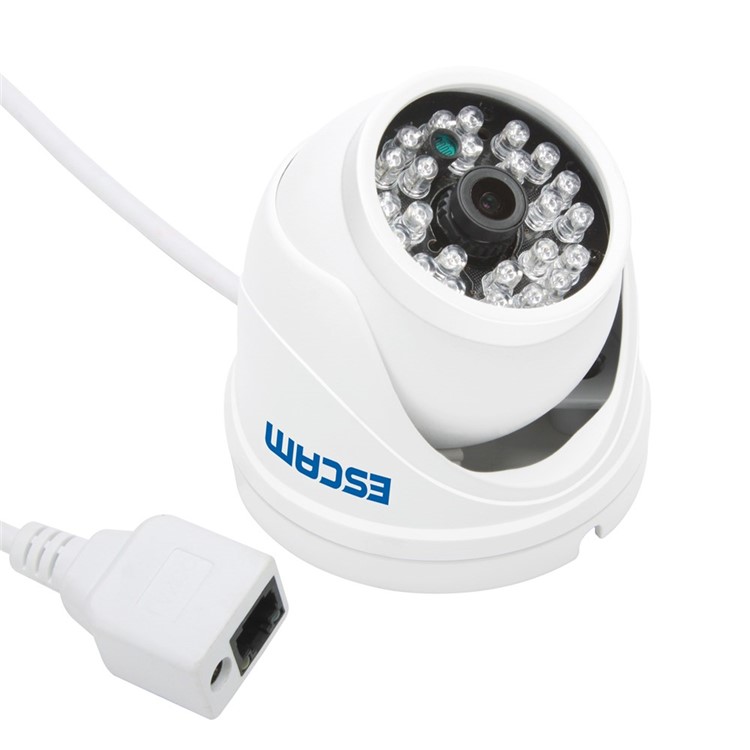

ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug

Feature:

  • 1/4" 1Megapixel progressive scan CMOS

  • H.264 dual-stream encoding

  • Max 25/30fps@720P(1280×720)

  • DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC

  • Multiple network monitoring: Web viewer, CMS

  • 3.6mm fixed lens

  • 24pcs IR Leds, 10m IR range

  • DC12V 1A

Specification:

ModelQD520
Camera
Image Sensor1/4" 1Megapixel progressive scan CMOS
Effective Pixels1280(H)x720(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3(4)~1/10000
Min. IlluminationColor: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on)
S/N RatioMore than 50dB
Video OutputN/A
Camera Features
Max. IR LEDs Length10m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC/ HLC/ DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length3.6mm
Max ApertureF1.8(F2.0/F1.8)
Focus ControlManual
Angle of ViewH: 70°(114°/46°/)
Lens TypeFixed lens
Mount TypeBoard-in Type
Video
CompressionH.264
Resolution720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240)
Frame RateMain Stream720P(1 ~ 25/30fps)
Sub StreamD1/CIF(1 ~ 25/30fps)
Bit RateH.264: 16K ~ 8192Kbps
Audio
CompressionN/A
InterfaceN/A
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIFONVIF Profile S
Max. User Access10 users
Smart PhoneiPhone, iPad, Android, Windows Phone
P2PiPhone, Android Mobile App
Auxiliary Interface
Memory SlotN/A
RS485N/A
AlarmN/A
PIR Sensor RangeN/A
General
Power SupplyDC12V 1A
POEN/A
Power Consumption<4W
Working Environment-30°C~+60°C, Less than 95%RH
Ingress ProtectionN/A
Vandal ResistanceN/A
DimensionsΦ90mm x90mm
Weight0.25Kg
Package DimensionsΦ120mm x 95mm
Package Weight0.35Kg
ApprovalsCE FCC RoHS

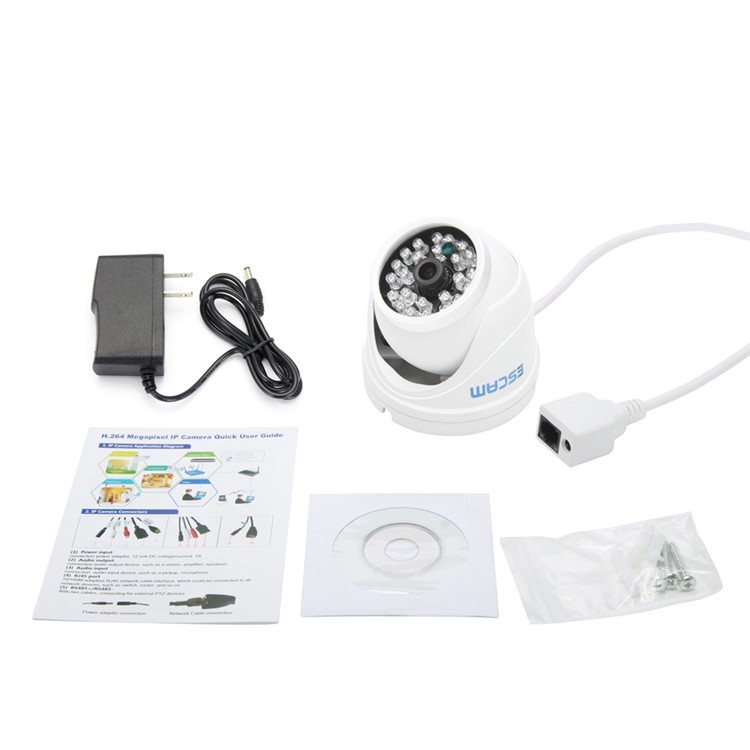

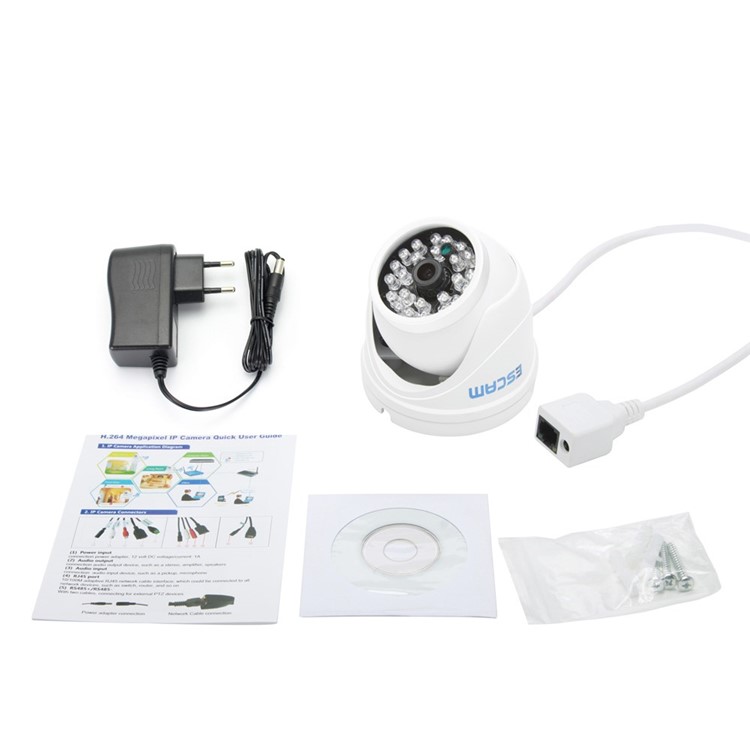

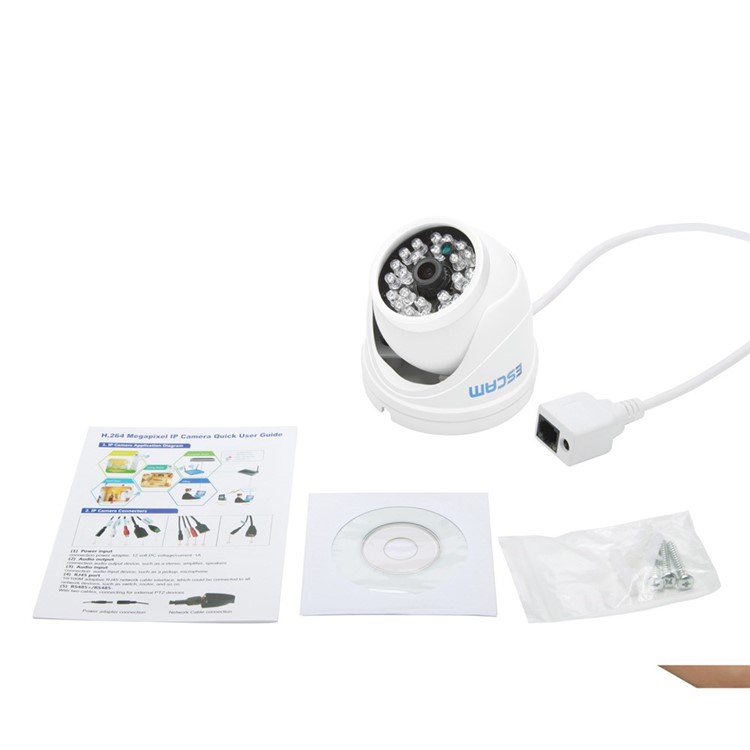

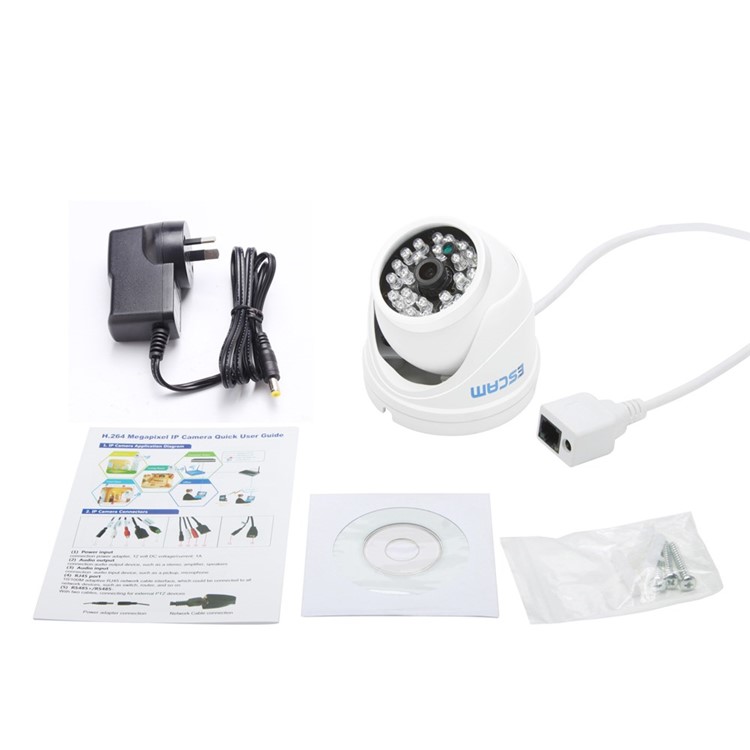

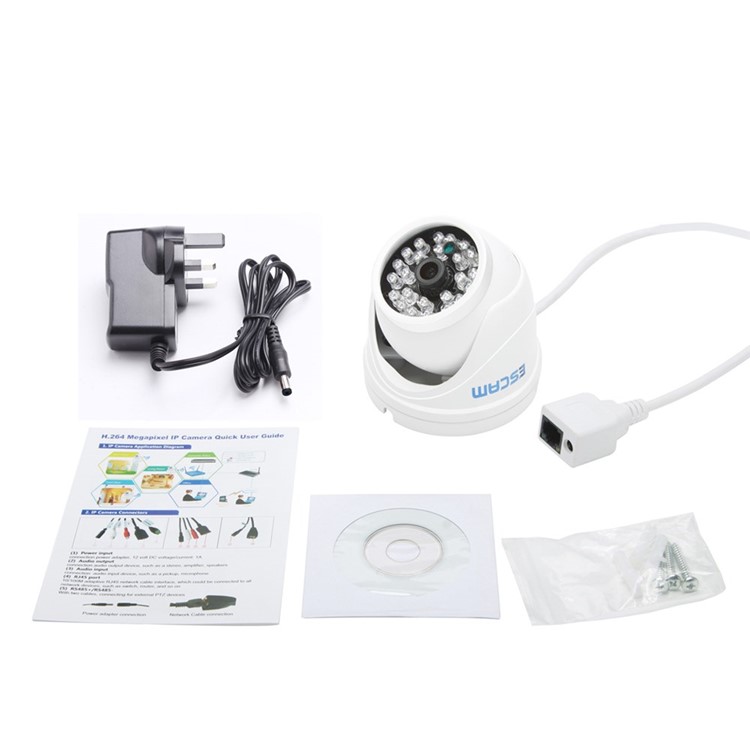

Package included:

  • 1 x IP Camera

  • 1 x Power Adapter (EU Plug)

  • 1 x Screw Package

  • 1 x CD-ROM

  • 1 x User Manual

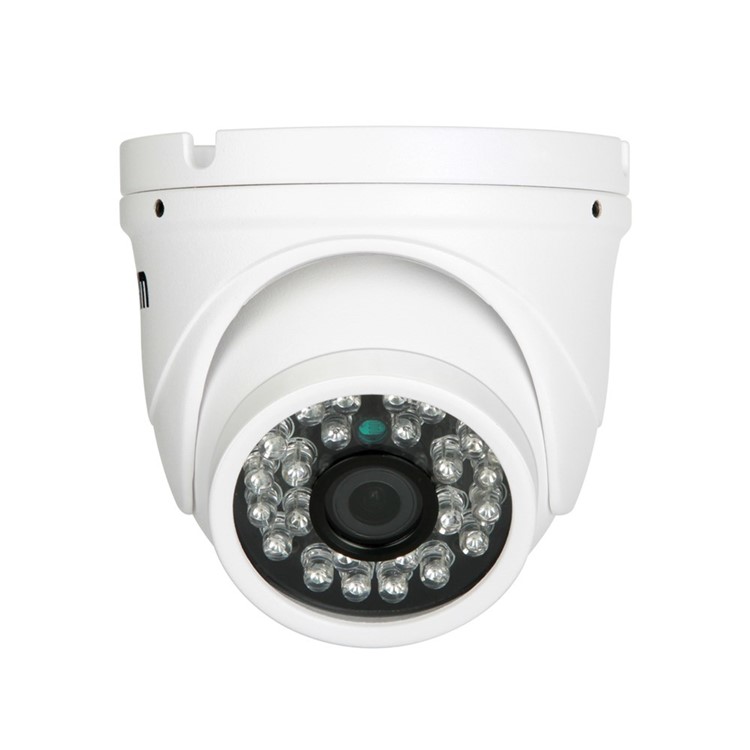

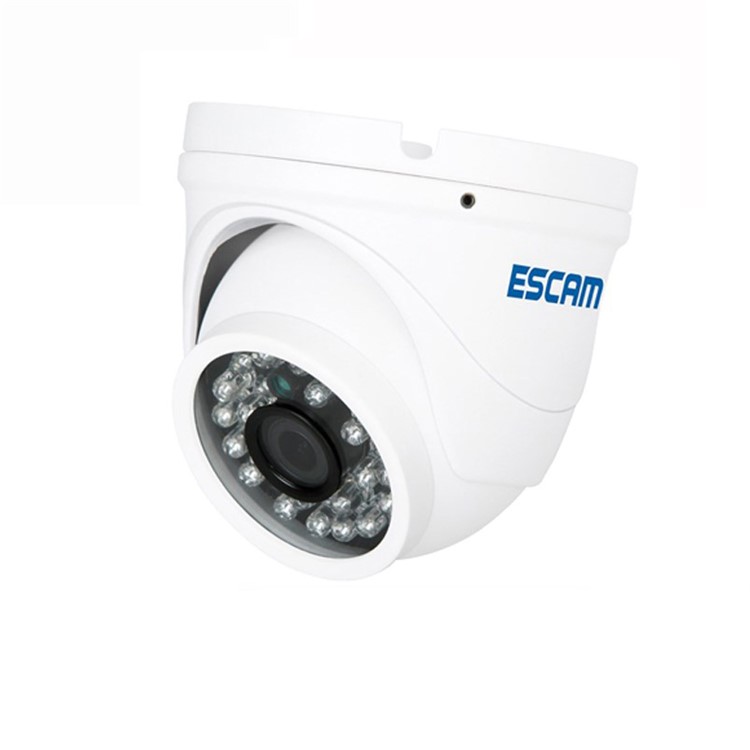

ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-1 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-2 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-3 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-4 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-5 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-6 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-7 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-8 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-9 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-10 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-11 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-12 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-13 ESCAM QD520 720P 10m IP65 Dome CCTV IP Camera with 24pcs Leds - EU Plug-14 AuthorizationImage
