ESCAM QE07 720P HD IP Bullet Camera Onvif P2P IR Cut Waterproof POE Security Camera - US Plug

Rate:
0
(0 reviews)
Item No.: 880100389B Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 51.09 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Escam
Camera Resolution 1 MP
Camera Shape Outdoor IR Camera
Certificate CE, RoHS
Home Safety Type IP Cameras
IP Rating IP66
IR Distance 15m
Plug US Plug
POE Yes
Retail Packaging Colored Box
Sensor Size 1/4"
Sensor Type CMOS
Gross Weight 0.560kg
Volume Weight 0.364kg
Length 19.000cm
Width 9.000cm
Height 9.500cm
Weight 0.500kg
With Retail Packaging Yes

Product Description

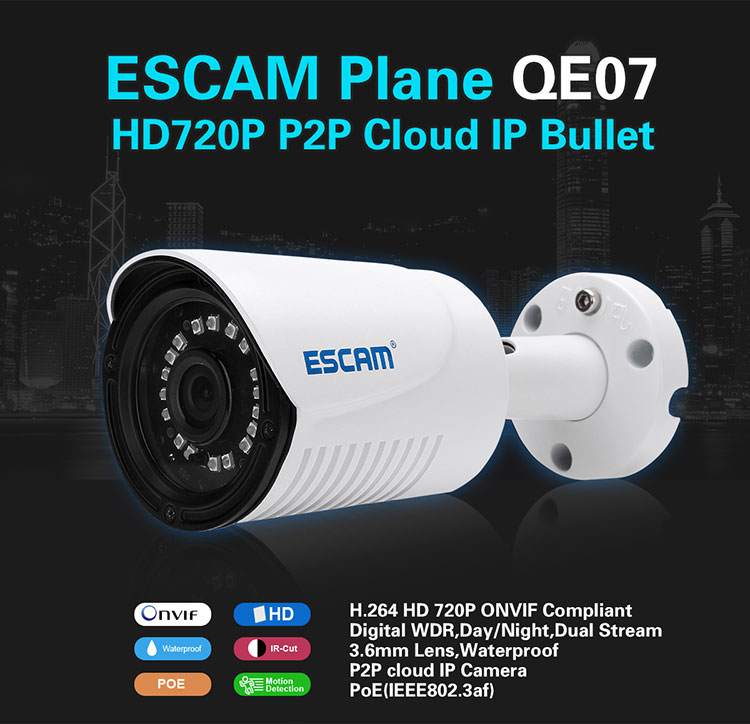

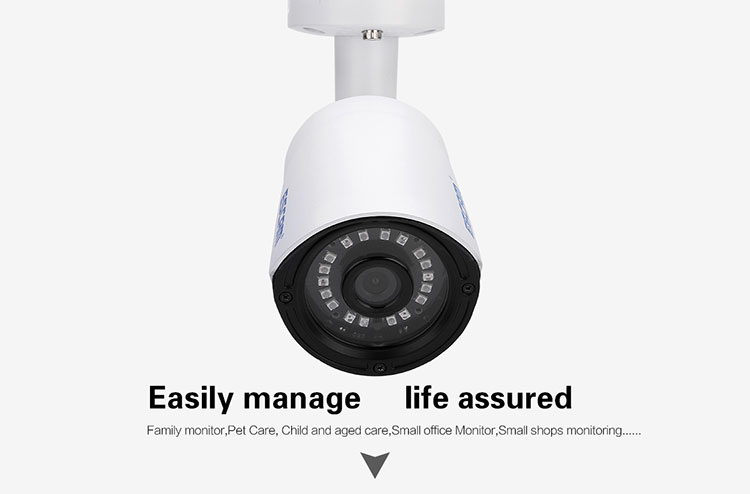

ESCAM QE07 720P HD IP Bullet Camera Onvif P2P IR Cut Waterproof POE Security Camera - US Plug
  • 1/4" 1 Megapixel progressive scan CMOS sensor

  • 3.6mm lens, 1280x720 pixels, 18pcs IR LED, IR range 15m

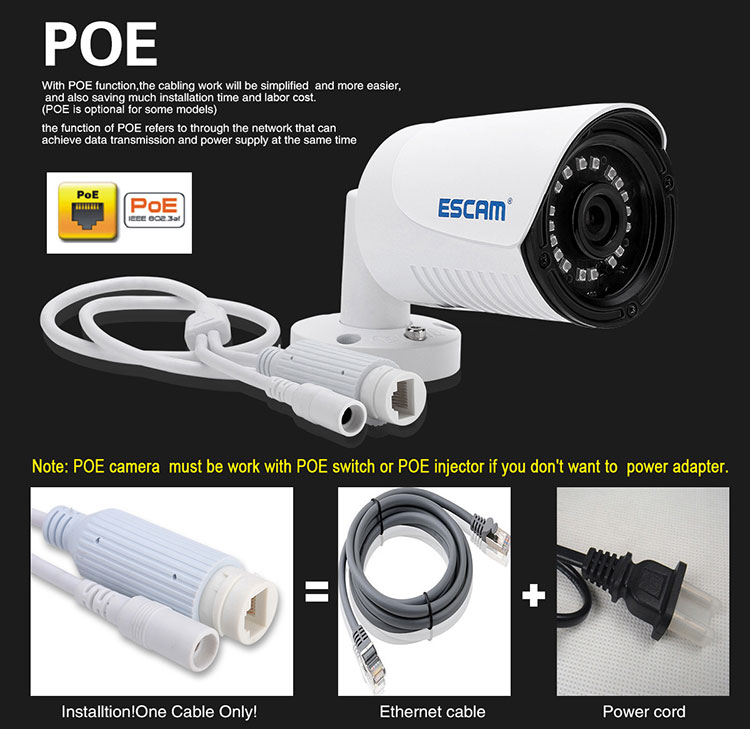

  • With POE function, the cabling work will be simplified and more easier

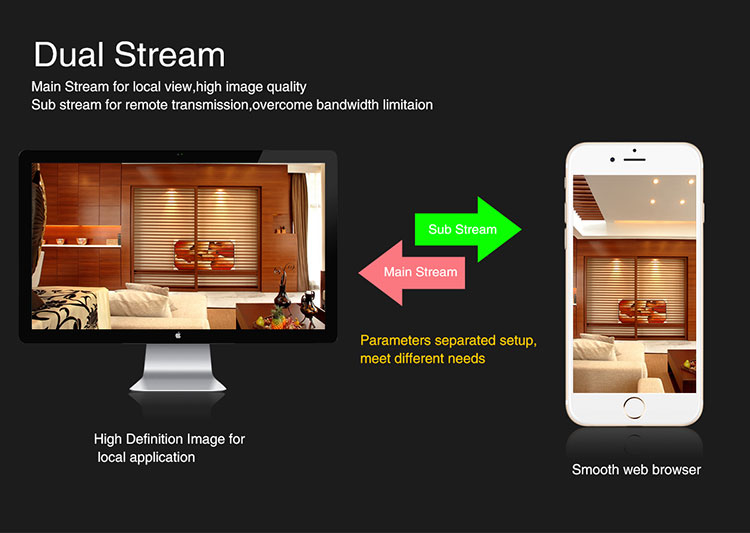

  • H.264 dual-stream encoding

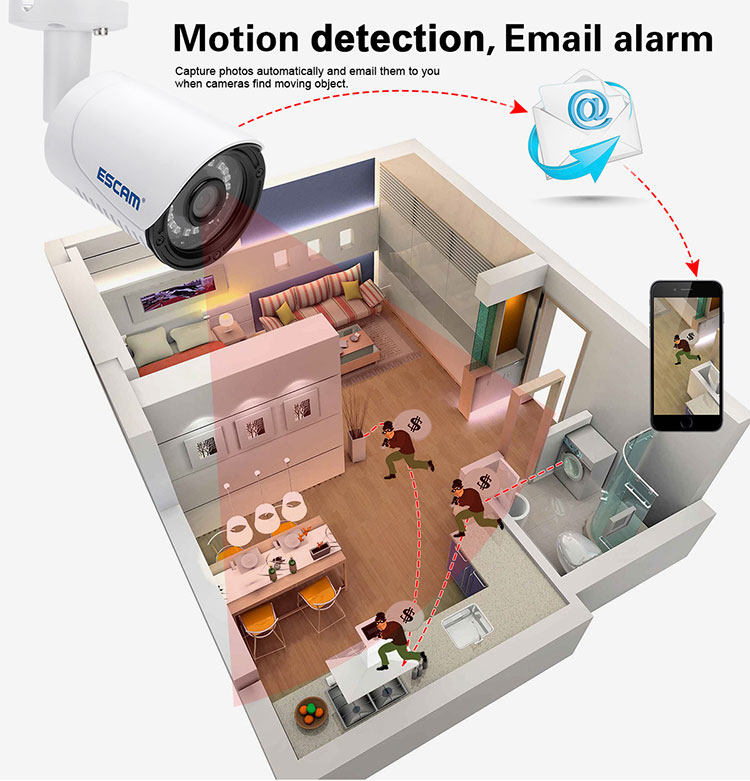

  • Support motion detection

  • Supports 4 pieces privacy masks areas

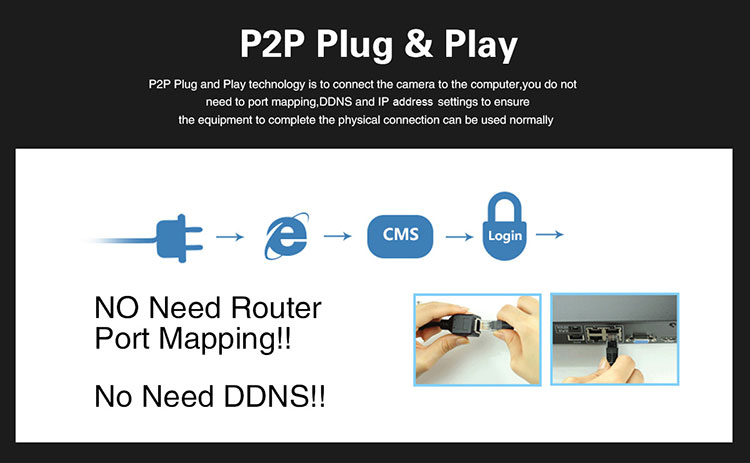

  • Support Onvif, P2P

  • Support DWDR (digital WDR)

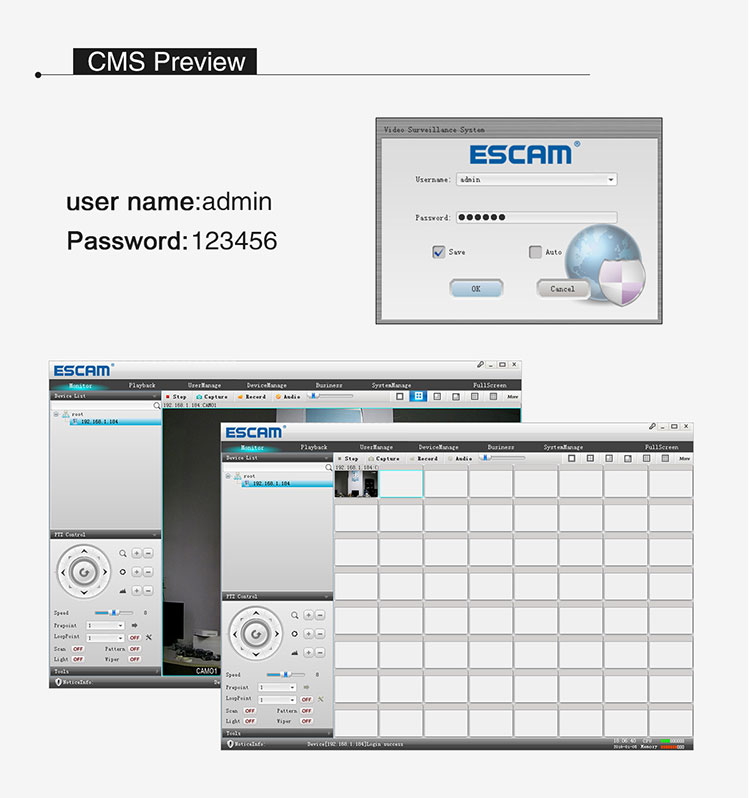

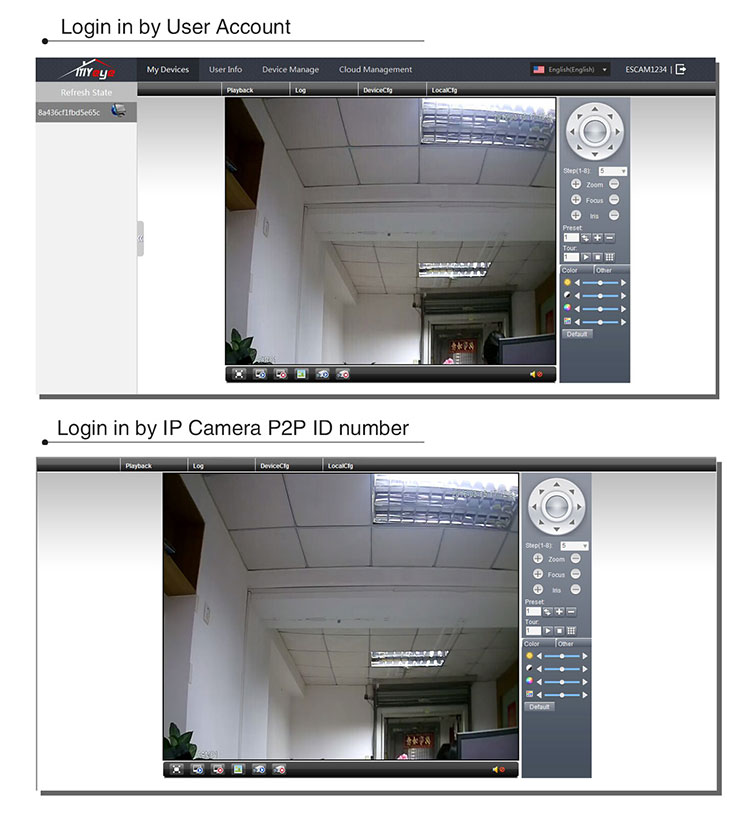

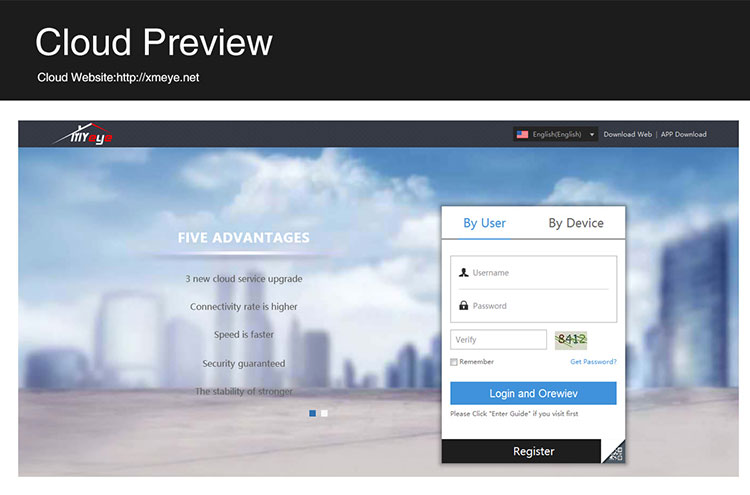

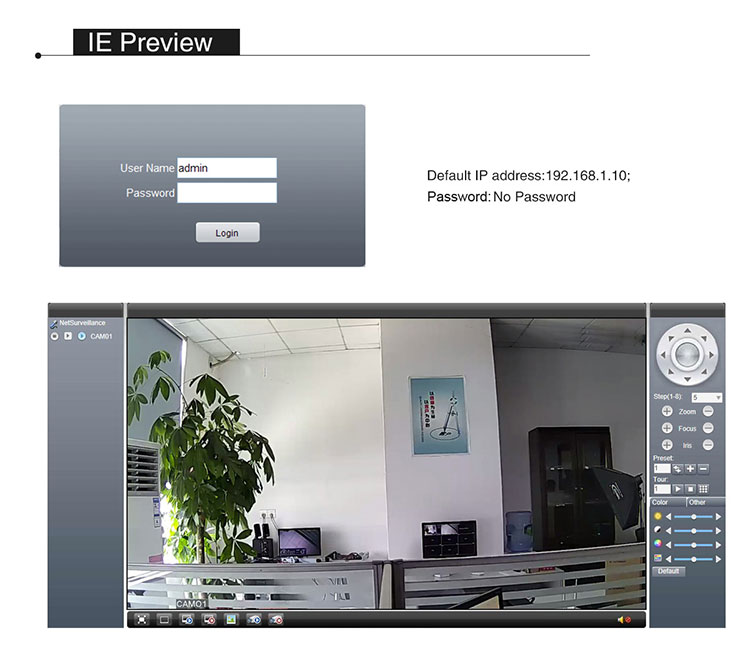

  • Multiple network monitoring: Web view, CMS view

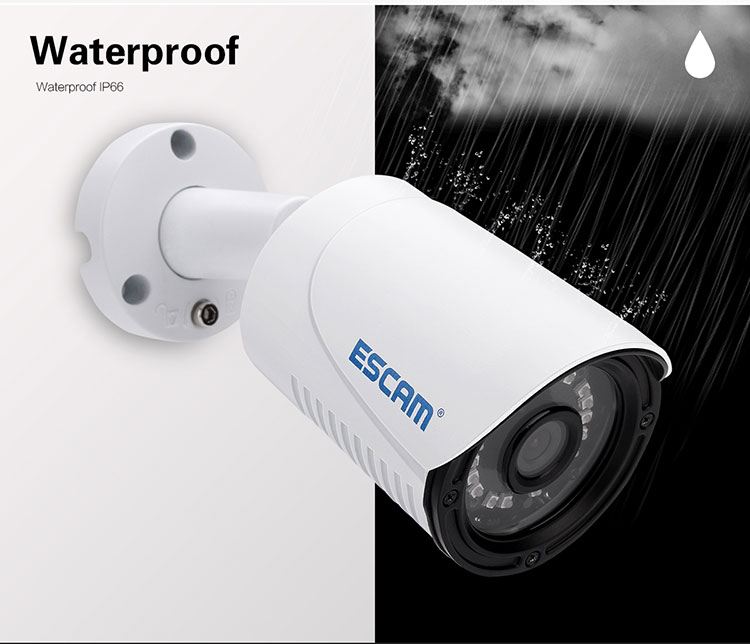

  • IP66 waterproof design

  • Note: POE camera must be worked with POE switch or POE injector if you don't want power adapter.

Specification:

ModelESCAM  QE07
Camera
Image Sensor1/4" 1 Megapixel progressive scan CMOS
Effective Pixels1280(H)x720(V)
Scanning SystemProgressive
Electronic Shutter Speed1/50s(1/60s)-1/100, 000s
Min. IlluminationColor: 0. 2Lux, B/W: 0.08Lux
S/N Ratio≥39dB
Camera Features

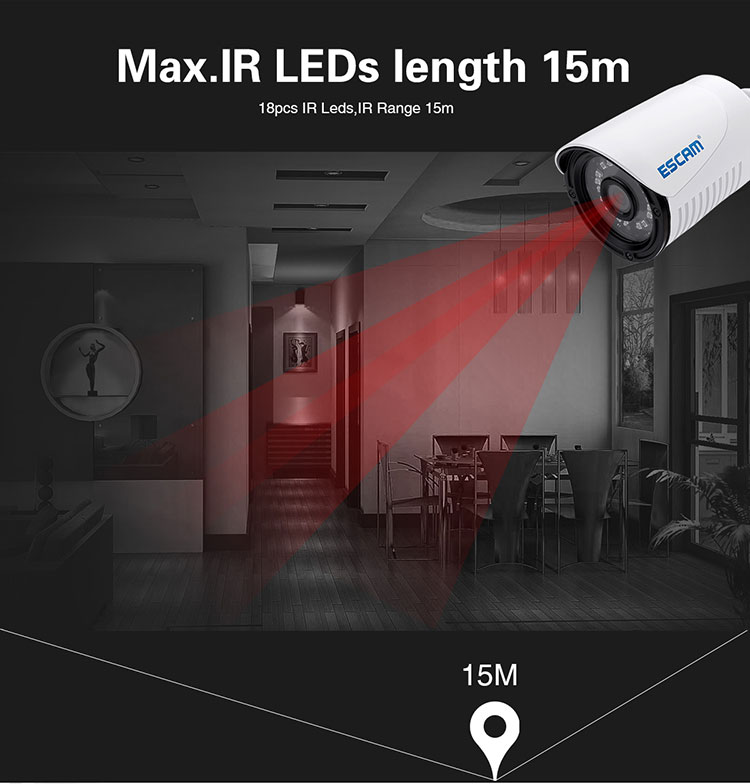

Max. IR LEDs LengthDual IR-CUT Filter auto switch, 18pcs Microcrystalline Array Led, IR Range 15m
Day/NightAuto (ICR) / Color / B/W
Backlight CompensationBLC/HLC/DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens

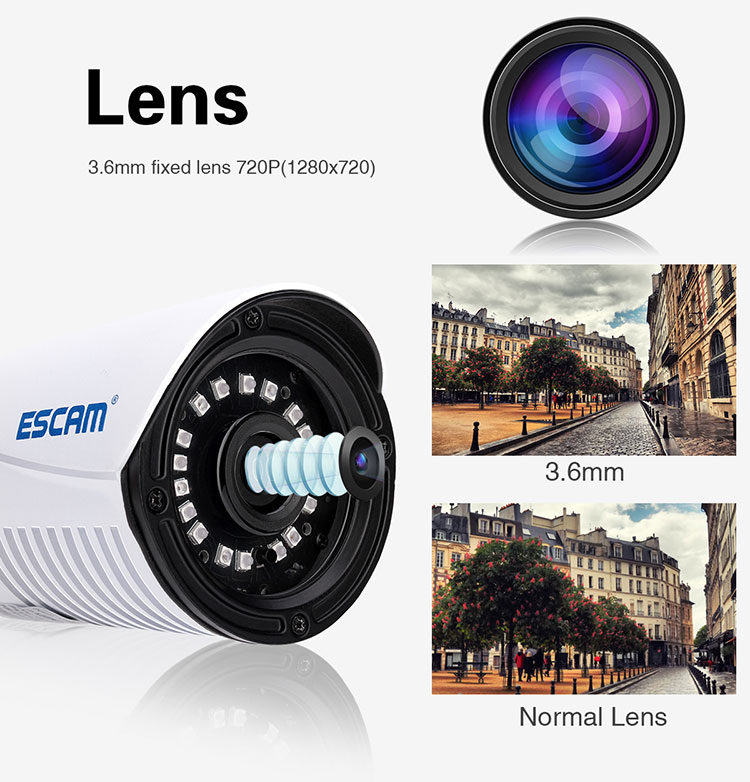

Focal Length3.6mm
Max ApertureF1.4
Angle of View62.2°
Mount TypeMTV mount
Video
CompressionH.264
Resolution720P(1280x720), D1(704x576), CIF(352x288)
Frame RateMain Stream720P(1 ~ 25fps)
Sub StreamD1/CIF(1 ~ 25fps)
Bit RateCBR/VBR, output bit rate range: 48~3072kbps
Network
EthernetRJ-45 (10/100Base-T)
ProtocolTCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, NTP, PPPOE, SMTP, UPNP

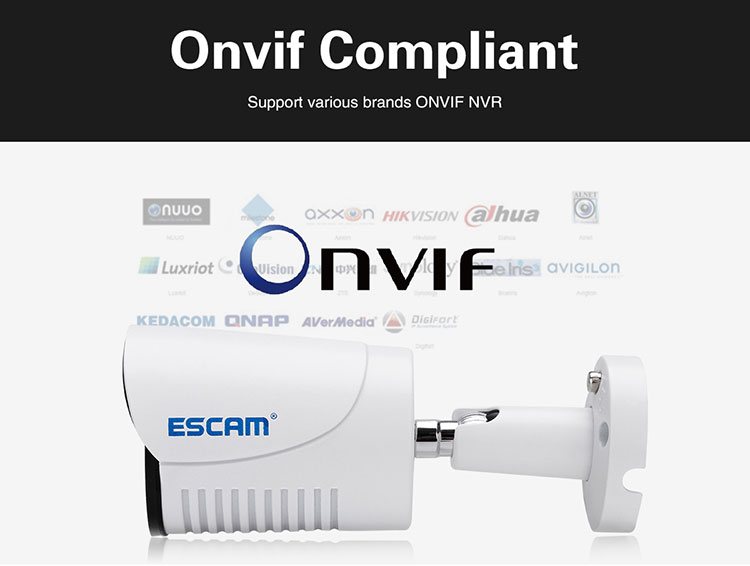

ONVIFONVIF2.0

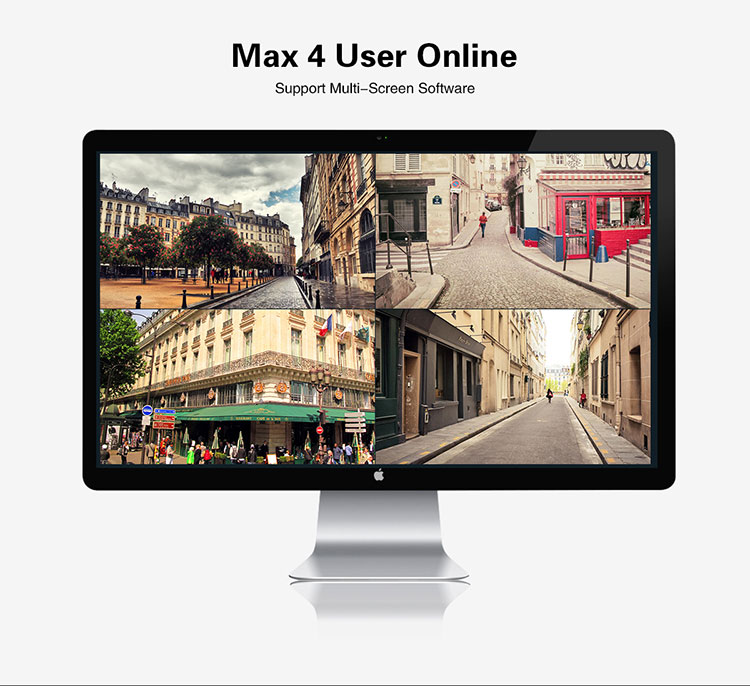

Max. User Access4 users

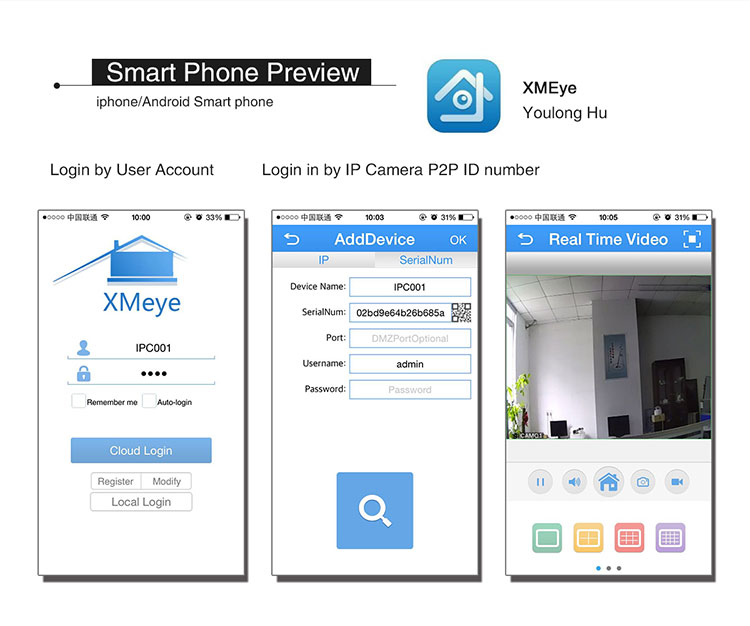

Smart PhoneiPhone, iPad, Android
General
Power SupplyDC12V, PoE (IEEE802.3af)
Temperature-10°C~50°C
Power Consumption<6W
Ingress ProtectionIP66
Dimensions185mm x77mmx77mm
Weight360g
ApprovalsCE FCC RoHS

Package included:

  • 1 x ESCAM QE07 720P HD IP Bullet Camera
  • 1 x Power Adapter
  • 1 x User Mnaual
  • 1 Package of Screws
