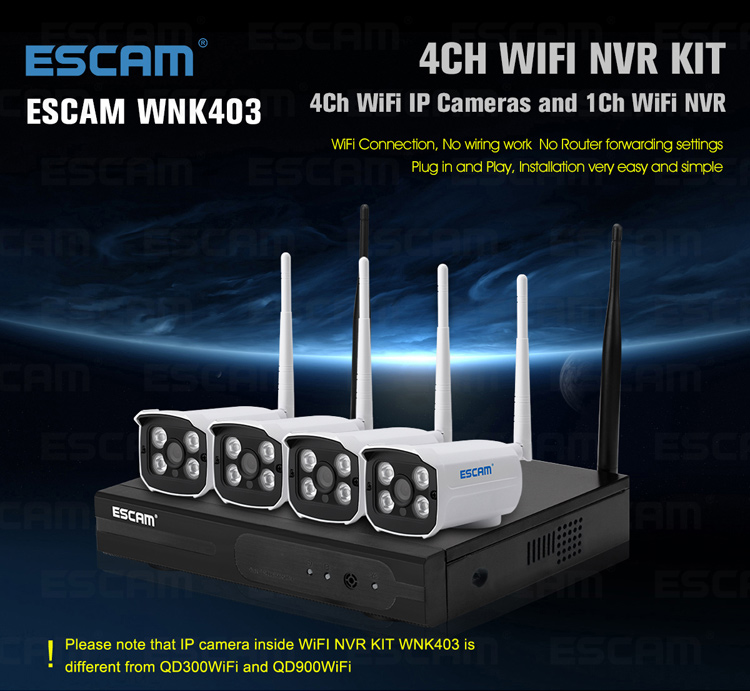

ESCAM WNK403 Waterproof 720P 4CH WiFi NVR Kit with 8 x 1.0MP Outdoor IP Cameras 3.6mm Lens - US Plug

(0 reviews)
Item No.: 881100057B Ships in 1 - 3 days MOQ: 1
Email Only Price
$ 166.59 (0 % OFF)
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units


Certificate CE, FCC, RoHS
Home Safety Type NVR Kits
Plug US Plug
Retail Packaging Paper Box
Gross Weight 3.062kg
Volume Weight 3.288kg
Length 31.300cm
Width 26.800cm
Height 17.500cm
Weight 2.734kg
With Retail Packaging Yes

Product Description

ESCAM WNK403 Waterproof 720P 4CH WiFi NVR Kit with 8 x 1.0MP Outdoor IP Cameras 3.6mm Lens - US Plug
  • High performance H.264 compression technology

  • Dual stream network transmission, for a variety of network environments

  • 1/4" CMOS 1.0MP 720P camera

  • Applicable to schools, airports, factories, hotels, museums, traffic monitoring, etc.


Video InputNetwork Video4CH
Network Video Input Broadbank20Mbps
Video OutputHDMI Input1ch, resolution: 1024x768, 1366x768, 1440x900, 1920x1080P
VGA Output1ch, resolution: 1024x768, 1366x768, 1440x900, 1920x1080P
AV Codec SpecificationVideo Resolution720P
Video ControlVideo/Capture ModeManual, Time, Motion, Alarm
Playback ModeReal time, Routine, Event
BackupUSB backup
Hard DiskType1*SATA interface
Max. Capacity4TB at most for each
External InterfaceNetwork Interfaceone adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface
USB InterfaceUSB 2.0
Network ControlProtocolUPnP    (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address)
OthersPower SupplyDC12V 2A
Power Consumption≤5W (Without HDD)
Operate Temperature -10 degree Celsius ~ +55 degree Celsius
Working Humidity10%~90%RH
Weight (excluding HDD)0.73Kg

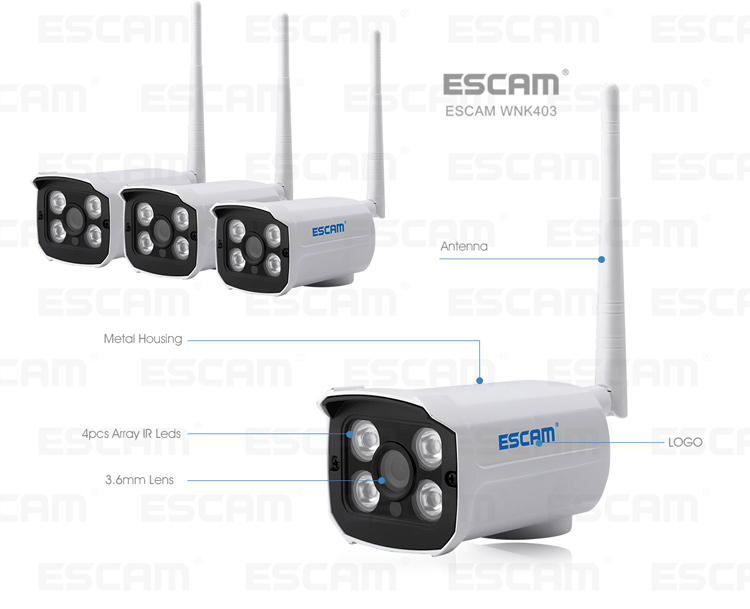

IP Camera  Specifications
 Sensor1/4'' Progressive CMOS Sensor
Signal SystemPAL/NTSC
Resolution1280 x 720
Minimum IlluminationColor: 0.1 Lux; B/W: 0.01 Lux
Shutter1/25s to 1/25,000s
OSDDate Time & Title
White BalanceAuto
Day & NightAuto/Color/BW
Frame SpecificationThree Streaming at the Same Time
H.264 1280x720@15fps or below
H.264 640x480@30fps or below
S/N> 39.1dB
InterfaceRJ45/WIFI 802.11b/g/n
General SpecificationsAnti-thunder LevelStandard IEC61000-4-5
Working Temperature/Humidity -20 degree Celsius ~ +60 degree Celsius / 20% to 90% RH
Power InputDC12V 1A
Power Consumption≤6W
Level of ProtectionIP66
Dimensions107 x 68 x 60mm

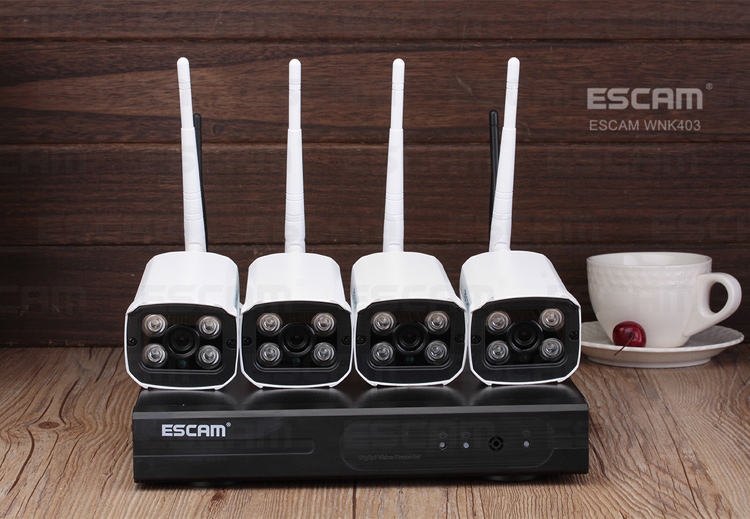

Package included:

  • 1 x 4CH 720P NVR
  • 4 x 720P IP Camera
  • 1 x Network Cable
  • 5 x Power Adapter
  • 1 x Mouse
  • 5 x Screw Bag
  • 4 x Waterproof Hat
  • 1 x Manual
881100057B-1 881100057B-2 881100057B-3 881100057B-4 881100057B-5 881100057B-6 881100057B-7 881100057B-8 881100057B-9 881100057B-10 881100057B-11 881100057B-12 881100057B-13 881100057B-14 881100057B-15 881100057B-16 881100057B-17 881100057B-18
