HDMI Audio Extractor Splitter to SPDIF RCA Stereo L/R Analog Output Converter

Rate:
0
(0 reviews)
Item No.: Y0110200466A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 12.07 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Brand Name None
Has Speaker Yes
Gross Weight 0.287kg
Volume Weight 0.261kg
Length 17.000cm
Width 11.800cm
Height 5.800cm
Weight 0.256kg
With Retail Packaging No

Product Description

HDMI Audio Extractor Splitter to SPDIF RCA Stereo L/R Analog Output Converter
  • One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output

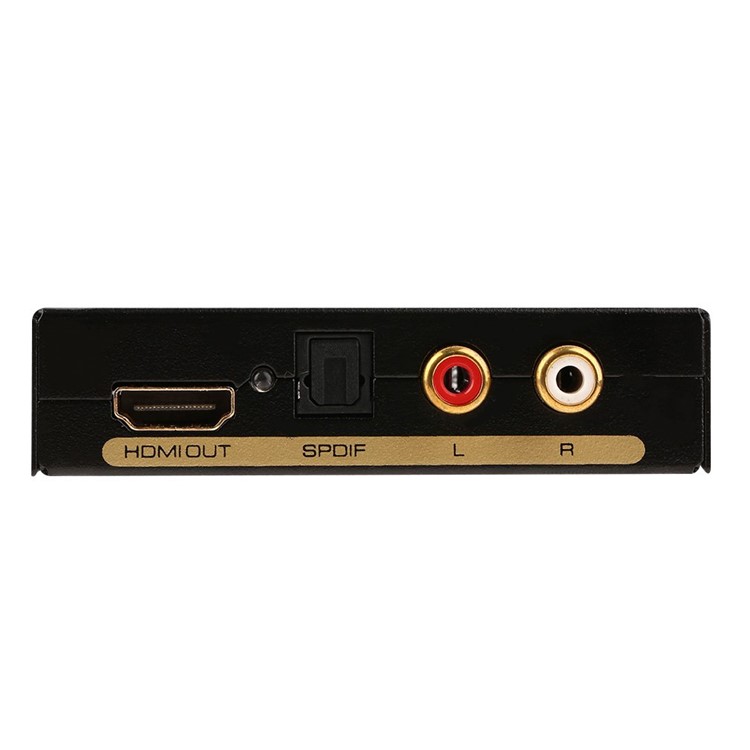

  • Output audio support: SPDIF+R/L analog Audio Output

  • Input Resolution: up to 1080P (50/60Hz)

  • HDMI to achieve the synchronization of audio signal separation

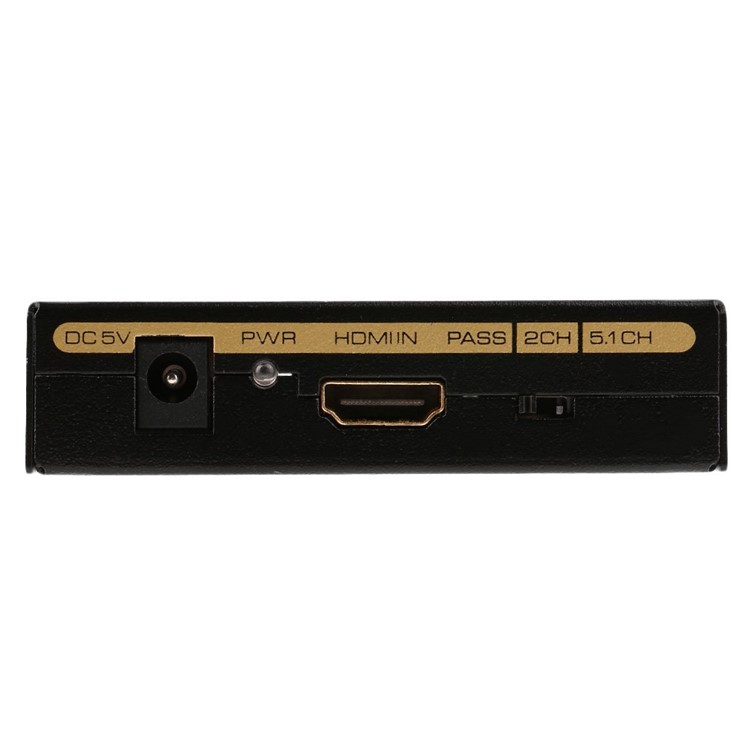

  • There are PASS / 2.0CH / 5.1CH three kinds of audio mode options

  • LED indication: when source or sink is working, LED relative to is light

  • No loss of quality

  • Installs in minutes

  • Need DC5V/1A power supply

Specifications:

  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

  • Support video color format: 24bit/deep color 30bit, 36bit

  • Audio output: L/R+SPDIF

  • Max bandwidth: 225MHz

  • Max baud rate: 6.75Gbps

  • Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

  • Input/Output DDC signal: 5Volts p-p (TTL)

  • Input cable distance: ≤15m AWG26 HDMI standard cable

  • Output cable distance: ≤20m AWG26 HDMI standard cable

  • Max working current: 500mA

  • Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

  • Operating Temperature range: -15 to +55 Deg.C

  • Operating Humidity range: 5 to 90%RH (No Condensation)

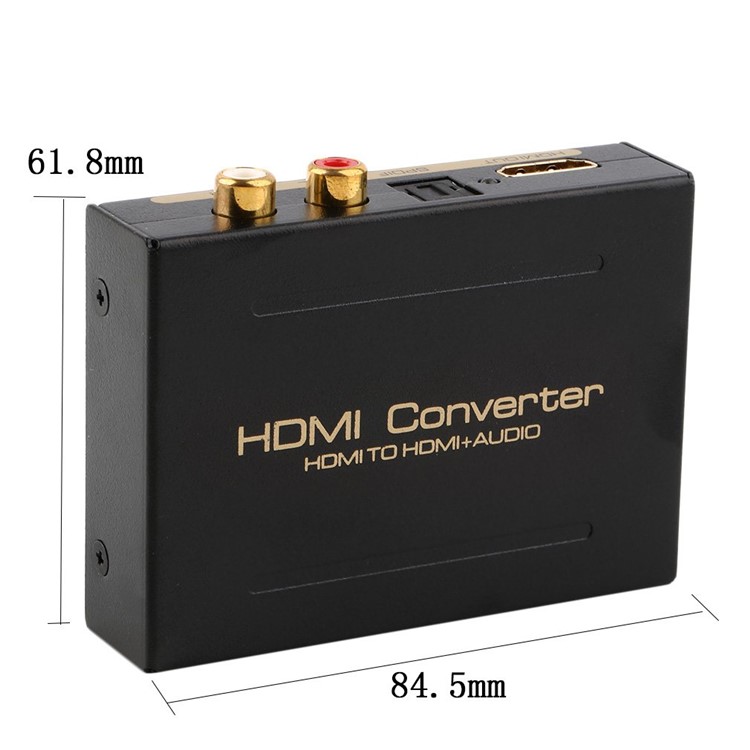

  • Dimension: 85 x 65 x 21mm (L x W x H)

  • Material: Metal

  • Color: Black

Package included:

  • 1 x HDMI TO HDMI+Audio (SPDIF+L/R)
  • 1 x Power Adapter(US Plug)
  • 1 x Manual
