Specifications
Bluetooth | Yes |
---|---|
CPU | Amlogic S905X Quad-core 64-bit |
CPU Type | Quad Core |
Ethernet | No |
GPU | Penta-core Mali-450MP |
IPTV | Yes |
OS | Android |
Plug | UK Plug |
RAM | 1GB |
Retail Packaging | Colored Box |
ROM | 8GB |
User Manual (Language) | English |
Video Output | HDMI 2.0 |
Wireless | Yes |
Gross Weight | 0.396kg |
Volume Weight | 0.231kg |
Length | 18.000cm |
Width | 11.000cm |
Height | 5.200cm |
Weight | 0.354kg |
With Retail Packaging | No |
Product Description
JEDX X1 Amlogic S905X Quad Core Android 6.0 TV Box 4K 1GB 8GB 2.4G Wifi HD 2.0A Smart Media Player - UK Plug

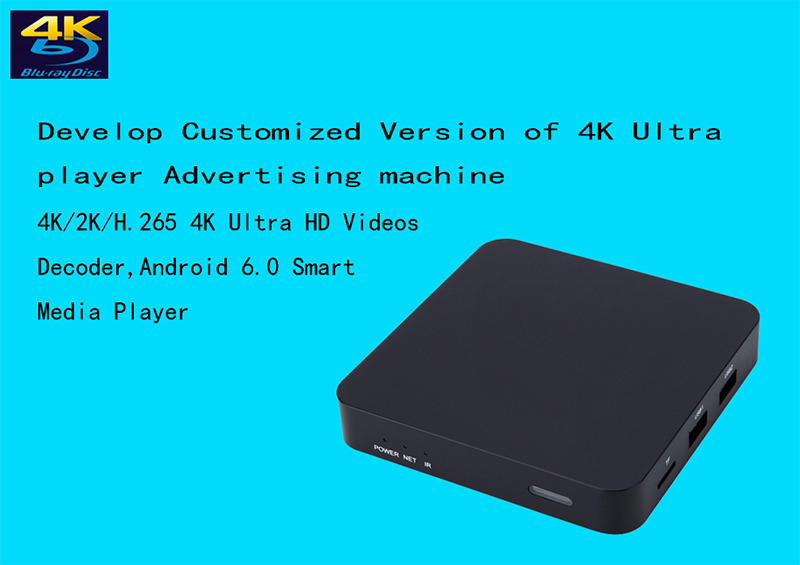

Develop customized version of 4K ultra player advertising machine

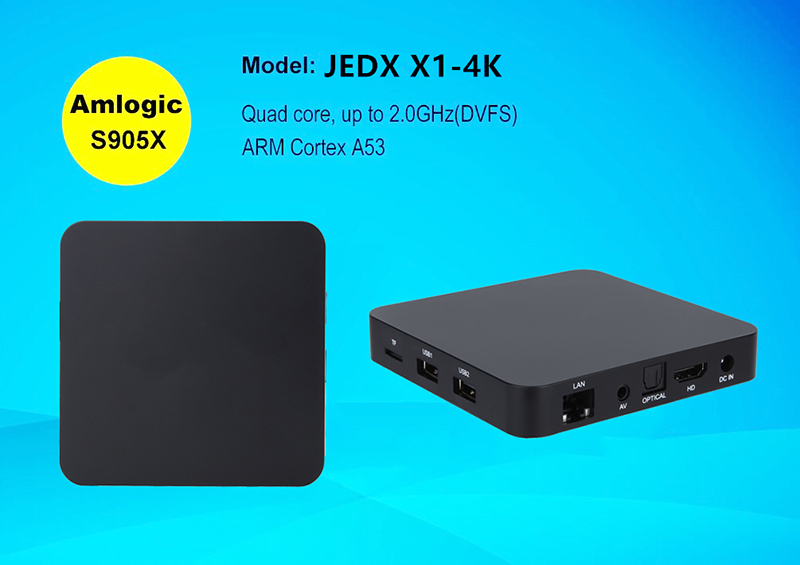

Amlogic S905X Quad Core ARM Cortex A53 @2GHz CPU, high performance
Android 6.0 Marshmallow OS
Support 4Kx2K UHD output

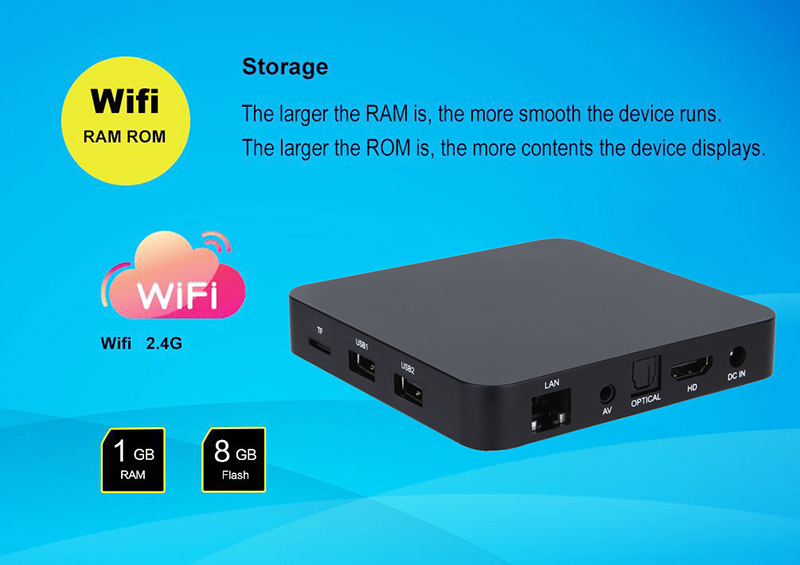

DDRIII 1GB, eMMC Flash 8GB

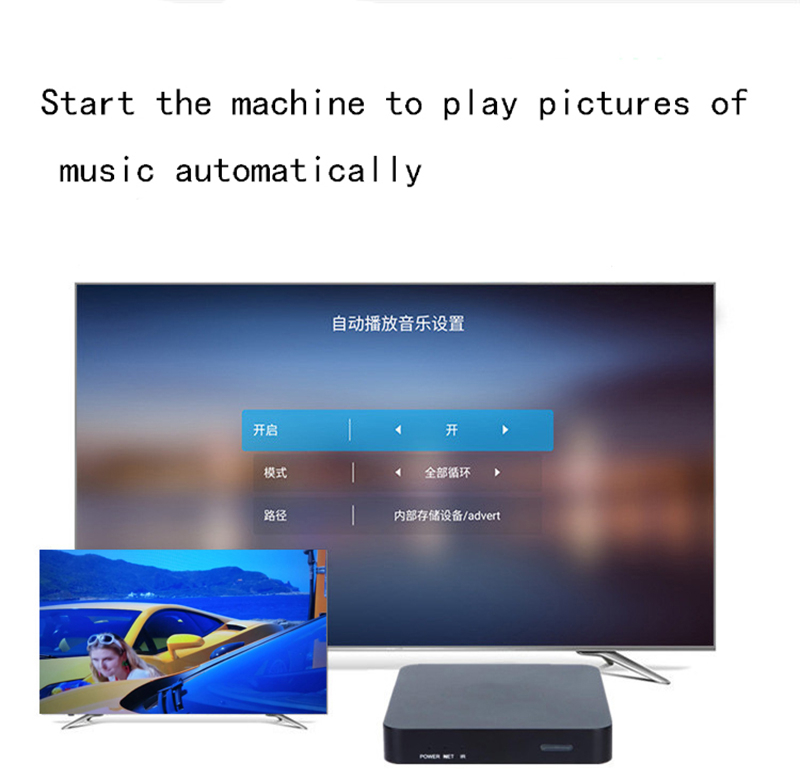

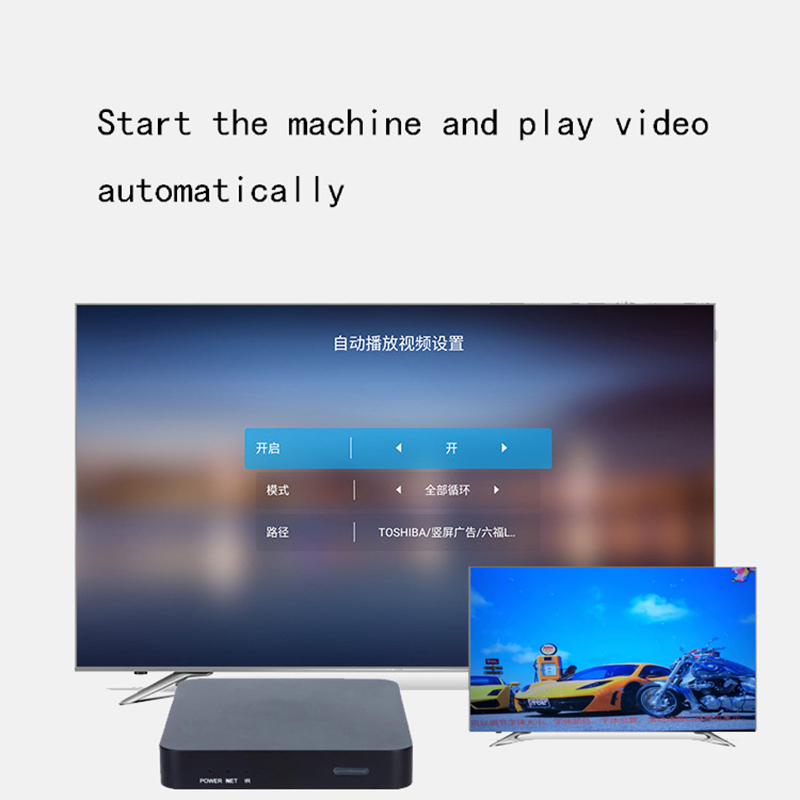

Power on automatically to play video/music/photo

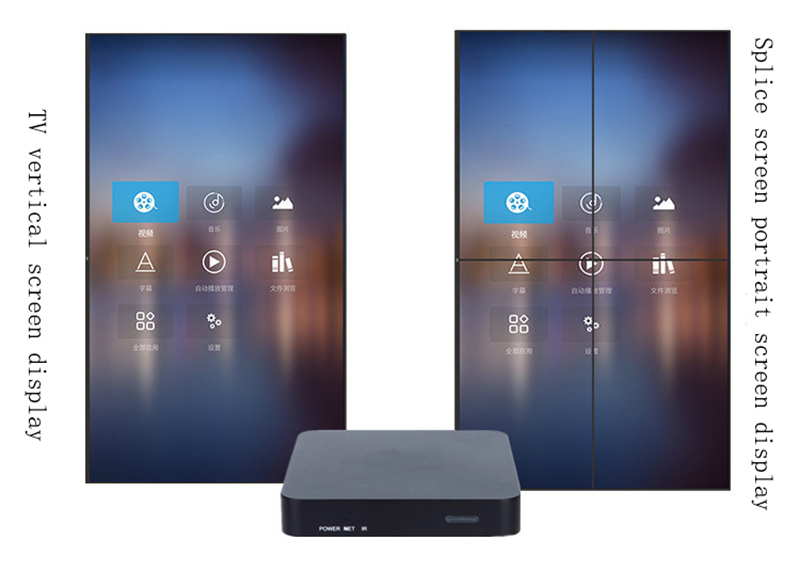

Support vertical and horizontal screen free switching

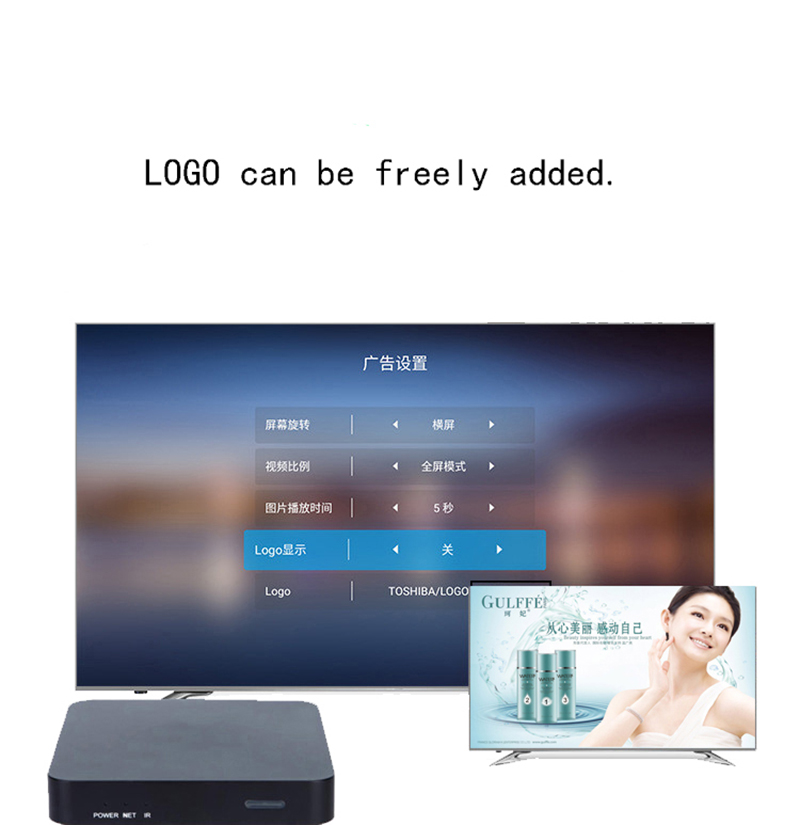

LOGO can be freely added

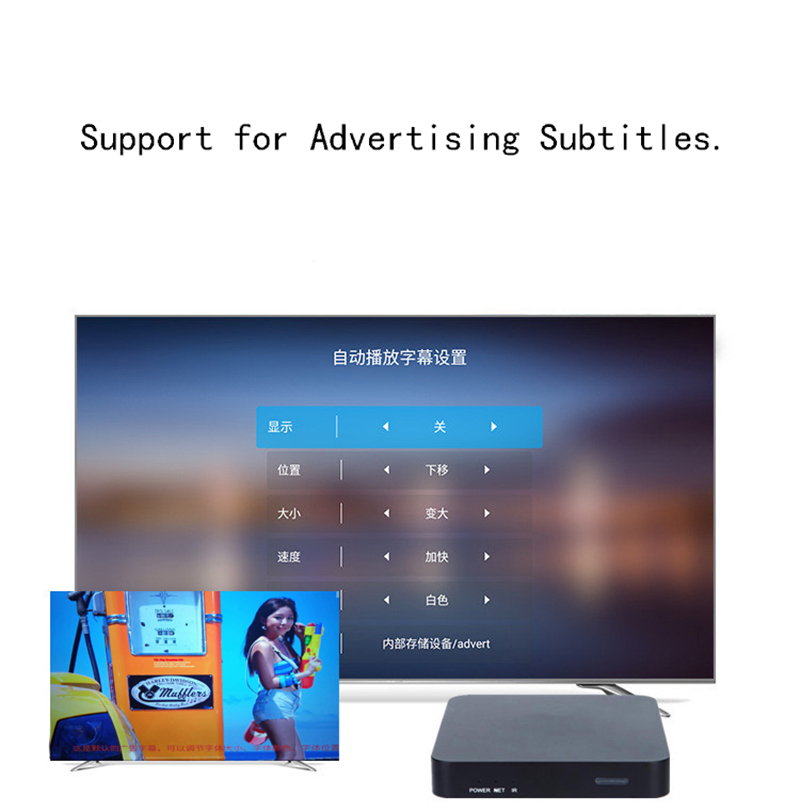

Support for advertising subtitles
Support HDMI/AV/USB/Mini SD
Support HDTV, projector, mosaic screen etc.

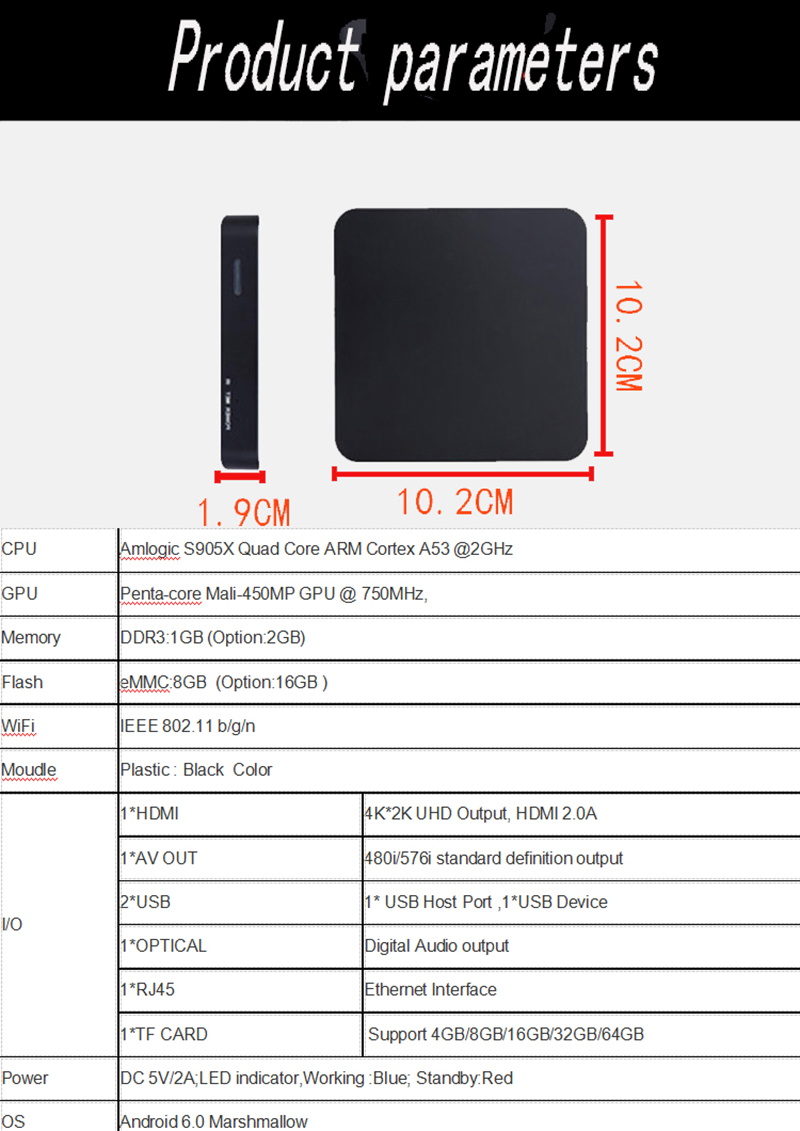

Specification:
CPU | Amlogic S905X Quad Core ARM Cortex A53 @2GHz | |
GPU | Penta-core Mali-450MP GPU @ 750MHz | |
Memory | DDR3: 1GB | |
Flash | eMMC: 8GB | |
WiFi | IEEE 802.11b/g/n | |
Material | Plastic | |

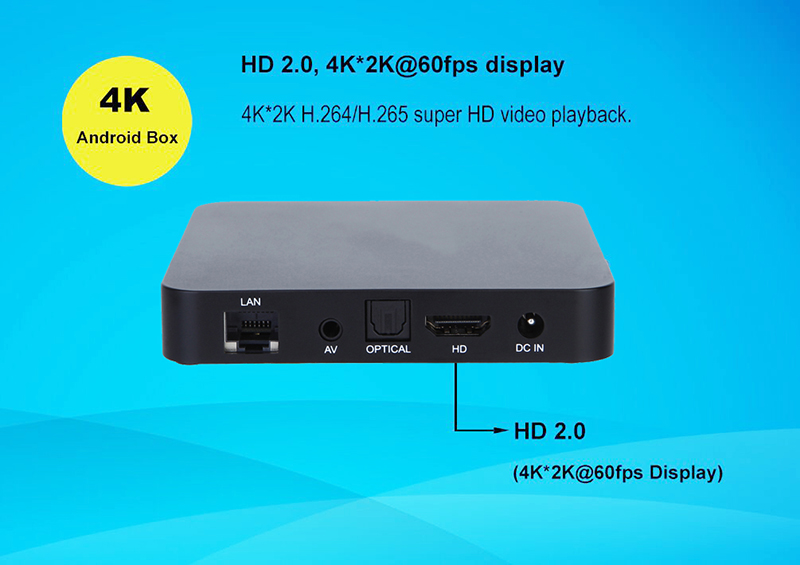

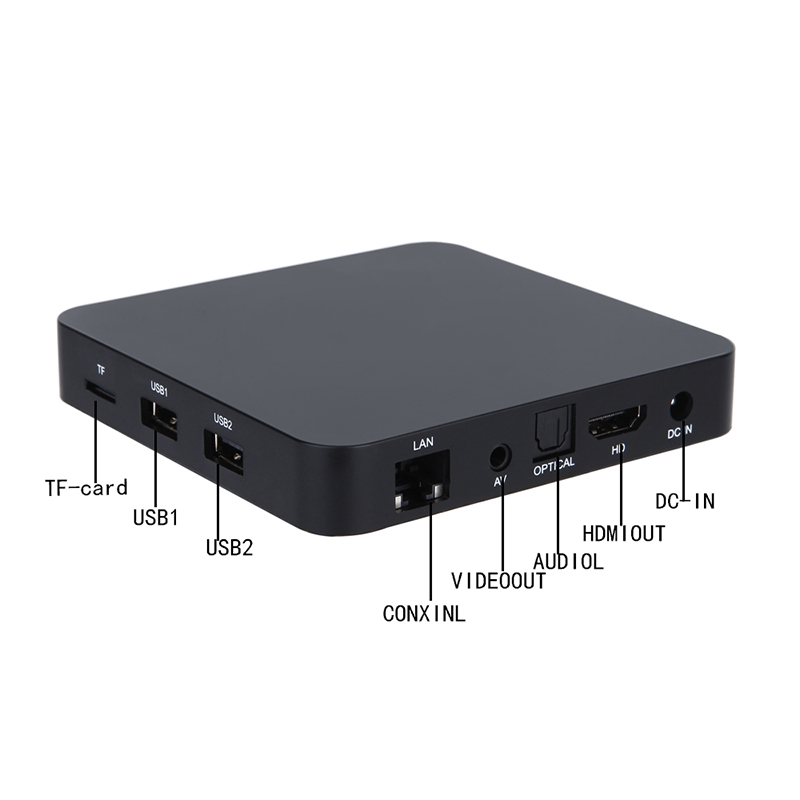

I/O | 1*HDMI | 4Kx2K UHD output, HDMI 2.0A |
1*AV OUT | 480i/576i standard definition output | |
2*USB | 1*USB host port ,1*USB device | |
1*Optical | Digital audio output | |
1*RJ45 | Ethernet Interface | |
1*TF Card | Support 4GB/8GB/16GB/32GB/64GB | |
Power | DC 5V/2A; LED indicator, Working: Blue; Standby: Red | |
OS | Android 6.0 Marshmallow | |

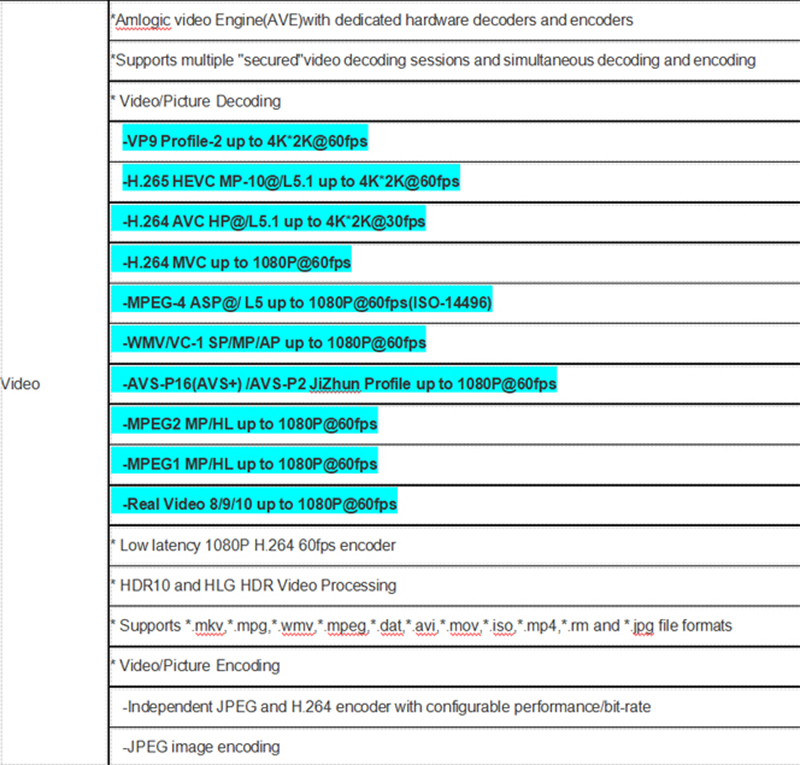

Video | Amlogic Video Engine(AVE) with dedicated hardware decoders and encoders | |
Supports multiple "secured" video decoding sessions and simultaneous decoding and encoding | ||
Video/Picture Decoding | ||
-VP9 Profile-2 up to 4K*2K@60fps | ||
-H.265 HEVC MP-10@/L5.1 up to 4K*2K@60fps | ||
-H.264 AVC HP@/L5.1 up to 4K*2K@30fps | ||
-H.264 MVC up to 1080P@60fps | ||
-MPEG-4 ASP@/ L5 up to 1080P@60fps(ISO-14496) | ||
-WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||
-MPEG2 MP/HL up to 1080P@60fps | ||
-MPEG1 MP/HL up to 1080P@60fps | ||
-Real Video 8/9/10 up to 1080P@60fps | ||
Low latency 1080P H.264 60fps encoder | ||
HDR10 and HLG HDR Video Processing | ||
Supports mkv, mpg, wmv, mpeg, dat, avi, mov, iso, mp4, rm and jpg file formats | ||
Video/Picture Encoding | ||
-Independent JPEG and H.264 encoder with configurable performance/bit-rate | ||
-JPEG image encoding | ||
-H.264 video encoding up to 1080P@60fps with low latency | ||

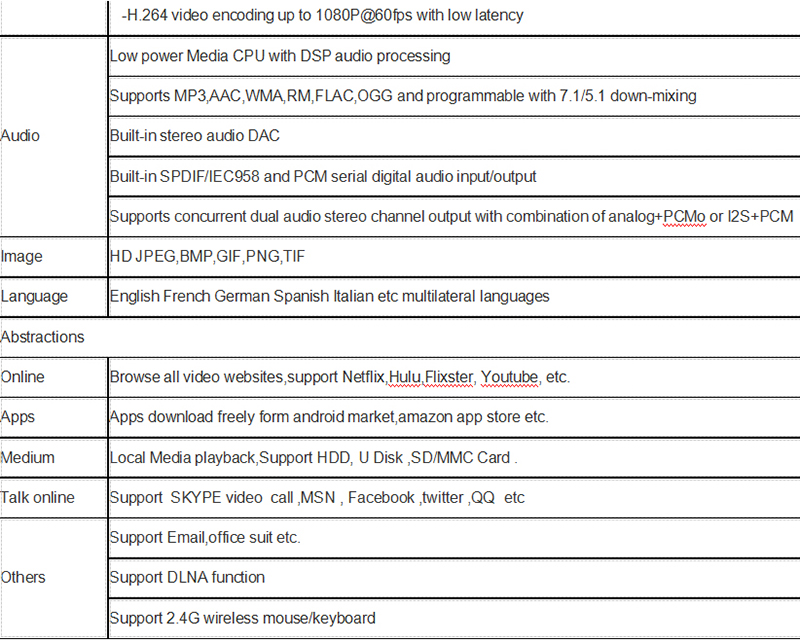

Audio | Low power Media CPU with DSP audio processing | |
Supports MP3, AAC, WMA, RM, FLAC, OGG and programmable with 7.1/5.1 down-mixing | ||
Built-in stereo audio DAC | ||
Built-in SPDIF/IEC958 and PCM serial digital audio input/output | ||
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM | ||
Image | HD JPEG, BMP, GIF, PNG, TIF | |
Language | English French German Spanish Italian etc multilateral languages | |
Abstractions | ||
Online | Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc. | |
Apps | Apps download freely from Android market, Amazon app store etc. | |
Medium | Local media playback, support HDD, U Disk, SD/MMC card | |
Talk Online | Support SKYPE video call, MSN, Facebook, Twitter, QQ, etc. | |
Others | Support Email, office suit etc. | |
Support DLNA function | ||
Support 2.4G wireless mouse/keyboard |

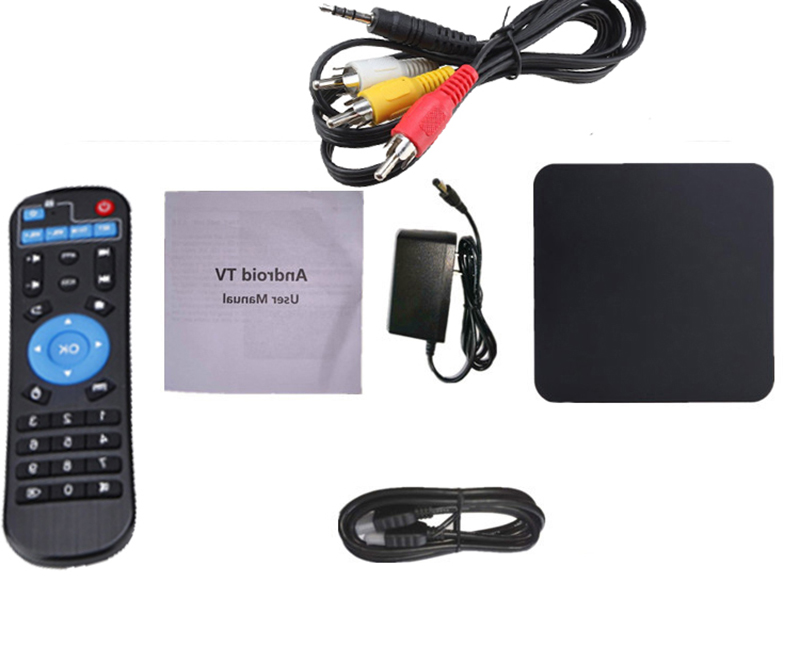

Package included:
- 1 x TV Box
- 1 x Power Adapter
- 1 x Remote Control
- 1 x AV Cable
- 1 x HDMI Cable
- 1 x English User Manual
