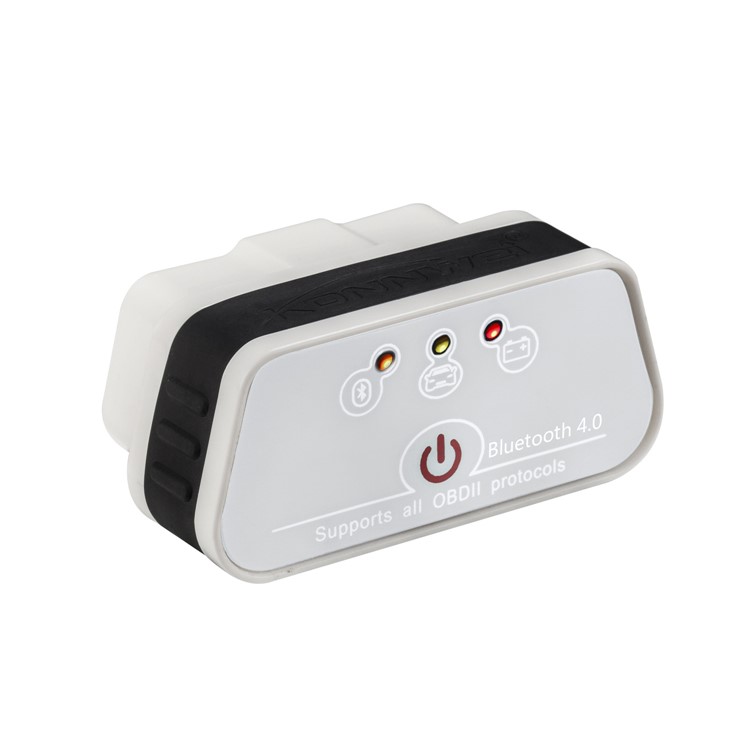

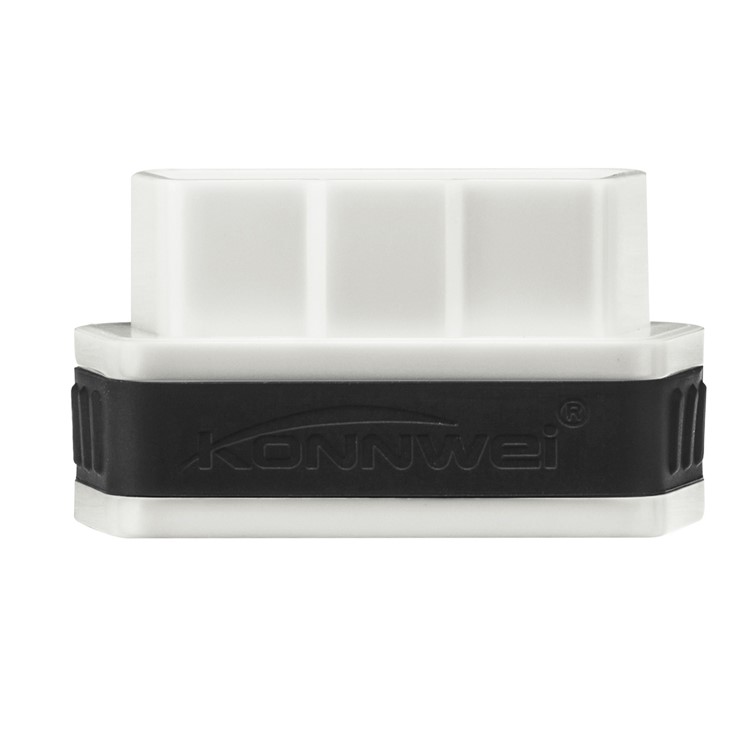

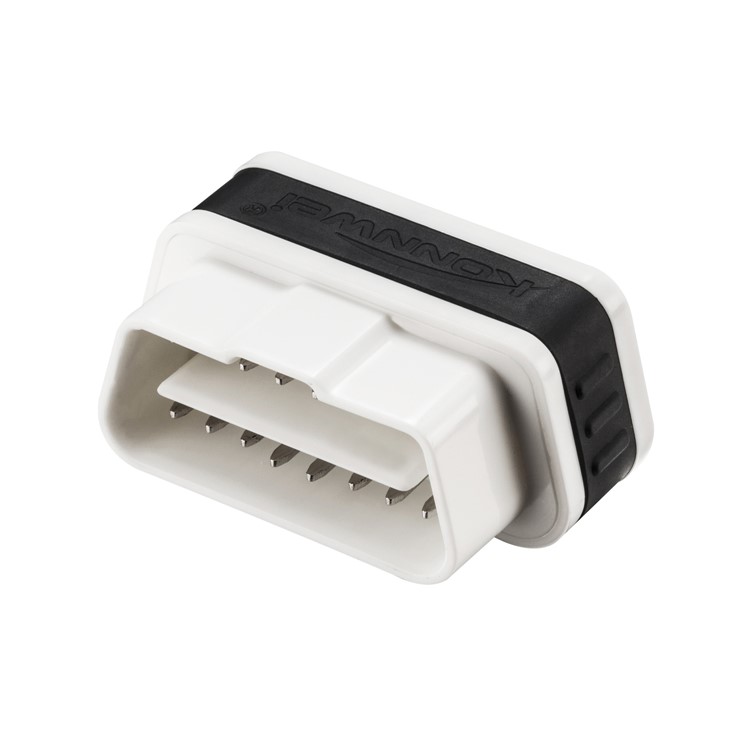

KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White

Rate:
0
(0 reviews)
Item No.: 81040046D Ships in 1 - 3 days MOQ: 1
Email Only Price
Color:
Buy in bulk
Price:
$ 12.94 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE
ColorStyle D

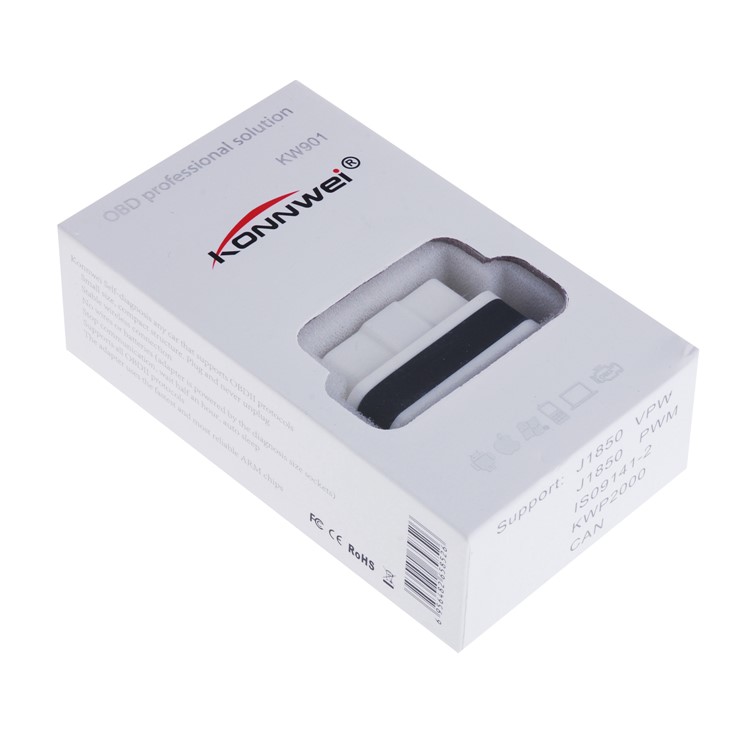

Retail Packaging White Paper Box
Gross Weight 0.095kg
Volume Weight 0.089kg
Length 12.600cm
Width 7.500cm
Height 4.200cm
Weight 0.085kg
With Retail Packaging Yes

Product Description

KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White

OBD-II software for ELM327 Bluetooth is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer. The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides. Supports all OBDII protocols.

  • The program lets you perform the following operations:

  • Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

  • Clear trouble codes and turn off the MIL ("Check Engine" light)

  • Display current sensor data, including:

  • -Engine RPM

  • -Calculated Load Value

  • -Coolant Temperature

  • -Fuel System Status

  • -Vehicle Speed

  • -Short Term Fuel Trim

  • -Long Term Fuel Trim

  • -Intake Manifold Pressure

  • -Timing Advance

  • -Intake Air Temperature

  • -Air Flow Rate

  • -Absolute Throttle Position

  • -Oxygen Sensor Voltages/Associated Short Term Fuel Trims

  • -Fuel System Status

  • -Fuel Pressure

Specification:

  • Support System: iOS

  • Bluetooth Version: Bluetooth 4.0

  • Supported Protocols :

  • -SAE J1850 PWM (41.6Kbaud)

  • -SAE J1850 VPW (10.4Kbaud)

  • -ISO9141-2(5 baud init, 10.4Kbaud)

  • -ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

  • -ISO14230-4 KWP (fast init, 10.4 Kbaud)

  • -ISO15765-4 CAN (11bit ID, 500 Kbaud)

  • -ISO15765-4 CAN (29bit ID, 500 Kbaud)

  • -ISO15765-4 CAN (11bit ID, 250 Kbaud)

  • -ISO15765-4 CAN (29bit ID, 250 Kbaud)

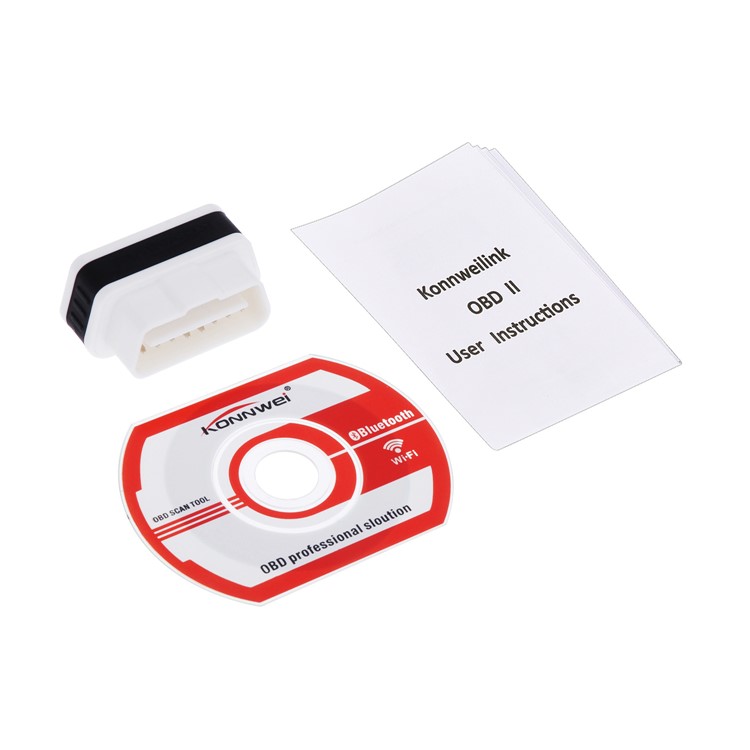

Package included:

  • 1 x KONNWEI KW901 ELM327 Bluetooth 4.0 OBD Diagnostic Scanner Detector
  • 1 x CD Software
  • 1 x User Manual
KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White-1 KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White-2 KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White-3 KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White-4 KONNWEI KW901 ELM327 Bluetooth 4.0 ODB II Code Scanner Detector for iOS - Black / White-5
