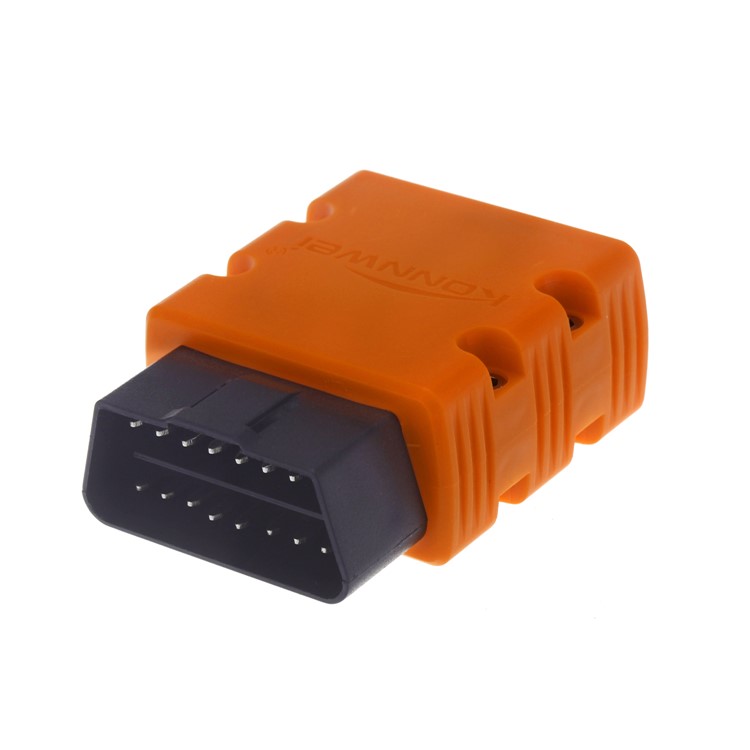

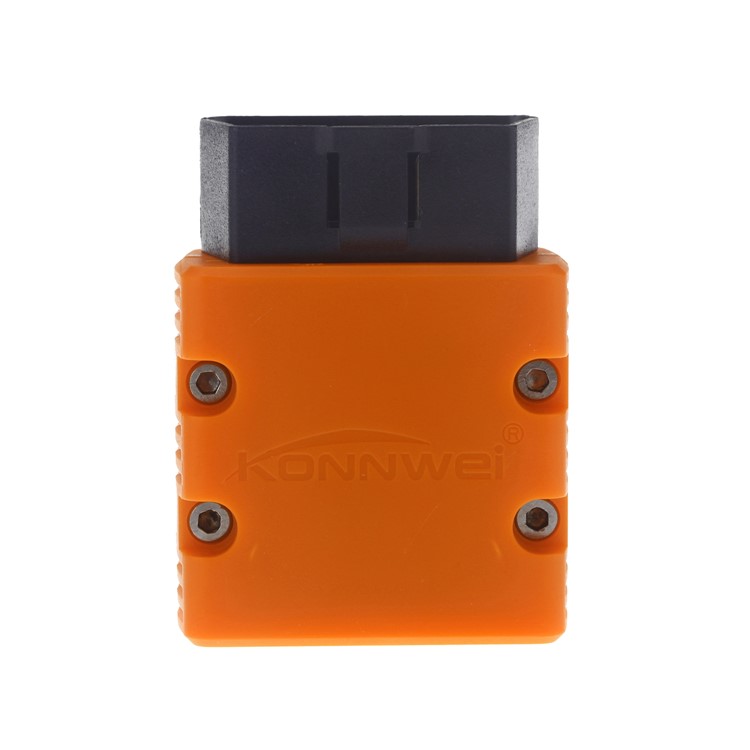

KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange

Rate:
0
(0 reviews)
Item No.: 810400057D Ships in 1 - 3 days MOQ: 1
Email Only Price
Buy in bulk
Price:
$ 14.02 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE, FCC, RoHS
Color Orange

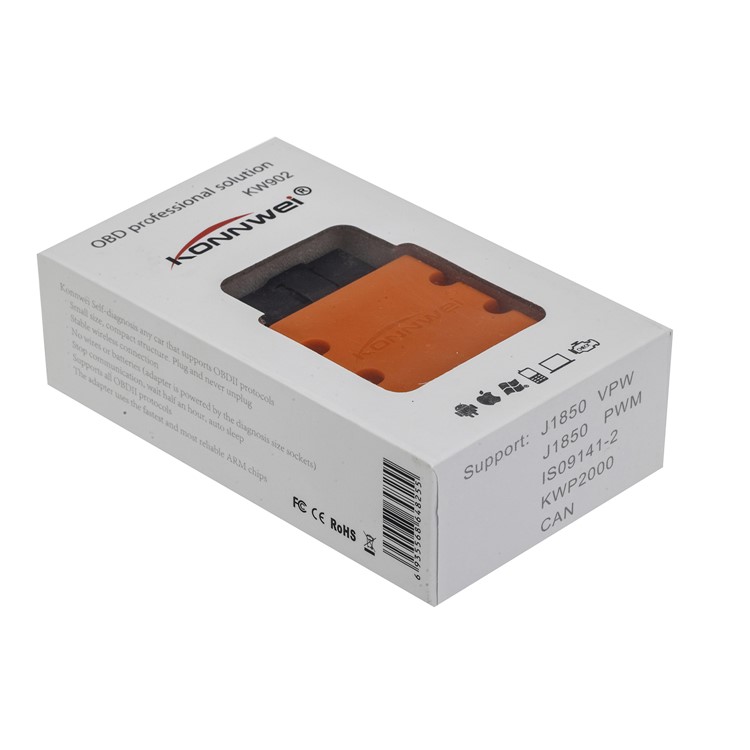

Retail Packaging Colored Box
User Manual (Language) English
Gross Weight 0.112kg
Volume Weight 0.081kg
Length 12.000cm
Width 7.500cm
Height 4.000cm
Weight 0.100kg
With Retail Packaging Yes

Product Description

KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange
  • It is able to detect and interpret these protocols automatically

  • It also provides support for high speed communications and a low power sleep mode

  • It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on)

  • There are plenty of software packages available, which are fully compatible with it

  • Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc

  • You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained

  • It is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation

  • It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port

  • It is compatible with 1996 and later vehicles

  • Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode

With proper software installed in the host device, you may have following parameters read out from your vehicle:

  • Vehicle Speed

  • RPM

  • Fuel Consumption

  • Engine Coolant Temp

  • Fuel Pressure

  • Calculated Engine Load

  • Throttle Position

  • Intake Manifold Pressure

  • Air Intake Temp

  • Timing Advance

  • Mass Air Flow

  • Fuel Level

  • Barometric Pressure

  • EVAP System Vapor Pressure

  • Fuel Trim

CLK is capable of communicating with vehicles which adopt following protocols:

  • ISO 9141

  • ISO 11898(aka. CAN)

  • ISO 14230(aka. KWP2000)

  • ISO 15765(aka. CAN)

  • SAE J1939

Specification:

  • Port: 35000

  • Range: 50 ft (Line of sight)

  • Antenna: Internal

  • Power Consumption: 0.75 Watts (With Power Switch)

  • Wifi Standard: 802.11a/b/g

  • Operating Temperature: -15 to 100 Deg Celsius

  • Plastic: Automotive Grade Physical

  • Dimensions: 2.75 x 1.25 x 1.2 inches

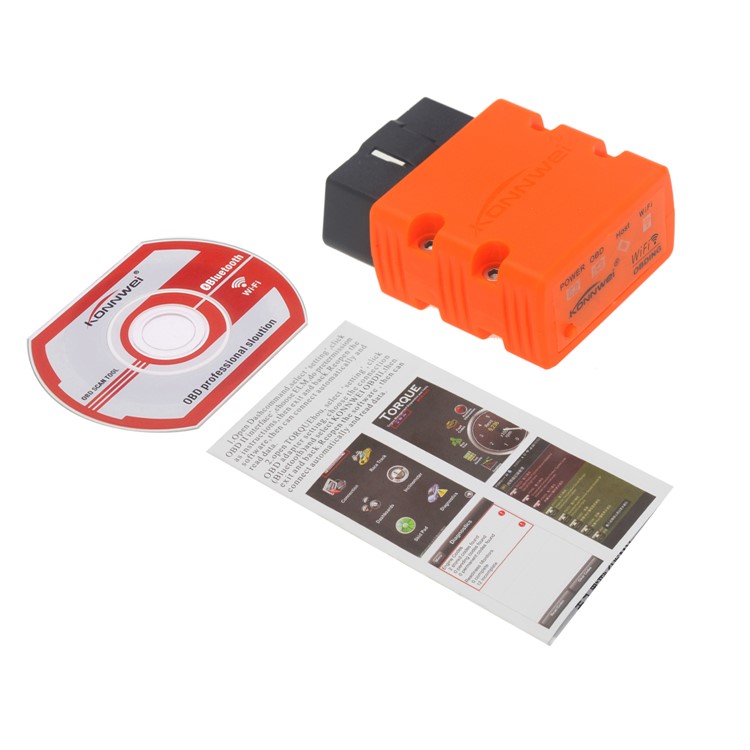

Package included:

  • 1 x KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Scaner
  • 1 x CD Hardware
  • 1 x User Manual
KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-1 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-2 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-3 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-4 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-5 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-6 KONNWEI KW902 ELM327 WiFi OBD 2 Auto Diagnostic Reader Work on iOS/Android Devices (CE,RoHS,FCC) - Orange-7
