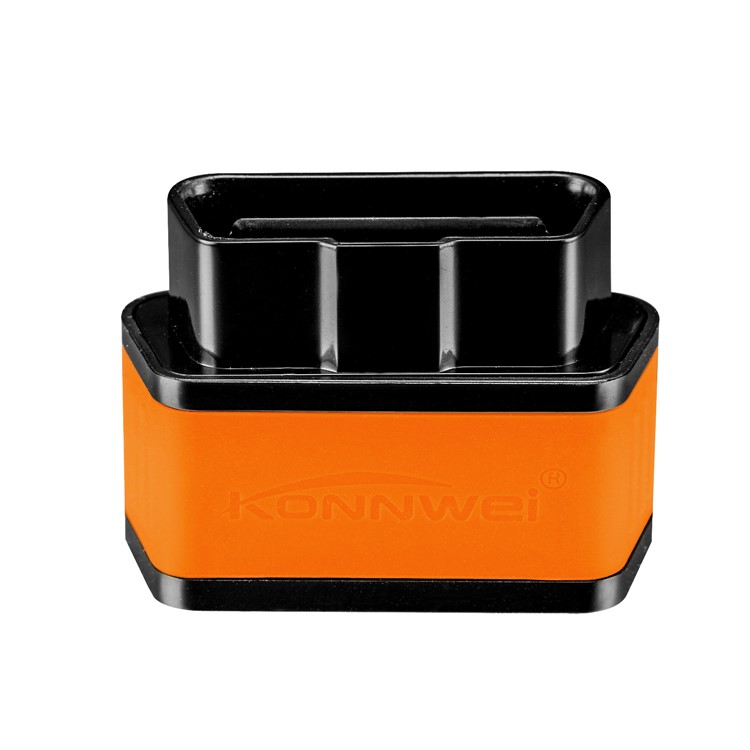

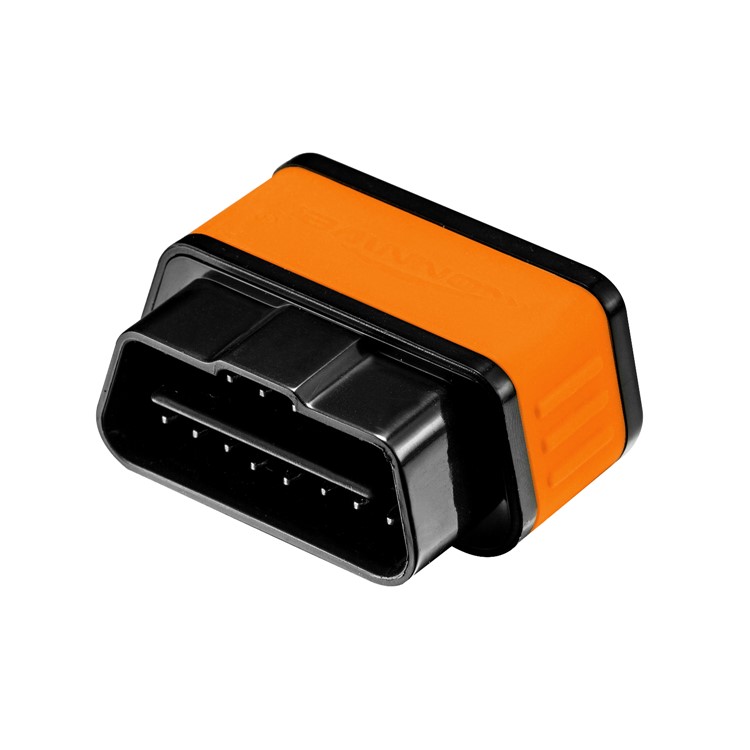

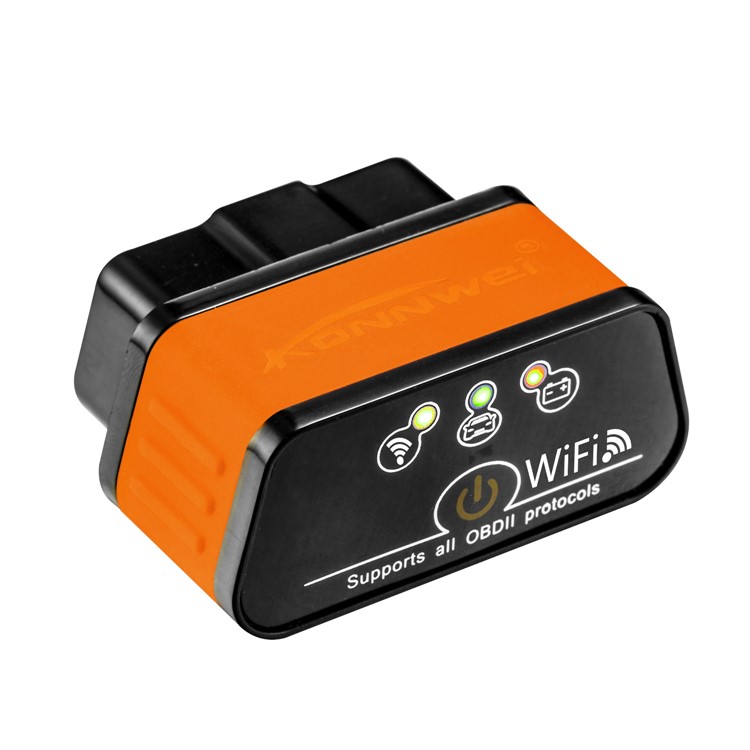

KONNWEI KW903 ELM327 WiFi OBDII Auto OBD2 Code Scanner Detector Tool for Android iOS - Orange / Black

Item No.: 810400064F | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)

Flash Shipping Flash shipping service valid ONLY when all products in the order are flash-shipping-supported.

Email Only Price
Price: $12.45
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Product Description

KONNWEI KW903 ELM327 WiFi OBDII Auto OBD2 Code Scanner Detector Tool for Android iOS - Orange / Black
  • It is able to detect and interpret these protocols automatically

  • It also provides support for high speed communications and a low power sleep mode

  • It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on)

  • There are plenty of software packages available, which are fully compatible with It

  • Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc

  • You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained

  • It is measuring only 2.7 x 1.25x 0.9 inches, and it comes attached with a 6ft OBDII cable for easy installation

  • It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port

  • It is compatible with 1996 and later vehicles

  • Connecting to your iPhone / iPod touch is made by WiFi connection in adHoc mode

With proper software installed in the host device, you may have following parameters read out from your vehicle

  • Vehicle Speed

  • RPM

  • Fuel Consumption

  • Engine Coolant Temp

  • Fuel Pressure

  • Calculated Engine Load

  • Throttle Position

  • Intake Manifold Pressure

  • Air Intake Temp

  • Timing Advance

  • Mass Air Flow

  • Fuel Level

  • Barometric Pressure

  • EVAP System Vapor Pressure

  • Fuel Trim

It is capable of communicating with vehicles which adopt following protocols:

  • ISO 9141

  • ISO 11898(aka. CAN)

  • ISO 14230(aka. KWP2000)

  • ISO 15765(aka. CAN)

  • SAE J1939

Specification:

  • SSID: IT Devices

  • Port: 35000

  • Range: 50 ft (Line of sight)

  • Antenna: Internal

  • Power Consumption: 0.75 Watts (With Power Switch)

  • Wifi Standard: 802.11a/b/g

  • Operating Temperature: -15 to 100 Deg Celsius

  • Plastic: Automotive Grade

  • Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Package included:

  • 1 x KONNWEI KW901 ELM327 Bluetooth 4.0 OBD Diagnostic Scanner Detector
  • 1 x CD Software
  • 1 x English User Manual

Specifications

Certificate CE, FCC, RoHS
ColorStyle F

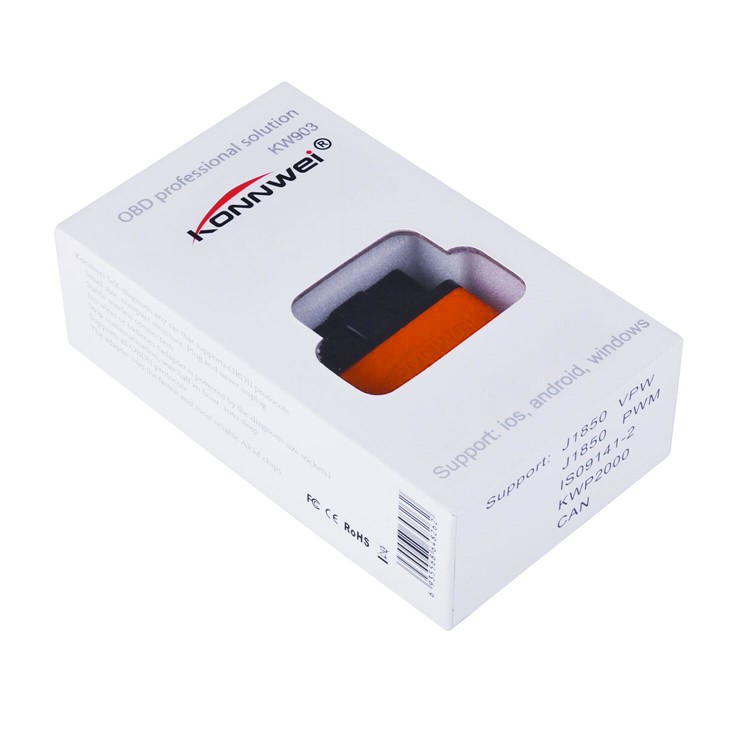

Retail Packaging Paper Box
User Manual (Language) English
Gross Weight 0.096kg
Volume Weight 0.084kg
Package Length 12.500cm
Package Width 7.500cm
Package Height 4.000cm
Package Weight 0.086kg
