LEMONDA LM02 Single SIM 4G Android GPS Older Smart Watch Phone - Black

Rate:
0
(0 reviews)
Item No.: 260200110A Ships in 1 - 3 days MOQ: 1
Email Only Price
Color:
Buy in bulk
Price:
$ 69.49 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Certificate CE, MSDS, RoHS
Color Black
CPU Type Quad Core
Network CDMA2000, FDD-LTE, GSM, TD-LTE, WCDMA
Operating System Android 7.0
Phone/Tablet Feature Bluetooth 4.1, WIFI
RAM 512MB
Retail Packaging Paper Box
ROM 4GB
SIM Type Nano SIM Card
User Manual (Language) English
Gross Weight 0.223kg
Volume Weight 0.243kg
Length 11.300cm
Width 11.300cm
Height 8.500cm
Weight 0.199kg
With Retail Packaging No

Product Description

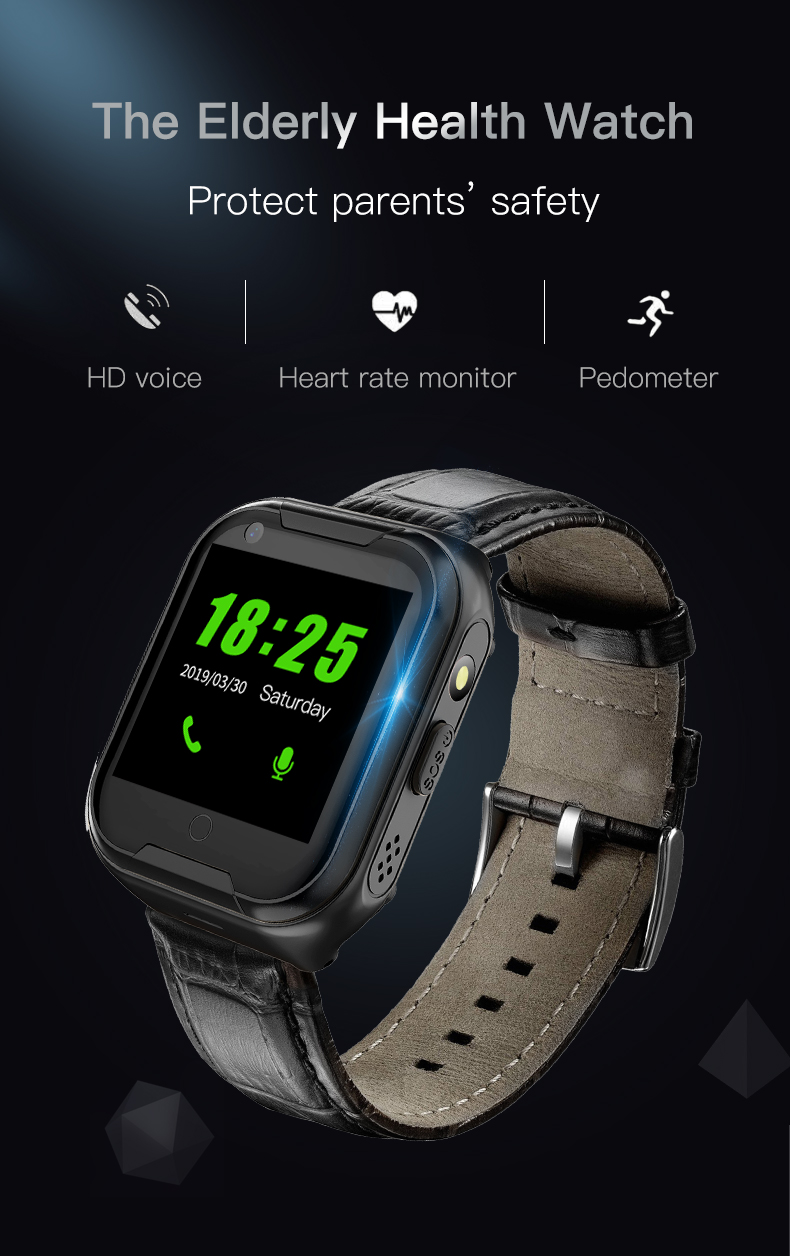

LEMONDA LM02 Single SIM 4G Android GPS Older Smart Watch Phone - Black
  • Support Nano SIM card, it is a Bluetooth smart watch and a watch phone

  • Work with 4G networks: FDD-LTE B1 B3 B5 B8, TD-LTE B38 B40 B41

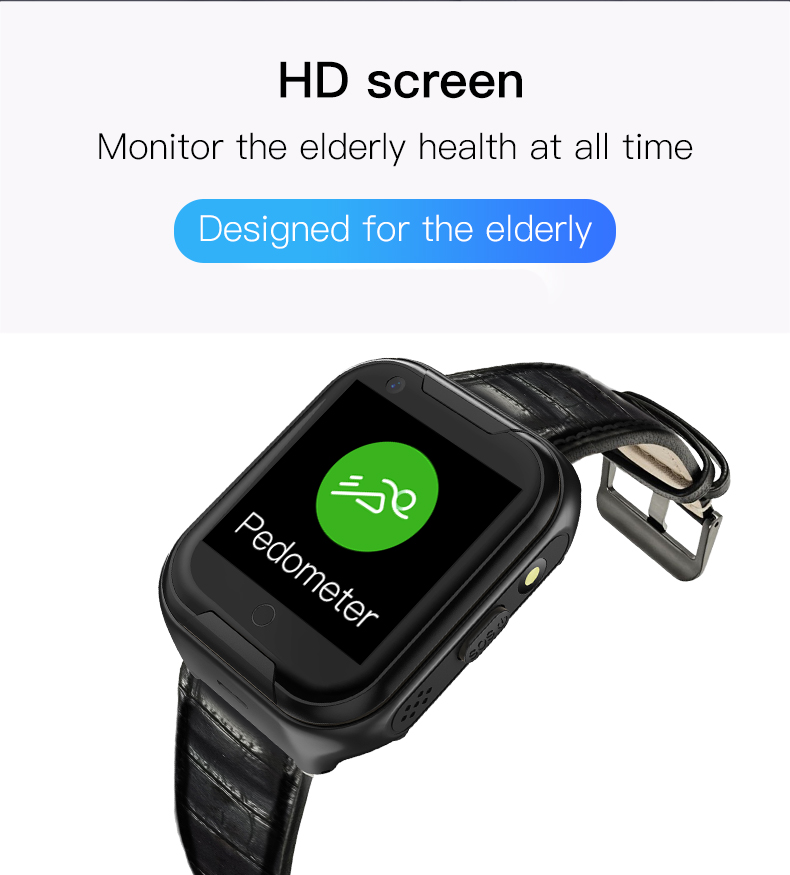

  • 1.4 inch IPS capacitive touch screen, resolution: 320*320

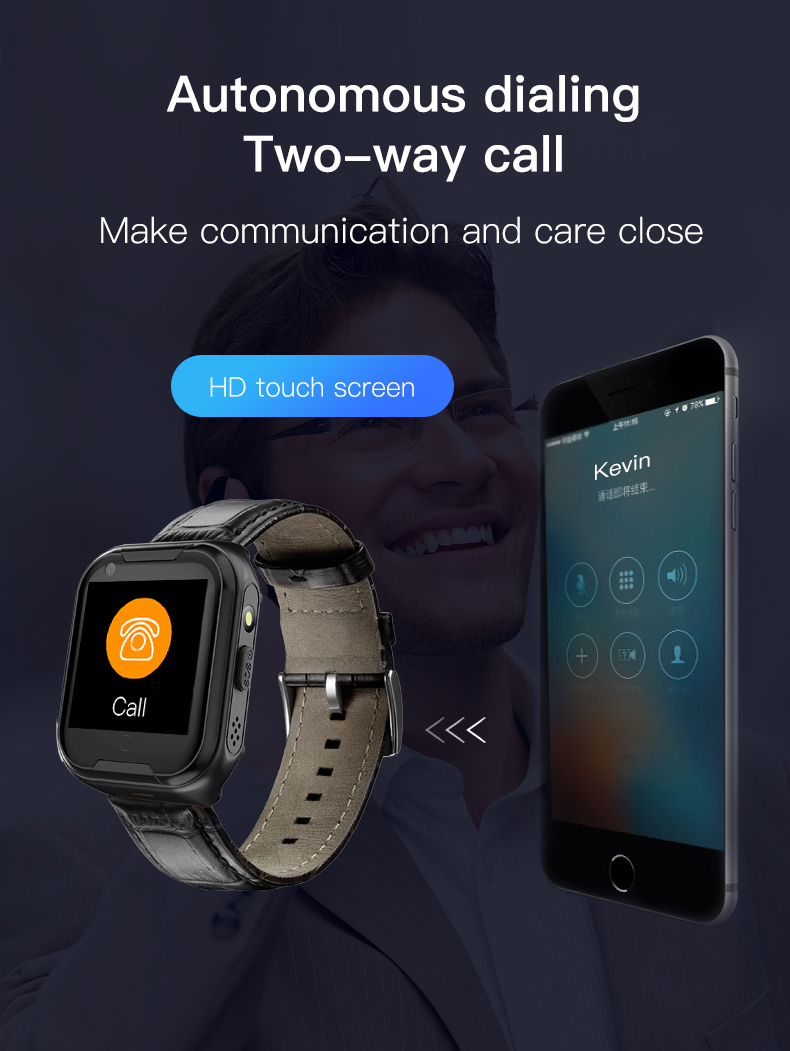

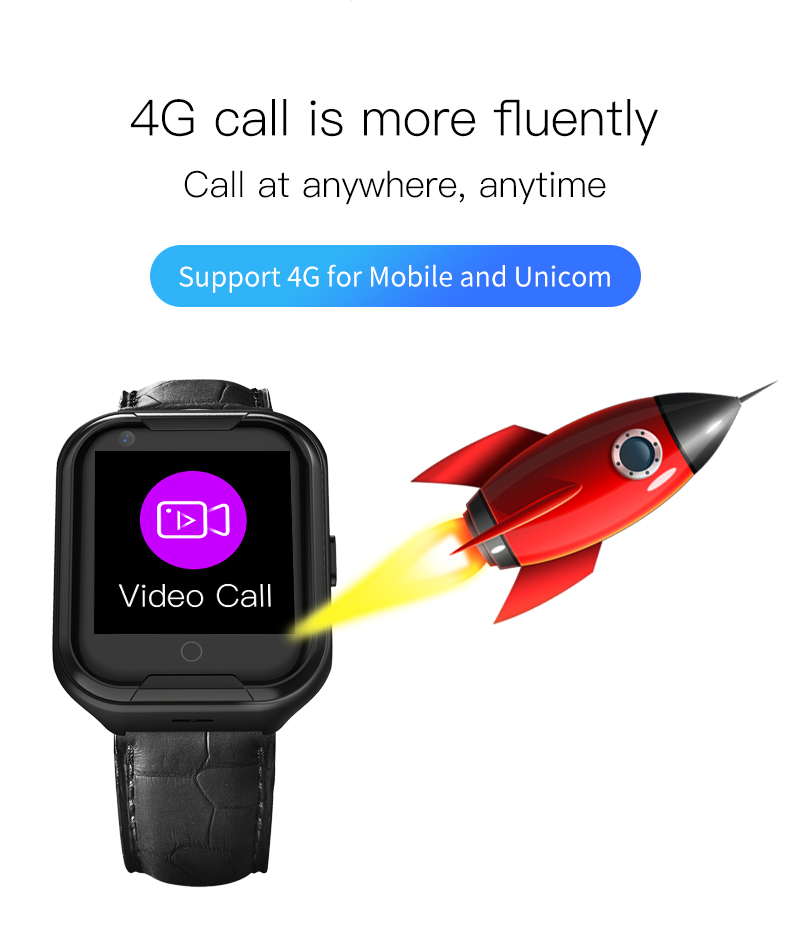

  • It supports video talk, Alipay, voice talking, watch & APP talking

  • Bluetooth version: Bluetooth V4.1

Specifications:

Standard Spec2G NETWORKS CDMA BC0
GSM 900/1800
3G NETWORKS WCDMA 850/2100
CDMA2000
4G NETWORKS FDD-LTE B1 B3 B5 B8
TD-LTE B38 B40 B41
OS SystemAndroid 6.0
CPU ICQualcomm 8909
CPU FrequencyQuad core A7 800MHz
Display GPUAdreno 304, 400 MHz
GPS ChipsetWTR2965
WiFi ChipsetWCN3610
DesignDimensions (mm)42.2x53*15.6mm
Estimated Weight (g)75g
PCBA Size(mm)38mmx34mm
Form FactorSquare
Glass2D Glass
Side Keys2
Removable wristbandYES
DisplayDisplay screen Size1.40''
Screen resolution
320*320
DPI261
Screen typeIPS
LTPS-
Brightness350typ
NTSC0.5
View angle (Degree)80/80/80/80
Sunlight Reflection/Outdoor ReadabilityNO
Screen to body ratio 34%
Contrast Ratio(Nominal/Sunlight)Min600,Typ800
Color Reproduction 65k
Touch icon backlight NA
LED indicator -
Touch technology GF
Touch Points Single point
TP Accuracy TBC
Border/Bezel SizeAA  27.744*27.744
Full LaminationYes
Touch Panel Materialglass+film
Glass typedragontrail ,T=0.7mm/corning for backup
Sub-display-
Oleophobic coating (Anti-finger coating)Yes
AudioAudio Speaker
Number of speakers  1
Audio Chipset (DAC) PM8909-1
Sampling rate 8kHz to 48kHz
Audio Amplifier YES(PM8909-1 Internal)
3D Surround 3DN/A
HD voiceN/A
Dual-mic Noise cancellation DNA
Audio Codec Support Raw PCM; QCELP; EVRC, -B, -WB; AMR-NB, -WB; GSMEFR, -FR, -HR, MP3; AAC+, eAAC; AMR-NB, -WB,G.711, WMA 9/10 Pro
Dynamic Range -
Fidelity (THD+Noise) -
SNR-
Distortion-
Frequency Response-
Power - Pink Noise / Music (Watts)-
Headphone Impedence Supported-
Crosstalk-
MicrophoneYES
Music streamingNO
Available PortsCard slot SIMNano Sim (4FF)
SIM Card Number   1 (Nano SIM Card)
Audio Jack No
Charging Port Pogo Pin
TF Card No
Multimedia Output No
Others-
MemoryRAM 512MB
ROM4GB
External storageN/A
Data2G Data    GPRS/EDGE
3G Data     HSPA (Only data)
4G Data     LTE/TD-LTE
Carrier AggregationN/A
Front CameraNumber of pixels 30W
Focus N/A
Image SensorMIPI
Sensor Size 5.5*5.5 mm
Sensor Pixel size30-200W
Lens Apeture sizeN/A
Lens (Wide angle/ FOV)N/A
Focus SpeedN/A
Number of ElementsN/A
Camera FlashN/A
Flash typeN/A
Video recorder720P
Other featuresN/A
BatteryCapacity (mAh) 700mAh
Battery type Polymer;
Charging Time 1~1.5 hour
working time(Based on 4G) Up to 2 days
Standby time up to 7 days
Talking time  Up to 4 hours(Only 2G call)
ConnectivityIRNo
Wi-Fi connecting  YES
Wi-Fi location YES
MHLNo
WFDNo
WC (Wireless charge) No
Mobile TV No
Radio No
Wireless FM No
Bluetooth Yes
Bluetooth supported version BT 4.1
USB Data Transfer No
USB OTG No
USB Charging Pogo Pin
Others-
SensorsGPS SensorYes, with A-GPS
Accelerometer (G sensor) LSM6DS2
Wear Detection NO
Light SensorNo
E-Compass No
GyroNo
Barometer No
Altimeter No
Heart rate Yes
Hall Switch No
OthersNO
AntennaLDSYes
FPCNo
others-
OthersTorch Light No
PTTNo

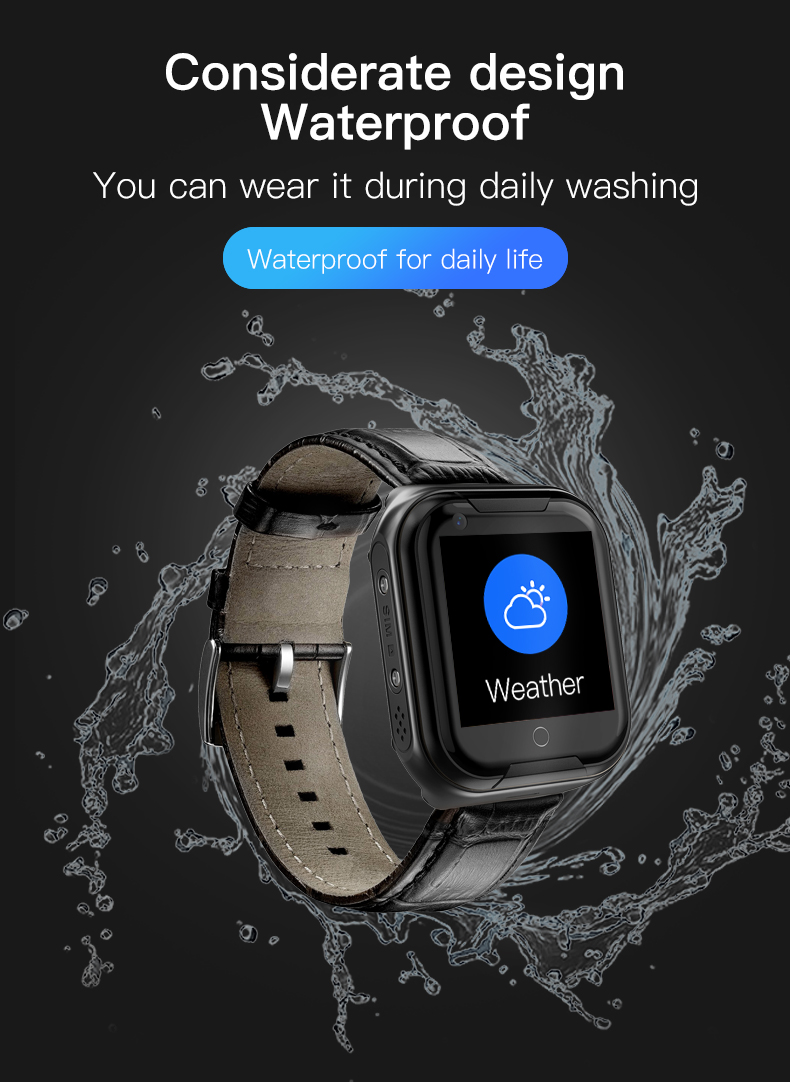

Water/dust proof IP67
HACNo
TTYNo
HDCPNo
Others-
Weight50.2gWithout strap, only watch body
Accessory Standard Quick Guide, Cable
 OptionalCharger head/One additional wristband
Key apps/experiences Key apps/experienceSocial function
UE GuidelineUE DNA versionYES
Operator RequirementsPotential Operator customer

CertificationBattery & DevicesCE, ROHS, UN38.3, MSDS

Package included:

  • 1 x LEMONDA LM02 Single SIM 4G Android GPS Older Smart Watch Phone
  • 1 x English User Manual
  • Other items not included
LEMONDA LM02 Single SIM 4G Android GPS Older Smart Watch Phone - Black-1
