OCDAY Power CC3D Open Flight Controller with Wires FPV QAV 250 400 Board

Rate:
0
(0 reviews)
Item No.: Y1210200121A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 8.68 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Gross Weight 0.024kg
Volume Weight 0.004kg
Length 4.000cm
Width 3.700cm
Height 1.300cm

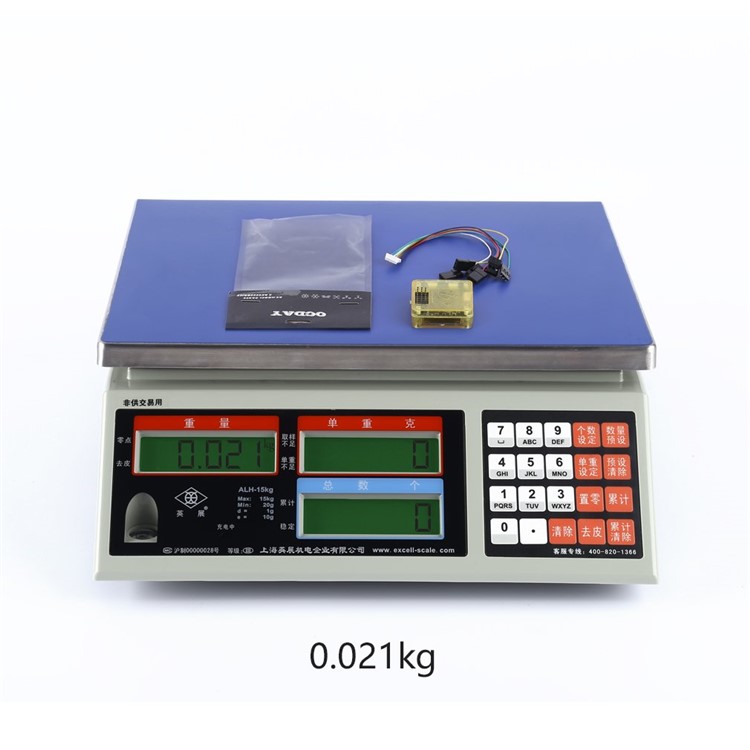

Weight 0.021kg
With Retail Packaging No

Product Description

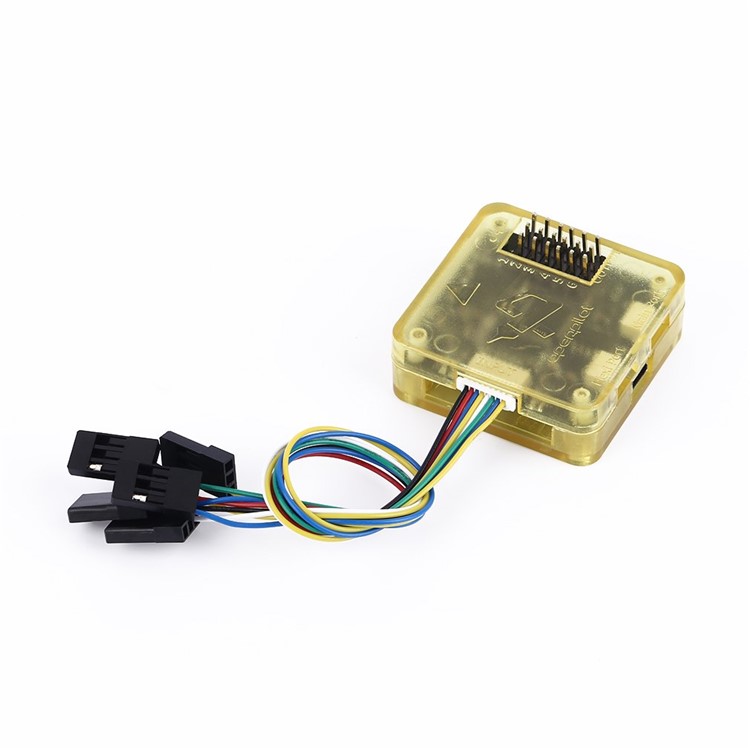

OCDAY Power CC3D Open Flight Controller with Wires FPV QAV 250 400 Board
  • Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM

  • 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer

  • Software supports Windows, Mac and Linux

  • Support Direct high speed USB, no drivers required, a truly plug and play device

  • Support Spektrum satellite receiver

  • Support Futaba S-BUS hardware

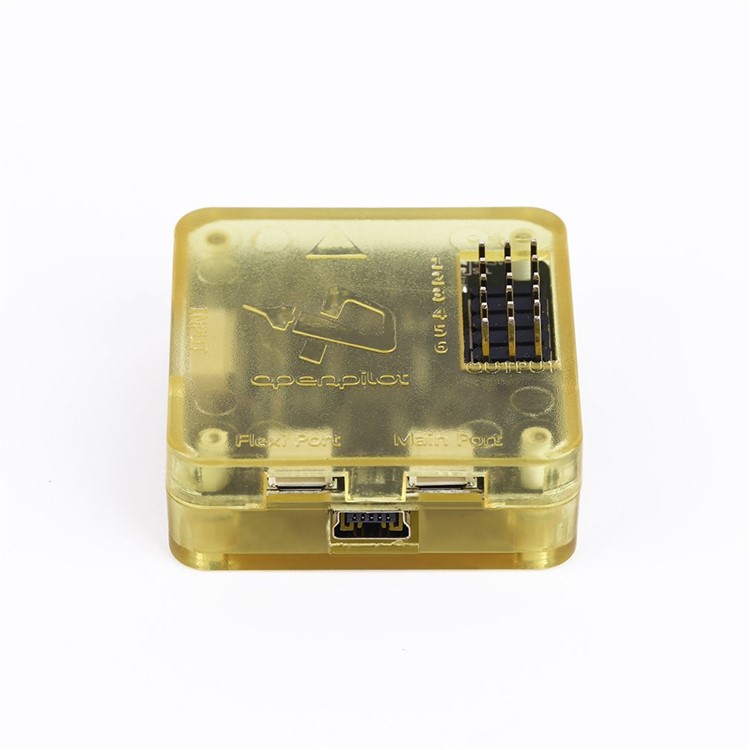

  • Innovative Flexi-port technology for superior port flexibility

  • 4Mbits on-board EEPROM for configuration storage

Sensors and Components:

  • 3-axis gyroscope array and 3-axis accelerometer: MPU-6000

  • Supports several common RC inputs: 6PWM channels, combined PPM, Spektrum/JR DSM2, DSMJ, DSMX satellites, and Futaba S.Bus receivers

  • Simultaneous support for multiple receivers

  • Receiver port functions (configurable): 6PWM input channels or combined PPM stream, 4 PWM output channels

  • Main port functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites

  • Flexi-port (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under development)

  • 10PWM outputs to servos or ESC's, or for camera stabilization

  • Camera stabilization: support up to 3-axis camera mounts with stabilization and manual control from any of configured receivers

  • Onboard USB connectivity for easy configuration

  • USB and serial telemetry and configuration (including wireless with optional radio modules)

  • Supported by powerful Open Pilot GCS

  • 4Mbit onboard memory

  • 3C Quaternion based complementary filter running at 500Hz

Specifications:

  • Model number: CC3D

  • Use: Vehicles & remote control Toys

  • Technical parameters: Value 4

  • Tool supplies: Grinded

  • Material: Plastic

  • Remote control: Receivers

  • RC parts & accessory: Connectors/Wiring

  • Upgrade parts/accessories: Gear

  • Four-wheel drive attributes: Slot

  • Color: Transparent yellow

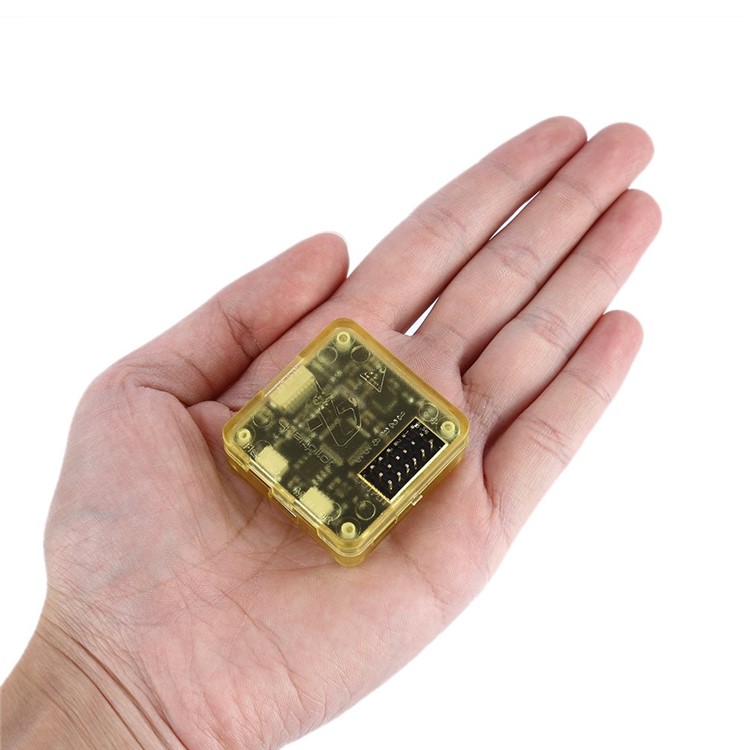

  • Size: 40mm*37mm*13mm (with shell)

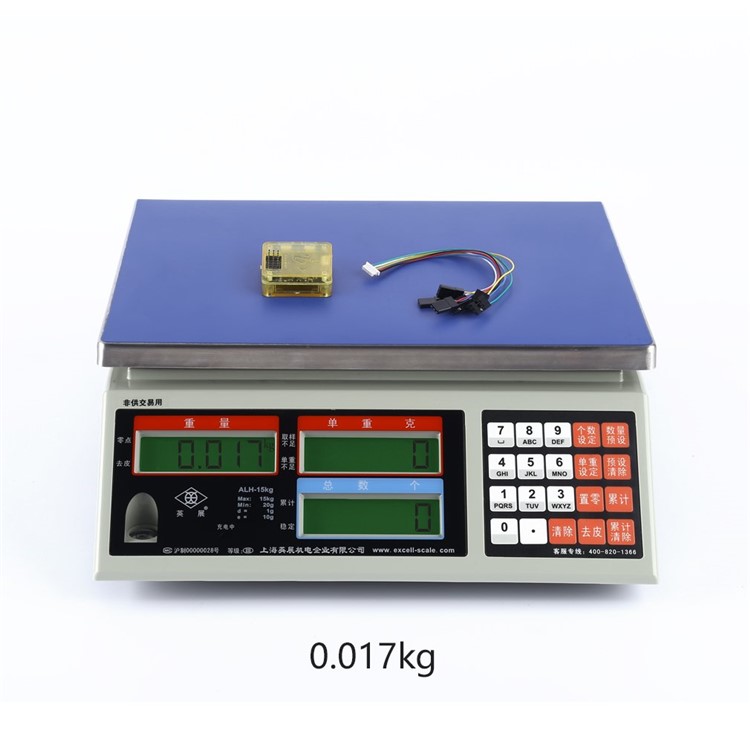

  • Weight: 17g

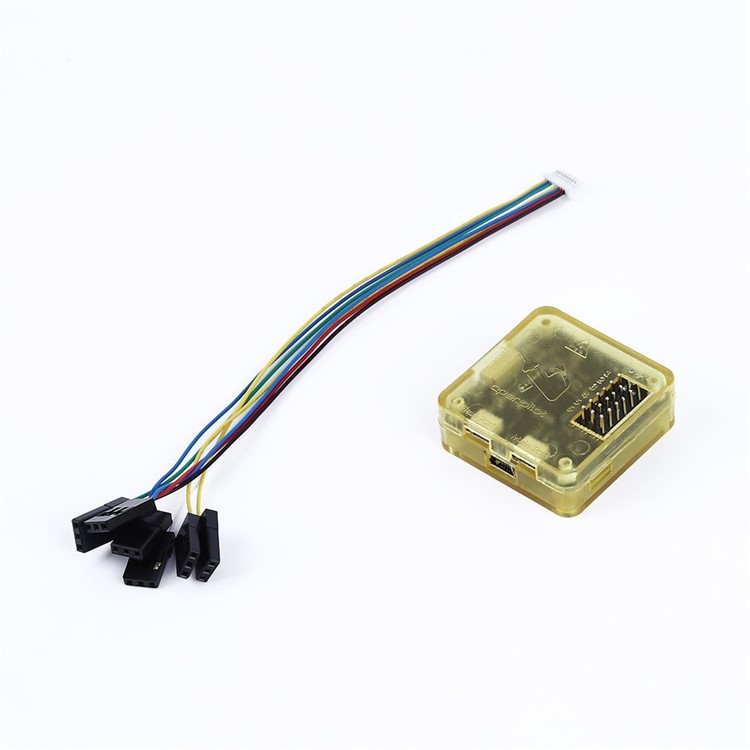

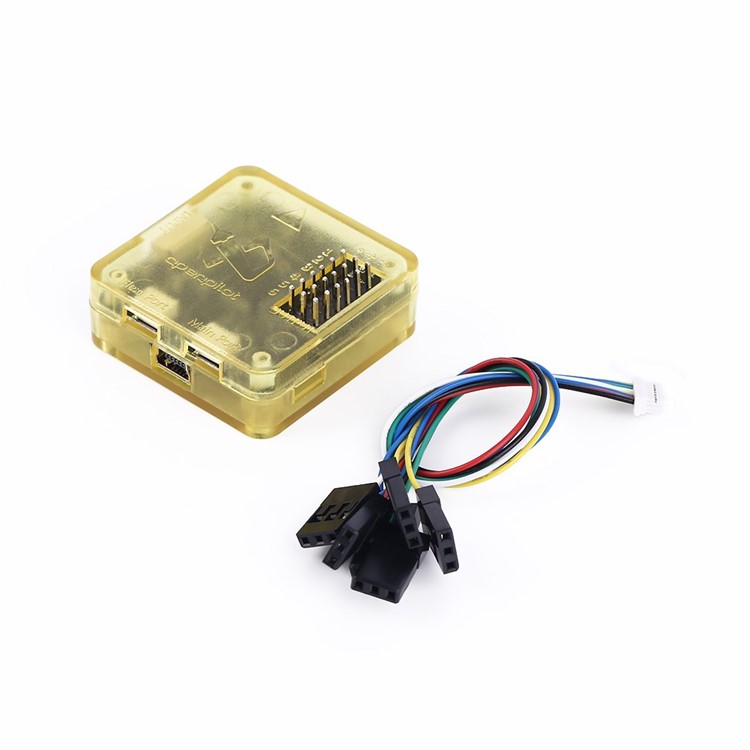

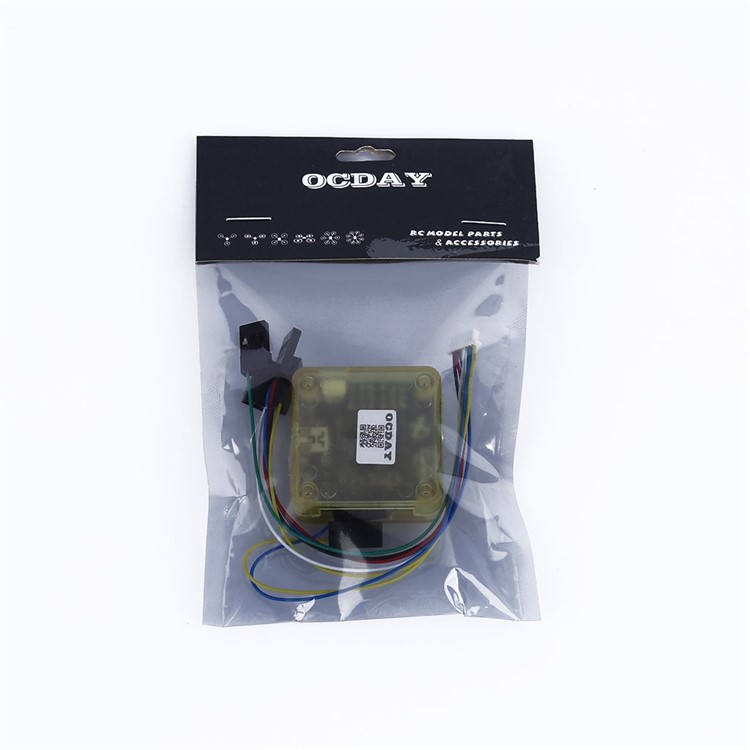

Package included:

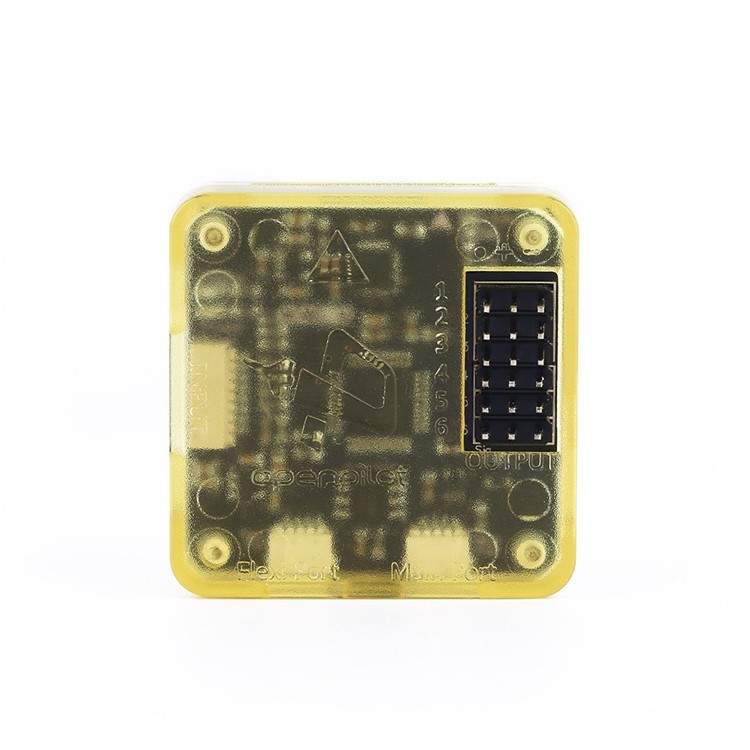

  • 1 x CC3D Board

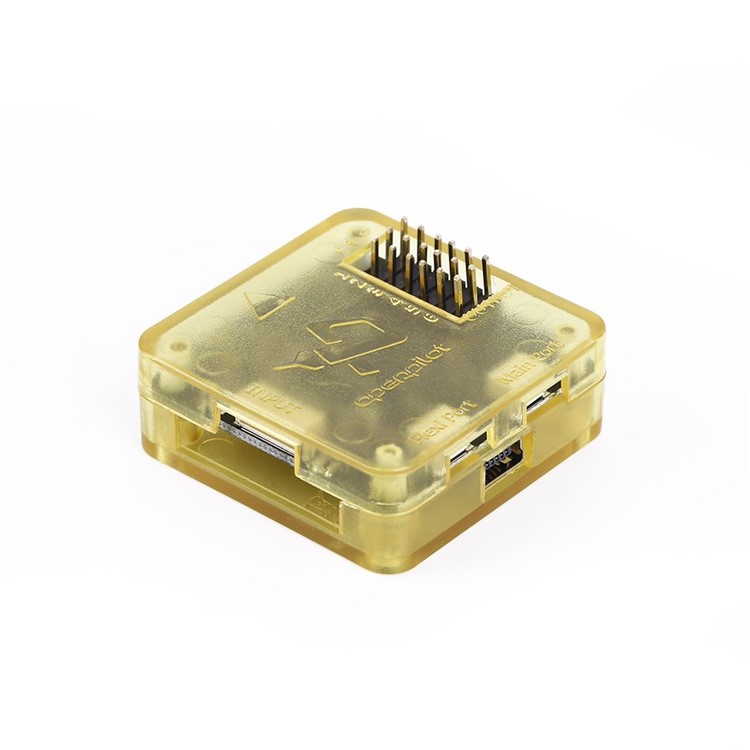

  • 1 x CC3D Protective Shell

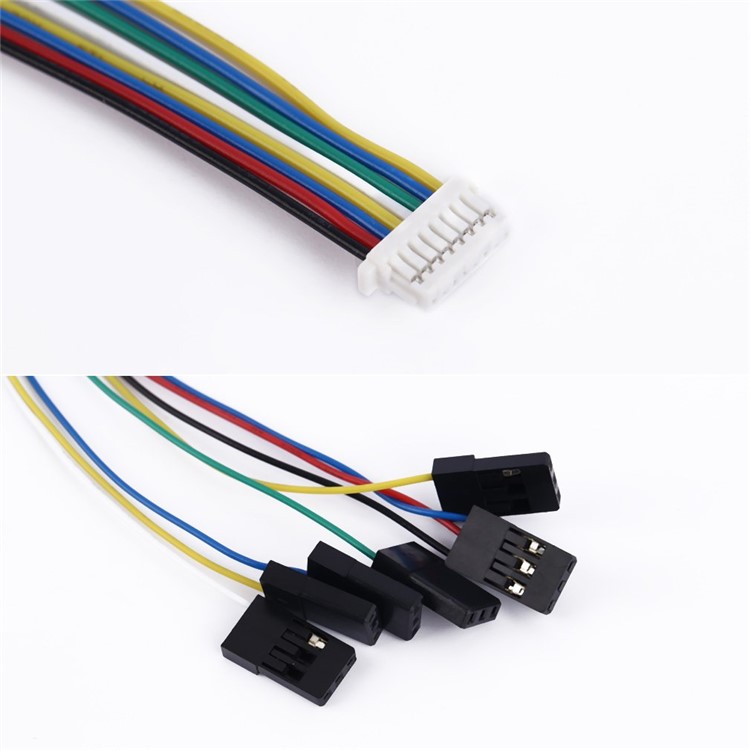

  • 1 set of 8pin Cables
Y1210200121A-1 Y1210200121A-2 Y1210200121A-3 Y1210200121A-4 Y1210200121A-5 Y1210200121A-6 Y1210200121A-7 Y1210200121A-8 Y1210200121A-9 Y1210200121A-10 Y1210200121A-11 Y1210200121A-12 Y1210200121A-13 Y1210200121A-14
