Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces

Rate:
0
(0 reviews)
Item No.: 231401525A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 170.75 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Retail Packaging No Package
User Manual (Language) No User Manual
Gross Weight 0.168kg
Volume Weight 0.784kg
Length 25.000cm
Width 20.000cm
Height 7.000cm
Weight 0.150kg
With Retail Packaging Yes

Product Description

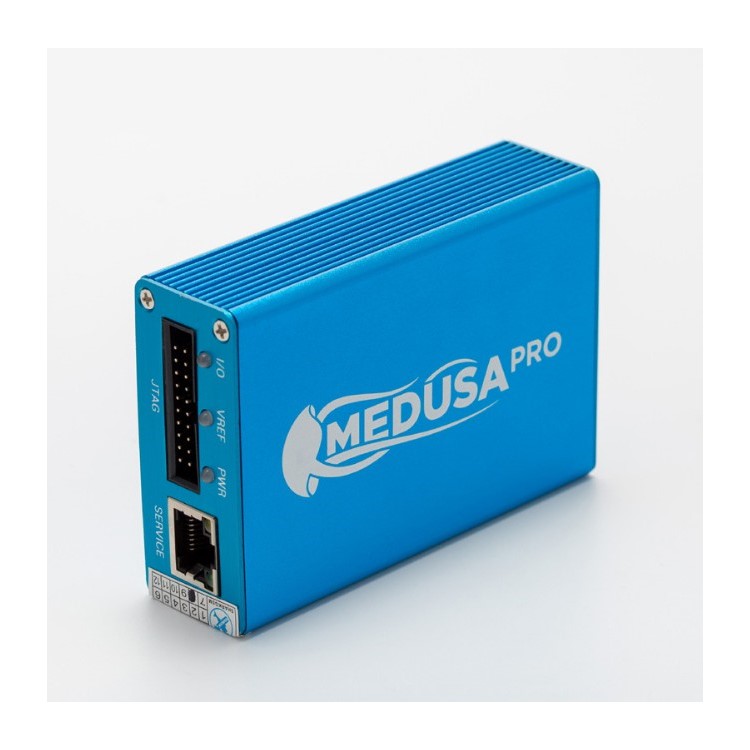

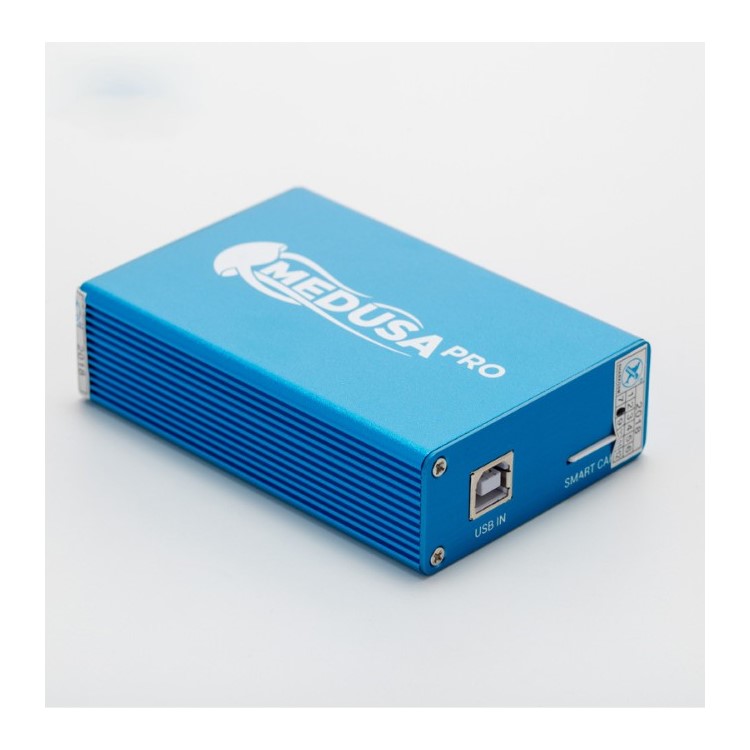

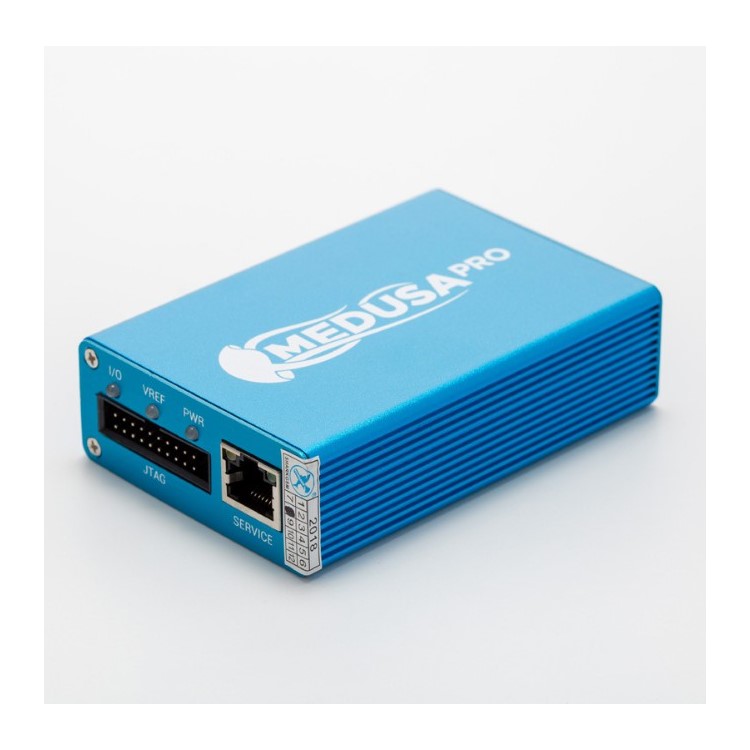

Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces
  • Full-featured professional-grade Medusa PRO software

  • Software fully supports all operations (Read, Write and Edit) with any required memory sections through JTAG, USB and MMC interfaces.

  • Easy and smart Graphical User Interface (GUI), suitable for beginners and for experts

  • Fast repair of target device with Smart-Repair-Files (SRF)

  • SRF contains partition data and other necessary data (help files and diagrams)

  • Data in SRF is compressed (less to download, quicker to work)

  • Built-in Partition Manager: You can edit and save required for your work partitions, this leads to convenient and easy way to service devices

  • With Partition Manager you may open Full Flash file in binary format, edit it and write it back to the device

  • Simple per-partition operations (Read, Write, Erase, Edit) of the target storage device

  • Built-in Smart-Repair-File Constructor with Partition Manager for creating custom SRFs

  • SRF file could be taken from the device or read out from Full Flash file in binary format

  • User will be allowed to upload that custom SRF file into separate section of Support Zone for further analysis by developer

  • USB 2.0 high-speed, JTAG support for ARMv5, ARMv6, ARMv7

  • 1-bit and 4-bit MMC bus modes are supported

  • Up to 24MHz JTAG speed. eMMC support up to MMC 5.0 standard

  • Standard 20-pin JTAG interface

  • Transfer speed via JTAG interface, up to 1 MB/s

  • Transfer speed via MMC interface with 4-bit bus, up to 6 MB/S

  • Transfer speed via MMC interface with 1-bit bus, up to 2.2 MB/s

  • USB CCID smart card reader. RJ45 multiport, unibox capable

  • Partition manager. SRF constructor. JTAG PIN finder

  • All measurements were done on ASUS M5A97 R2 motherboard with AMD FX-8370 CPU and with Medusa PRO Box connected to USB 3.0 port, located directly on motherboard

Supported CPUs:

  • Qualcomm MSM6245

  • Qualcomm MSM6246

  • Qualcomm MSM6250 (A)

  • Qualcomm MSM6260

  • Qualcomm MSM6270

  • Qualcomm MSM6275

  • Qualcomm MSM6280 (A)

  • Qualcomm MSM6281

  • Qualcomm MSM6290

  • Qualcomm MSM6800

  • Qualcomm MDM6270

  • Qualcomm MDM8200

  • Qualcomm QSC1100

  • Qualcomm QSC6010

  • Qualcomm QSC6270

  • Qualcomm MSM7200 (A, B)

  • Qualcomm MSM7201 (A, B)

  • Qualcomm MSM7225 (A)

  • Qualcomm MSM7227 (A)

  • Qualcomm MSM7227T

  • Qualcomm MSM7600

  • Qualcomm MSM7625

  • Qualcomm MSM8225

  • Qualcomm MSM8227

  • Qualcomm QSD8250

  • Qualcomm QSD8650

  • Qualcomm APQ8060

  • Qualcomm APQ8064

  • Qualcomm APQ8064T

  • Qualcomm MSM8260

  • Qualcomm MSM8660

  • Qualcomm MSM8930

  • Qualcomm MSM8930 (A, B)

  • Qualcomm MSM8960

  • Samsung S3C6410

  • Samsung S5P6442

  • Samsung S5PC110

  • Samsung S5PC210

  • Samsung S5PV310

  • Broadcom BCM2133

  • Broadcom BCM2153

  • Broadcom BCM2155

  • Broadcom BCM21654

  • HiSilicon HI6731

  • Marvell PXA270

  • Marvell PXA312

  • ST-Ericsson ST-U8500

  • ST-Ericsson ST-U9500

Supported eMMC Models:

  • Samsung eMMC

  • Sandisk eMMC

  • Pretec eMMC

  • Hynix eMMC

  • Unknown (Sandisk) eMMC

  • Toshiba eMMC

  • Micron eMMC

Supported Flash Vendors:

  • AMD

  • Fujitsu

  • Atmel

  • ST Micro

  • Micron

  • Silicon7

  • Intel

  • Toshiba

  • Sharp

  • Samsung

  • Hynix

Supported Flash Devices:

  • AMD/Spansion NOR

  • eMMC

  • Hynix eMMC

  • Hynix H8BCS0QG0MMR

  • Hynix H8BES0UQ0MCR

  • Hynix H8BES0WU0MCR

  • Hynix HYH0SSJ0MF3P

  • Hynix H8ACSOPL0MCR

  • Hynix HYC0SEH0MF3P

  • Intel NOR

  • Micron eMMC

  • Micron 1024Mb

  • Micron 256Mb

  • Micron MT29F1G08

  • Micron MT29F1G16

  • Micron 512Mb

  • Pretec eMMC

  • Samsung eMMC

  • Samsung NOR

  • Samsung 1024Mb

  • Samsung Flex-OneNAND 512Mb

  • Samsung OneNAND 1024Mb

  • Samsung Flex-OneNAND 1024Mb

  • Samsung Flex-OneNAND 1024Mb DDP

  • Samsung OneNAND KFH2G16Q2M

  • Samsung KFH2G16Q4M

  • Samsung OneNAND KFW4G16Q2M DDP Demux

  • Samsung OneNAND KFW4G16Q2M DDP

  • Samsung OneNAND KFG4GH6Q4M

  • Samsung K5G1G13ACH

  • Samsung K9F1208

  • Samsung K9K1216

  • Samsung K9F2808

  • Samsung KBE00500AM

  • Samsung K9F5608

  • Samsung KF92G16

  • Samsung 512Mb

  • Samsung K9K2G08

  • Samsung K9F5608

  • Samsung K91G08

  • Samsung KBE00S00AM

  • Samsung K9LAG08U0M

  • Sandisk eMMC

  • ST Electronics NOR

  • ST Micro 128MB

  • ST Micro 512MB

  • Toshiba TC58NW

  • Toshiba TC58512FT

  • Toshiba TY9000AC10AOBG

  • Toshiba TCDAM82F1

  • Toshiba TC58DDM92F2

  • Toshiba TY9000A800J0GG

  • Toshiba TC58NYG0S3CXGJS

  • Toshiba TYA000BC00DOGG

  • Toshiba TH58NYG2S8C

  • Toshiba TC58NYG1S8C

  • Toshiba TH58NYG2S3C

  • Toshiba TC58512FT

  • Unknown (Sandisk) eMMC

  • Unknown eMMC

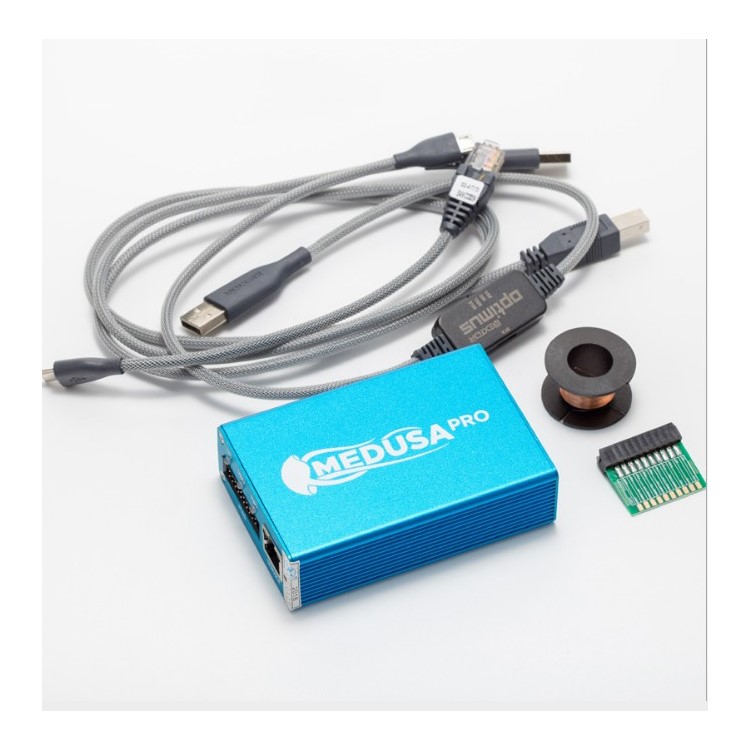

Package included:

  • 1 x Medusa Pro Box
  • 1 x Micro UART Cable (with 530K resistor) for Samsung C3303K

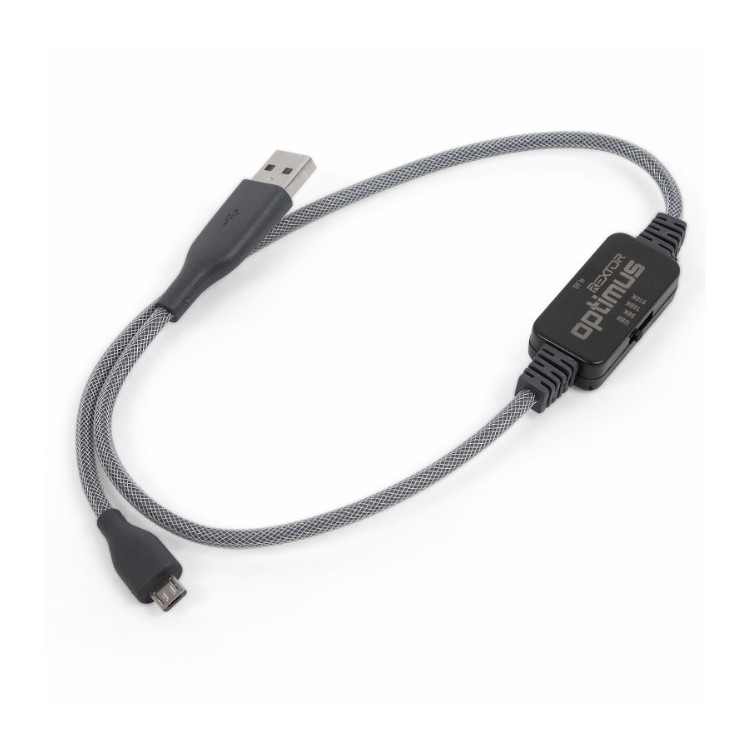

  • 1 x Optimus Cable
  • 1 x Medusa Pro JIG Adapter
  • 1 x Copper Wire 0.1 mm
  • 1 x USB A-B Cable
Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces-1 Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces-2 Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces-3 Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces-4 Original Medusa PRO Box Work with Mobile Devices through JTAG USB & MMC Interfaces-5
