RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug

Rate:
0
(0 reviews)
Item No.: 849900391A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 38.39 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Plug US Plug
Retail Packaging Colored Box
User Manual (Language) English and Chinese
Gross Weight 0.812kg
Volume Weight 0.511kg
Length 14.500cm
Width 12.700cm
Height 12.400cm
Weight 0.725kg
With Retail Packaging Yes

Product Description

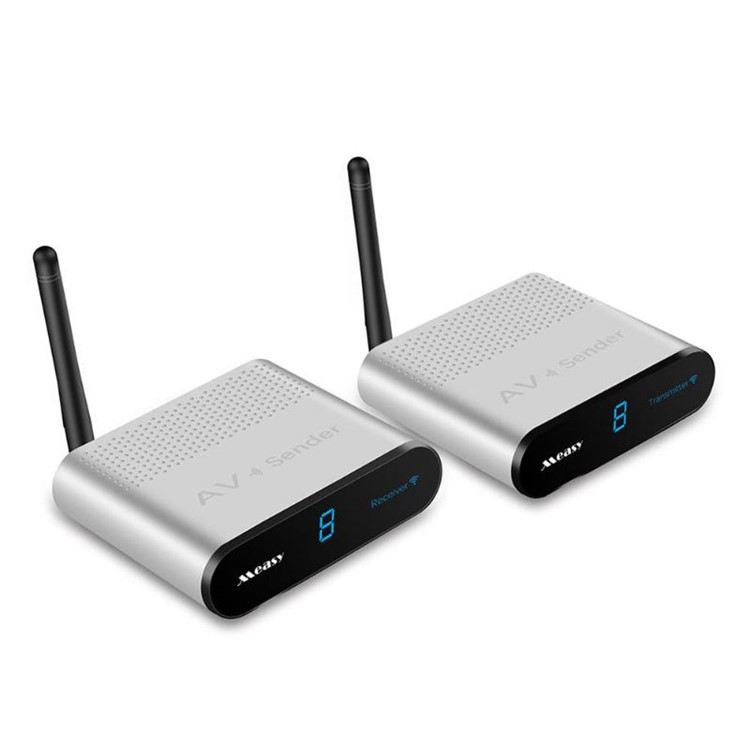

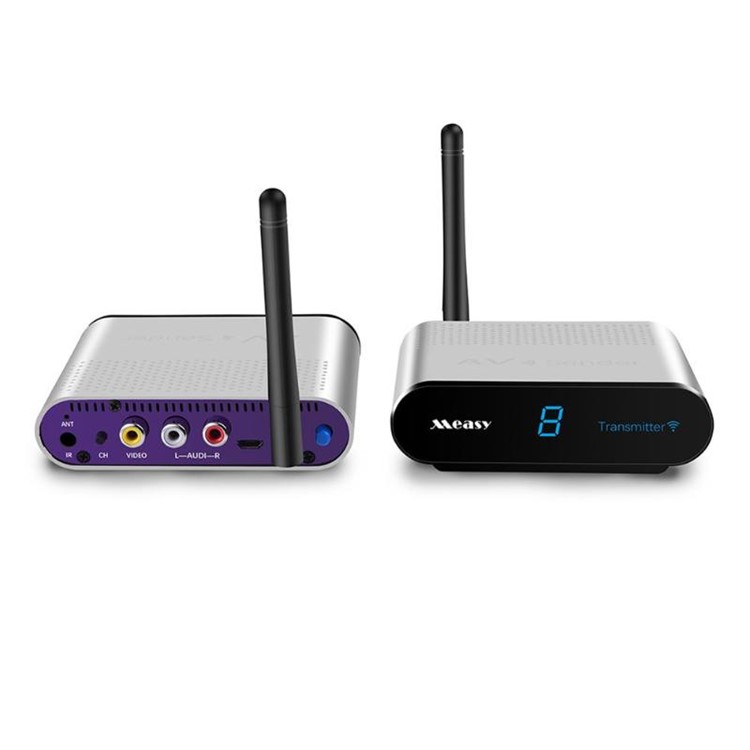

RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug

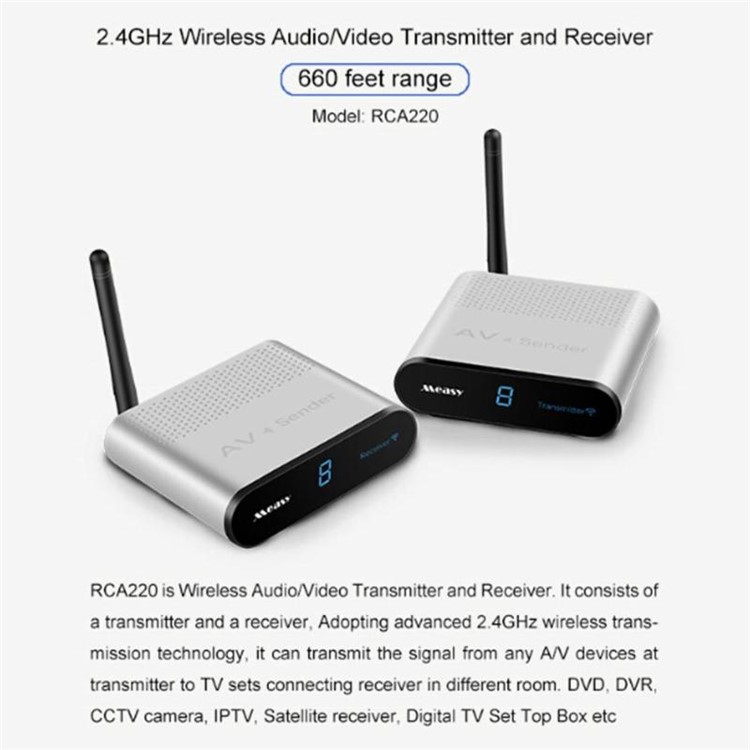

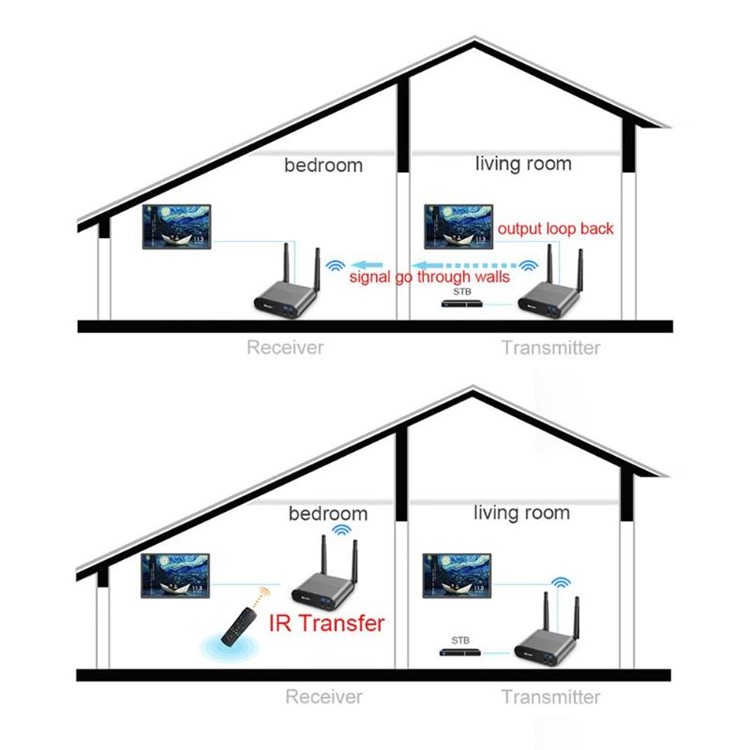

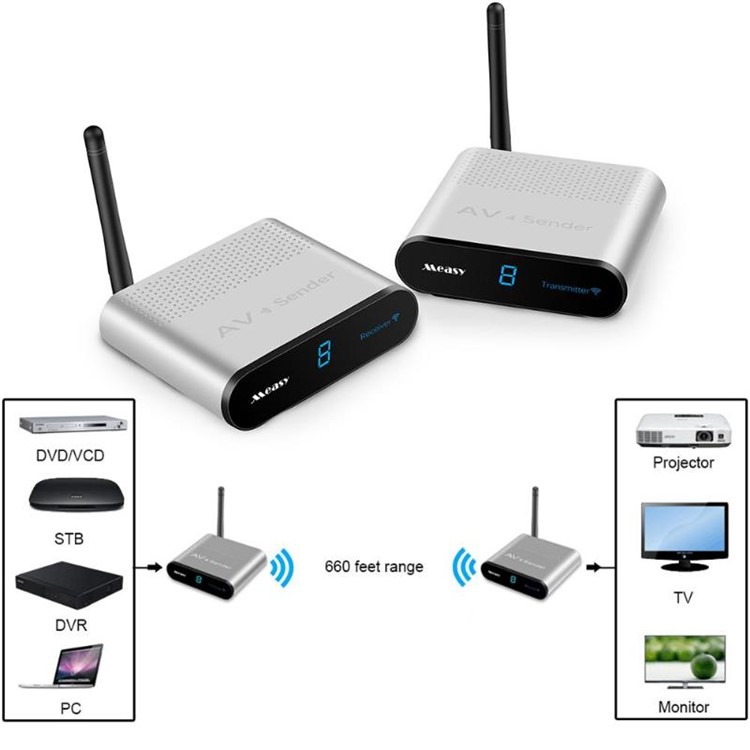

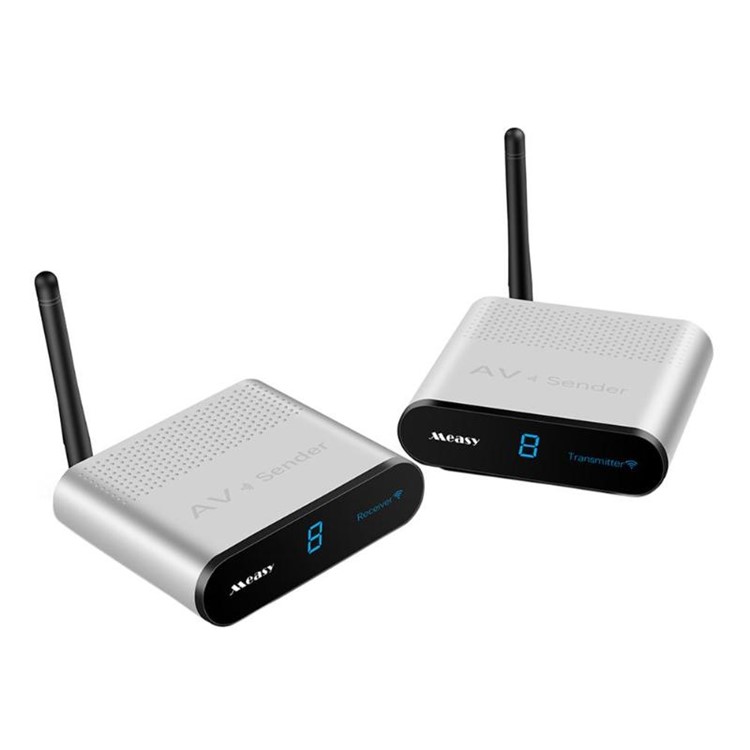

RCA220 consists of a transmitter and a receiver. Adopting advanced 2.4GHz wireless transmission technology, it can transmit the signal from any A/V devices at transmitter to TV sets connecting receiver in different room. Moreover, it can support the IR remote control at the receiver end to realize the function of wireless control of devices from another place.

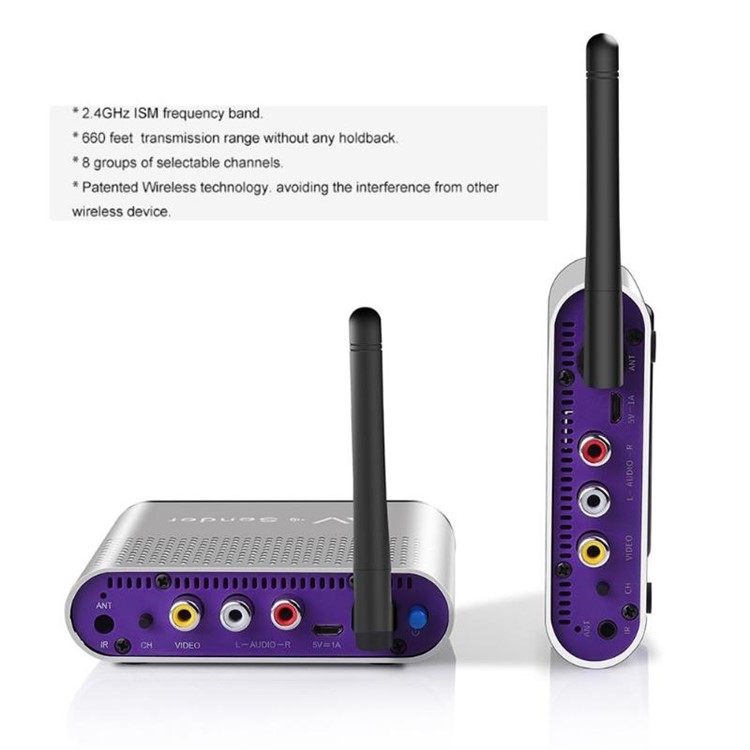

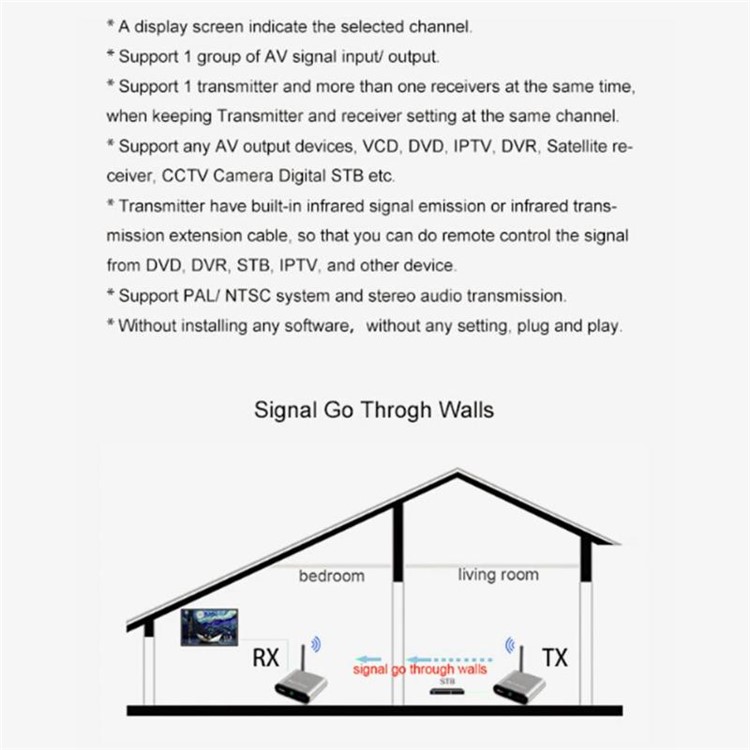

  • 2.4GHz ISM frequency band; 8 groups of selectable channels

  • 200m/656 feet transmission range without any holdback

  • Digital display screen indicates the selected channel

  • Patented wireless technology, avoiding interference from other wireless device

  • Support PAL/ NTSC system and stereo audio transmission

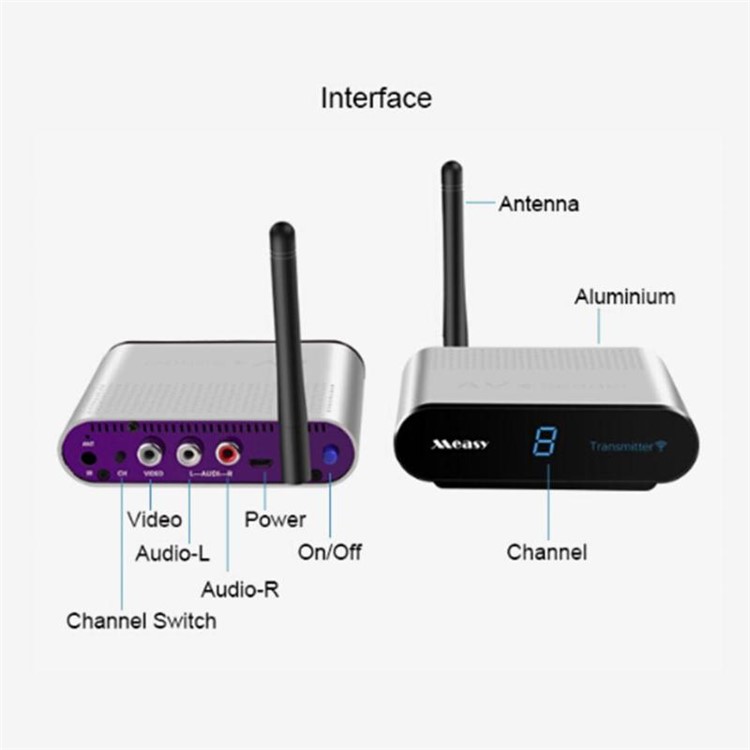

  • Transmitter supports 1 way RCA signal input

  • Receiver supports 1 way RCA signal output

  • Support 1 transmitter and more than one receivers at the same time, when keeping transmitter and receiver setting at the same channel

  • Support 433MHz superheterodyne infrared remote control signal wireless return, compatible with 38KHz infrared carrier remote control signal

  • Transmitter has built-in infrared signal emission or infrared transmission extension cable

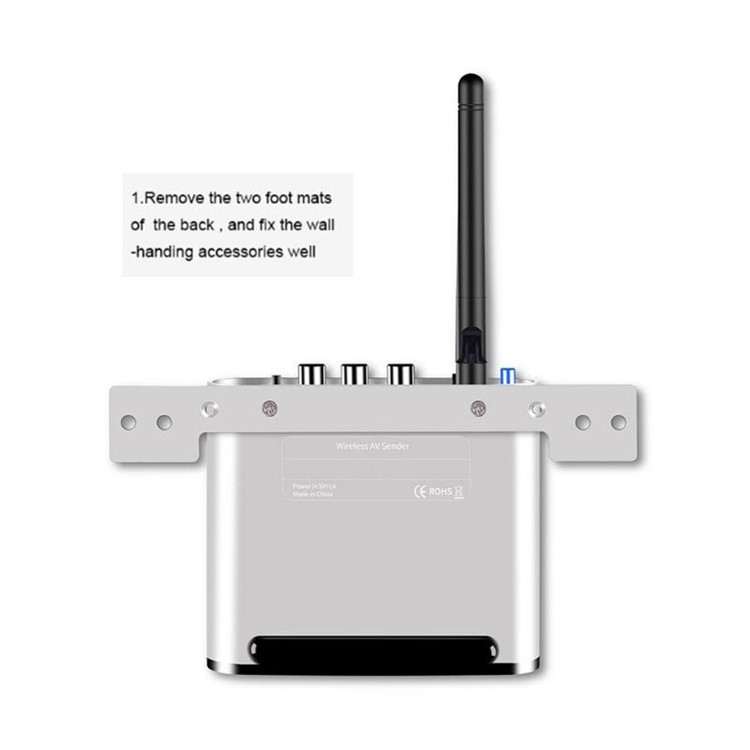

  • Aluminum alloy shell, superior heat dissipation effect, effectively guarantee the working time and life of the equipment

  • Without installing any software, without any setting, plug and play

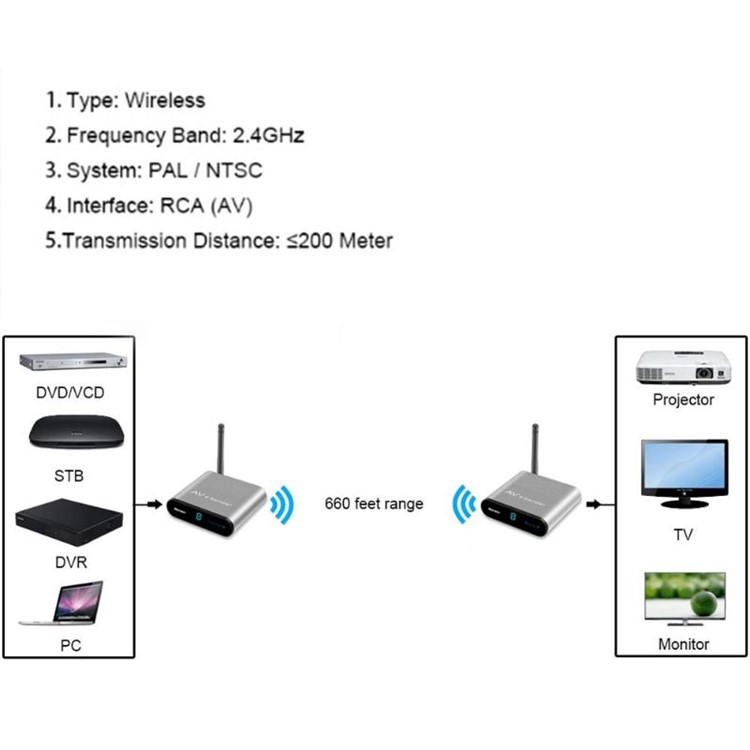

Specification:

  • Model: RCA220

  • Shell material: aluminum alloy

  • Method: wireless

  • Frequency band: 2.4GHz

  • Format: PAL / NTSC

  • Interface: RCA (AV)

  • Infrared remote controller: 38KHz

  • Transmission distance: ≤200 meters

  • Transmitter:

  • Band: 2.4GHz

  • Transmission power: 50mW

  • A/V input port: RCA

  • Audio input level: 1 vp-p (stereo)

  • 433MHz sensitivity: 433dbm

  • Carrier frequency: 38KHz

  • Infrared transmission range: ≥ 5 meters

  • Power supply: DC 5V- 1000mA

  • Receiver:

  • Sensitivity: -90dbm

  • A/V output port: RCA

  • Video output level: 1 vp-p (PAL / NTSC)

  • Audio output level: 1 vp-p (stereo)

  • Infrared Emitter: Superheterodyne 433.92MHz

  • Carrier frequency: 38KHz

  • Power supply: DC 5V - 1000mA

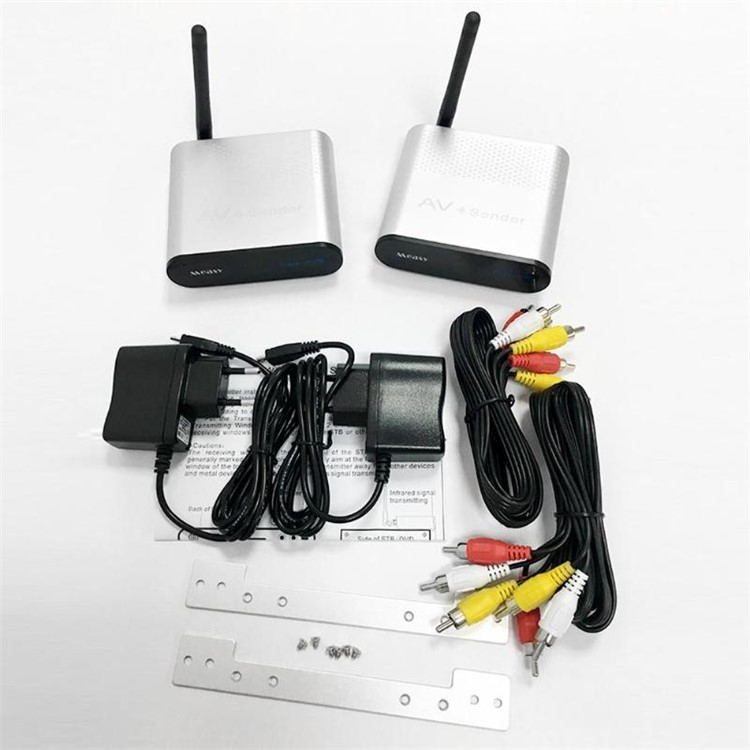

Package included:

  • 1 x Wireless AV Transmitter
  • 1 x Wireless AV Receiver
  • 2 x Power Adapters
  • 2 x AV Cables

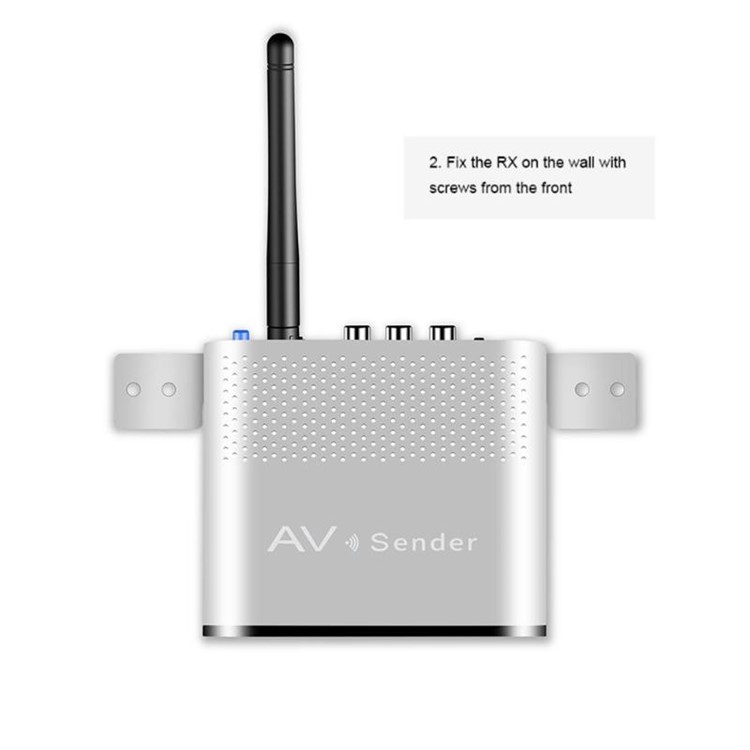

  • 1 x Set of Installing Screws
  • 1 x User Manual (English and Chinese)
RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-1 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-2 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-3 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-4 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-5 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-6 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-7 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-8 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-9 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-10 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-11 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-12 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-13 RCA220 2.4GHz Wireless Audio Video Transmitter Receiver A/V Sender 4 Channels - US Plug-14
