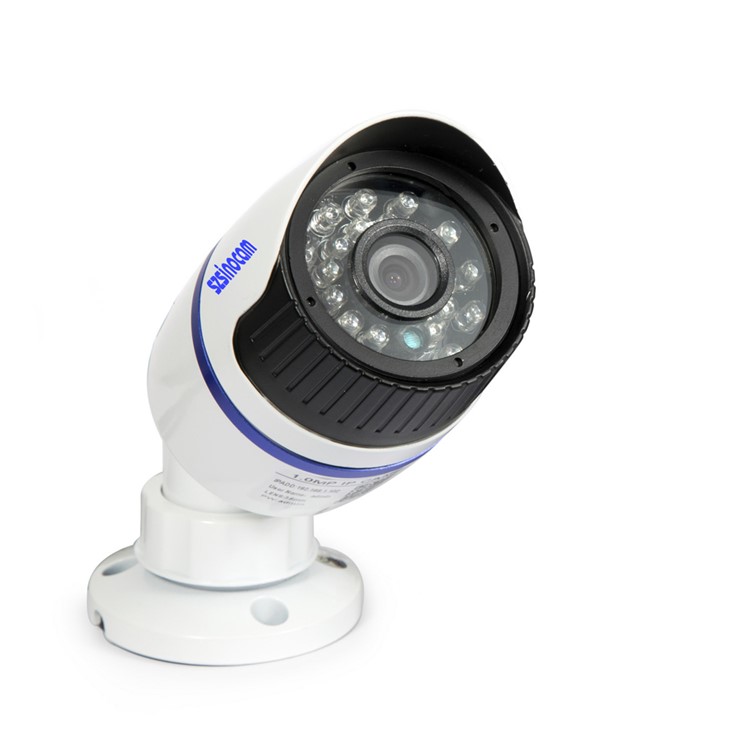

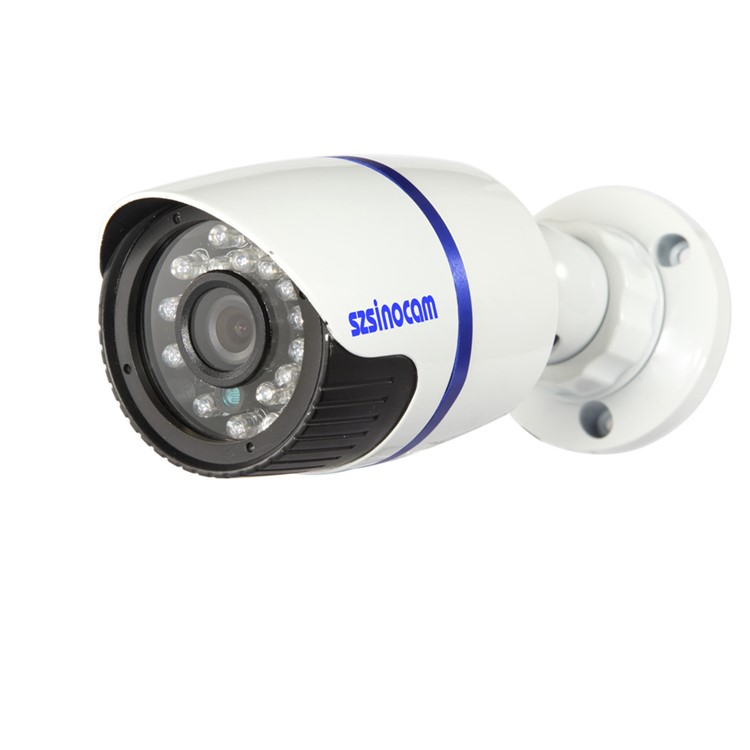

SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug

Rate:
Model.Rate
(1 reviews)
Item No.: 84000109B Out of stock MOQ: 1
Email Only Price
Plug:
Price:
$ 22.69 (0 % OFF)
Qty:
Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Camera Resolution 1 MP
Camera Shape Outdoor IR Camera
Focus 3.6mm Lens
Home Safety Type IP Cameras
IP Rating IP66
IR Distance 20m
Plug EU Plug
Retail Packaging Paper Box
Sensor Size 1/4"
Sensor Type CMOS
With Stand Yes
Gross Weight 0.553kg
Volume Weight 0.470kg
Length 19.800cm
Width 10.500cm
Height 10.100cm
Weight 0.494kg
With Retail Packaging Yes

Product Description

SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug

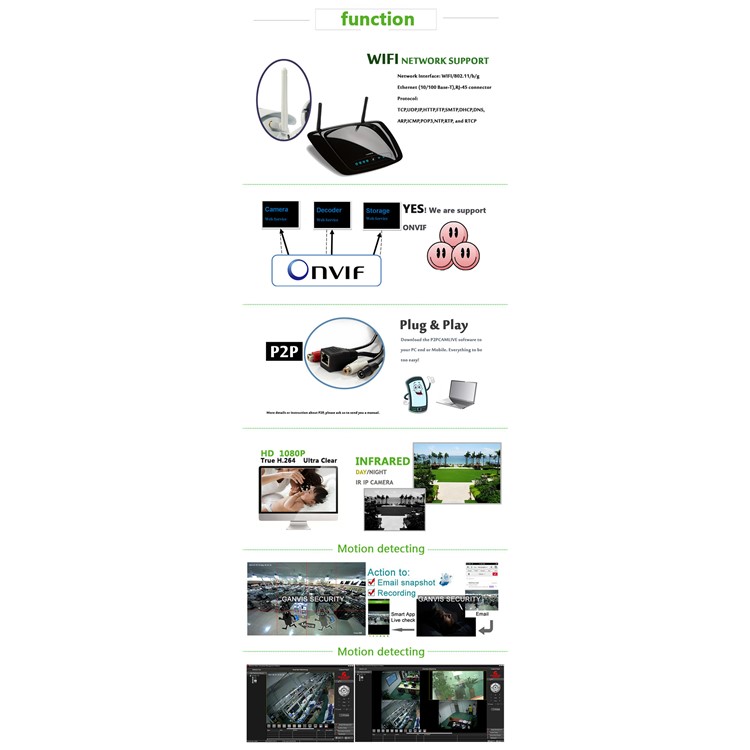

Features:

  • 1/4" line scanning digital and advanced DSP technology

  • Picture resolution 720P color CMOS, 1.0 Mega Pixel, 1280X720

  • Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams

  • The most advanced network delivery server technology, easily achieve more user access, multi-stage user password rights management

  • Built-in Web server, through the IE browser easy to realize the remote control settings prison see operation

  • Support facilities remote security upgrade function

  • Support DDNS, PPPoE and (UPnP), support Lan, Wan transport

  • Technology of self-adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network

  • Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)

  • Support mobile detection / image shielding / image snapshot

  • Functions of auto recovery in abnormality and auto reconnection in network breakdown

  • With retail package

Specifications:

Model

SN-IPC-5001S

Camera

Pixel

1.0 Mega Pixel, 1280*720

Sensor

1/4" 1.0M OV9712 CMOS

Lens

4mm

Electronic shutter

1/25s-1/30,000s

Low Lux

Color: 0.2Lux@F1.6; B/W: 0.01Lux@F1.6

Auto iris

N/A

ICR

Support

Video parameter

Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer

IR

IR Properties

Dual filter day / night: automatic switch, linkage switch

IR Light

24pcs 5Φ IR LEDS, IR Distance: 20M

Audio-video coding parameters

Compression

H.264 Main Profile@Level 3.0 / MJPEG optional

Video bit rate

16K-16Mbps, customized

Bit stream type

Compound streams / video stream

Audio compress

G.711

Audio bit rate

8 ~ 16kbps

Triple bit streams

Support


Video resolution

 1280*720P

Video flame rate

PAL: 1-25 frames/second, NTSC: 1-30 frames/second

Function

PTZ

N/A

Heartbeat mechanism

Support

IP auto pop-out

IP auto pop-out at customer end

Password protection

Multi-level protection on password

Intellectual alarm

Mobile detection, video shielding, video loss, network breakdown, abnormality in storage

Basic functions

One-key reset, password protection, watermark technology

Interface

Audio input

1CH

Video output

1CH

Network port

1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port

Alarm input

1CH

Alarm output

1CH

RS485

Support

Preset

Support

Wireless network

WIFI

N/A

Wireless encryption
  protocol

N/A

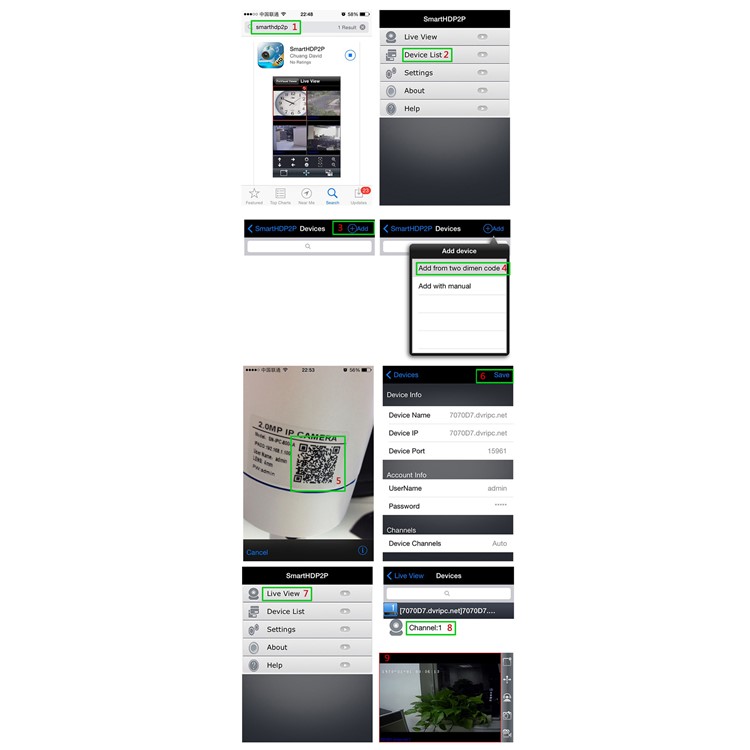

Cell phone monitor

Support

3G network

N/A

others

POE

Optional

Power supply

DC12V/2.0A

Power consumption

<8W

Working temp

-10°C ~ +55°C

Working humidity

10 ~ 85%

Dimension

(¢)151.9mm*(H)101.8mm

Weight

1.25Kg

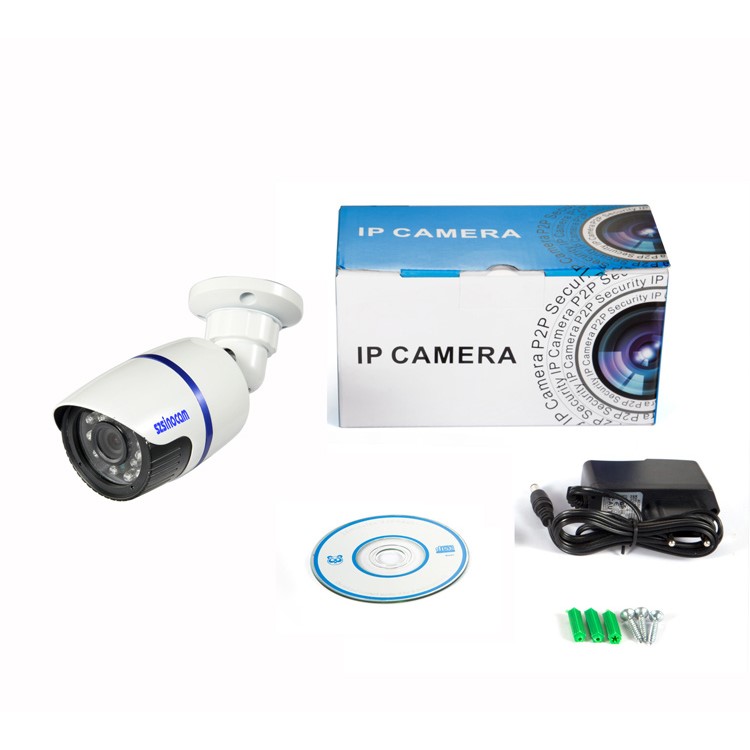

Package included:

  • 1 x IP Camera
  • 1 x Power Adapter
  • 1 x CD-ROM
  • 3 x Pairs of Screws and Screw Sockets

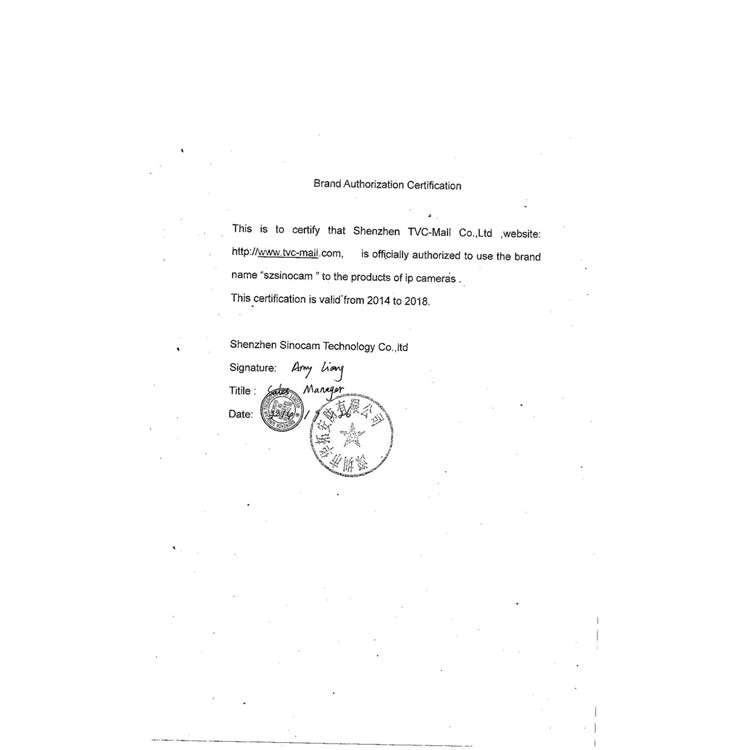

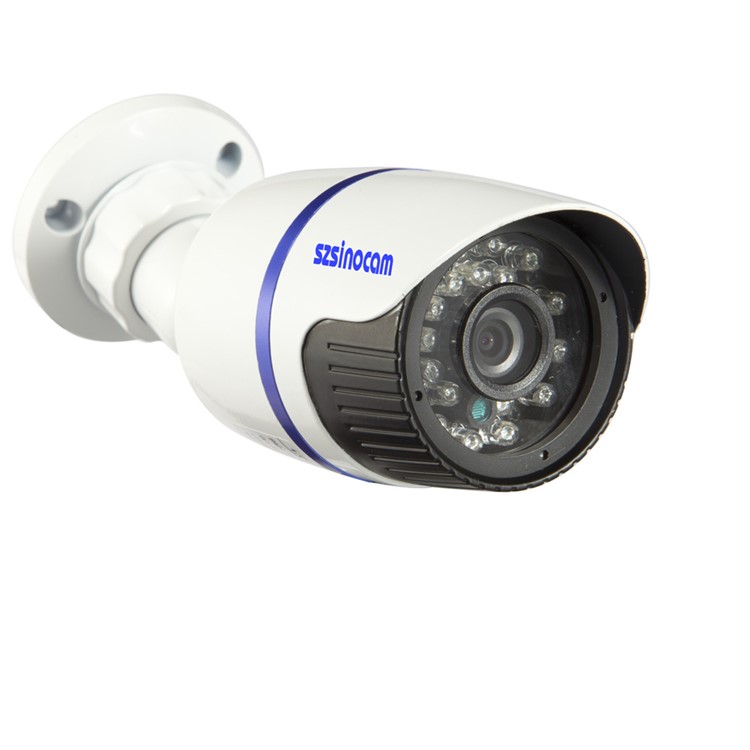

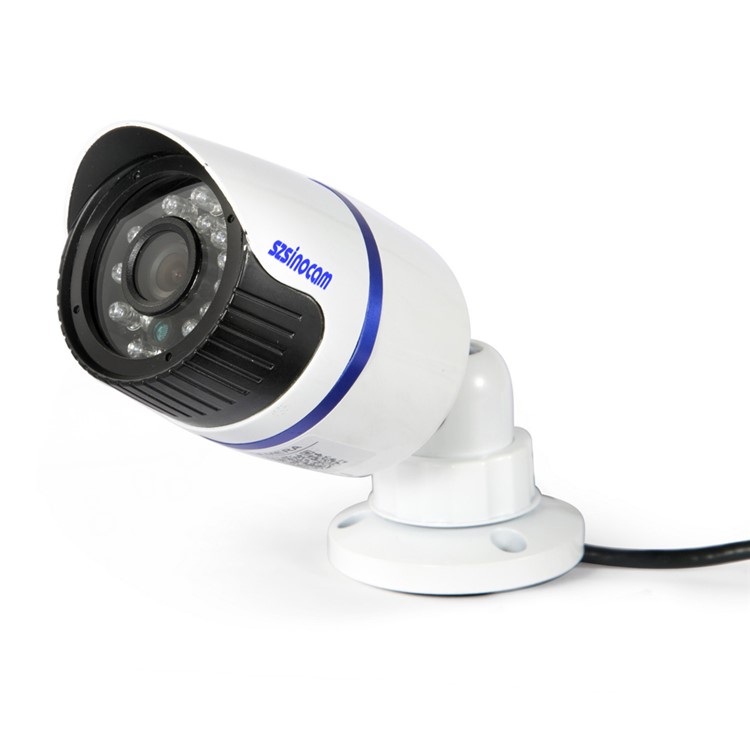

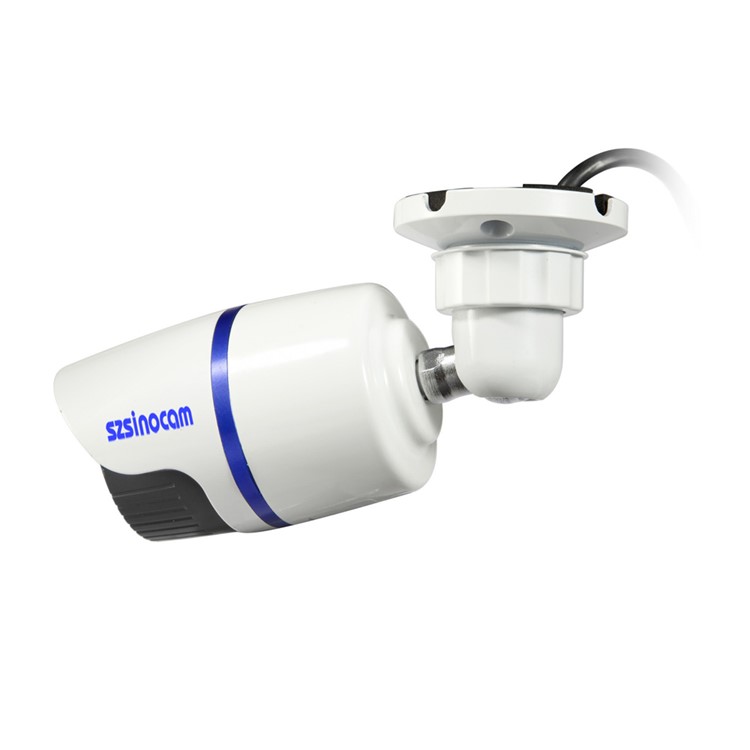

SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-1 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-2 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-3 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-4 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-5 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-6 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-7 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-8 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-9 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-10 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-11 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-12 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-13 SINOCAM SN-IPC-5001S HD 720P 20m 1.0MP Waterproof Outdoor IP Camera - EU Plug-14 AuthorizationImage
