SONOFF WiFi Switch Wireless Relay Module DC5V / USB5V

(0 reviews)
Item No.: TP10310311071A Out of stock MOQ: 1
Email Only Price
$ 7.91 (0 % OFF)
Out of stock
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units


Gross Weight 0.036kg
Volume Weight 0.025kg
Length 10.000cm
Width 7.500cm
Height 1.500cm
Weight 0.032kg
With Retail Packaging Yes

Product Description

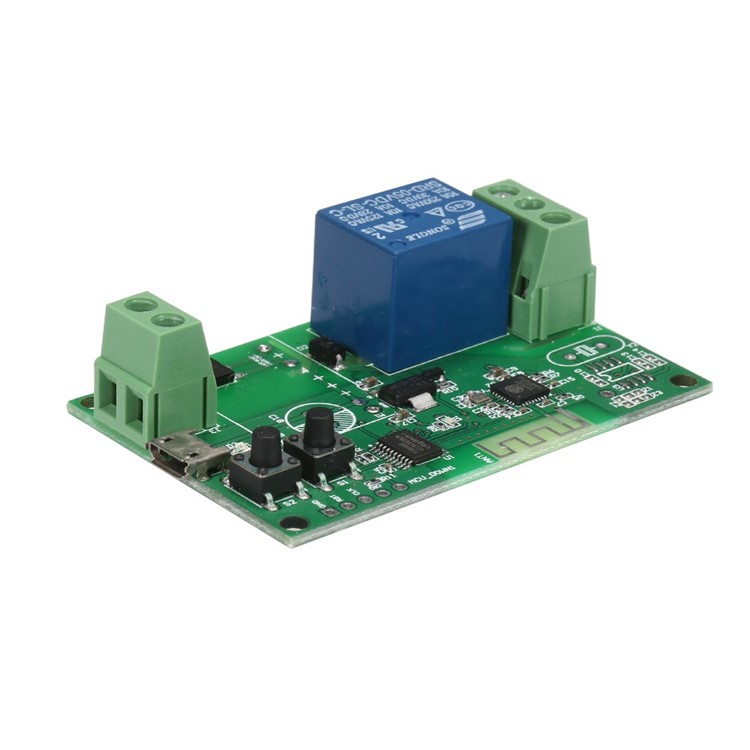

SONOFF WiFi Switch Wireless Relay Module DC5V / USB5V

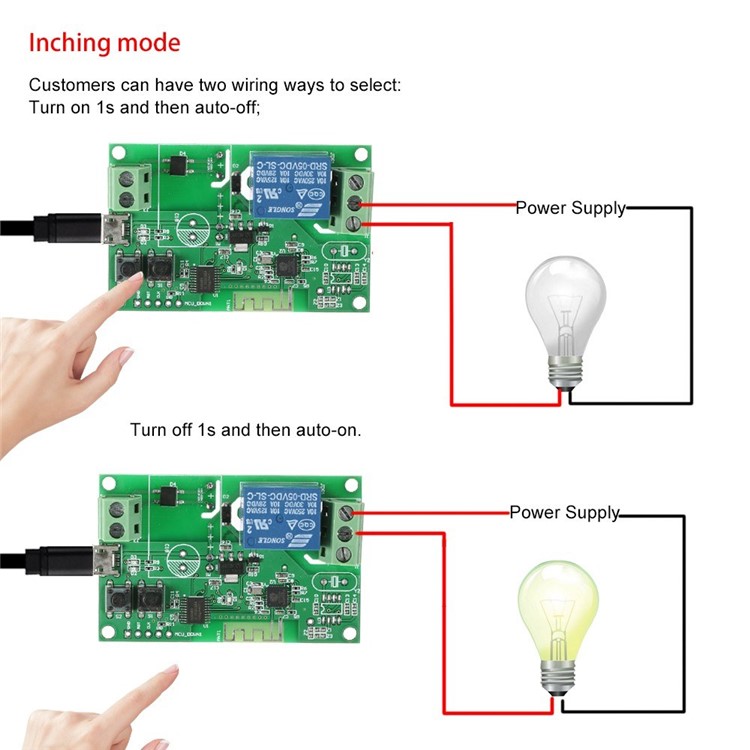

This wireless switch is a low-cost, affordable device that allows users to remote turn on/off connected appliance of different types and brands via app EWeLink from anywhere anytime in the world, and by setting timing schedules for your appliances, you can maintain an carefree life. It supports inching /self-locking mode. In self-locking mode, customers can remotely turn on/off connected devices immediately. When in inching mode, customers can have two wiring ways to select: Turn on 1s and then auto-off, Turn off 1s and then auto-on.

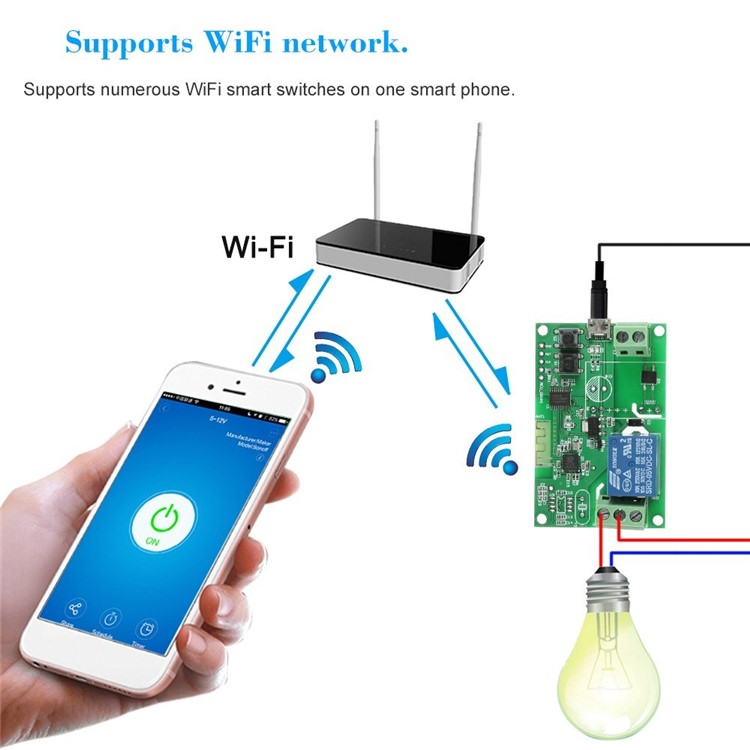

  • Supports WiFi network. Supports numerous WiFi smart switches on one smart phone

  • Supports status tracking: device status timely provided to the EWeLink

  • Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, garage door etc

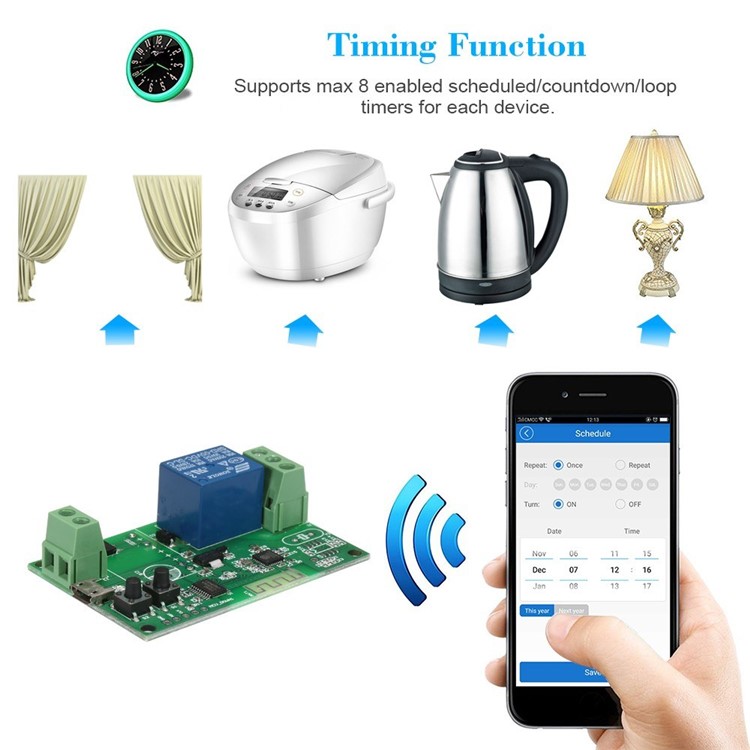

  • Supports max 8 enabled scheduled/countdown/loop timers for each device

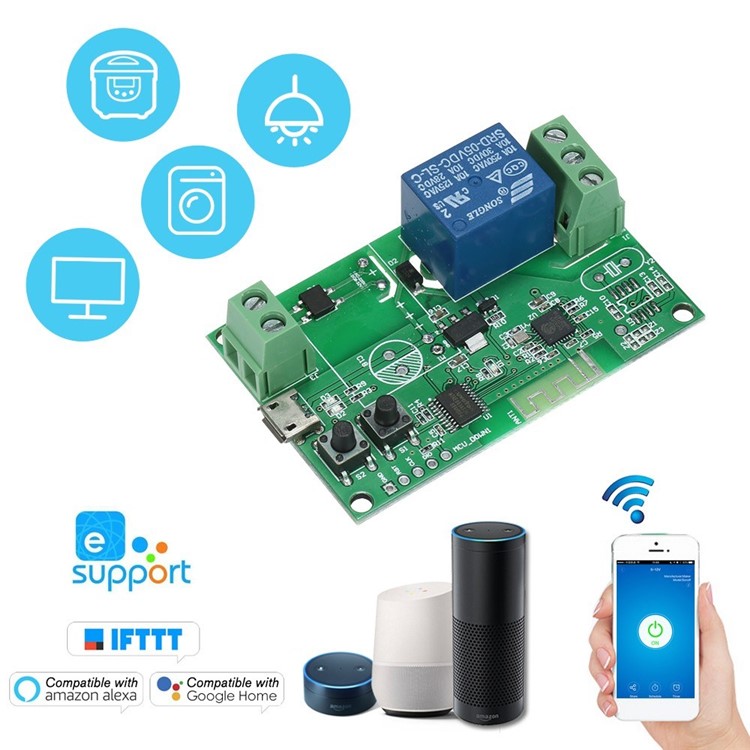

  • Voice Control: Compatible perfectly with "Amazon" Alexa, for Google Home/Nest, IFTTT

  • The delay time of inching can be adjusted in the APP(500-36000000ms) {0.5-600 minutes}


  • Operating voltage: DC5V / USB5V

  • LEDs: 3 LEDs(indicate working mode, wifi status, relay on/off status respectively)

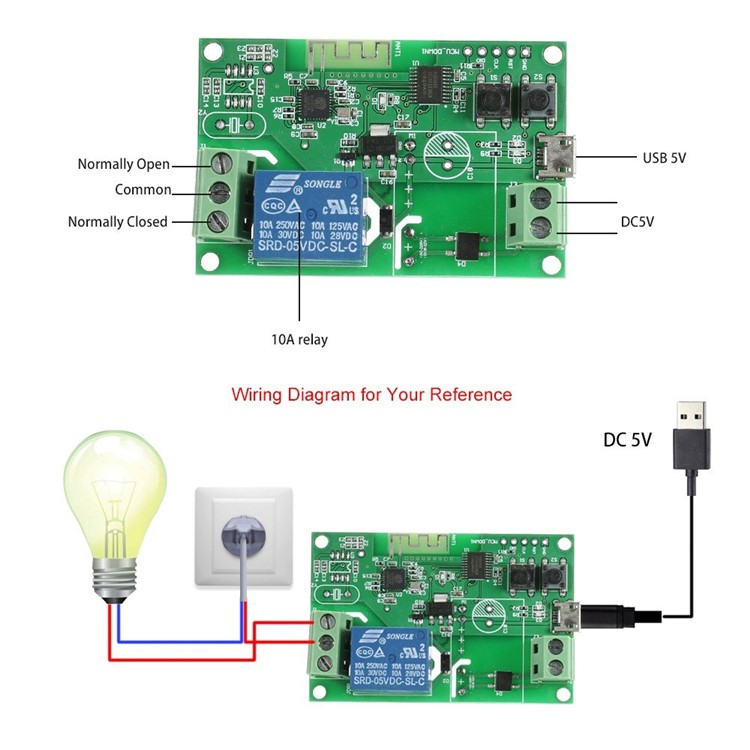

  • Two input interfaces

  • Supports to control different voltage ranges

  • USB port power supply more convenient

  • Board consumption: <1W

  • Standby current: 80mA

  • Max input current: 10A

  • Max Wattage: 2200W

  • Relay lifespan: >=one million times

  • 100M electrical insulation resistance

  • Electric shock voltage: 1000V

  • Relay maximum pull time: 15ms

  • Relay maximum release time: 5ms

  • Working mode: inching/self-locking

  • Wireless Standard: 2.4GHz, 802.11 b/g/n

  • Mobile App: EWeLink on Android/IOS

  • Application: access control, turn on PC, garage door, etc

  • Computer application: Remote control computer boot

  • Operating temperature: -40 degrees to +70 degrees

  • Operating Humidity: 40%~80% RH

  • Item Size: 68x43x18mm

Package included:

  • 1 x Wireless Switch Module
  • 1 x User Manual
TP10310311071A-1 TP10310311071A-2 TP10310311071A-3 TP10310311071A-4 TP10310311071A-5 TP10310311071A-6 TP10310311071A-7
