Sublimation 3D Vacuum Heat Press Printing Machine for Mobile Phone Case / Mug - Red / 110V

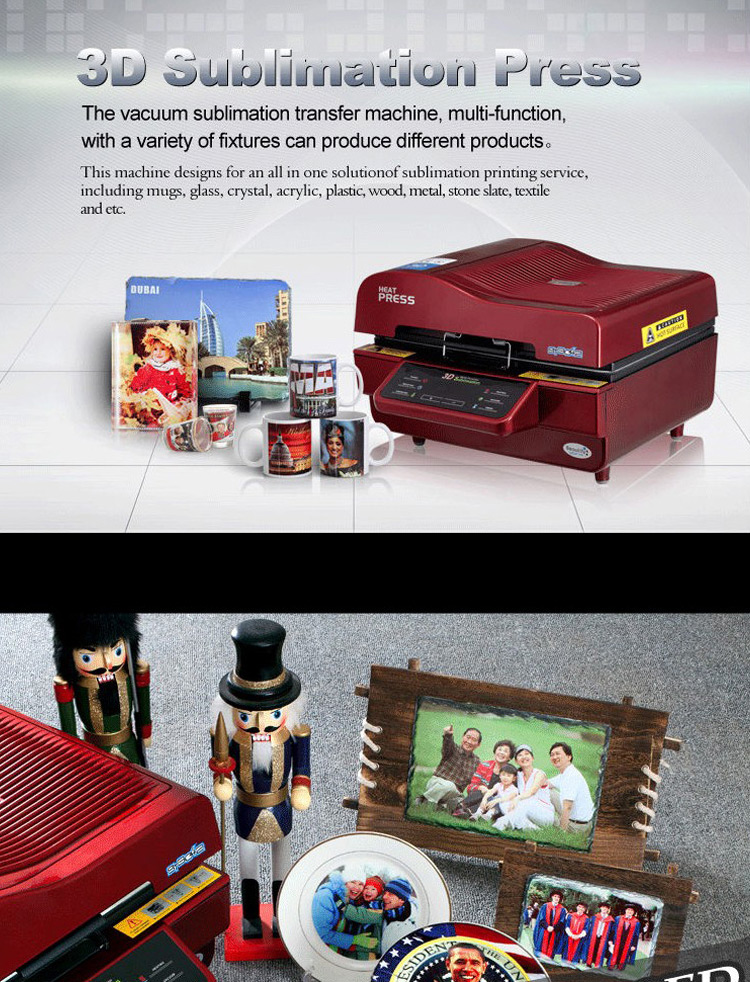

The 3D vacuum sublimation heat press machine is a multi-functional and intelligent machine that specially using heat press to print images on the sublimation products. You can make your own phone cases, mugs and marble photo frames etc. It features high efficiency, high yield, and is simple to use, helping you make clear, vivid and nice-looking pattern.
3D printing, helps you make clear, vivid and nice-looking pattern
Simple and easy to use, save your time
Use to make your own distinctive mobile phone cases, mugs, glass items, porcelain dishes and marble photo frames etc.
Universal design, compatible with any phone models that available on the market
Operation video: http://v.youku.com/v_show/id_XNDg3NjQ5MjIw.html?from=s1.8-1-1.2
Note: 1. we will deliver the EU Plug standard cable by default, if you need other plug standard please make a note when placing the order, and we will send you the corresponding plug adapter for you, please be noted and thanks.
2. The moulds and other consumables required for printing are NOT included. If you want to buy these consumables, please link: 10111567 (Blank Case), 10121247 (Blank Case), 23120094A (A4 Paper), 23120095A (Adhesive Tape), 23120096 (Mould).

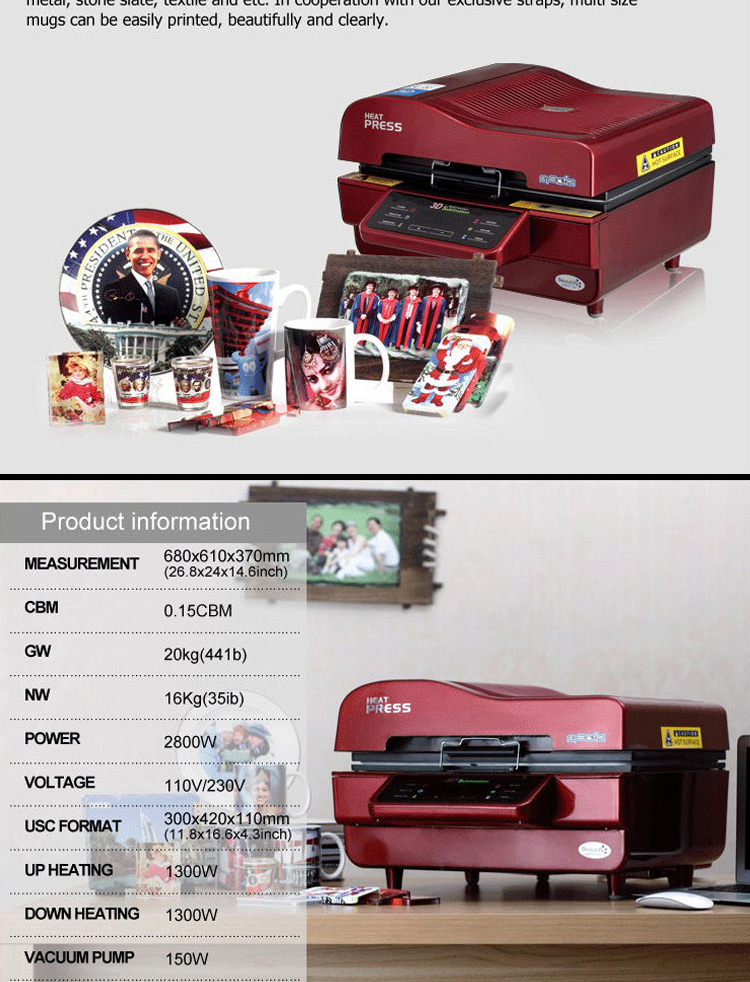

Model No.: ST3042-1
Voltage: 110V/220V optional
Size: about 62 x 47 x 32cm
For Mobile Phone Cases Making:
Switch on the power button, and the panel will display the temperature and date.
1. Press "Power" button，and the machine starts.
2. Press "Time Setting" button, and the temperature figure will flash; Set the time to 360-second (6min for hollow mold, 8min for solid mold), press "+"/"-" button to add/shorten the time.
3. Press "Temperature" button to set the temperature and the figure will flash; Set it to 180-degree, press "+"/"-" button to increase/decrease the temperature.
4. Press "Heating" button after temperature setting, and the heating starts. First click for up heating plate heating; second click for down heating plate heating; third click for switching off.
5. Wait until the temperature goes up to 190-degree, put the sticker on phone case and mould into the machine, and close the cover. Press "Vacuum" button to start vacuum-pumping. Then take a look at the vacuum meter after vacuum-pumping, it is normal if the figure ranges from 0.06-0.1.
6. Press "Timing" button after vacuum-pumping, and countdown starts. Countdown finishes, machine stops.
Note: Do not stop the machine when it is still vacuum-pumping; the machine will automatically stop when vacuum-pumping finishes.
For Mag making:
1. Set the time to 480-second by pressing "Time Setting" button and set the it to 180-degree by pressing "Temperature" button. Vacuum tray MUST be removed.
2. Stick the image firmly on the mug and clamp well.
3. Wait until the temperature goes up to 190-degree and put the mug into the machine. Press "Timing" button and countdown starts. Countdown finishes, machine stops.
- 1 x Sublimation 3D Vacuum Heat Press Printing Machine
- 1 x Pair of High Temperature Resistance Gloves
- 3 x Mug Clamps
- 1 x User Manual
- Above accessories only, other device and consumables not included
