UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester

Rate:
0
(0 reviews)
Item No.: 231401078A Ships in 1 - 3 days MOQ: 1
Email Only Price
Price:
$ 12.5 (0 % OFF)
Qty:
Add to wishlist

Estimated Shipping Cost: loading...

(Ship to loading... via loading... More Shipping Options )

Buy more, save more
Promote Us
+ units
+ units
+ units
+ units
+ units

Specifications

Retail Packaging Plastic Box
Gross Weight 0.196kg
Volume Weight 0.166kg
Length 24.000cm
Width 14.000cm
Height 2.200cm
Weight 0.175kg
With Retail Packaging Yes

Product Description

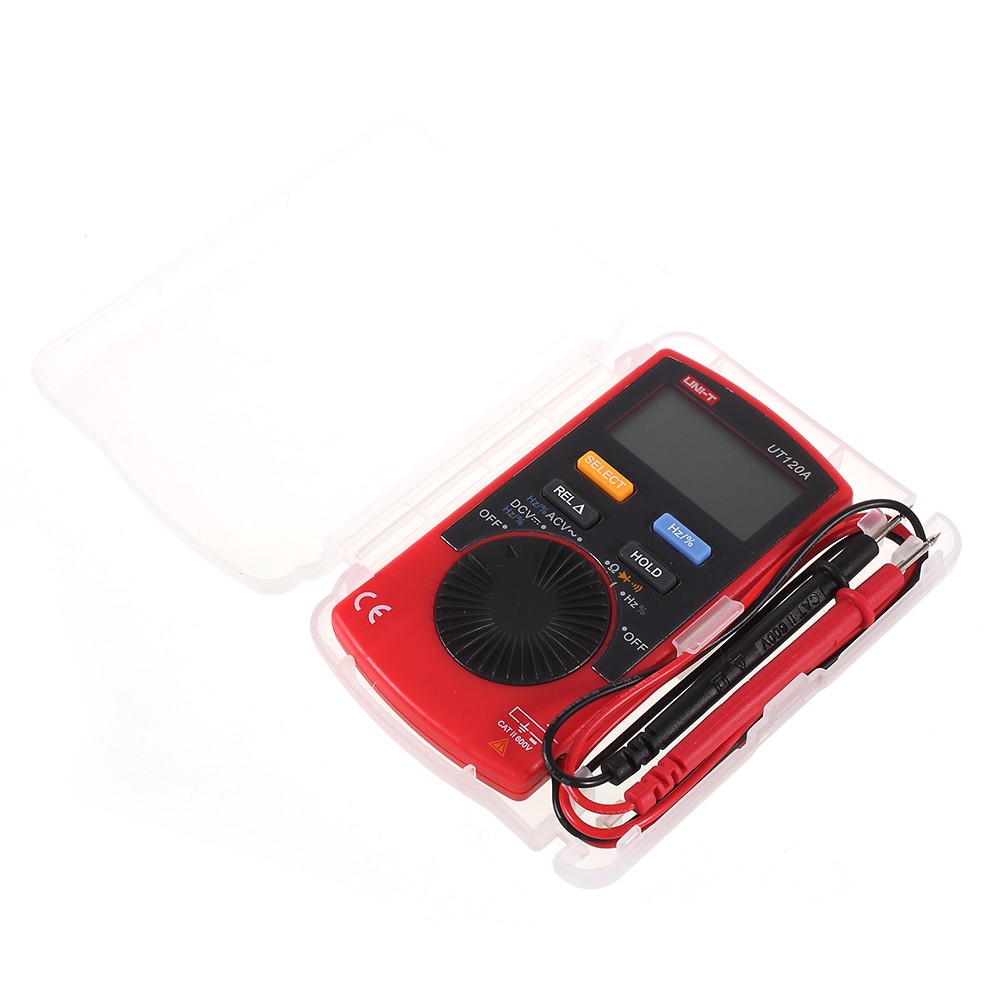

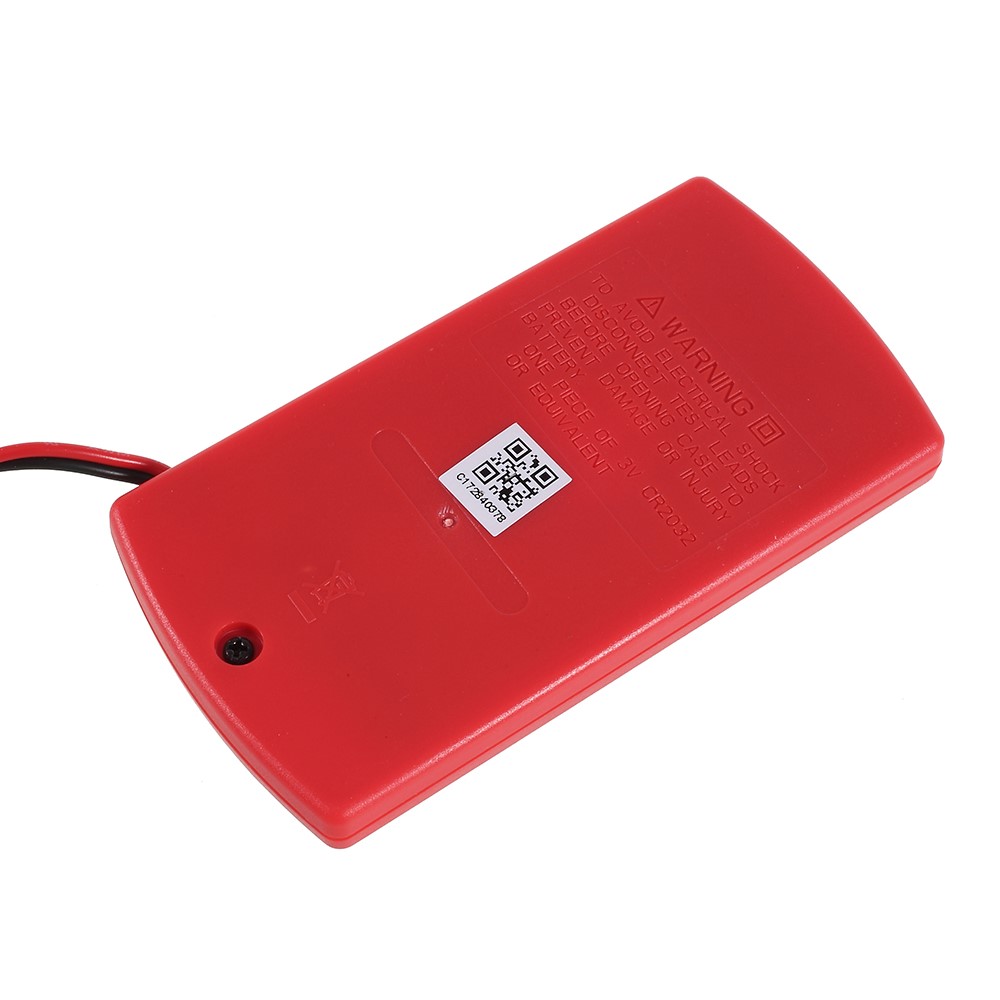

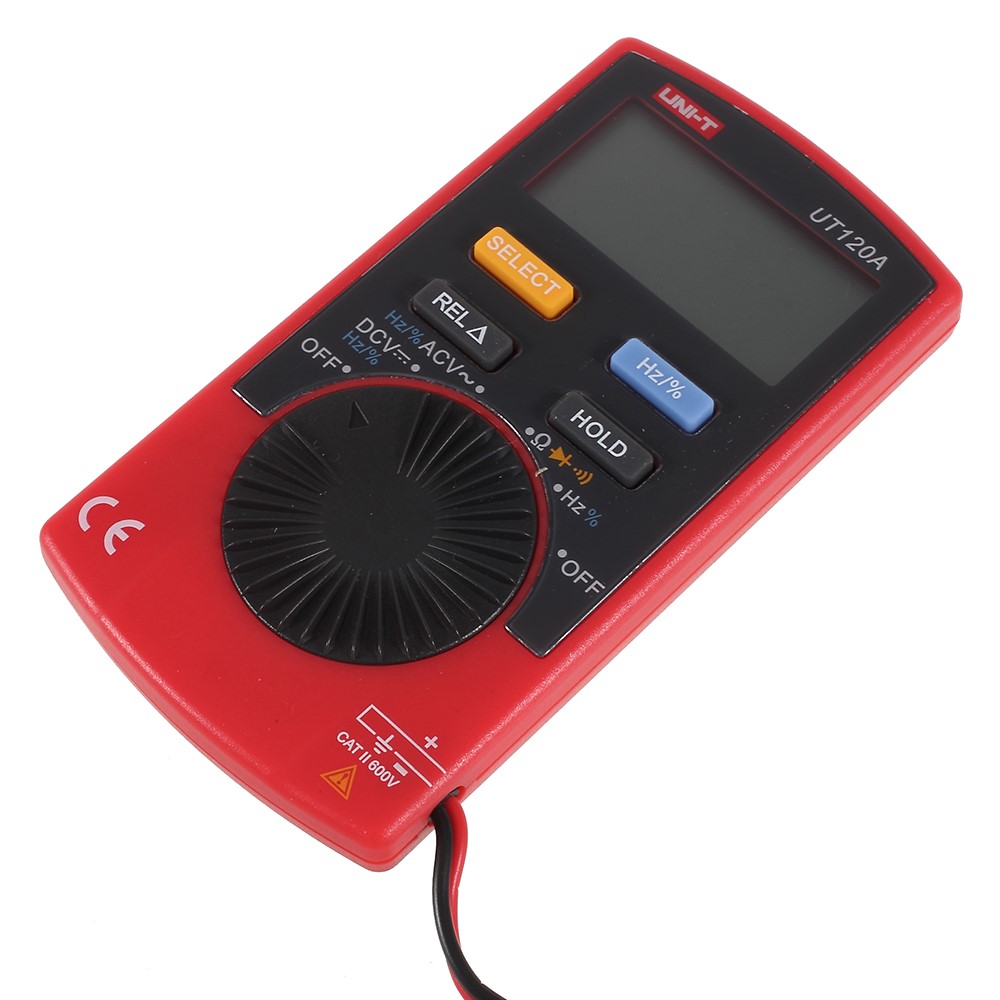

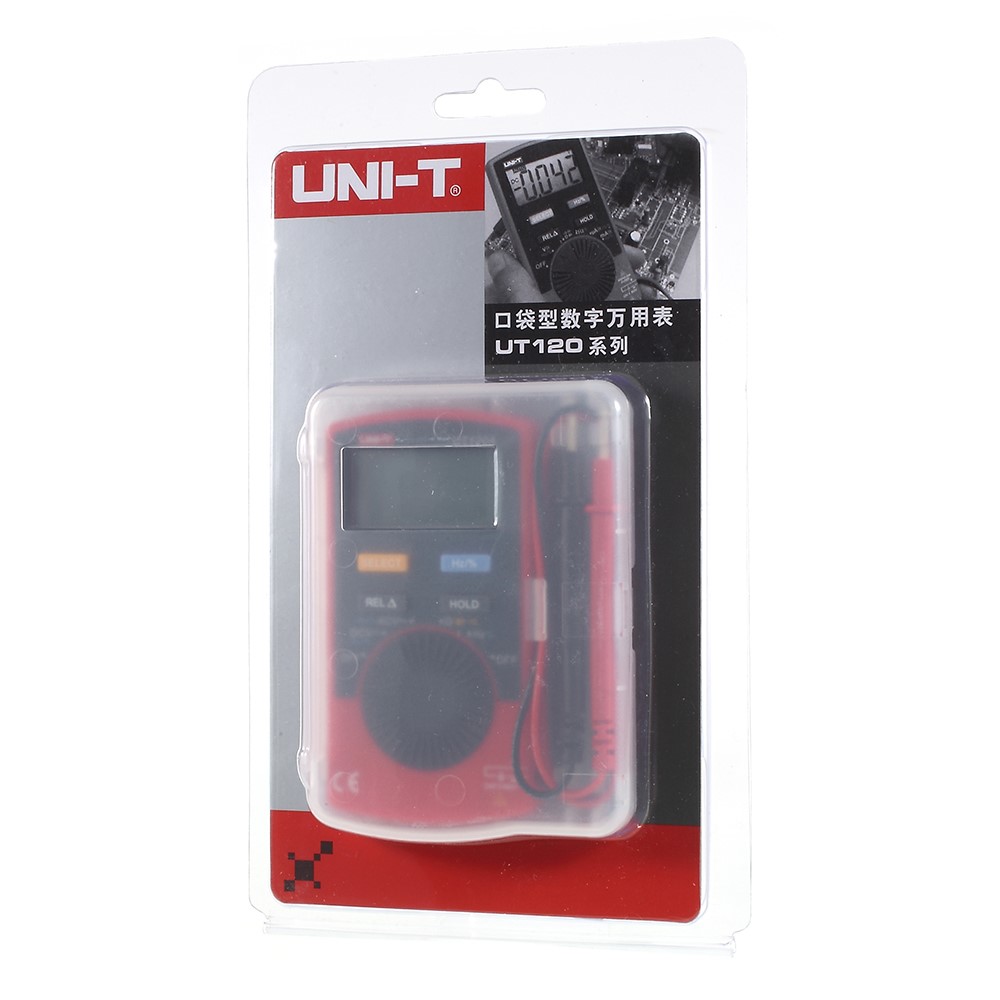

UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester
  • A great all-powerful tool for use in electrical testing

  • High efficiency and high accuracy

  • Able to measure AC/DC voltage at 4V, 40V, 400V and 600V

  • A built-in continuity buzzer is also included, as is the ability to test diodes

  • The test cables are built directly into the tester for easy use

  • The body of the tester includes a rotary dial to switch between test procedures

  • With data retention modes

Specification:

  • DC voltage (V): 4V / 40V / 400V / 600V

  • AC voltage (V): 4V / 40V / 400V / 600V

  • Resistance (Ω): 400Ω / 4kΩ / 40kΩ / 400kΩ / 4mΩ / 40mΩ

  • Frequency (Hz): 10-100KHz

  • Max display: 3999

  • Cycle: 0.1% ~ 99.9%

  • Auto power off: Around 30 minutes

  • Low voltage  indication: ≤2.4V

  • Input impedance: ≥10mΩ

  • Power: 3V battery (CR2032)

  • Product size: 109.8x58.2x10.8mm

Package included:

  • 1 x UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester

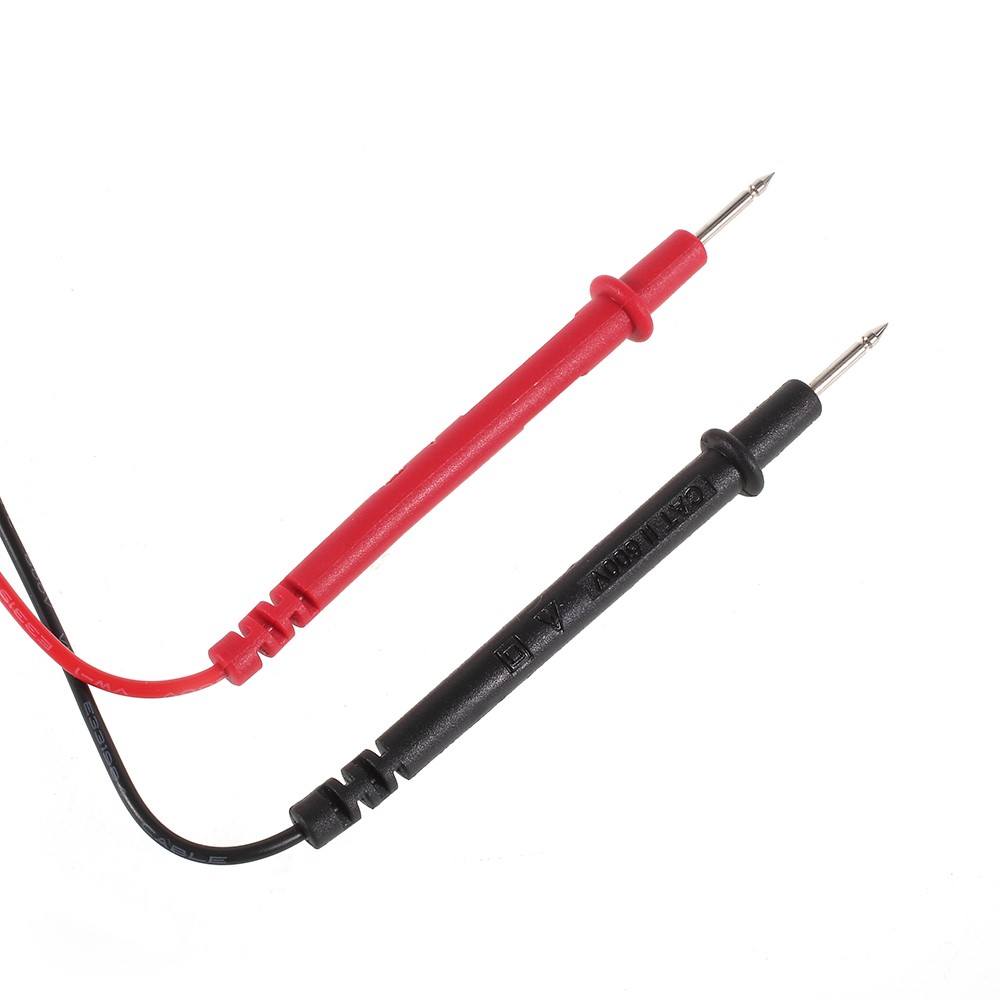

  • 2 x Test Cables

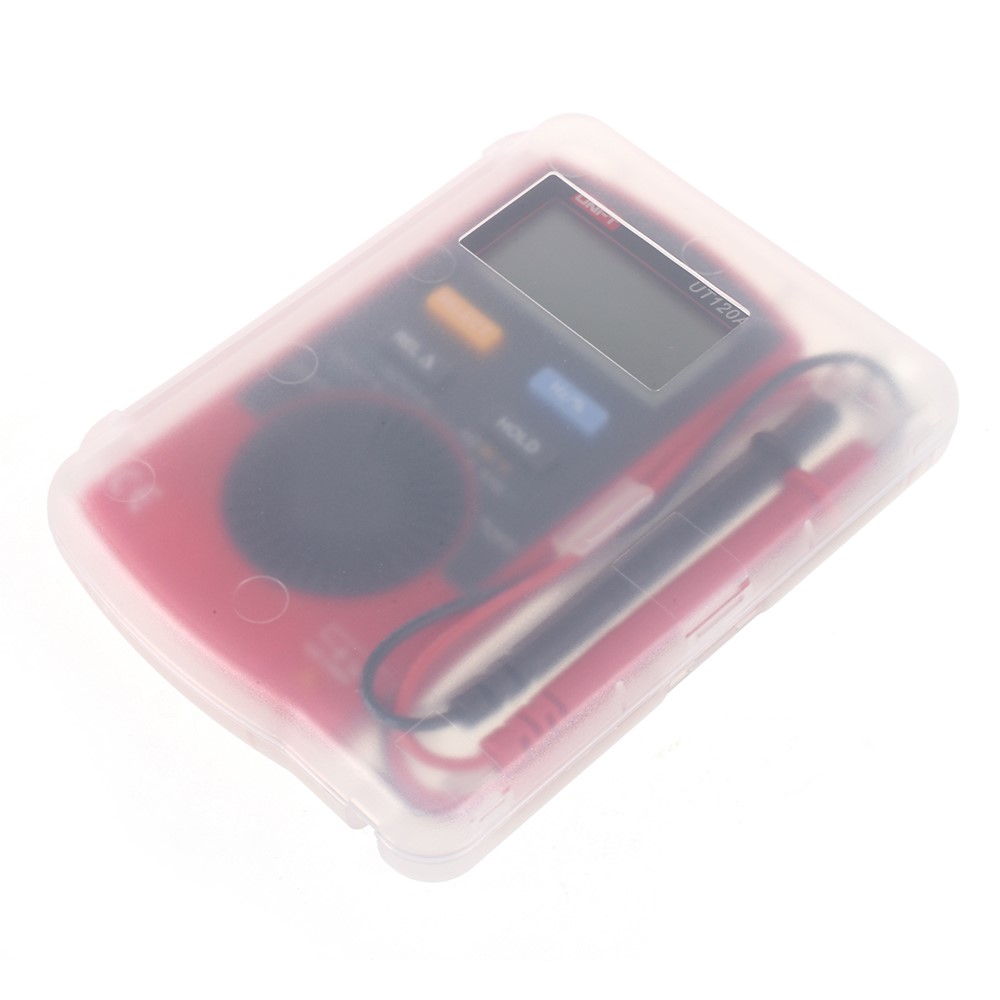

  • 1 x Plastic Box
  • 1 x User Manual
UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-1 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-2 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-3 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-4 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-5 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-6 UNI-T UT120A Multi-function Digital Multimeter AC / DC Frequency Tester-7
