USB Tester Voltage Current Power Meter Multi-functional Voltmeter Ammeter

Item No.: TP10310304632A | MOQ: 1 | Ships in 1 - 3 days |
0
(0 reviews)
Email Only Price
Price: $ 17.81
Qty:
-
+
Add to wishlist

Estimated Shipping Cost: loading... (Ship to loading... via loading... More Shipping Options )

Buy more, save more
Price Match
Promote Us >>
+ units
+ units
+ units
+ units
+ units

Specifications

Gross Weight 0.055kg
Volume Weight 0.047kg
Package Length 16.100cm
Package Width 7.200cm
Package Height 1.800cm
Package Weight 0.050kg

Product Description

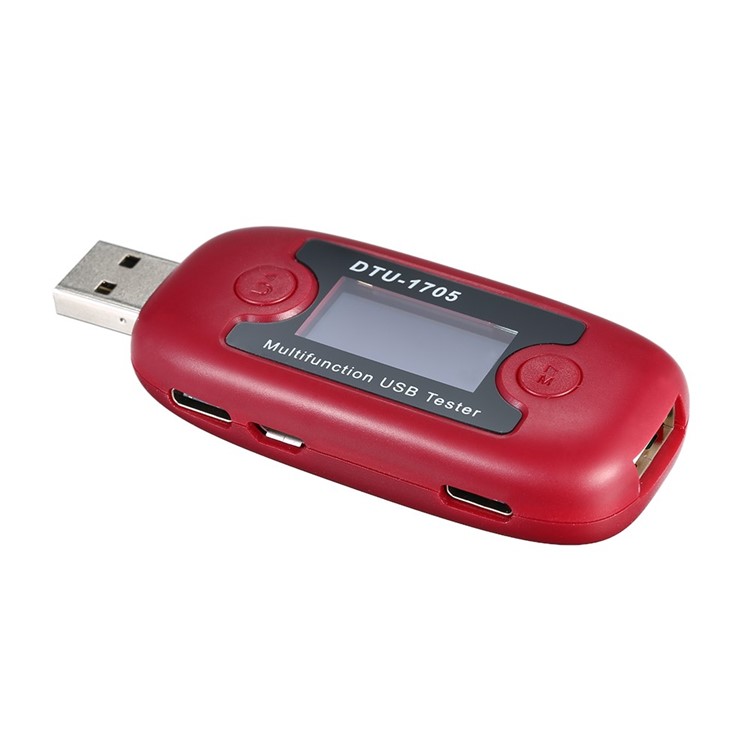

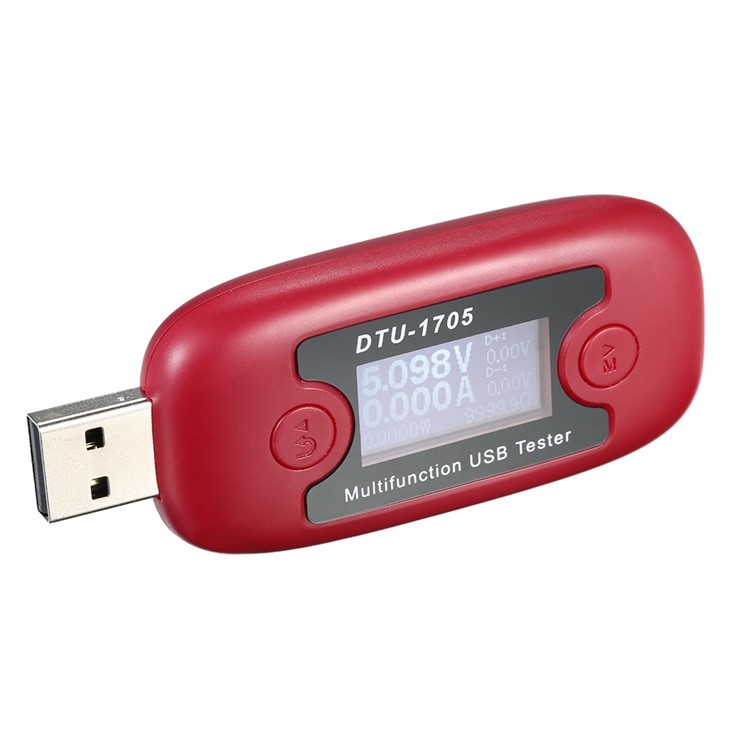

USB Tester Voltage Current Power Meter Multi-functional Voltmeter Ammeter

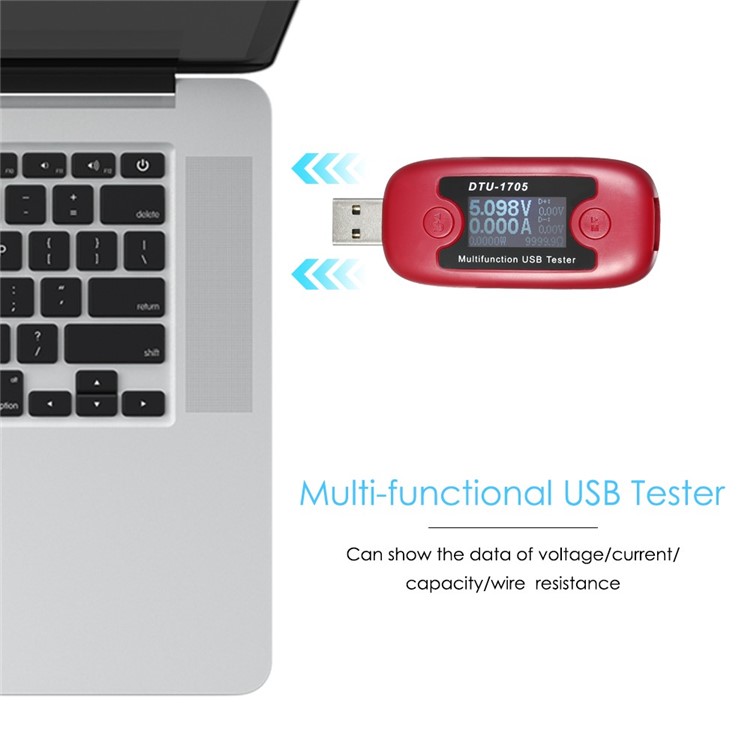

This USB Tester can display the data of voltage/current/capacity/wire resistance, etc. It can perfectly compatible with such electronic devices as phone, computer, power bank, wall charger, car charger, notebook, etc.

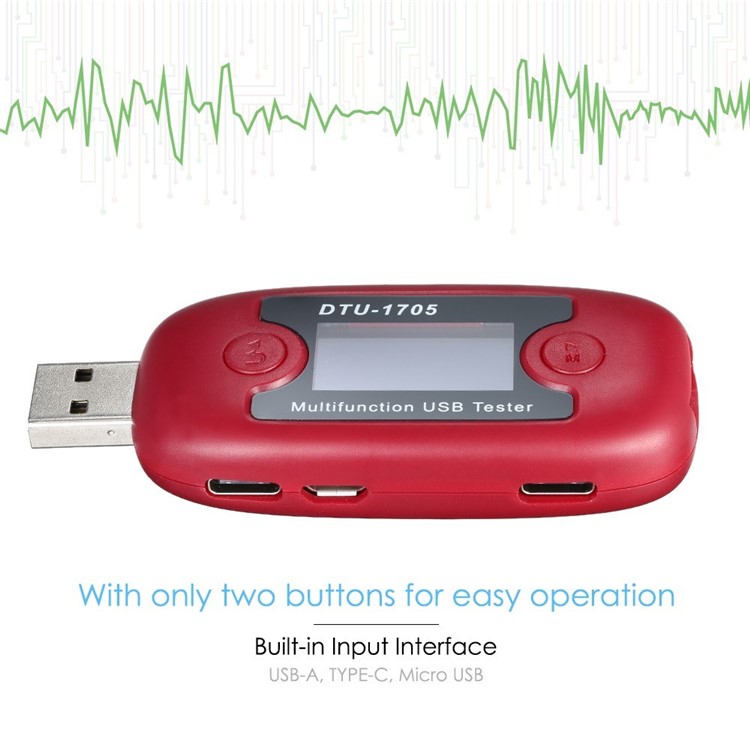

  • With only two buttons for easy operation

  • LCD display to show the data of voltage/current/capacity/wire resistance clearly and accurately

  • Includes data logging, voltage and current protection, time out protection and protocol identification function

  • Built-in Input Interface: USB-A, TYPE-C, Micro USB

  • Compact and portable design, convenient to carry

  • Wide Testing Range: Input Voltage: 4V~30V; Input Current: 0~5A

  • Perfectly compatible with such electronic devices as phone, computer, power bank, wall charger, car charger, notebook, etc

Note:

  • Please do not use it over 30V, or it will be destroyed

  • Please do not reverse power supply, or the meter will be damaged

  • When the output is off or current is less than 0.001A, the energy counter stop recording

Specification:

  • Material: ABS

  • Display: 128 * 64

  • Input Voltage: 4V~30V

  • Input Current: 0~5A

  • Voltage Resolution: 0.0001V(0.1mV)

  • Current Resolution: 0.0001A(0.1mA)

  • Voltage Accuracy: ±(0.1%+2d)

  • Current Accuracy: ±(0.1%+2d)

  • Power Consumption: 7~11mA

  • Internal Resistance: 55~65mΩ

  • Capacity Counter: 0~9999.9Ah(Resolution 0.0001Ah)

  • Power Counter: 0~9999.9Wh(Resolution 0.0001Wh)

  • Timer Range: 0~999mins

  • Input Interface: USB-A, TYPE-C, Micro USB

  • Logger Capacity: 100 Group(Loop logging)

  • Log Rate: 0~60mins

  • Protocol Trigger: for QC2.0, QC3.0, Apple, HuaWei, Samsung

  • Item Size: Approx. 8.2x3.3cm / 3.23x1.30in

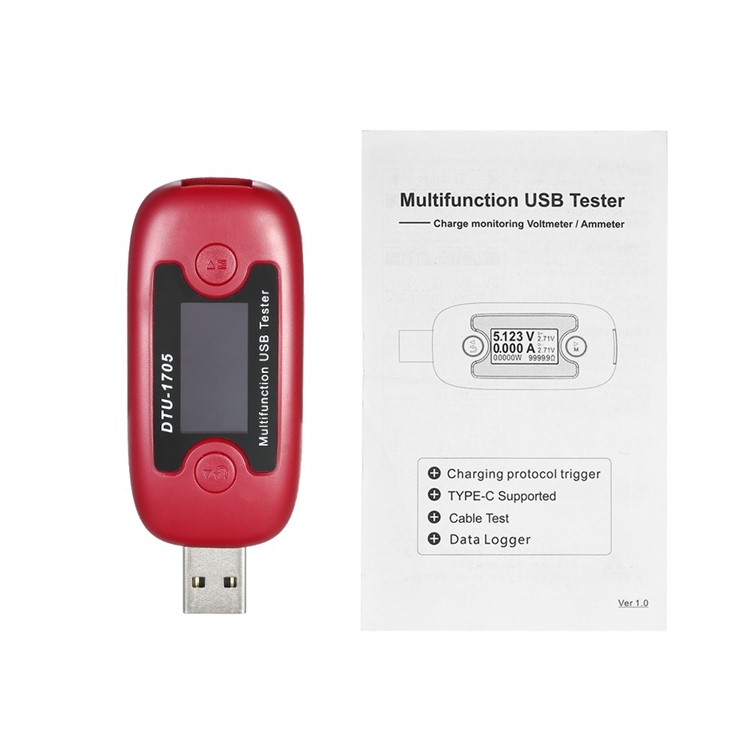

Package included:

  • 1 x USB Tester
  • 1 x English User Manual
TP10310304632A-1 TP10310304632A-2 TP10310304632A-3 TP10310304632A-4 TP10310304632A-5 TP10310304632A-6 TP10310304632A-7 TP10310304632A-8 TP10310304632A-9 TP10310304632A-10 TP10310304632A-11 TP10310304632A-12
