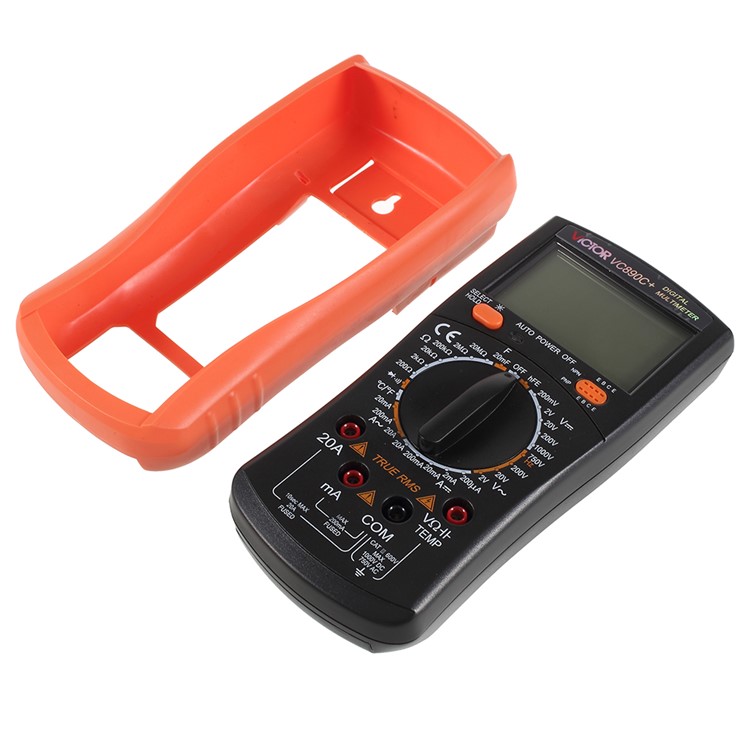

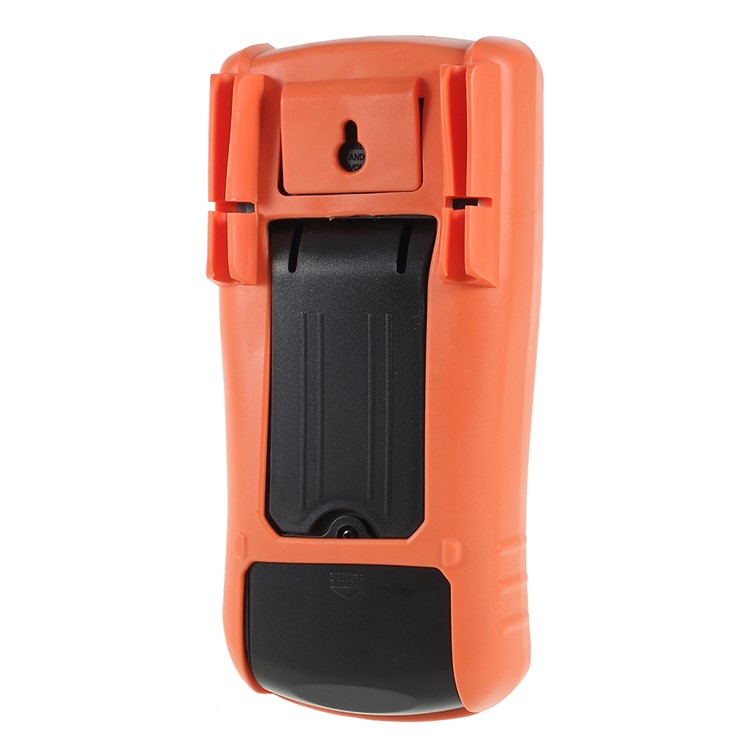

New type holster, streamline design
Large LCD makes the reading clearly.
Metallic screen board with stronger anti-magnetic and anti-interferential function
Full function protection, anti-high voltage circuit design
Specification:
Basic Function | Range | Basic accuracy |
DC voltage | 200mV/2V/20V/200V/1000V | ±(0.5%+3) |
AC voltage | 2V/20V/200V/750V | ±(0.8%+5) |
DC current | 20uA/2mA/200mA/20A | |
200uA/20mA/200mA/20A | ±(0.8%+10) | |
AC current | 2mA/200mA/20A | |
20mA/200mA/20A | ±(1.0%+15) | |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ | |
200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+3) | |
Capacitance | 20nF/2uF/200uF | ±(2.5%+20) |
Celsius | (-20~1000)°C | ±(1.0%+5) |
Special Function | |
Diode | C |
Transistor | √ |
Continuity buzzer | √ |
Low battery indication | √ |
Data hold | √ |
Auto power off | √ |
Function protection | √ |
Restorable fuse protection | √ |
Shockproof protection | √ |
Input impedance | 10MΩ |
Sampling rate | 3times/s |
AC Frequency response | 40~400Hz |
Operation way | Manual range |
Max. display | 1999 |
LCD size | 55x43mm |
Battery | 9V(6F22) |
